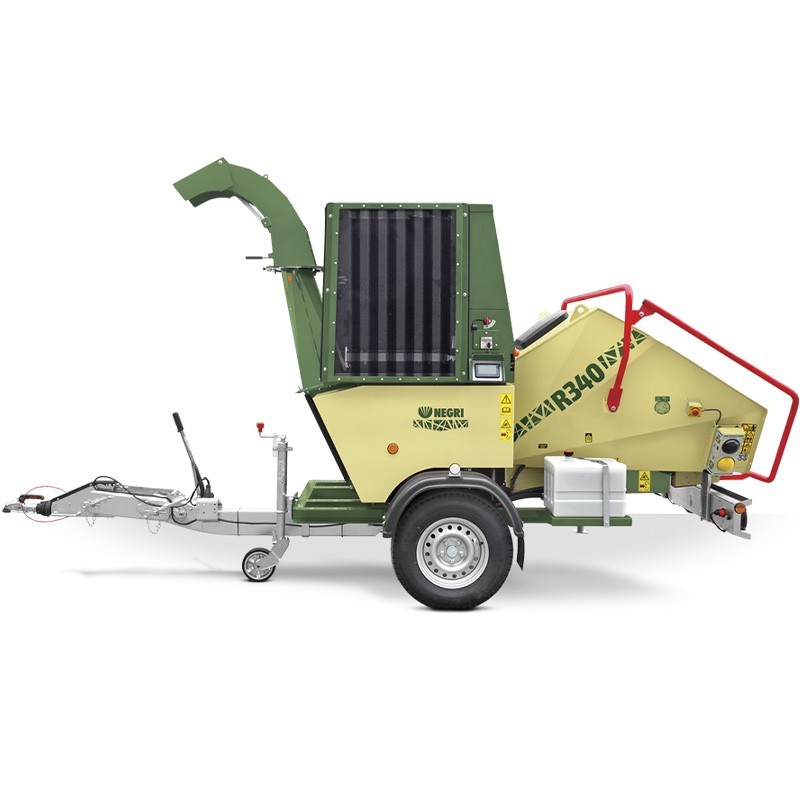

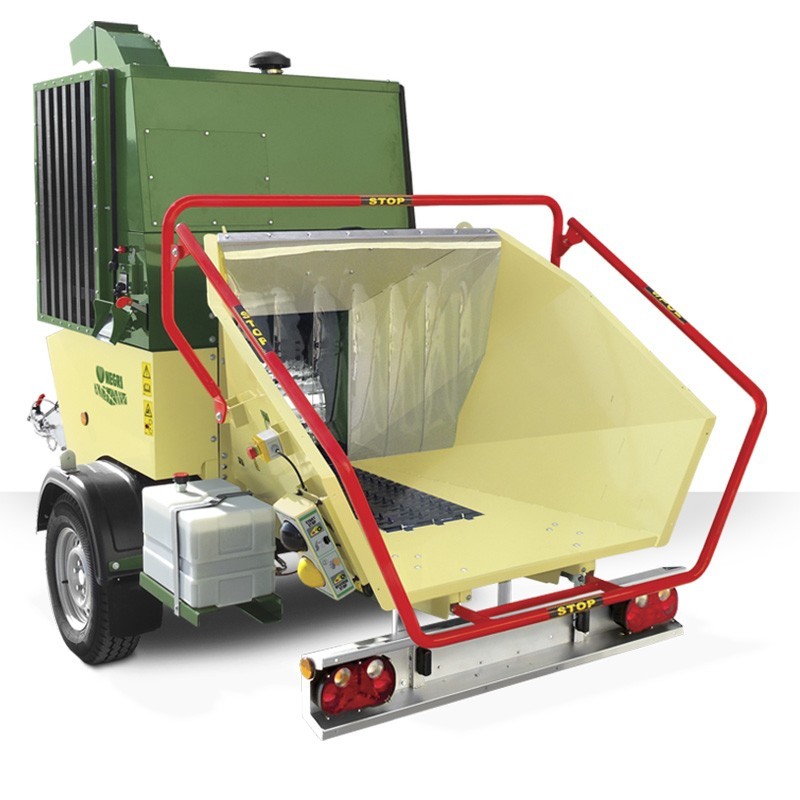

The Branch shredder Negri R340DL56OTRGN with a cutting system that combines 20 hardened steel hammers and 4 blades of the same material, it allows to shred branches with a maximum diameter of 180 mm and a hourly production of 25 to 30 m3/h, offering remarkable shredding efficiency.
Its Kohler KDI1903TCR engine, with a 56/42 hp/kw power rating and diesel-powered, it provides the power needed to quickly and efficiently process vegetable matter.
In addition, its dimensions of 4425 mm in length, 1570 mm in width and 2535 mm in height, with a discharge and insertion height of 2535 mm and 725 mm respectively, provide a robust structure adaptable to various working conditions.
 ROTOR : Blades + Hammers |
.jpg "Cuchillas reafilables (acero templado)") Resharpenable blades (hardened steel) |
.jpg "Martillos móviles reversibles (acero templado)") Reversible mobile hammers (hardened steel) |
 Removable fixed refining screen |
 Hydraulic roller adjustable in speed and direction of rotation |
 Tape of power Supply adjustable in speed and direction of rotation |
 Pivoting launching tube with adjustable depth of ejection |
.jpg "OBS - On Board System") OBS - On Board System (Multifunctional control system with Nostress) |
 Lubrication system for bearings |

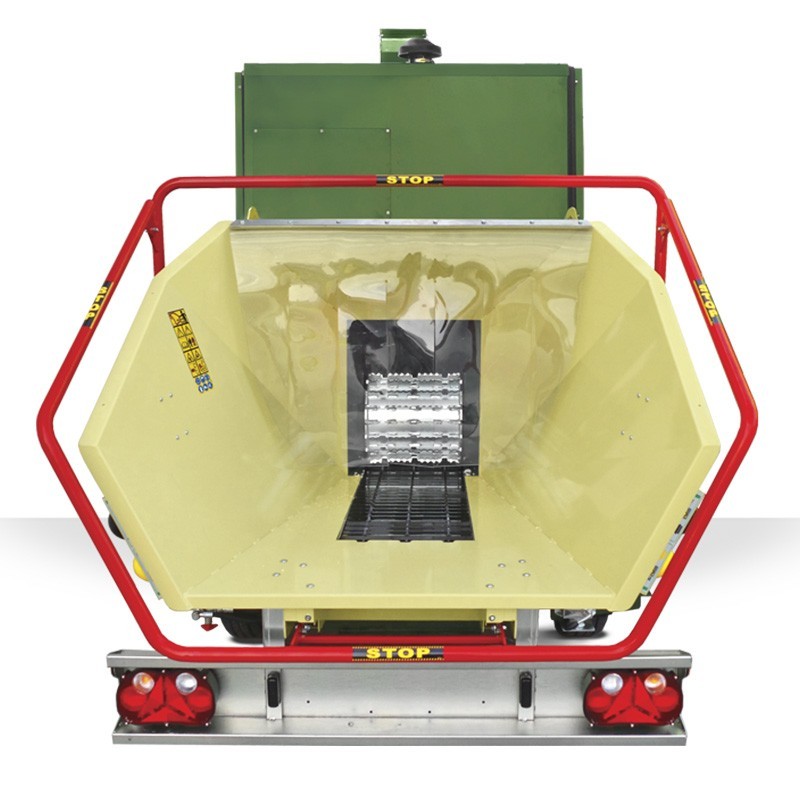

 Large and comfortable hopper |
 Belt drive with hydrodynamic coupling |
 Homologated road trailer + Adjustable ball joint steering wheel |
| Cutting system | |
| Hammers (hardened steel) | 20 hammers |
| Blades (hardened steel) | 4 blades |
| Features | |
| Hourly production | 25 - 30 m3/h |
| Crushing opening | 390 x 180 mm |
| Crushable max. | 180 mm |
| Kohler engine power | |
| Power | 56/42 hp/kw |
| Power Supply | Diesel |
| Engine | KOHLER KDI1903TCR |
| Fuel consumption | 9.6 l/h |
| Technical specifications | |
| Length | 4425 mm |
| Width | 1570 mm |
| Height | 2535 mm |
| Discharge height | 2535 mm |
| Introduction height | 725 mm |
| Crushing opening | 1360 x 880 mm |
| Weight | 1655 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
