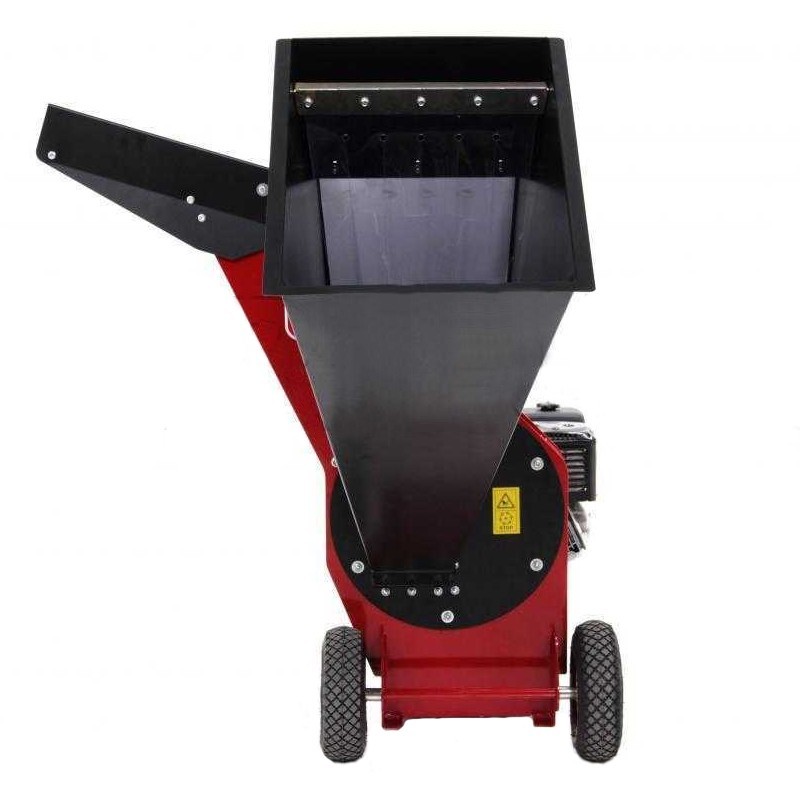

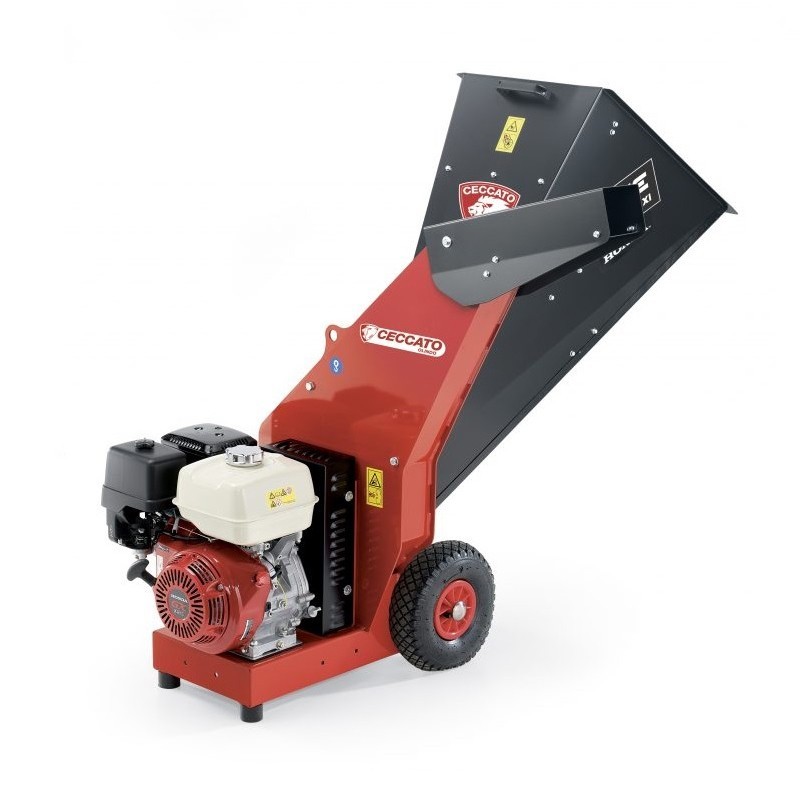

The Bio Shredder Ceccato Olindo Tritone GX390 is a powerful machine with 13 HP of power, designed to shred branches with a maximum diameter of 80 mm. Its sturdy enameled steel chassis guarantees durability and reliability. The cutting rotor combines blades and hammers, with 2 blades and 8 hammers that allow an effective rotary movement.
With a single large hopper, with an opening height of 42 cm and a width of 65 cm, this bio shredder facilitates the Power Supply of materials. In addition, it has a removable screen to reduce the pieces and an interchangeable sieve that allows to obtain a shredding of minimum dimensions of 1 cm. Its 389 cc Honda GP390 gasoline engine, 4-stroke and manual start, provides the necessary power for optimum performance.
Technical data
| Power supply | Gasoline |
| Engine | Honda GP390 |
| Displacement | 389 cc |
| Engine type | 4-stroke |
| Starter | manual |
| Number of cylinders | 1 |
| Engine lubrication | in oil bath |
| Exhaust outlet | medium |
| No. of hoppers | 1 |
| Hopper opening height | 42 cm |
| Hopper opening width | 65 cm |
| Hopper opening dimension | 19 cm |
| Grid to reduce chunks | Yes (removable) |
| Interchangeable strainer | Yes |
| Min. crushing size with screen | 1 сm |
| Power | 13 HP |
| Maximum branch diameter | 80 mm |
| Chassis material | Enameled steel |
| Type of cutting rotor | Combination of blades and hammers |
| No. of knives | 2 |
| Counter knives | 2 |
| No. of hammers | 8 |
| Blade movement | rotary |
| Grinding dimensions | 20 - 30 mm |
| Wheels | 2.50 - 4 " rear wheels |
| Product dimensions | 85 x 168 x 125 cm |
| Net weight | 134 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
