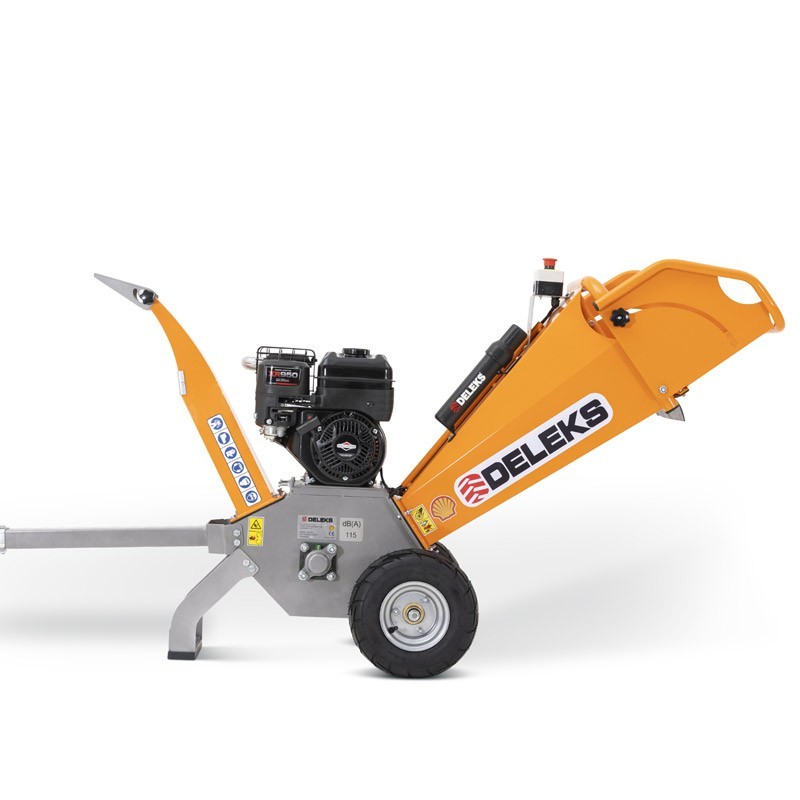

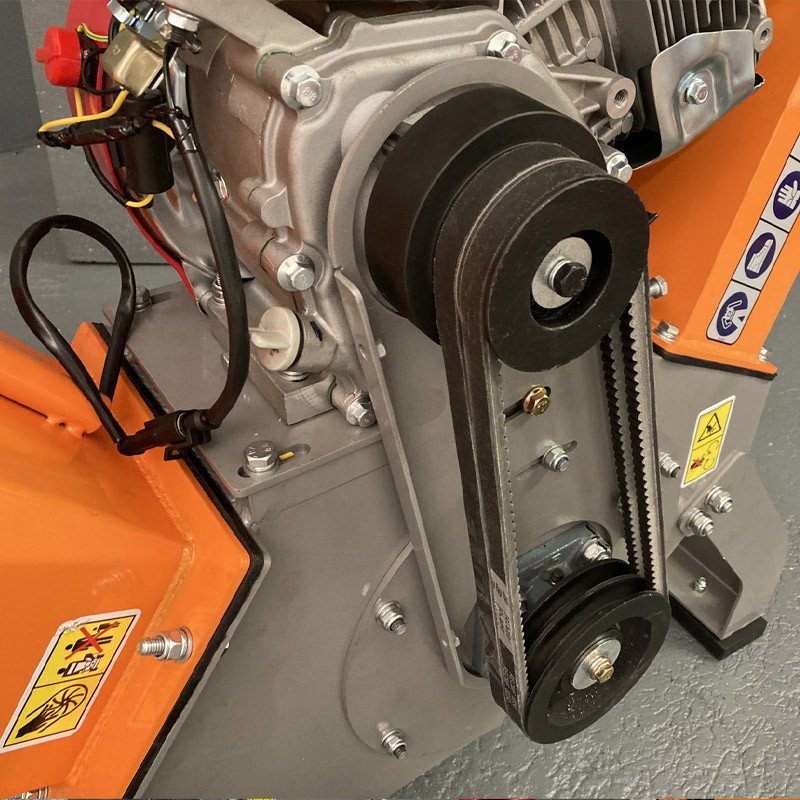

The Delex DK-500 mulcher is powered by a Briggs and Stratton XR950 4-stroke air-cooled engine. This engine provides a power output of 6.5 HP and a total displacement of 208cc. In addition, this shredder also features a V drive system with 2 belts.
The shredder model DK-500 Deleks provides us with a good cutting system. It has a drum with two blades and a counter blade. It also offers an inlet width of 150.0 * 120.0 mm.
This shredder Deleks offers an anti-friction system to avoid direct movement between the motor and the rotor. This facilitates the start-up. It also prevents the crankshaft from breaking in case of rotor block.
The DK-500 model has a safe robust and stable structure with a low center of gravity. The model also offers an ergonomic design and good CE safety protections.
This machine from Deleks comes with a noise protection helmet, 2 spare drive belts, CE safety goggles and a maintenance key.
This model of DK-500 mulcher guarantees the operator great ease and comfort to perform a good shredding. This is thanks to its outstanding features. The model has a light weight of 100 kg.
Among these features we can highlight the working width of 550 mm and the total height of 1050 mm. We can also highlight the cutting diameter of 50 mm and the cutting height of 20 to 80 mm.
The DK-500 Shredder from Deleks comes with instructions for use and maintenance of the machine and instructions for use and maintenance of the B&S engine.
| Total width | 550 mm |
| Weight | 100 kg |
| Total height | 1050 mm |
| Overall length | 1720 mm |
| Slats: Weight | 300 g |
| Transmission | V-belts |
| Efficiency | 3 m3/h |
| Cutting system | Drum with 2 blades + 1 counter blade |
| Size of chips | 5 - 15 mm |
| No. of core transmission | 2 |
| Core size | 13x860 |
| Safety system | Emergency button |
| Slats: size | 150*55 mm |
| Outlet dimensions | 85*100 mm |
| Maximum cutting diameter | 60 mm |
| Engine | Briggs&Stratton XR950 - 208cc - 6.5HP |
| Starter | With cable |

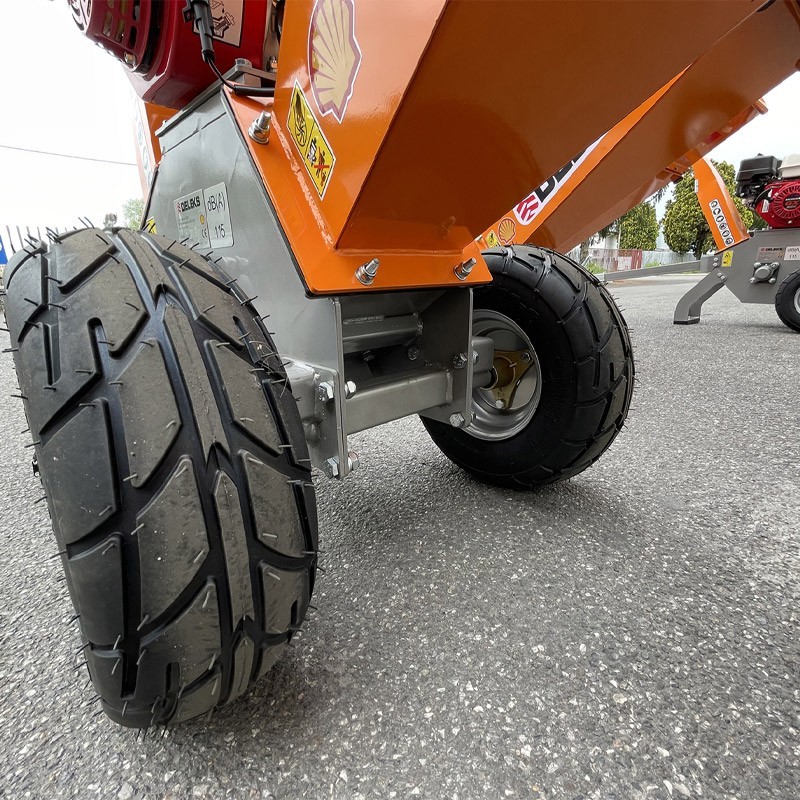

| Wheels: measures | 13X500-6 |
| Inlet width | 150*120 mm |
| Rudder | √ |
| Ejection height | 1050 mm |
| Fuel consumption | 0.8 l/h |
| Packing dimensions | 880*580*870 mm |
