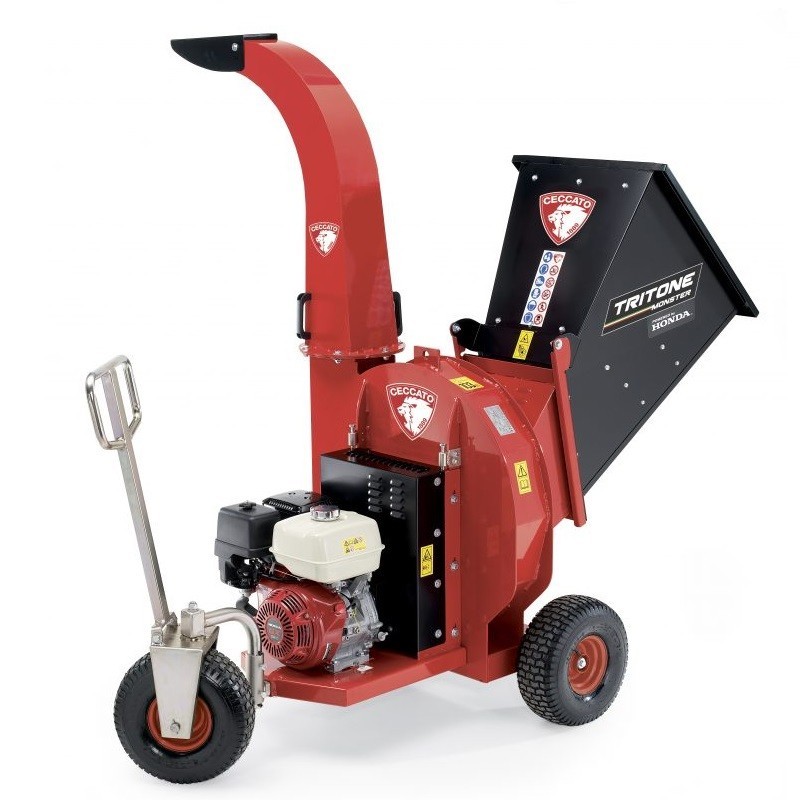

The Ceccato Olindo Tritone Monster GX390H Bio Shredder is a powerful machine designed for efficient shredding of branches up to 100 mm in diameter. Its enameled steel chassis ensures durability and strength, making it a robust choice for landscaping and grounds maintenance work.
For exceptional performance, it features a combined blade and hammer cutting rotor, consisting of 4 blades and 24 hammers, ensuring effective shredding of plant materials.
The rotary motion of the knives allows for consistent shredding with output dimensions of 20-30 mm. In addition, its high, rotating exhaust outlet facilitates efficient evacuation of shredded waste.
Technical data
| Power Supply | Gasoline |
| Engine | Honda GX390 |
| Displacement | 389 cc |
| Engine type | 4-stroke |
| Starter | manual |
| Number of cylinders | 1 |
| Engine lubrication | in oil bath |
| Exhaust outlet | high rotary |
| No. of hoppers | 1 |
| Hopper opening height | 52 cm |
| Hopper opening width | 62 cm |
| Hopper opening dimension | 19 cm |
| Grid to reduce chunks | Yes |
| Interchangeable strainer | Yes |
| Min. crushed size with sieve | 1 сm |
| Power | 13 HP |
| Maximum branch diameter | 100 mm |
| Chassis material | Enameled steel |
| Type of cutting rotor | Combination of blades and hammers |
| No. of knives | 4 |
| Counter knives | 2 |
| No. of hammers | 24 |
| Blade movement | rotary |
| Grinding dimensions | 20 - 30 mm |
| Wheels | 15 x 6 - 6" rear |
| Product dimensions | 150 x 220 x 197 cm |
| Net weight | 340 Kg |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
NOT SUITABLE FOR USE ON PUBLIC ROADS
