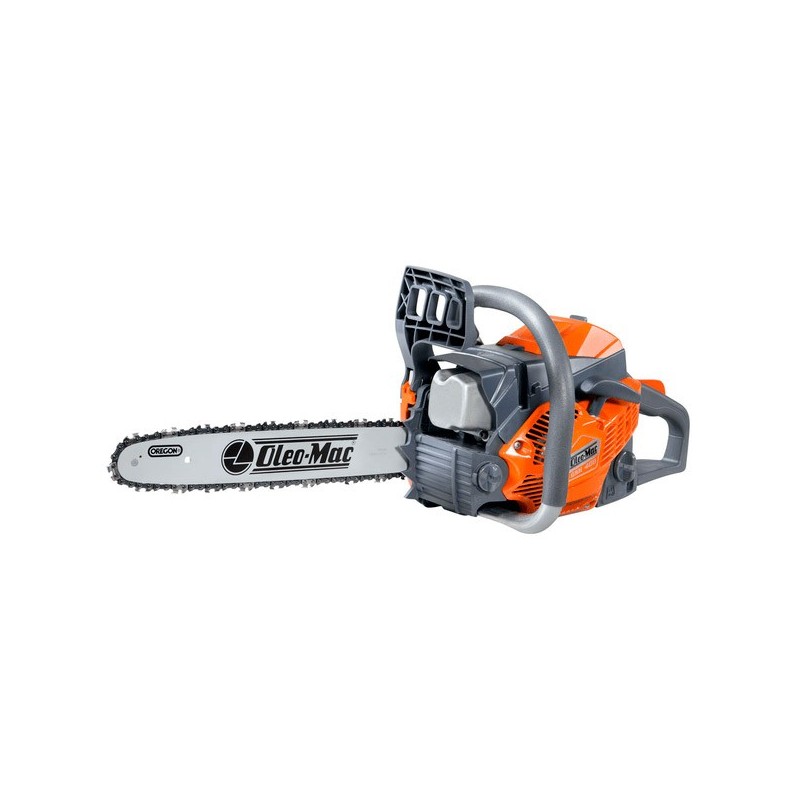

The Chainsaw Oleo Mac GSH 400 2T has a Stroke Emak engine (EURO5) that provides us with a power of 2.3HP - 1.7kW and a displacement of 38.9cc. The GSH 400 model is focused for the private user, it is ideal for domestic work, small pruning and trimming, cutting firewood for fireplaces.
The Oleo Mac GSH 400 2THas an electronic capacitive ignition system. It also has a analog coil and a TORCH L8RTF spark plug. It includes the ICE DEVICE system and the EASY ON system.
This chainsaw is equipped with a Power Supply and lubrication system. It has a ruixing carburetor and a Nylon filtering system. It has a Mix 4% with PROSINT 2% oil (50:1) and a fuel tank capacity of 0,32L
The Chainsaw Oleo Mac GSH 400 2T offers us a 41cm / 16" Oregon sword and a step of 3/8 - 050" Oregon chain. This model has an oil tank capacity of 0.22L and a weight (WITHOUT cutting tools) of only 4.5Kg.
| Displacement | 38.9cc |
| Power | 2.3HP |
| Sword length | 41cm - 16" |
| Chain pitch | 3/8 "x.050" |
| Oil tank capacity | 0.22L |
| Gasoline tank capacity | 0.32L |
| Sound pressure | 103.2 dB |
| Power level | 111.5 dB(A) |
| Dry weight without bar and chain | 4.5kg |
 |
38.9 cc 2-stroke engine. A Euro 5 version with catalytic converter is available for the European market. It has a nylon filter. It increases the hours of working autonomy between one cleaning and another. This is thanks to the high filtration surface |
 |
It has a nylon filter. It increases the hours of working autonomy between one cleaning and another. This is thanks to the high filtration surface |
 |
It has a chain tensioner in the side position. This facilitates the chain adjustment phase. This avoids any risk of contact with the chain. |
 |
It has an adjustable aluminum oil pump. It facilitates the operator's work by allowing the oil flow rate to vary according to machine usage and bar/chain combination. It guarantees lower consumption and greater environmental protection. This happens thanks to the zero oil flow when the engine is idling. |
 |
It has an anti-vibration system. It is composed of 3 spring dampers and 2 rubber buffers interposed between the control lever and the motor support. It guarantees the total isolation of the operator from vibrations for a greater comfort of use. |
 |
It has a single multifunctional lever. It has an on/off switch. It also has integrated choke control and semi-acceleration command. This ensures practicality and ease of use. |
 |
ICE DEVICE" system. It allows to work without problems even at low temperatures, even below 0°C. This is because it diverts the hot air flow from the cylinder to the air filter to prevent icing. |
 |
It has an "EASYON" starting system. This reduces kickback during engine start-up |
| IMPORTANT Oil level and lubrication must be checked by the customer before start-up! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
- Battery and charger not included
Blade and chain not included
