Manual dump box for tractor Giemme TB 140 - 180 cm
- Weight : 90 - 130 kg
- Power : 15 - 70 HP
- Country of manufacture : Italy
€900.02 VAT incl.
Deleks products take about 15 to 25 days. |

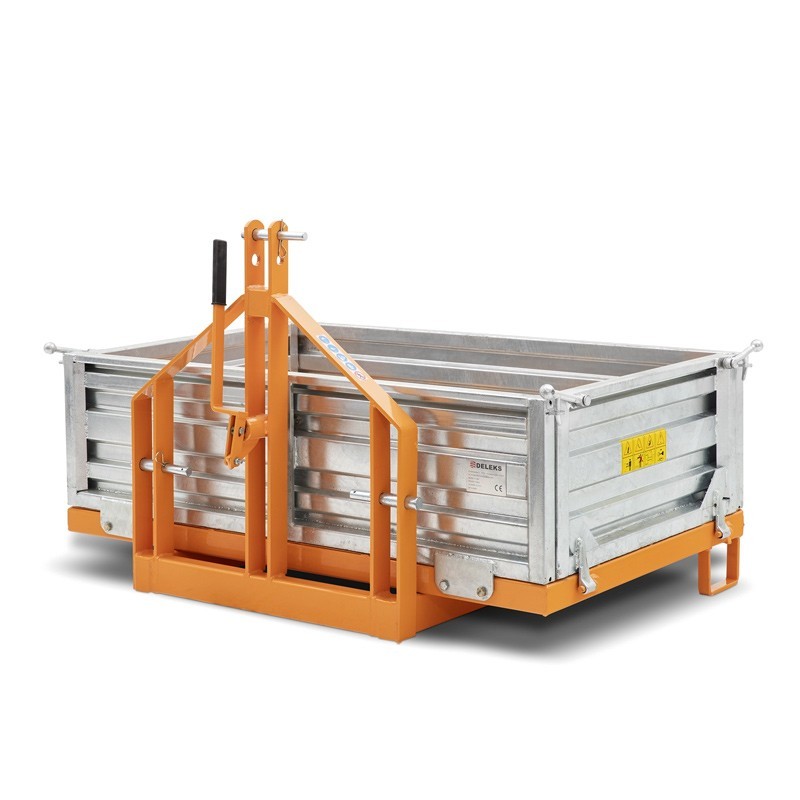

The tractor box Deleks T-1600 is an accessory for tractors with a power of 20 to 90HP. This box offers a width of 160cm with a height of 46cm, providing a volume of 0.62m³. Thanks to these features, we can load up to 700kg.

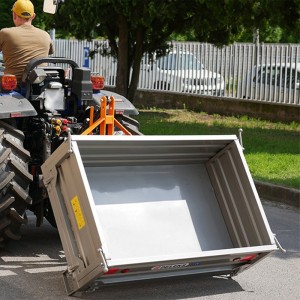

This model of Deleks box features a 3-point hitch of type CAT 1-2 with a thickness of 11mm of Hardox. The T-1600 box provides a tilt of 90º with mechanical movement.
Thanks to the 2mm SSAB sheet thickness of the blade, ease of use for the operator is fully guaranteed. This model measures 170cm in width, 112cm in height, and 70cm in length, with a weight of only 124kg.
Width | 1600.0 mm |
Weight | 169.0 kg |
Tractor Power | 20 - 90 HP |
3-point Hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Load Capacity | 700.0 Kg |
Load Volume | 0.62 m3 |
Sheet Thickness. 3-point Hitch | 11.0 mm |
Distance Between Lower Points | 500.0 - 765.0 mm |
External Blade Dimension | 1600.0*1120.0*460.0 mm |
Internal Blade Dimension | 1500.0*1020.0*400.0 mm |
Total Dimension | 1700.0*1230.0*940.0 mm |
Sheet Thickness | 2.0 mm |
Tilt | Mechanical |
Tilt Angle | 90° |
Open Sides | 3 |
Packaging Dimension | 1700.0*1120.0*700.0 mm |
