Hydraulic branch shredder Zeppelin ESTRF30100Z 150 mm
- Cutting diameter: 150 mm
- Power requirement: 30-100 Hp
- Blades: 4
- Weight: 448 kg
CARDAN SHAFT INCLUDED
€4,859.28 VAT incl.

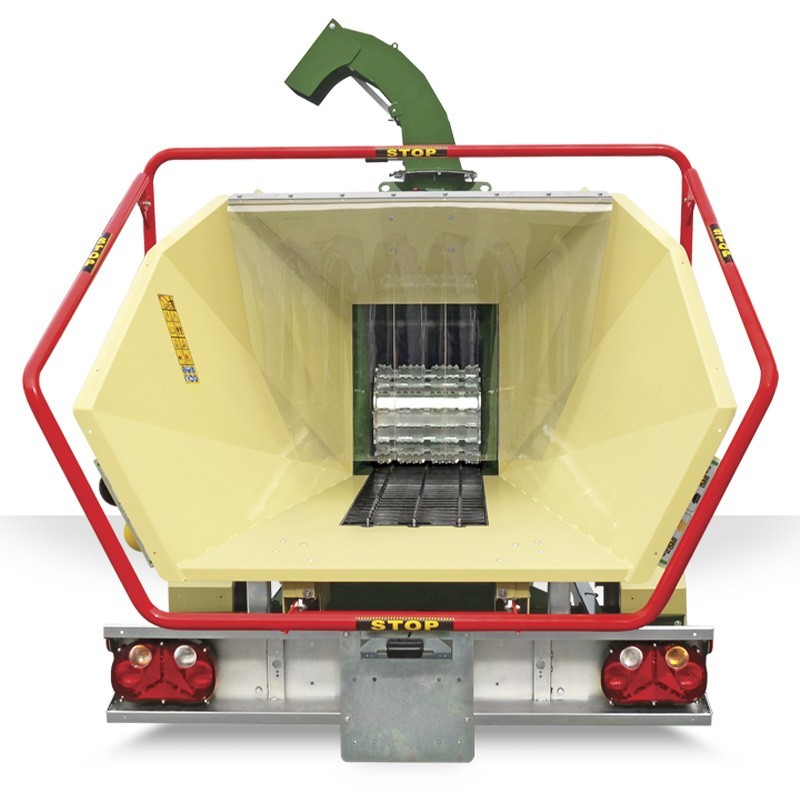

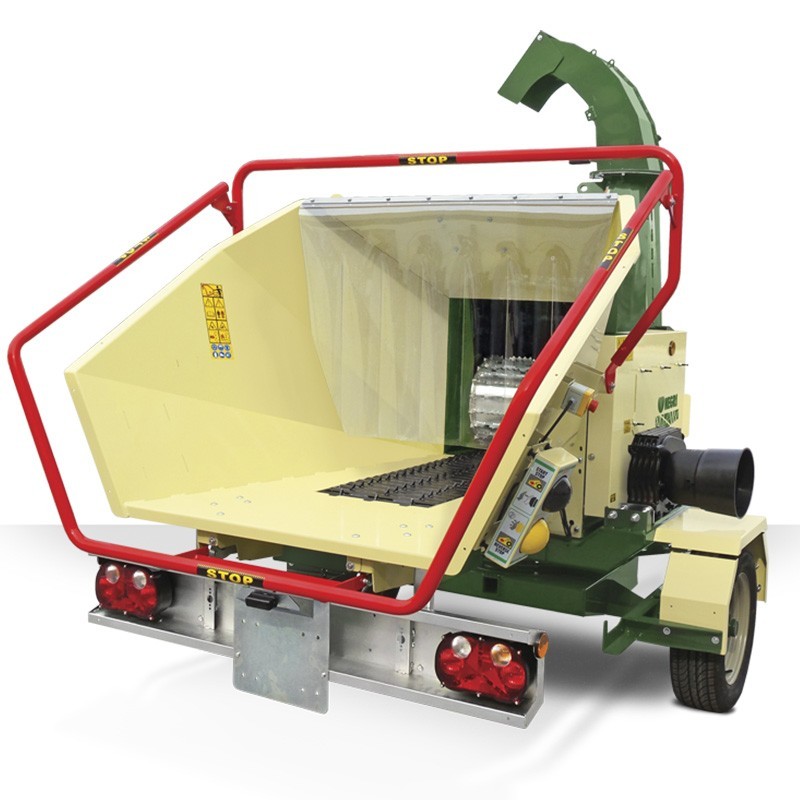

The Bio shredder for tractor Negri is a robust and efficient tool designed to shred branches and plant residues with an hourly output of 25 to 30 m3/h, ideal for agricultural and forestry work.
With a wide shredding opening of 390x160 mm and shredding capacity of 390x160 mm, it is capable of shredding branches up to 180 mm in diameter, offers versatility in material processing.
Its operation, driven by the tractor's minimum power of over 60/44 hp/kw, allows for optimum performance, while its cutting system with 4 blades and 20 hammers the hardened steel frame ensures efficient and consistent crushing.
The ease with which it can be towed by the tractor makes it a convenient and adaptable tool for various needs in the work of removing branches and plant residues.
ROTOR : Blades + Hammers |
Resharpenable blades (hardened steel) |
Reversible mobile hammers (hardened steel) |
Removable fixed refining screen |
Hydraulic roller adjustable in speed and direction of rotation |
Tape of power Supply adjustable in speed and direction of rotation |
Pivoting launching tube with adjustable depth of ejection |
OBS - On Board System (Multifunctional control system with Nostress) |
Lubrication system for bearings |
Large and comfortable hopper |
Belt drive with multiplier group |
Rotating fifth wheel |
Cutting system | |
Blades | 4 hardened steel |
Hammers | 20 hardened steel |
Features | |
Hourly production | 25 - 30 m3/h |
Crushing opening | 390x160 mm |
Crushable max. | 180 mm |
Driving force | |
Minimum tractor power | > 60 / 44 hp/kw |
Power Supply | Tractor towing |
Technical specifications | |
Length | 3950 mm |
Width | 1730 mm |
Height | 2550 mm |
Discharge height | 2550 mm |
Introduction height | 820 mm |
Introduction opening | 1360 x 880 mm |
Crushing opening | 390 x 180 mm |
Weight | 1125 kg |
Chipper accessories Negri:
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
INCLUDES PTO SHAFT
