Branch Shredder PTO Geo Italy ECO23 18 - 50 HP
Branch Shredder PTO Geo Italy ECO23 18 - 50 HP
Branch Shredder PTO Geo Italy ECO23 18 - 50 HP
Branch Shredder PTO Geo Italy ECO23 18 - 50 HP

Branch Shredder PTO Geo Italy ECO23 18 - 50 HP

Rating:
(0)
  • Minimum tractor power 18 - 50 HP/13 - 37 kW
  • Blades 4
  • Rotor dimensions 600 mm
  • Maximum cutting diameter 13cm
En stock
Extras
Extras
Precio total de la opción:
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
18 - 50 HP
icon Cutting rotor type
Cutting rotor type
Disc rotor
icon Number of blades
Number of blades
4
icon Max branch diameter
Max branch diameter
130 mm
icon Cardan shaft
Cardan shaft
Included
icon Number of hoppers
Number of hoppers
1 hopper
icon Safety switch
Safety switch
Yes
icon Drag rotors
Drag rotors
1 Drag rotor
icon Power Supply hydraulics
Power Supply hydraulics
Self-powered
icon Lever of
Lever of
Security
icon Crushing opening
Crushing opening
130 x 270 mm
icon ✔️
✔️
Inverted roller rotation
icon ✔️
✔️
High output
icon Chimney rotation
Chimney rotation
Yes
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
430 kg
€3,506.21 excl. VAT
- 4%
€3,365.96 excl. VAT
€4,072.81 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Branch Shredder PTO Geo Italy ECO23 18 - 50 HP
€4,072.81
Extras
Extras
Precio total de la opción:
Qty

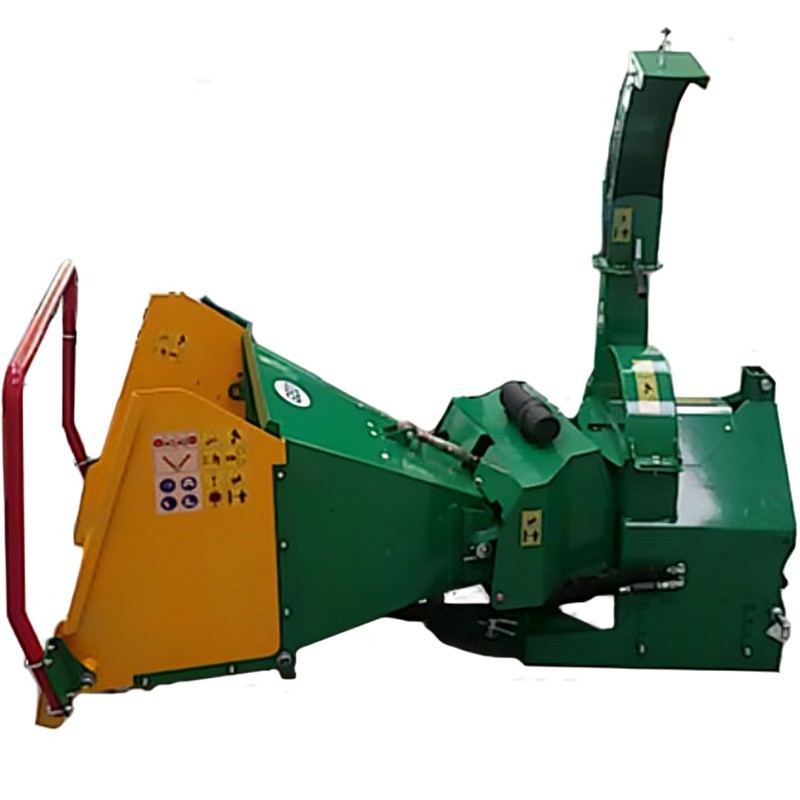

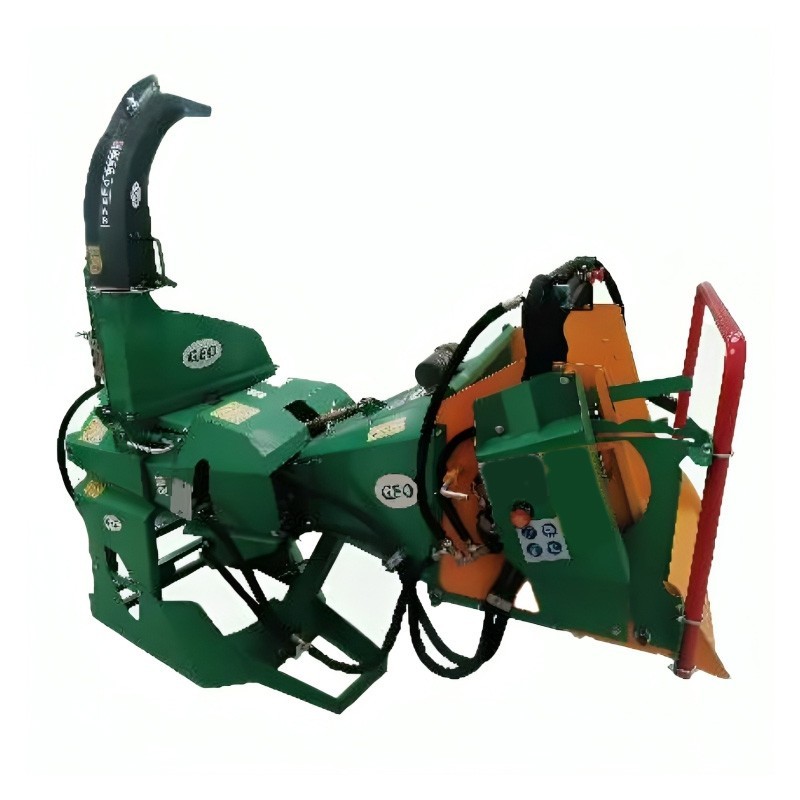

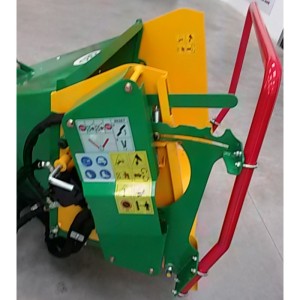

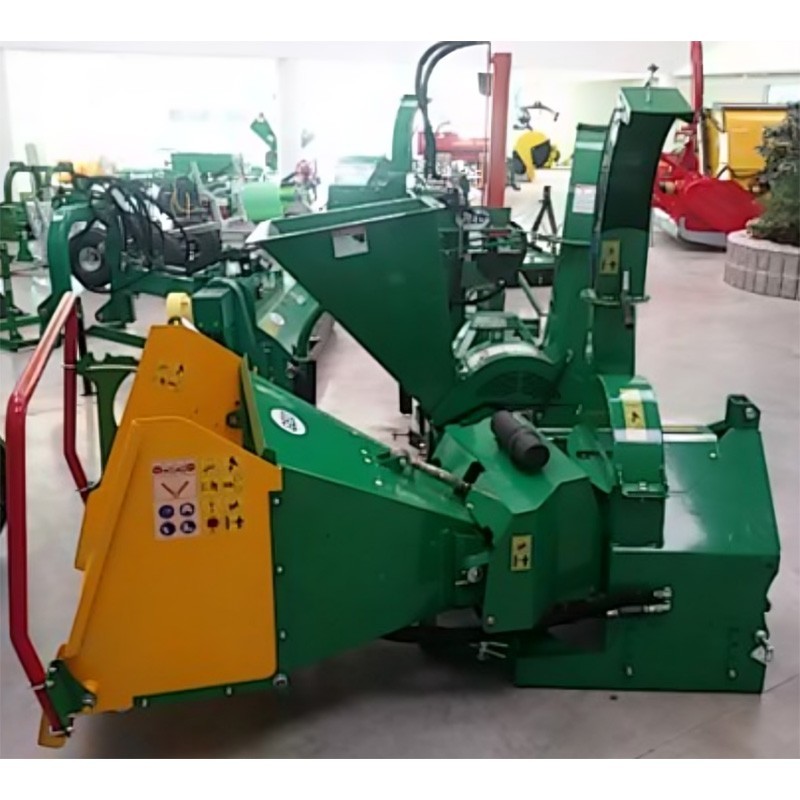

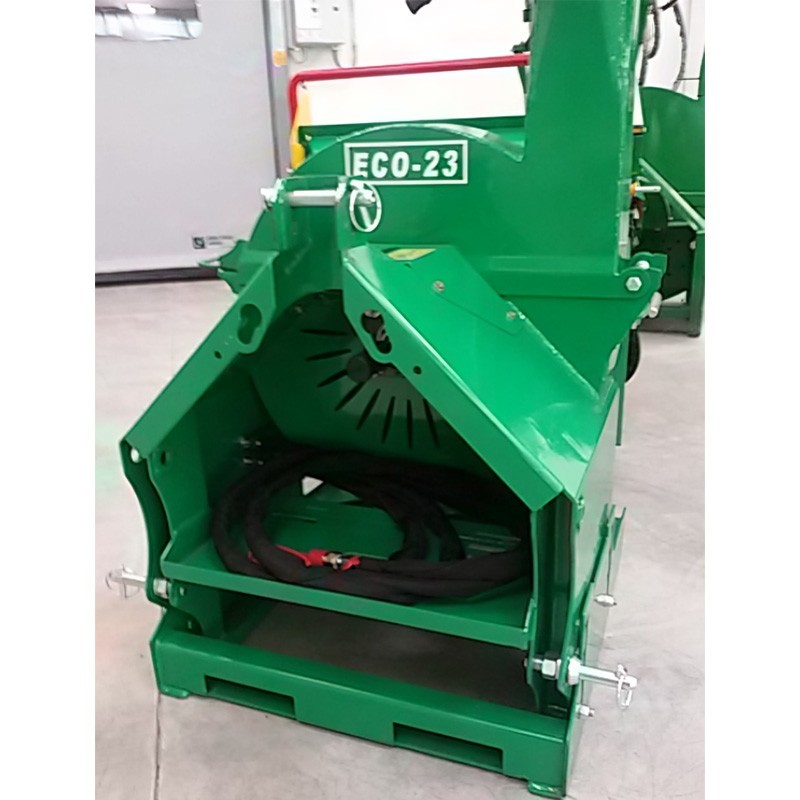

ECO23 Branch Bio-Chipper Geo Italy

The ECO23 Biochipper from Geo Italy is an efficient option for shredding branches and plant materials, designed to fit tractors with power ranging from 18 to 50 HP (13-37 kW). With a maximum capacity to shred materials with a diameter of up to 13 cm.

Its wide opening power Supply of 13 cm x 27 cm allows easy and fast loading of materials into the rotor, thus facilitating the shredding process.

Equipped with a 600 mm rotor size and a weight of 75 kg, this bio shredder offers optimal shredding power to handle a variety of plant materials with ease and efficiency.

Its four hardened blades ensure clean and precise cutting of materials, while its 270° output barrel rotation provides greater flexibility during the shredded waste discharge process.

With a discharge height of 188 cm, this bio shredder allows for convenient evacuation of shredded materials at the desired location.

The ECO23 mulcher also offers seamless integration with tractors thanks to its universal 3-point category I hitch and direct intake. In addition, its recommended hydraulic flow rate of 21 l/min ensures optimal and efficient operation.

Features

Minimum tractor power 18 - 50 HP
Minimum power 13 - 37 kW
Opening power Supply 13 cm x 27 cm
Rotor dimensions 600 mm
Rotor weight 75 kg
Hoppers 1
Blades 4
Maximum cutting diameter 13 cm
Universal 3-point hitch category I
Output barrel rotation 270°
Discharge height 188 cm
Recommended hydraulic flow rate 21 l/min
Weight 430 kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260247

Data sheet

Power Supply
PTO tractor
Tractor power
18 - 50 HP
Cutting rotor type
Disc rotor
Number of blades
4
Max branch diameter
130 mm
Cardan shaft
Included
Number of hoppers
1 hopper
Safety switch
Yes
Drag rotors
1 Drag rotor
Power Supply hydraulics
Self-powered
Lever of
Security
Crushing opening
130 x 270 mm
✔️
High output
Inverted roller rotation
Chimney rotation
Yes
Country of manufacture
Italy
Weight
430 kg

Specific References

MPN
14.03.04
New
