Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP
Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP
Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP
Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP
Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP

Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP


  • Minimum tractor power 30 - 100 HP/22 - 74 kW
  • Blades 4 + 1 counter-blade
  • Disc shredding machine
  • Maximum cutting diameter 15cm
En stock
Extras
Extras
Precio total de la opción:
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
30 - 100 HP
icon Cutting rotor type
Cutting rotor type
Disc rotor
icon Number of blades
Number of blades
5
icon Max branch diameter
Max branch diameter
150 mm
icon Cardan shaft
Cardan shaft
Including
icon Number of hoppers
Number of hoppers
1 hopper
icon Safety switch
Safety switch
Yes
icon Drag rotors
Drag rotors
2 Drag rotors
icon Transmission type rotor
Transmission type rotor
Hydraulics

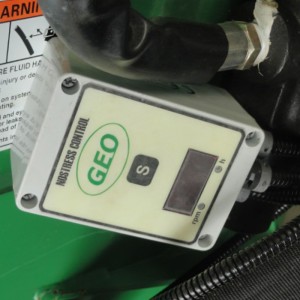

icon Nostress System
Nostress System
Yes
icon Power Supply hydraulics
Power Supply hydraulics
Self-powered
icon Lever of
Lever of
Security
icon ✔️
✔️
Inverted roller rotation
icon ✔️
✔️
High output
icon Chimney rotation
Chimney rotation
Yes
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
485 kg
€3,190.73 excl. VAT
- 4%
€3,063.10 excl. VAT
€3,706.35 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Branch Shredder PTO Geo Italy ECO21-Z 30 - 100 HP
€3,706.35
Extras
Extras
Precio total de la opción:
Qty

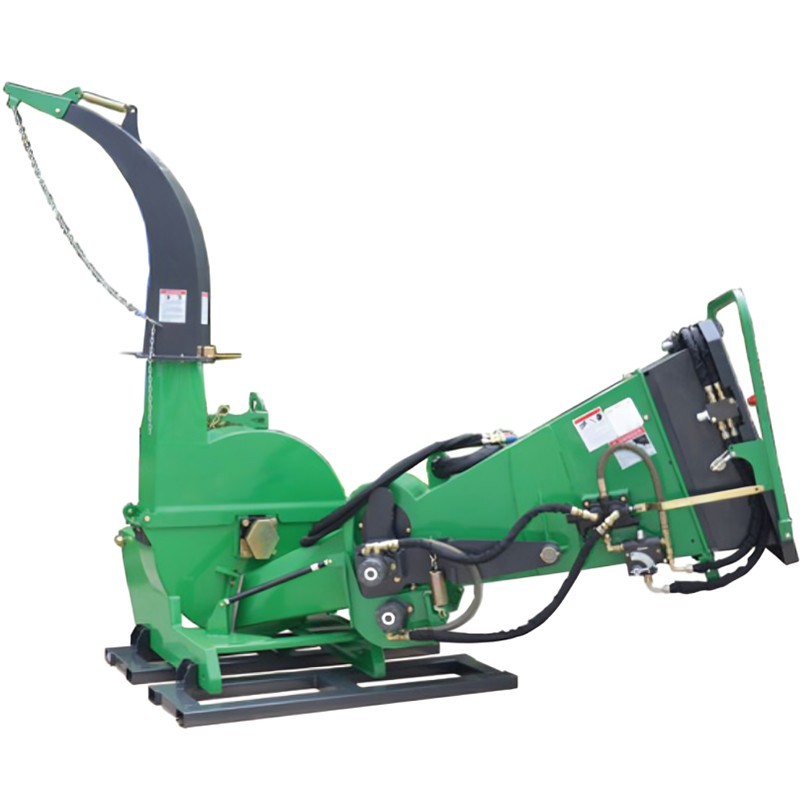

Branch Biochipper ECO21-Z Geo Italy

The ECO21-Z Biochipper from Geo Italy is a powerful and versatile tool for shredding branches and plant materials. This machine is designed to adapt to a wide variety of tractors with power ratings ranging from 30 to 100 HP (22-74 kW).

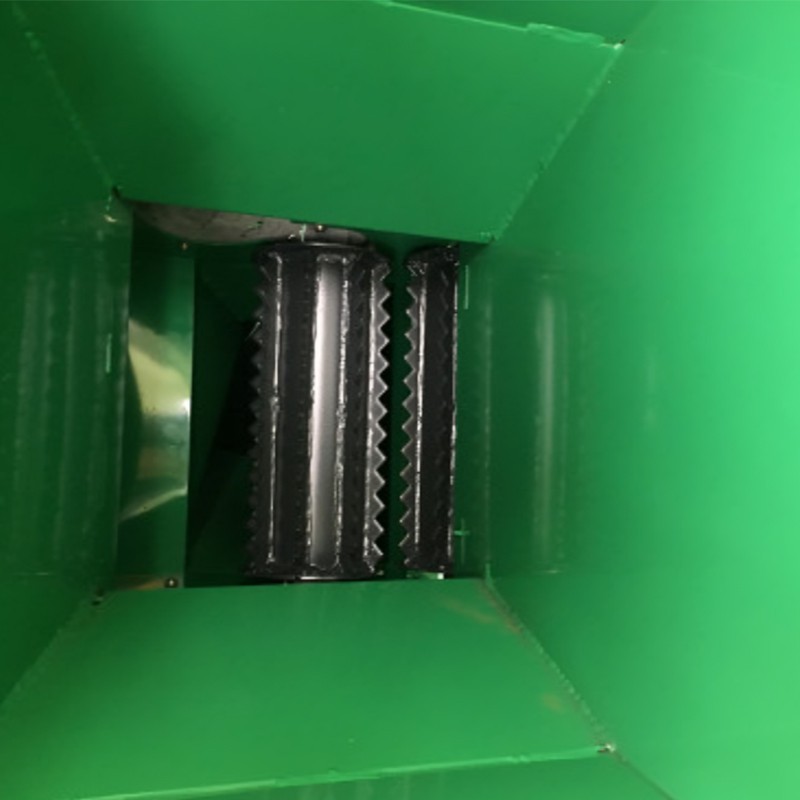

It has a disc drive system and hydraulic transmission with double rollers, which makes this machine offer an efficient and reliable performance in the reduction of plant residues.

Its product infeed control with double roller rotation, both clockwise and counterclockwise, provides greater flexibility and precision during the power Supply of the material, thus optimizing the shredding process.

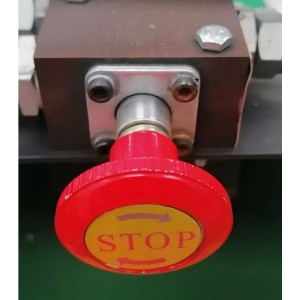

Equipped with a powershutdown device to ensure operator safety and user peace of mind, the ECO21-Z offers safe and reliable operation at all times. In addition, its 360° double adjustable exhaust pipe allows for easy orientation of the shredded material, making it easy to discharge in the desired direction.

With four cutting blades and a counter blade, this bio shredder offers a robust capacity to handle materials with a maximum diameter of 15 cm, making it an ideal choice for a variety of applications.

Features

Minimum tractor power 30 - 100 HP
Minimum power 22 - 74 kW
Shredder Disc
Hydraulic transmission Double roller
Exhaust pipe with double adjustment 360°
Hoppers 1
Blades 5
Maximum cutting diameter 15 cm
Rotation of the dragging cannon 360°
Flow regulator Yes
Weight 485 kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260246

Data sheet

Power Supply
PTO tractor
Tractor power
30 - 100 HP
Cutting rotor type
Disc rotor
Number of blades
5
Max branch diameter
150 mm
Cardan shaft
Including
Number of hoppers
1 hopper
Safety switch
Yes
Drag rotors
2 Drag rotors
Transmission type rotor
Hydraulics
Nostress System
Yes
Power Supply hydraulics
Self-powered
crusher
Nostress System
Lever of
Security
✔️
High output
Inverted roller rotation
Chimney rotation
Yes
Country of manufacture
Italy
Weight
485 kg

Specific References

MPN
14.04
New
