Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

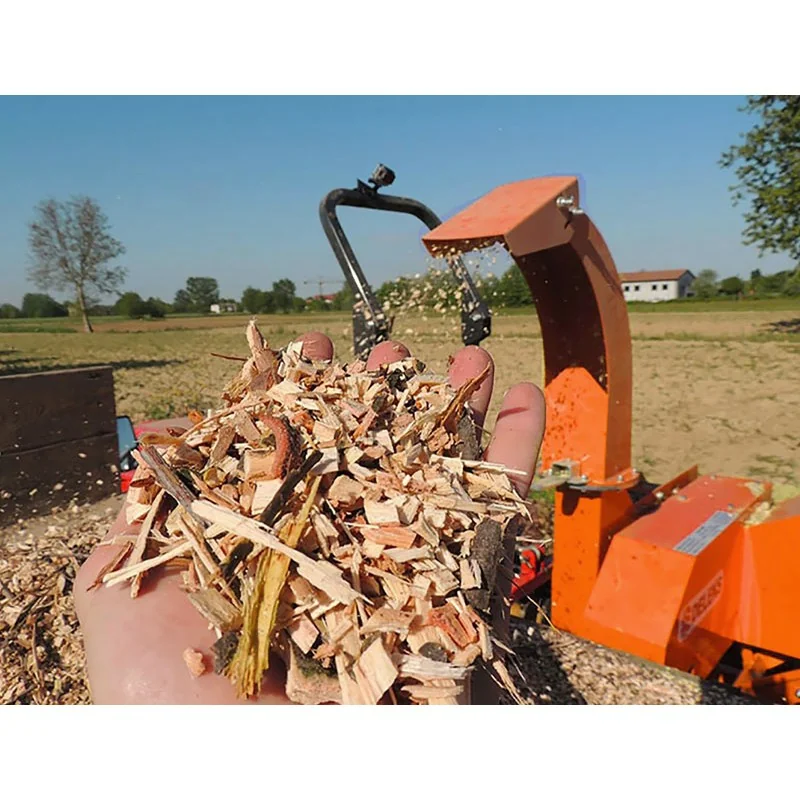

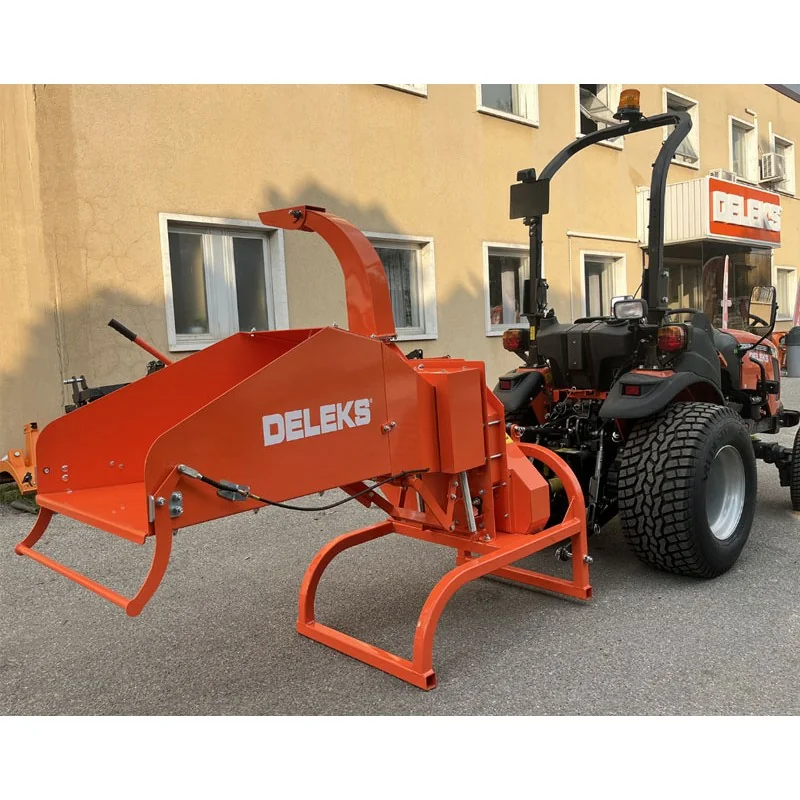

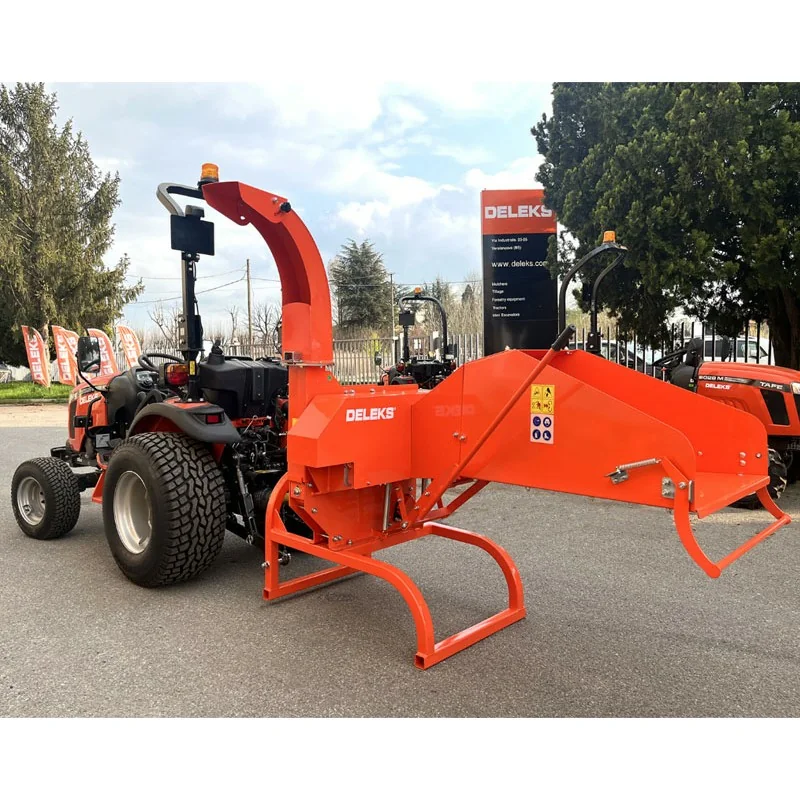

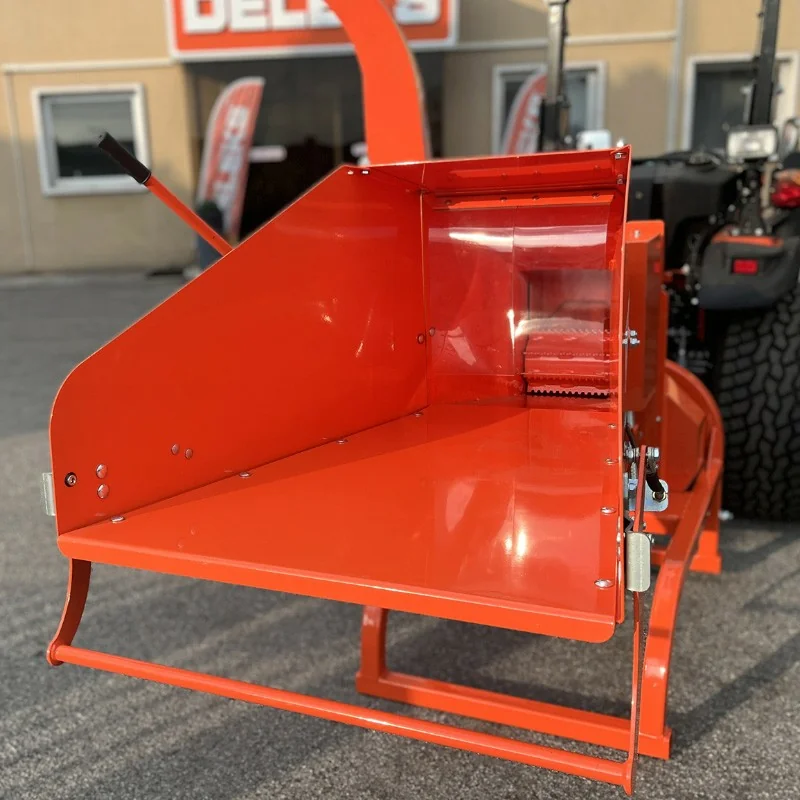

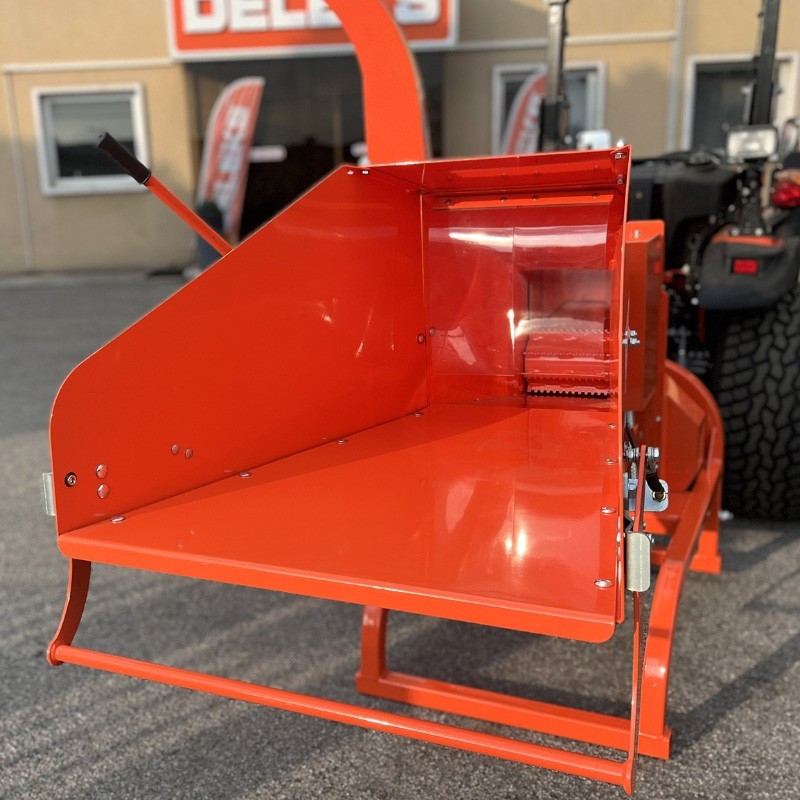

The DK-1200SE mulcher from Deleks is an efficient solution for shredding plant debris up to 10 cm in diameter, ideal for both green and dry wood. Designed for tractors from 20 to 60 hp with three-point hitch (Cat. 1), it transforms bulky branches into small chips, perfect for composting or use as biofuel.

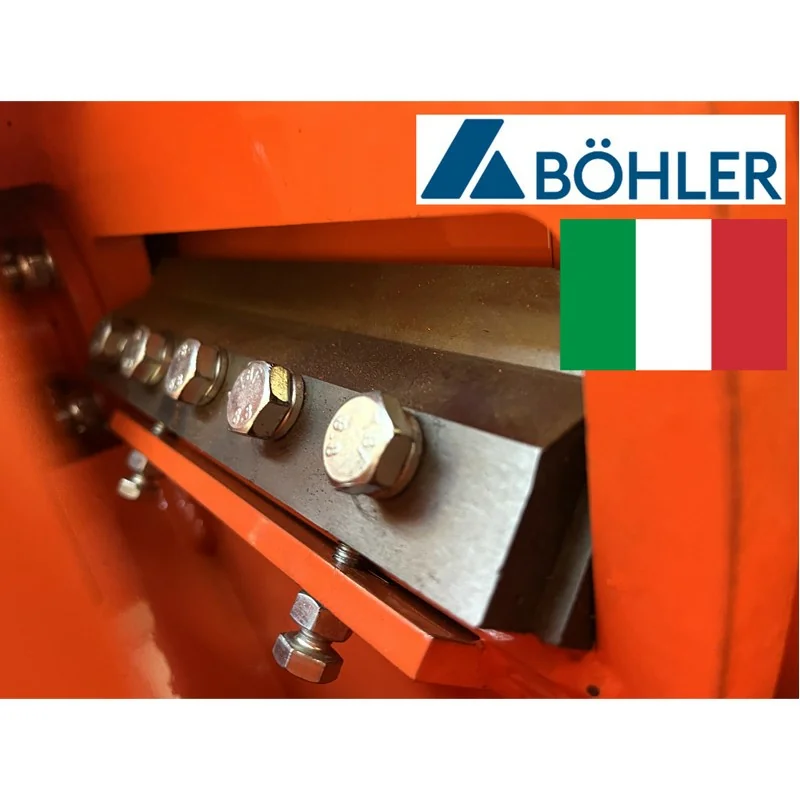

Its disc cutting system incorporates reversible blades made of BÖHLER® K300 special steel, ensuring high durability even under demanding conditions. The mechanical power Supply roller ensures constant material infeed, increasing productivity without additional operator effort.
This model stands out for its robust structure, ease of maintenance and a 180° adjustable ejection hopper, which facilitates the collection of the shredded material. In addition, it includes a CE-approved cardan shaft and a safety system with quick stop lever.
With an output of up to 9 m³/h and a compact design for easy transport, the DK-1200SE fits tractor models such as John Deere, New Holland, Kubota or Massey Ferguson. A versatile and reliable tool for agricultural, forestry or professional gardening work.

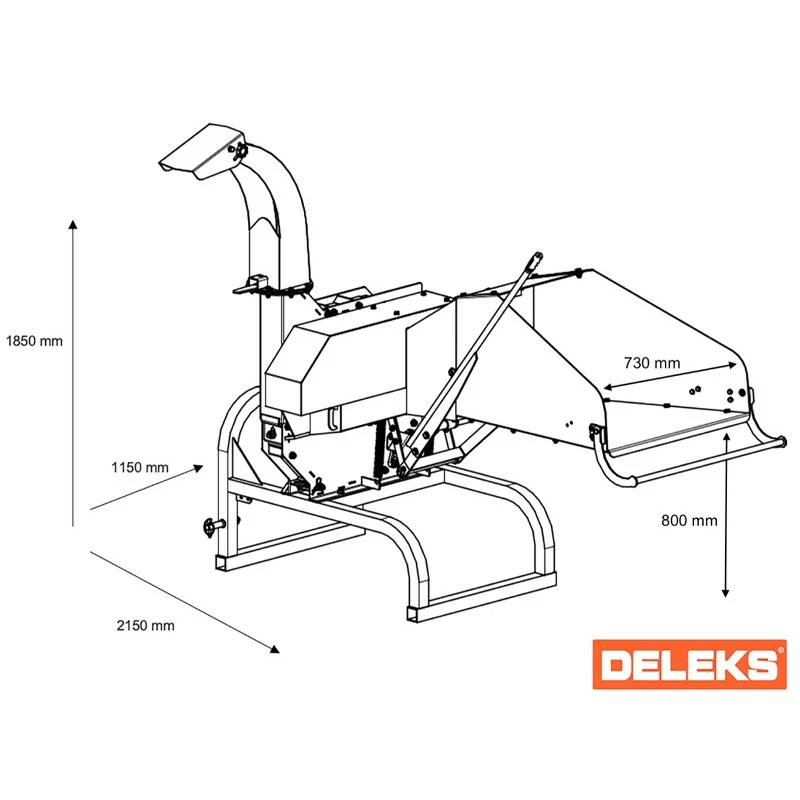

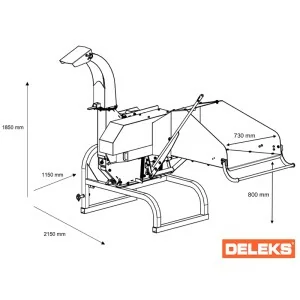

Overall width | 1150 mm |
Weight | 337 kg |
Overall height | 1850 mm |
Tractor power | 20 - 60 hp |

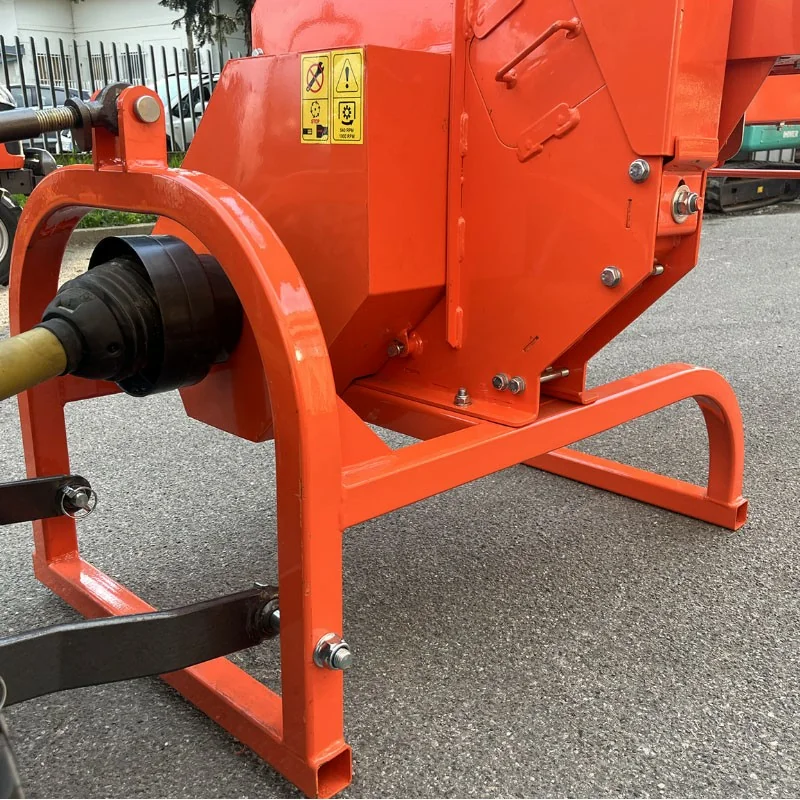

3-point hitch | Cat. 1 (ø 19 - 22 mm) |
Distance between lower points | 490 - 820 mm |
Total length | 2150 mm |
Blades: Weight | 680 g |

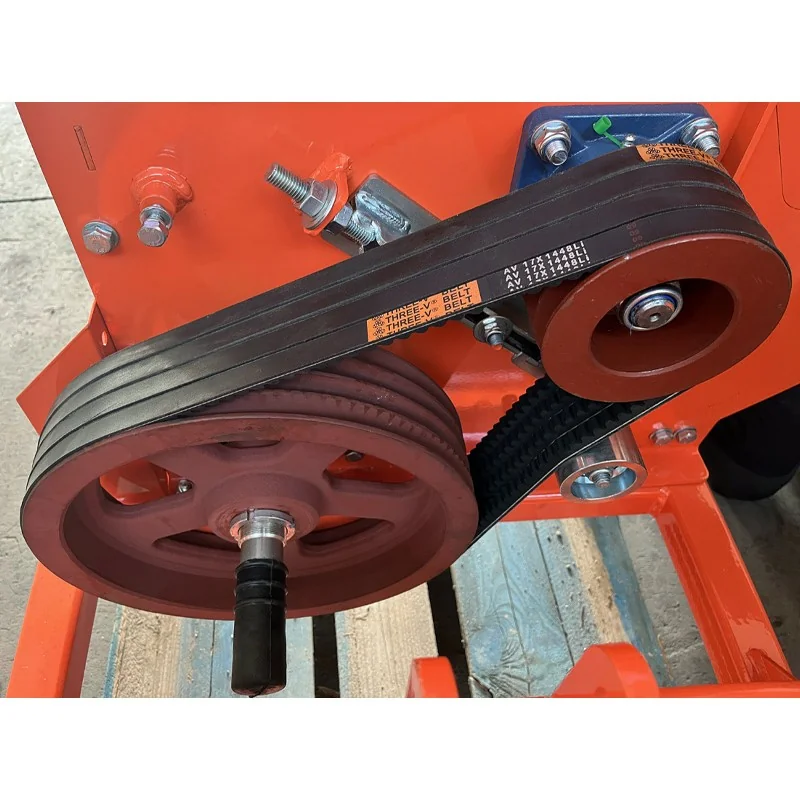

Transmission | V-belts |
Gearbox to ground clearance | 470 mm |
Cardan shaft | CE 4x800 mm med safety bolt |
Efficiency | 8 - 9 m³/h |
Cutting system | Blade with 2 blades + 1 counter blade |
Chip size | 5 - 15 mm |
PTO speed | 540 r/min |
No. of drive belts | 4 |
Belt size | 17x1448 |
Safety system | STOP & START lever |
Slats: size | 230 x 55 x 10 mm |
Roll: number | 1 |

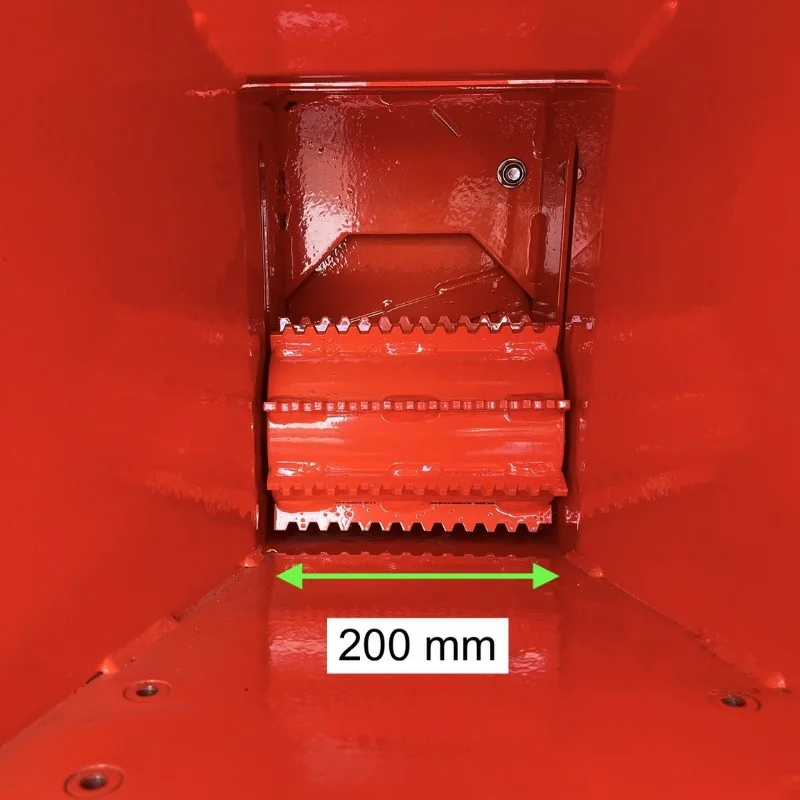

Roll: width | 200 mm |
Roll: transmission | Mechanical, 1 V-belt |
Roll: belt size | 13x991 |
Working height | 810 mm |
Working width | 670 mm |
Outlet dimensions | 150 x 155 mm / 180° |
Maximum cutting diameter | 80 - 100 mm |
Roll: sheet thickness | 4 mm |
Roll: diameter | 150 mm |
Ejection height | 1800 mm |
Packing dimensions | 1200 x 1100 x 1200 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

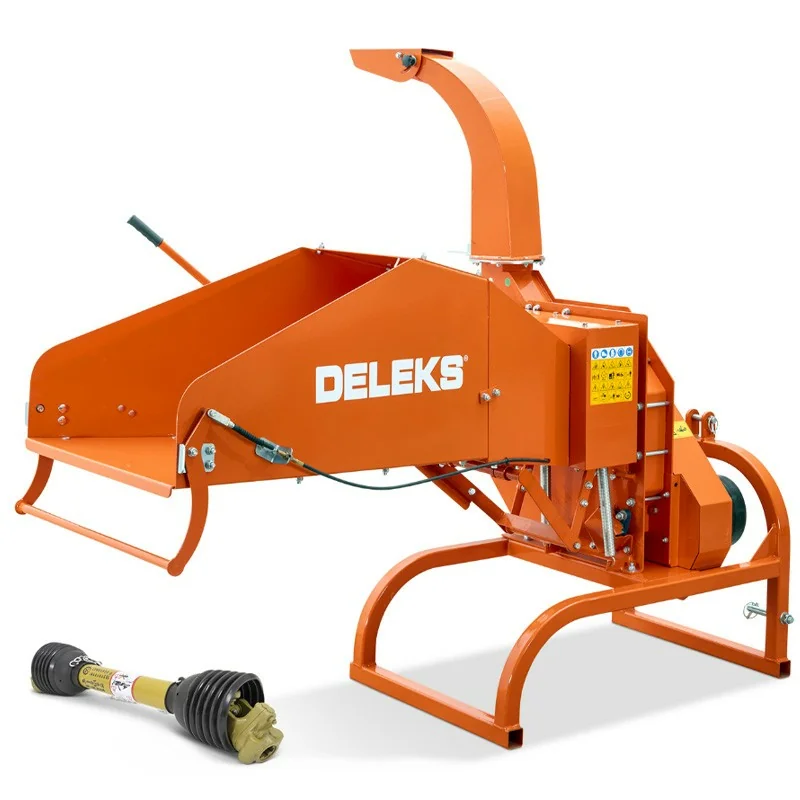

DRIVESHAFT INCLUDED
