Tractor saw Zeppelin ES71750 11 cm
Tractor saw Zeppelin ES71750 11 cm
Tractor saw Zeppelin ES71750 11 cm
Tractor saw Zeppelin ES71750 11 cm

Tractor saw Zeppelin ES71750 11 cm


  • Working efficiency 10m3/hour.
  • Power required: 25- 35 Hp
  • Trunk diameter width 11 cm.
  • Weight: 310 Kg
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
25 - 35 HP
icon Cutting rotor type
Cutting rotor type
Roller rotor
icon Number of blades
Number of blades
8
icon Max branch diameter
Max branch diameter
110 mm
icon Number of hoppers
Number of hoppers
1 hopper
icon Lever of
Lever of
Security
icon ✔️
✔️
High output
icon Weight
Weight
310 kg
€4,512.39 excl. VAT
- 11%
€4,016.03 excl. VAT
€4,859.39 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Tractor saw Zeppelin ES71750 11 cm
€4,859.39
Qty

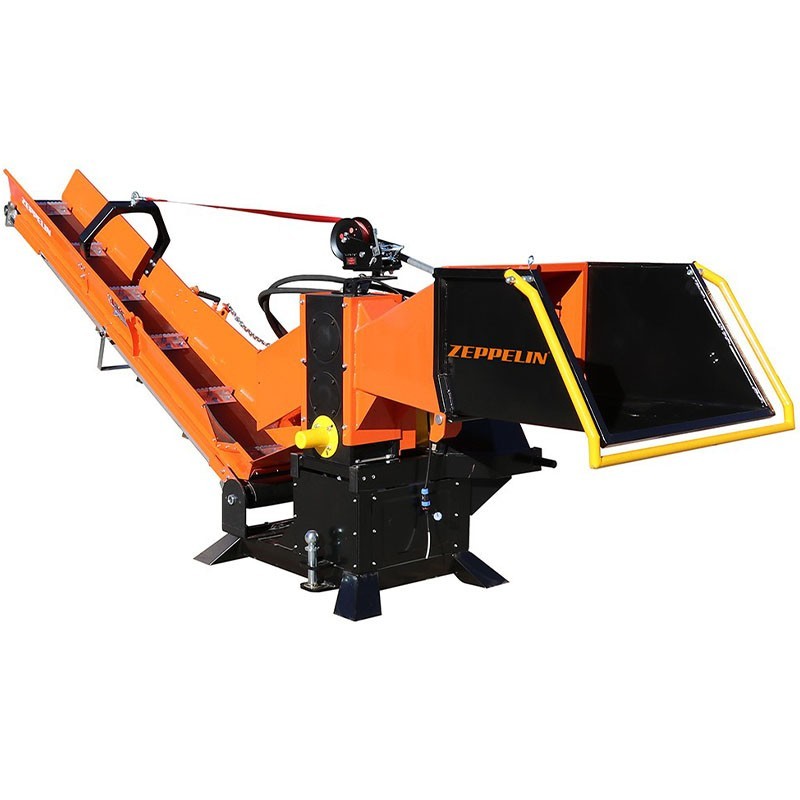

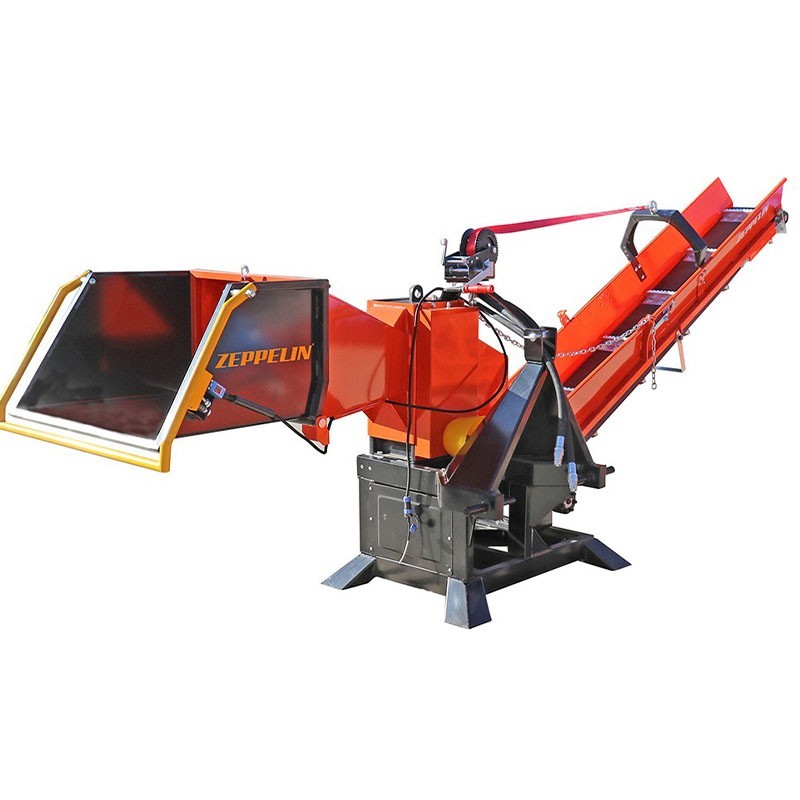

Tractor miter saw Zeppelin ES71750

The tractor cutting machine Zeppelin ES71750 takes the power of tractors with 25-35 Hp minimum, which it will take advantage of with a diameter of up to 110 cm.

Although the diameter it can cut depends on the trunk, cutting 90 mm in dry and hard wood, 100 mm in fresh and hard wood and themaximum of 110 mm in fresh and soft wood.

Finally, it is very easy to transport and connect to the tractor, thanks to its Cat I and II third point hitch and its towing capacity of 1000 kg

Features

Working efficiency 10 m3/hour
Maximum length of cut trunk 10 cm
Log diameter width 11 cm

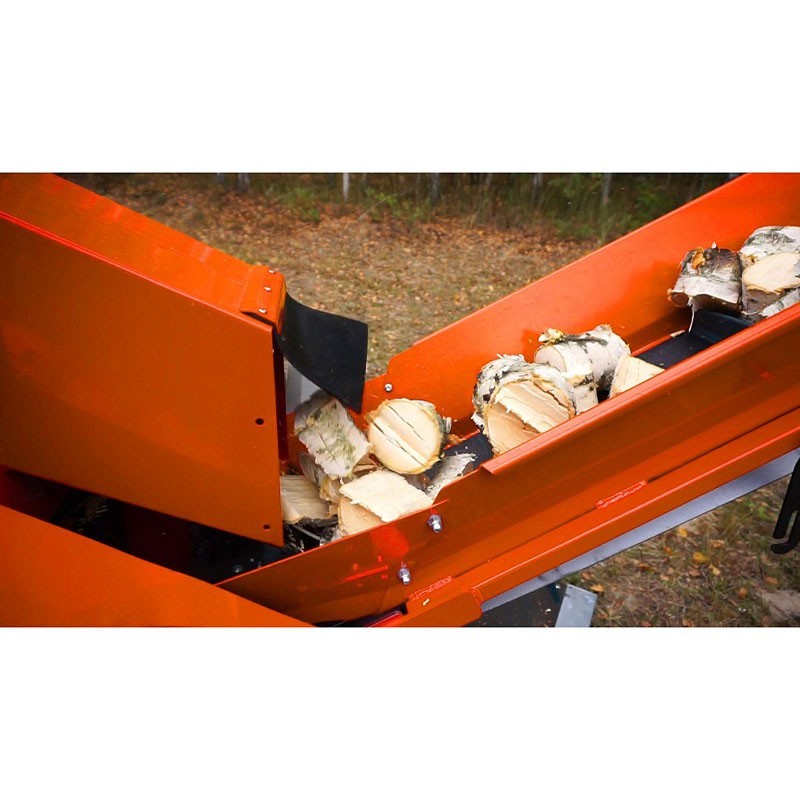

Length of conveyor belt 2,3 m
Maximum log diameter 11 cm
Log length with 6 blades 8-15 cm
Trunk length with 8 blades 5-10 cm
Power requirement 25/35 Hp
Recommended speed pto 540 rpm
Maximum cutting diameter hard dry wood 90 mm
Maximum cutting diameter fresh hardwood 100 mm
Maximum cutting diameter fresh soft wood 110 mm
Internal cutting width 180 mm
Cutting machine Hadox steel type 500
Hopper 620-380 mm
Towing capacity 1000 kg
Weight 310 kg
IMPORTANT NOTICES
It is obligatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.

Specifications

  • Third point hitches for tractor
  • Ball and pin coupling for trailer
  • Reinforced welded structure (fully dismountable)
  • Additional rear roller for flywheel / pulley
  • Induction hardened sprockets
  • Safety switch
  • Double rotor axle to tractor PTO for traction and trunk cutting with 4+4 blades

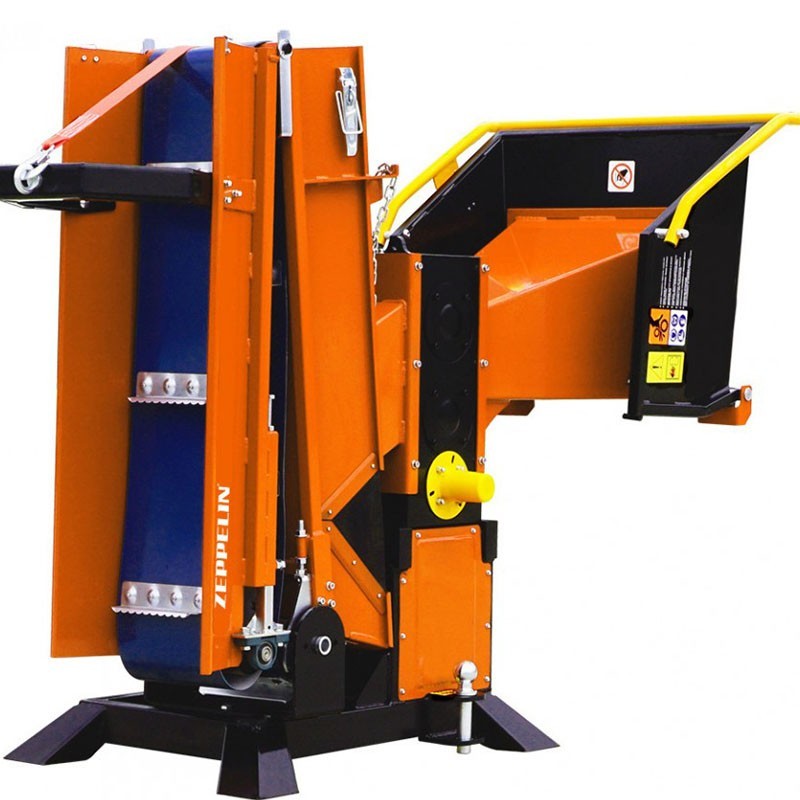

  • Fully foldable
  • Cat I and II third point hitch.
254839

Data sheet

Power Supply
PTO tractor
Tractor power
25 - 35 HP
Cutting rotor type
Roller rotor
Number of blades
8
Max branch diameter
110 mm
Number of hoppers
1 hopper
Lever of
Security
✔️
High output
Weight
310 kg

Specific References

MPN
ES71750
New
