Tractor mounted branch bio shredder Geo Italy ECO17H 15 cm

Rating:
(0)
  • Minimum tractor power 25 - 80 HP/18 - 59 kW
  • Blades 2 + 1 counter-blade
  • Roller diameter 110 mm
  • Maximum cutting diameter 15cm
En stock
Extras
Extras
Precio total de la opción:
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
25 - 80 HP
icon Cutting rotor type
Cutting rotor type
Disc rotor
icon Number of blades
Number of blades
3
icon Max branch diameter
Max branch diameter
150 mm
icon Cardan shaft
Cardan shaft
Including
icon Number of hoppers
Number of hoppers
1 hopper
icon Drag rotors
Drag rotors
2 Drag rotors

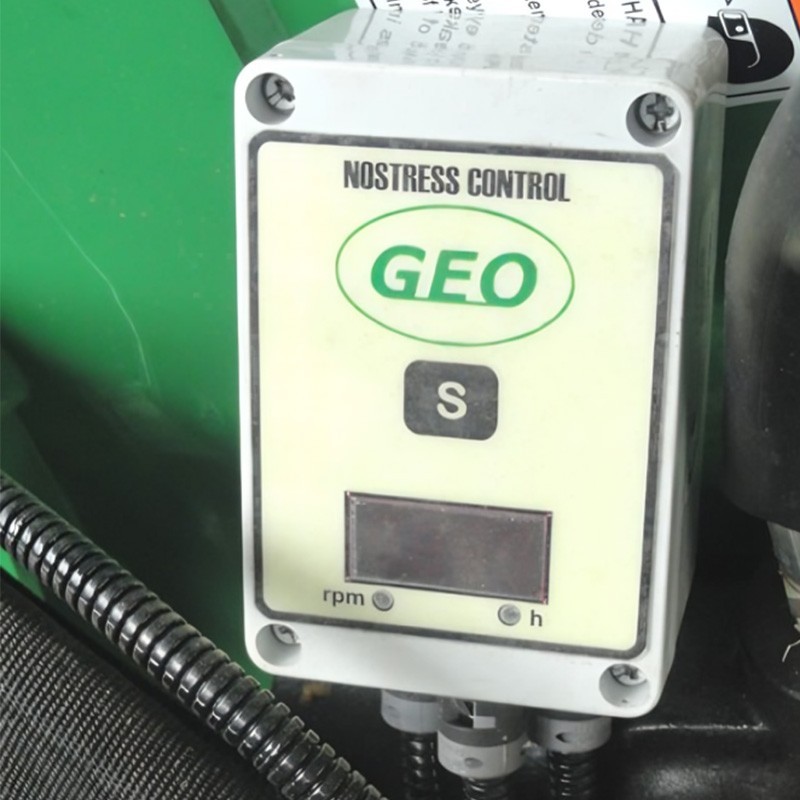

icon Nostress System
Nostress System
Yes
icon Power Supply hydraulics
Power Supply hydraulics
Self-powered
icon Lever of
Lever of
Security
icon ✔️
✔️
Inverted roller rotation
icon ✔️
✔️
High output

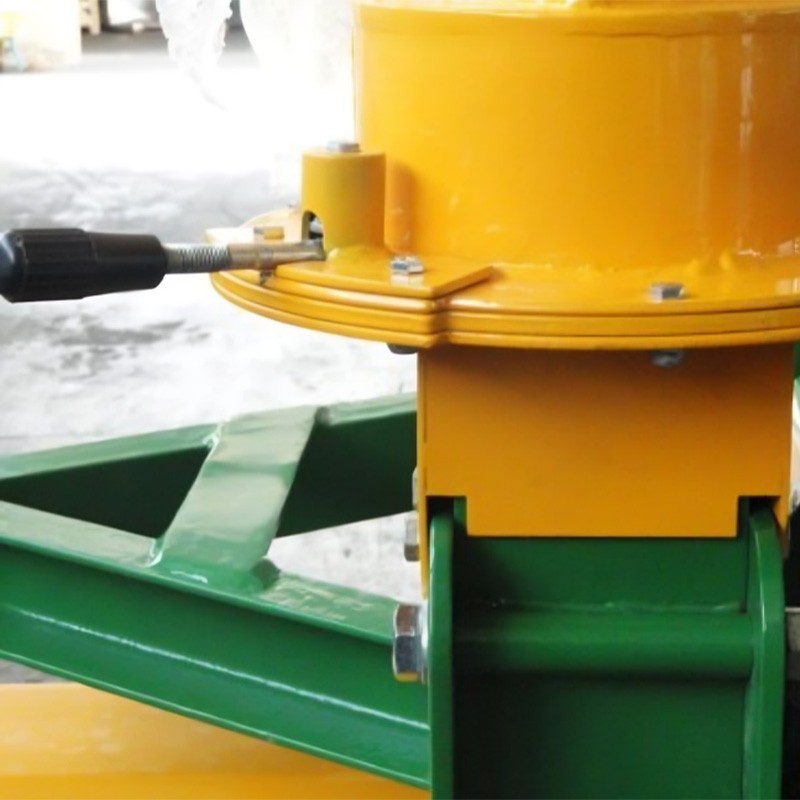

icon Chimney rotation
Chimney rotation
Yes
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
400 kg
€2,985.31 excl. VAT
- 4%
€2,865.90 excl. VAT
€3,467.74 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Tractor mounted branch bio shredder Geo Italy ECO17H 15 cm
€3,467.74
Extras
Extras
Precio total de la opción:
Qty

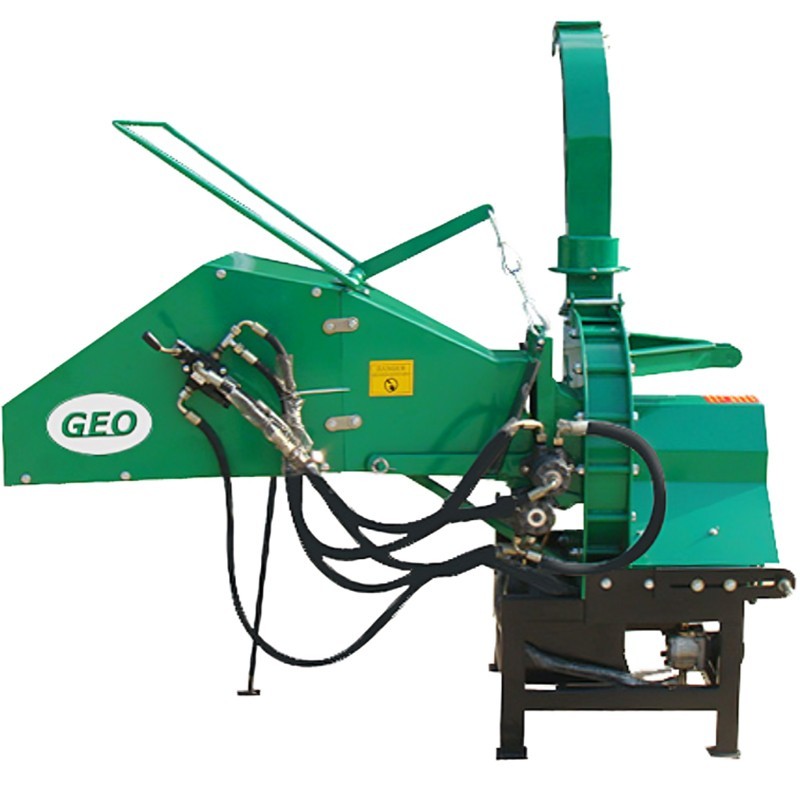

ECO17H Bio-Tine Shredder Geo Italy

The ECO17H Bio mulcher from Geo Italy is a machine that contains both power and precision, it is designed to fit a wide range of tractors with power ranging from 25 to 80 HP (18-59 kW).

Equipped with two cutting blades and a counter blade, this machine is capable of handling branches with a maximum diameter of 15 cm, ensuring efficient and uniform shredding of plant materials.

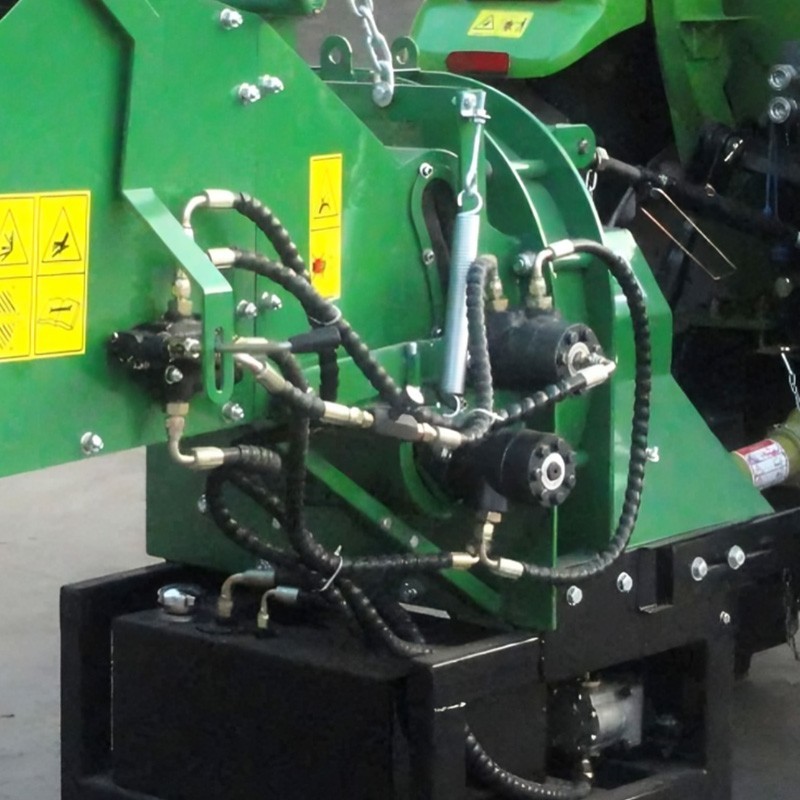

Its hydraulic double-roller inlet design provides a constant and controlled flow of material to the cutting blades, thus optimizing the shredding process.

An outstanding feature of the ECO17H is its flow regulator for the power supply, which allows the speed of the motors to be adjusted in both the inlet and outlet directions.

This provides precise control over the shredding process, allowing it to adapt to different types of materials and working conditions. In addition, with a roller diameter of 110 mm and a hopper size of 625x1260 mm, this bio shredder offers a robust and versatile capacity to meet a variety of shredding needs.

Features

Minimum tractor power 25 - 80 HP
Minimum power 18 - 59 kW
Shredder Disc driven
Rollers with Mechanical drive
Hoppers 1

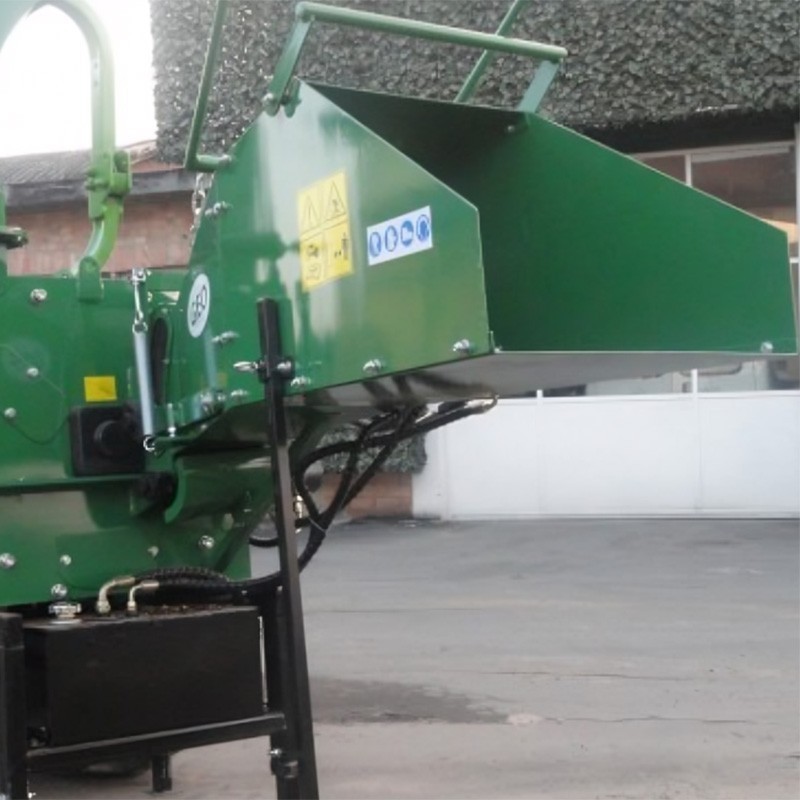

Hopper size 625x1260 mm
Blades 3
Hydraulic infeed with Double roller
Flow regulator for Power supply
Maximum cutting diameter 15 cm
Roller diameter 110 mm
Weight 400 kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260244

Data sheet

Power Supply
PTO tractor
Tractor power
25 - 80 HP
Cutting rotor type
Disc rotor
Number of blades
3
Max branch diameter
150 mm
Cardan shaft
Including
Number of hoppers
1 hopper
Drag rotors
2 Drag rotors
Nostress System
Yes
Power Supply hydraulics
Self-powered
crusher
Nostress System
Lever of
Security
✔️
High output
Inverted roller rotation
Chimney rotation
Yes
Country of manufacture
Italy
Weight
400 kg
