Branch Shredder for Tractor Geo Italy ECO17H 15 cm
- Minimum tractor power 25 - 80 HP/18 - 59 kW
- Blades 2 + 1 counter-blade
- Roller diameter 110 mm
- Maximum cutting diameter 15cm
€3,467.74 VAT incl.

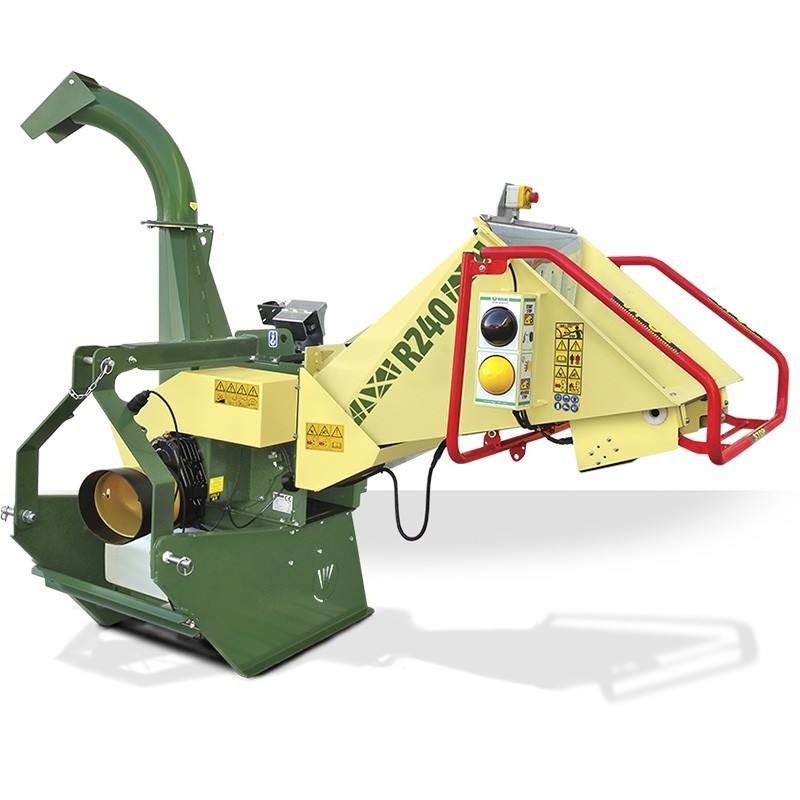

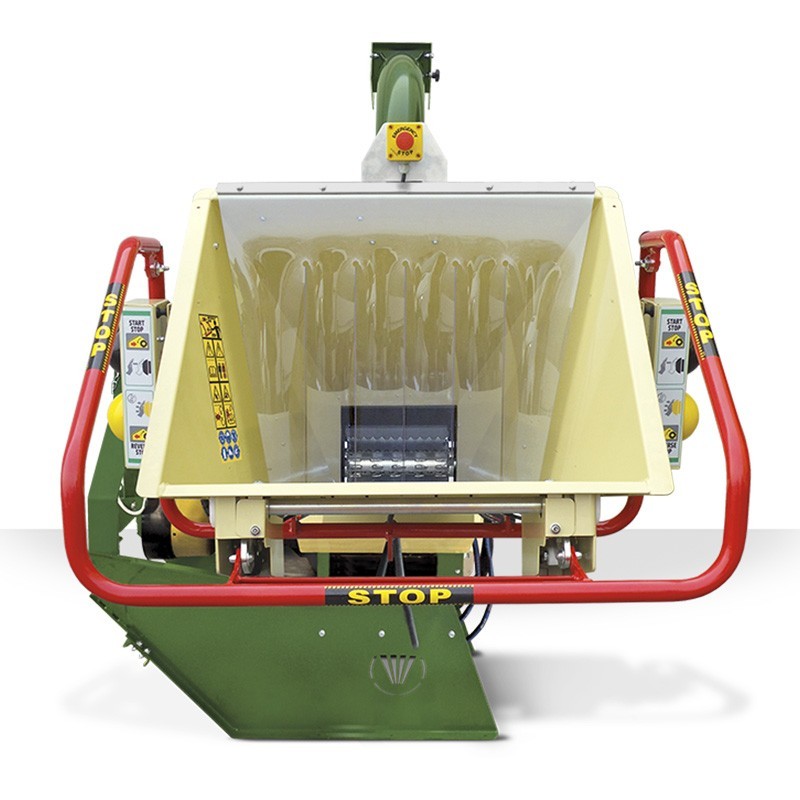

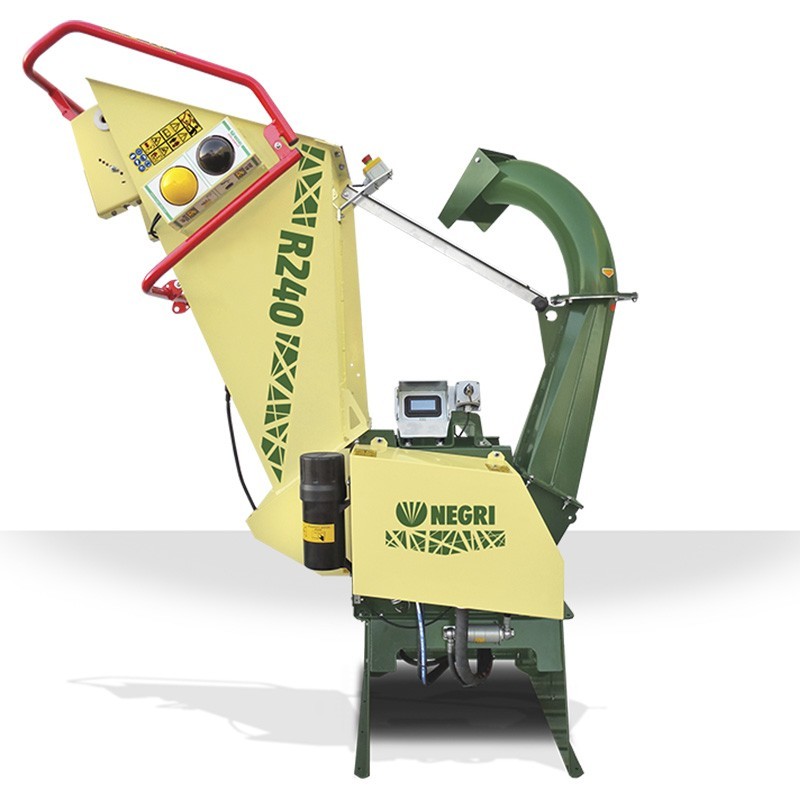

The Bio shredder for tractor Negri R240TN is a robust and efficient machine designed for shredding vegetable waste with a powerful cutting system. With hardened steel blades and hammers, it offers a shredding capacity of hourly production from 7 to 10 m³/h, this makes it an ideal choice for intensive work.
Your crushing opening of 286 x 90 mm and maximum shredding capacity of up to 90 mm allow a wide range of plant materials to be processed with ease.
In addition, its minimum power requirement of more than 25 hp and its three-point tractor hitch ensure optimum performance in different working conditions. With 16 blades and 4 hammers, this shredder guarantees efficient shredding and fast processing of waste, facilitating the maintenance of gardens, orchards or larger green areas.
ROTOR : Blades + Hammers |
Resharpenable blades (hardened steel) |
Reversible mobile hammers (hardened steel) |
Removable fixed refining screen |
Hydraulic roller adjustable in speed and direction of rotation |
Three-point hitch for tractor - Category 1 |
Pivoting launching tube with adjustable depth of ejection |
OBS - On Board System (Multifunctional control system with Nostress) |
Lubrication system for bearings |
Large and comfortable hopper |
Transmission with multiplier group and elastic coupling |
Launching tube extension (400 mm) |
Cutting system | |
Blades (hardened steel) | 4 hammers |
Hammers (hardened steel) | 16 blades |
Features | |
Hourly production | 7 - 10 m3/h |
Crushing opening | 286 x 90 mm |
Crushable max. | 90 mm |
Driving force | |
Min. power required | >25 hp |
Power Supply | Three-point hitch for tractor |
Technical specifications | |
Length | 1320 mm |
Width | 1730/2740 mm |
Height | 2130/1900 mm |
Discharge height | 1900 mm |
Introduction height | 1015 |
Crushing opening | 700 x 660 mm |
Weight | 415 kg |
Chipper accessories Negri:
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
