Manual band saw with hydraulic lowering MG CY-270-N-BH
Manual band saw with hydraulic lowering MG CY-270-N-BH

Manual band saw with hydraulic lowering MG CY-270-N-BH

Rating:
(0)
  • Engine : 1.5 Hp
  • Cutting speeds : 45/90 mt/min
  • Working height : 985 mm
En stock
icon Power Supply
Power Supply
Electric
icon Current
Current
Single-phase
icon Power
Power
1.5 Hp
icon Weight
Weight
230 Kg
€2,468.24 excl. VAT
- 4%
€2,369.51 excl. VAT
€2,867.11 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Manual band saw with hydraulic lowering MG CY-270-N-BH
€2,867.11
Qty

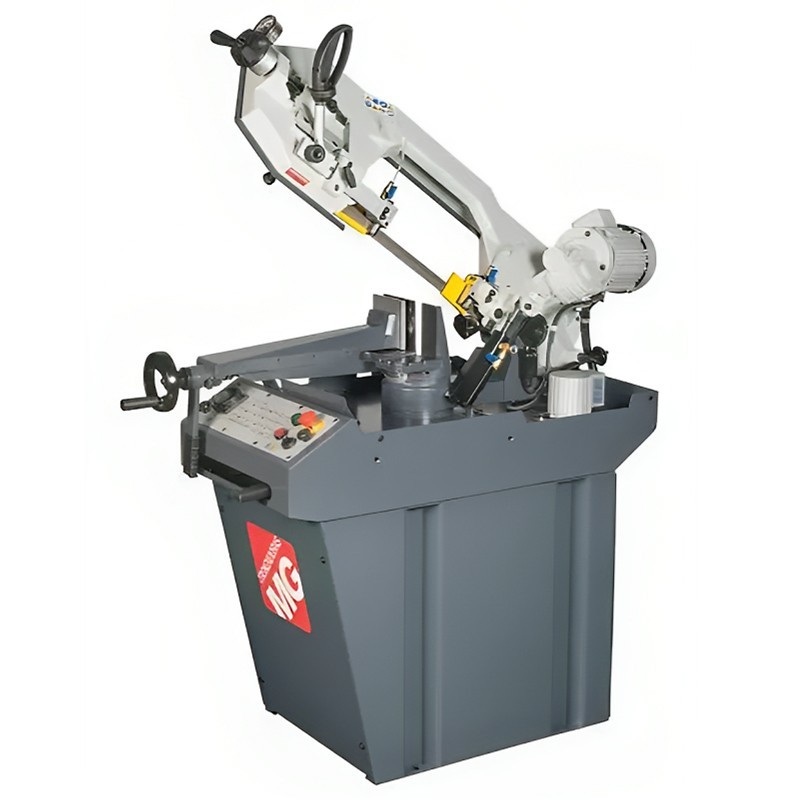

Hydraulic Lowering Manual Band Saw MG CY-270-N-BH

The MG CY-270-N-BH Hydraulic Lowering Manual Band Saw with two cutting speeds allows this machine to adapt to different types of materials and work requirements. Its quick-tightening clamp ensures a secure hold on the workpiece, while the band tension gauge facilitates precise adjustment for optimum results.

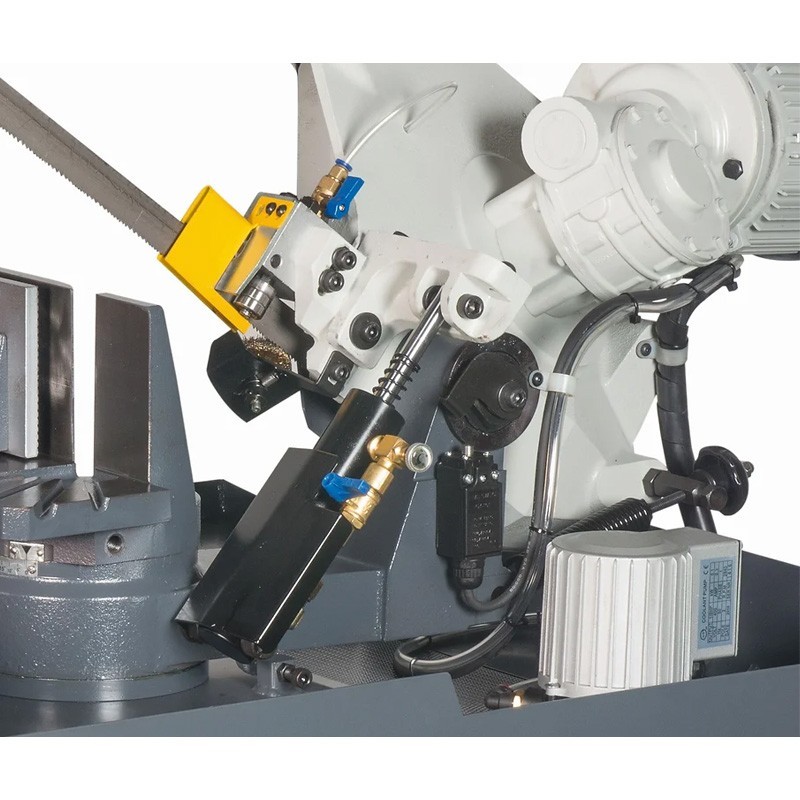

The ball-bearing band guide ensures smooth and precise saw blade travel, while the band cleaner brush helps to keep the band in optimal working condition. With band dimensions of 2480x27x0.9 mm and a 1.5 Hp motor, this saw is capable of making efficient cuts at speeds of 45/90 meters per minute. In addition, it has a working height of 985 mm.

This saw is CE compliant and features cooling equipment, ensuring safe performance and increased durability in industrial and shop applications. The incorporation of a 0.12 Hp coolant pump helps maintain proper cutting temperature and prolongs the life of the saw blade.

Features

Motor 1.5 Hp
Cutting speeds 45/90 mt/min
Working height 985 mm
Belt dimensions 2480x27x0,9 mm
Phase Single phase
Coolant pump 0,12 Hp
Noise level 70 Db
90º round cutting capacity 225 mm
Rectangular 90º cutting capacity 245x150 mm
90º square cutting capacity 190 mm
Cutting capacity round 45º right 145 mm
Rectangular cutting capacity 45º right right 145 mm
Cutting capacity square 45º right 145X190 mm right 145X190 mm
Round cut capacity 60º right right 90 mm
Rectangular cutting capacity 60º right right 90 mm
Cutting capacity square 60º right 90x120 mm right 90x120 mm
Weight 230 Kg
Dimensions 1380x580x930 mm
