Manual band saw with hydraulic descent MG CY-270-N-BH
- Engine : 1.5 Hp
- Cutting speeds : 45/90 mt/min
- Working height : 985 mm
€2,867.11 VAT incl.

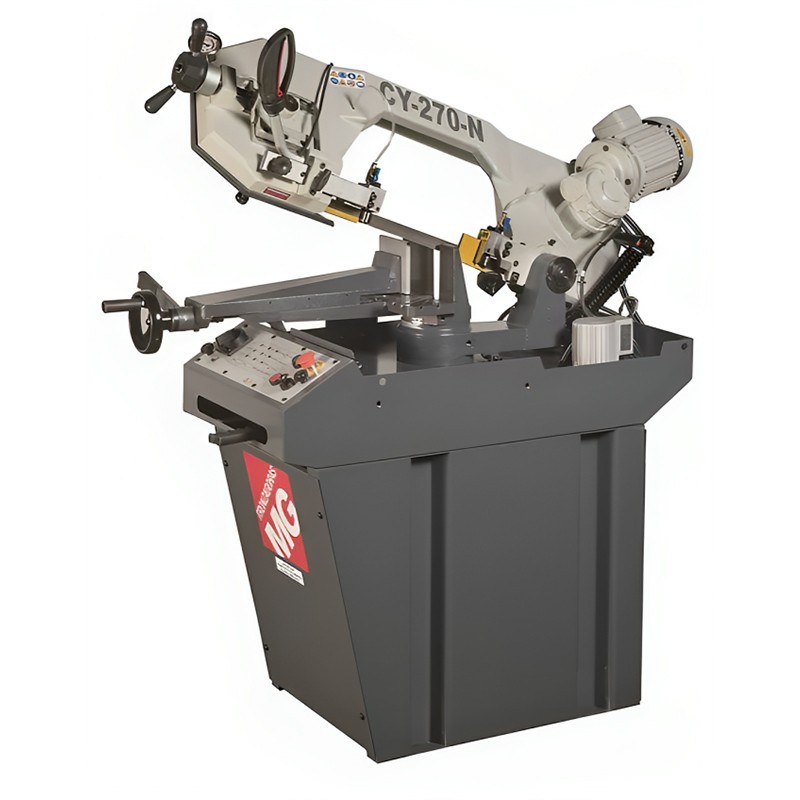

The MG CY-270-N Manual Band Saw is a robust and versatile tool designed to cut iron and steel with precision. It is CE compliant, ensuring user safety. This saw is equipped with cooling equipment that helps maintain the optimum temperature during cutting, prolonging the life of the band.
One of the outstanding features of this saw is its ability to adjust the cutting speed, offering flexibility to adapt to different types of materials. In addition, its quick-tightening clamp makes it easy to clamp the workpieces to be cut. The saw also includes a band tension gauge and bearing guide for smooth and precise operation.
With a 1.5 Hp motor, this band saw offers cutting speeds of 45/90 meters per minute, making it suitable for a variety of applications. Its cutting capacity is impressive, with the ability to cut round pieces up to 225 mm in diameter and rectangular pieces up to 245x150 mm at right angles.
In addition, its compact design and the inclusion of a band cleaning brush make this saw an excellent choice for workshops and industrial environments. With a weight of 230 kg and dimensions of 1380x580x930 mm, it offers a balance between performance and portability, making it an essential tool for professionals working with metal.
Engine | 1.5 Hp |
Cutting speeds | 45/90 mt/min |
Working height | 985 mm |
Belt dimensions | 2480x27x0,9 mm |
Phase | Single phase |
Coolant pump | 0,12 Hp |
Noise level | 70 Db |
90º round cutting capacity | 225 mm |
Rectangular 90º cutting capacity | 245x150 mm |
90º square cutting capacity | 190 mm |
Cutting capacity round 45º | right 145 mm |
Rectangular cutting capacity 45º right | right 145 mm |
Cutting capacity square 45º right 145X190 mm | right 145X190 mm |
Round cut capacity 60º right | right 90 mm |
Rectangular cutting capacity 60º right | right 90 mm |
Cutting capacity square 60º right 90x120 mm | right 90x120 mm |
Weight | 230 Kg |
Dimensions | 1380x580x930 mm |
