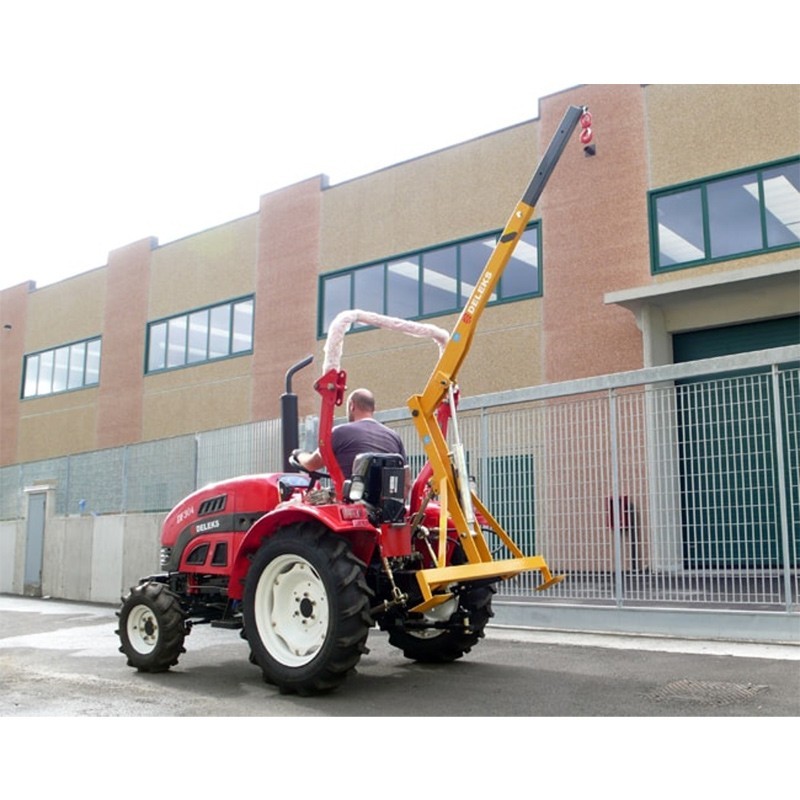

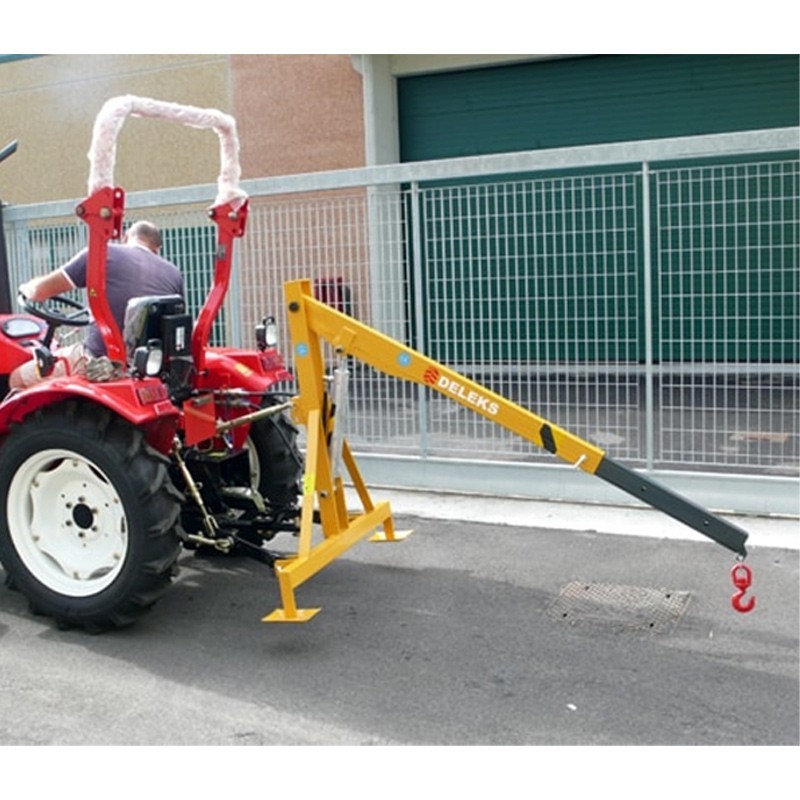

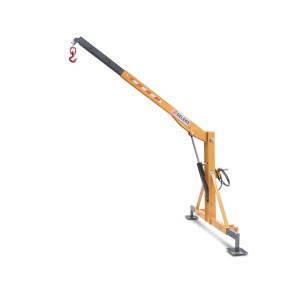

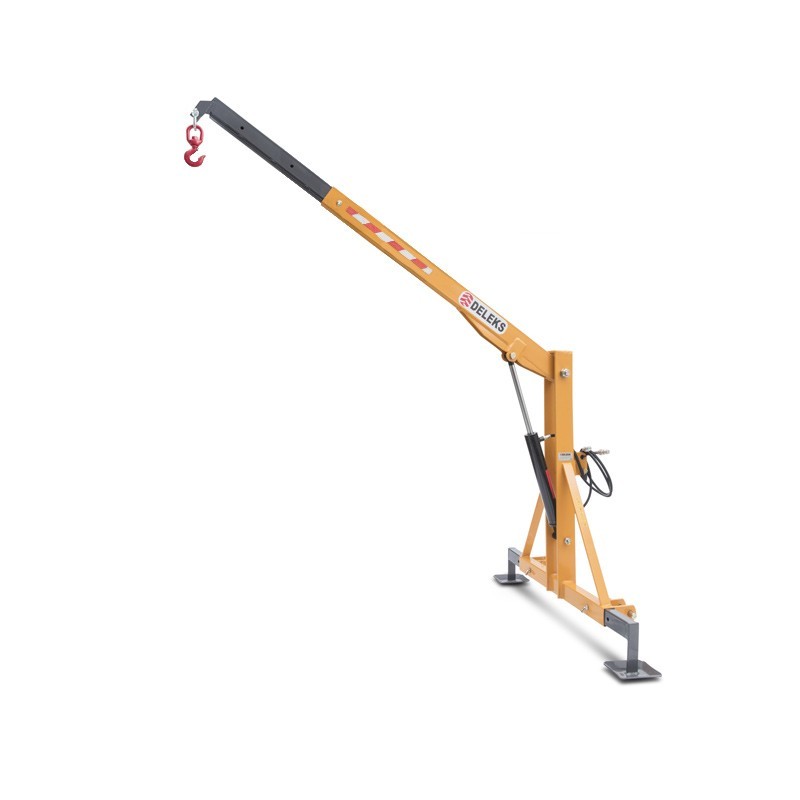

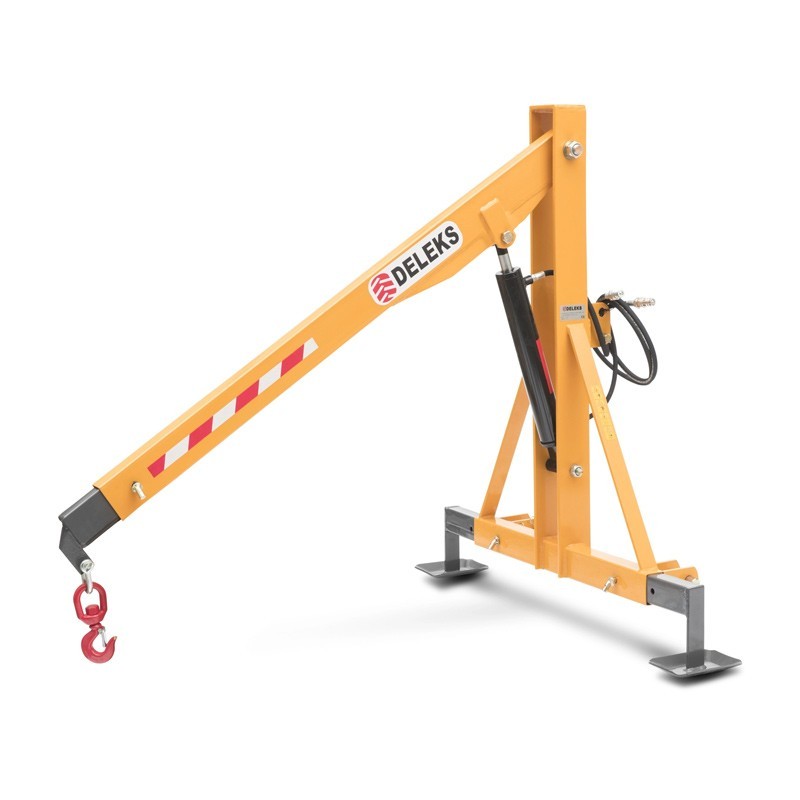

The EL-500 hydraulic crane from Deleks is a perfect complement for tractors with a power between 30 and 70HP. Besides, it has a 3-point hitching system to the tractor through CAT. 1-2.
This crane model is designed to lift and transport a load of 200kg, behind the tractor. The boom of this crane has a closed length of 151cm and 215cm open with a thickness of 3mm.
This boom incorporates two 150cm WP-400 hydraulic tubes with two pistons with a diameter of 7cm and 3cm. The boom can carry a maximum 200kg package with a lift of 2.67cm plus the lift of the tractor arm.
This EL-500 crane has a correct operation with an oil flow between 18 and 22 l/min with a pressure between 80 and 120bar. This model measures 125cm wide, 80cm high and 40cm deep with a total weight of only 81kg.
Total width | 980 - 1380 mm |
Weight | 81 kg |
Tractor power | 30 - 70 Hp |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Distance between lower points | 470 - 735 mm |
Hydraulic hoses (2) | 1500 mm, 1.2" AGRI, WP-400 bar |
Hydraulic piston ø | 70 - 30 mm |
Thickness of 3-point linkage | 10 mm |
Lifting capacity | 200 kg* (440 lbs) |
Lifting height | 2667.5 mm + tractor arm lift |
Open length | 2150 mm |
Length closed | 1510 mm |
Number of arm adjustments | 3 |
Arm adjustment space | 270 mm |
Total height (arm down) | 1350 mm |
Outer arm dimensions | 100*50 mm |
Outer arm thickness | 3 mm + support 5.0 mm |
Inner arm thickness | 3 mm + support 10.0 mm |
Min./max. oil pressure | 80 - 120 bar |
Optional oil flow | 18 - 22 l/min |
Packing dimensions | 1250*800*400 mm |
