Zeppelin tractor ESA drill and bits
- Power: 50 HP
12" drill bit included
CARDAN INCLUDED
€1,247.59 VAT incl.
Deleks products take about 15 to 25 days. |

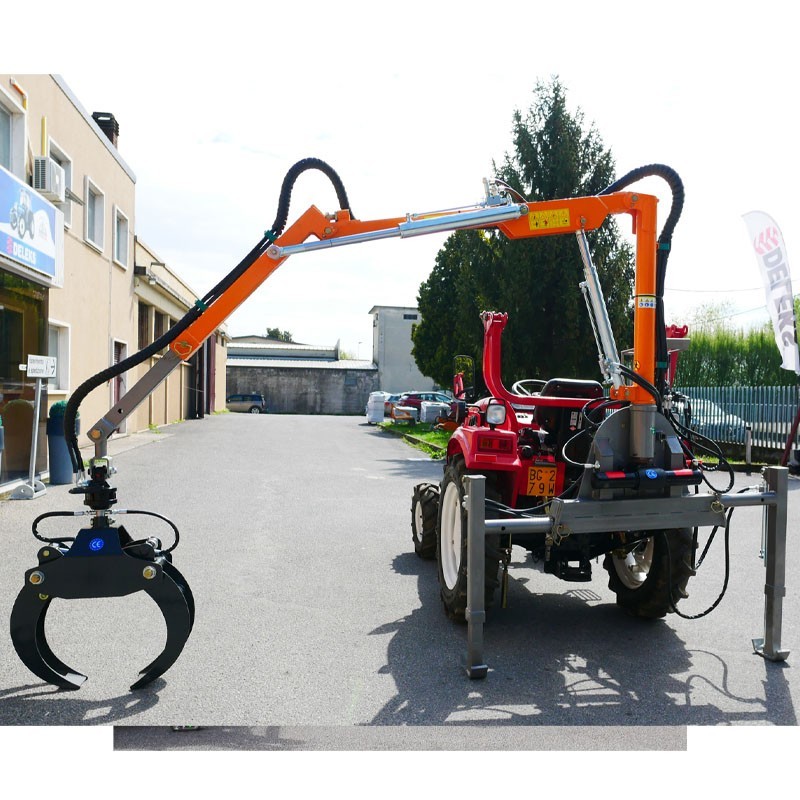

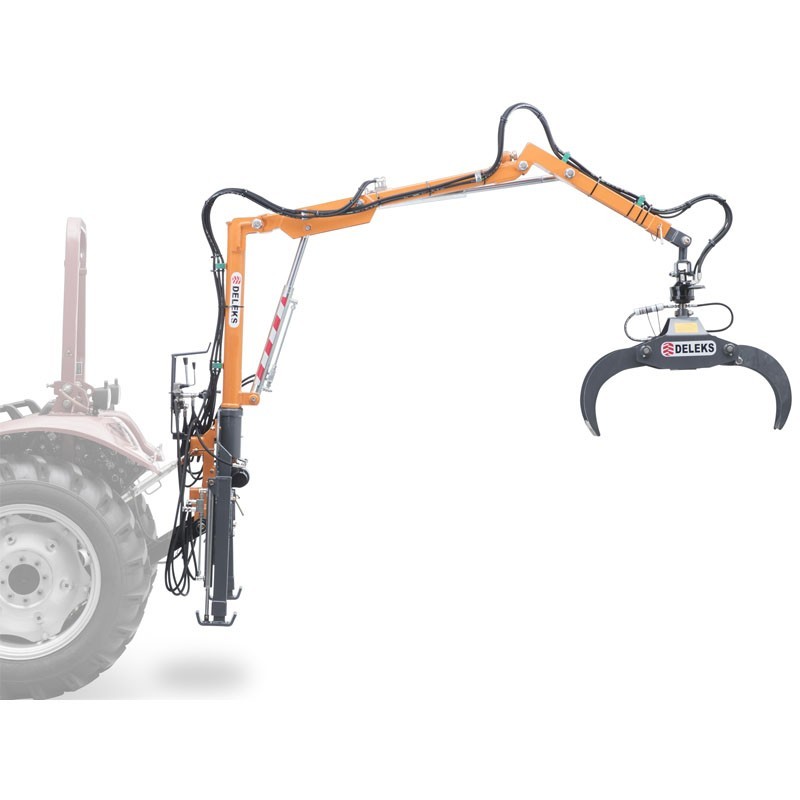

The hydraulic forestry crane for tractor Deleks CRAB-3000 is multipurpose and functional, with a 270-degree rotation. This model can be easily mounted and dismounted to the tractor. It is designed for timber transport, on farms, in the forest or for collecting debris.
This forestry crane model from Deleks is a tractor attachment. It can work with tractors that provide a minimum total power of 30 HP. It is also CE compliant.
This crane from Deleks, CRAB-3000, guarantees the operator a good comfort for the use of the machine and durability. This is thanks to its outstanding features and design with high quality parts.
On this model of forestry crane Deleks, the boom moves slowly and almost instantaneously with precision. This is to maximize maneuverability. In addition, this model features hydraulic parts manufactured in Italy.
The CRAB-3000 hydraulic forestry crane from Deleks includes CAPRONI controls and control valves made in Italy. It also offers a full 270 degree rotation and wide stabilizers. This is to ensure high stability during operations.
The model has a DK10 grapple with Lombarda Ingranaggi GR10 1 ton rotator. It has a 19-22mm cat 1 3-point hitch and WP-400 bar hydraulic hoses. The CRAB-3000 crane has a total weight of 390 kg and a load capacity of 250 kg.
Weight | 390 kg |
3-point hitch | Cat. 1 (ø19mm - 22mm) |
Load capacity | 250 kg |
Distance between lower points | 550-640 mm |
Lifting height | 3300 mm |
Min./max. oil pressure | 90 - 150 bar |
Optional oil flow | 30 - 40 l/min |

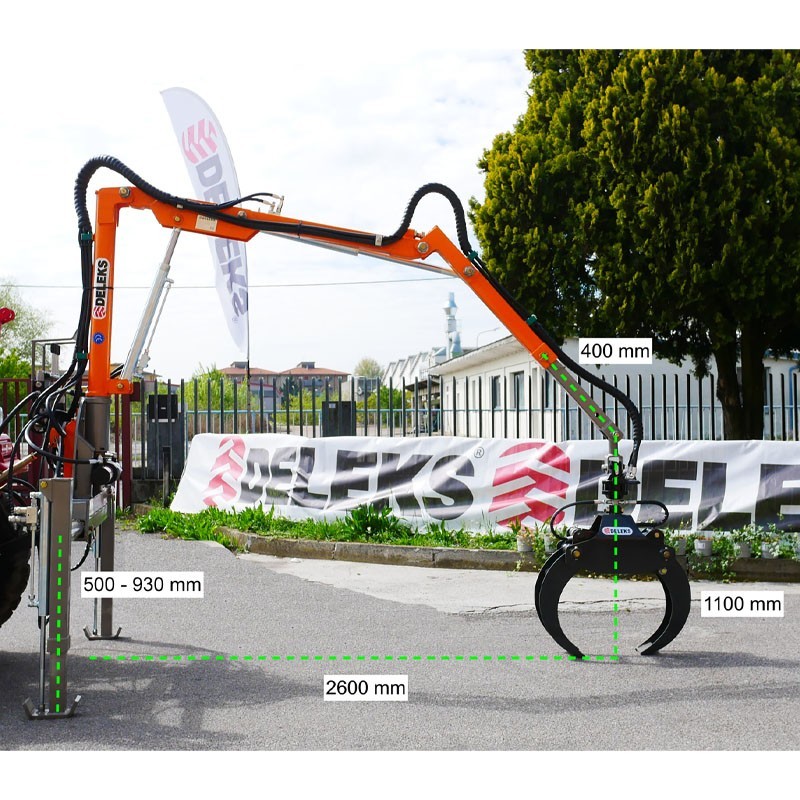

Other dimensions | See pictures |
Hydraulic hoses | WP-400 bar |
Arm length | 3000 mm |
Rotation angle | 270° |
Maximum reach | 2700 mm |
Distance between feet | 1200 / 2400 mm |
Minimum power | 30 HP |

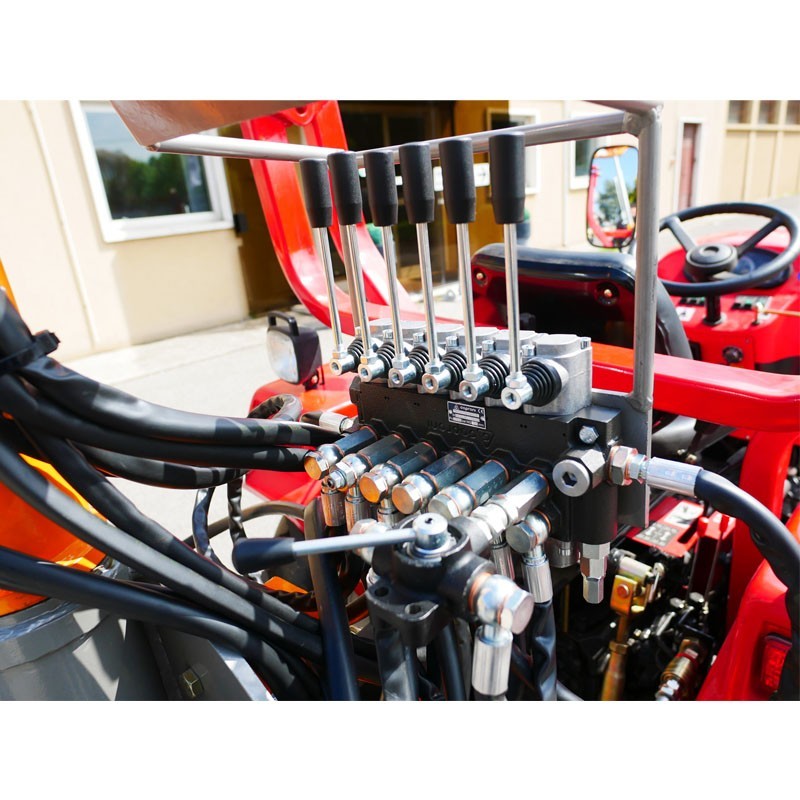

Controls | CAPRONI |
Arm hydraulics | Rebos (Mantova - Italy) |
Hydraulic arm diameter | 60/40 and 70/40 mm |
Valves | 4 - Made in Italy |

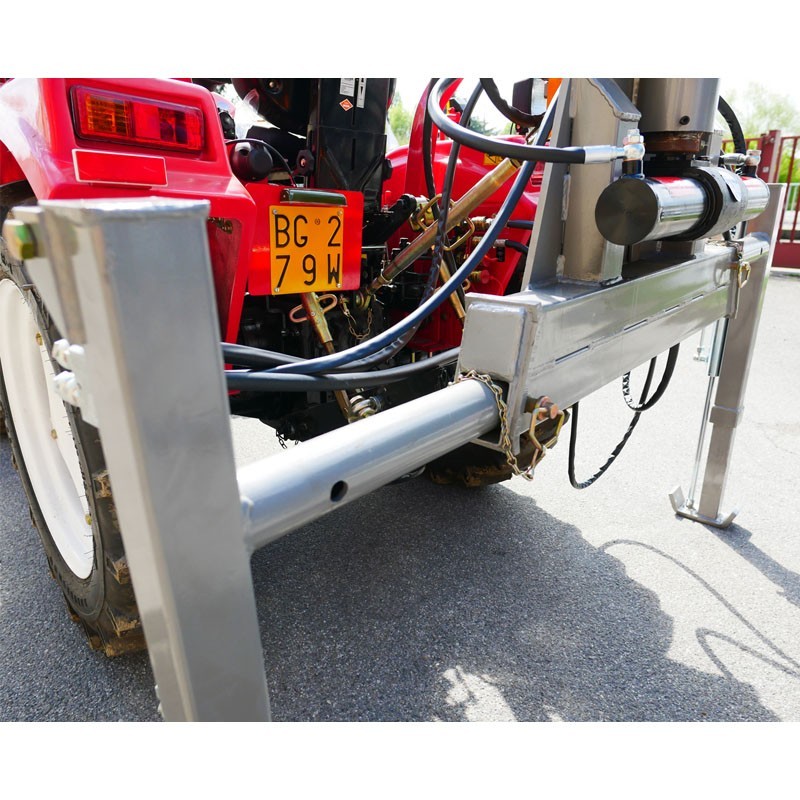

Stabilizers | 2 |
Clamp | DK-10 |
Clamp: maximum opening | 1055 mm |
Gripper: continuous rotation | 360° |
Clamp: open height | 885 mm |
Clamp: width closed | 720 mm |
Rotator | Lombarda Ingranaggi GR-10 |
Gripper: weight with rotator | 63 kg |
Packing dimensions | 1200*1500*1750 mm |
