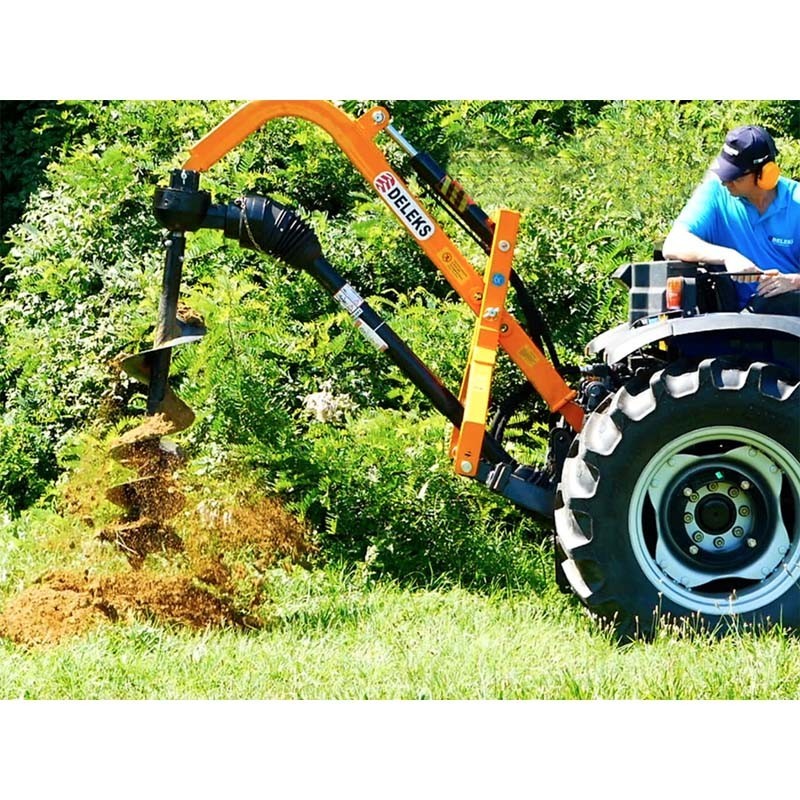

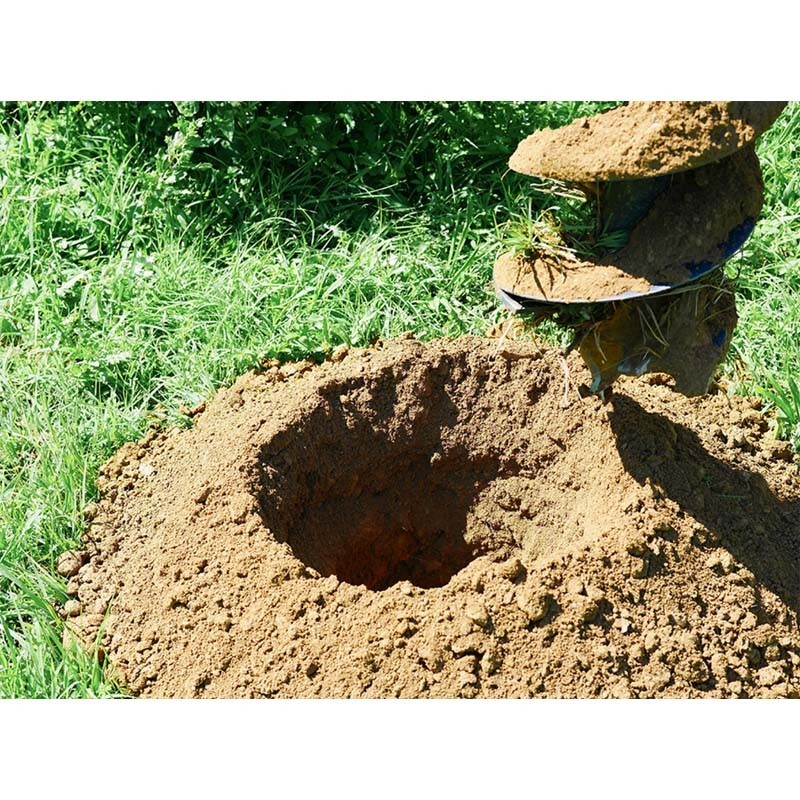

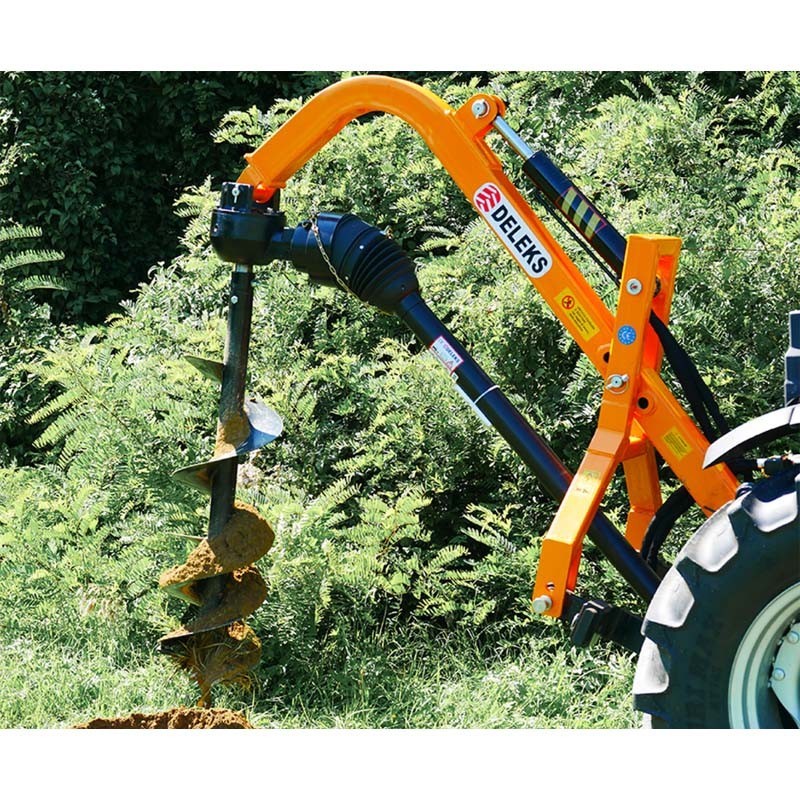

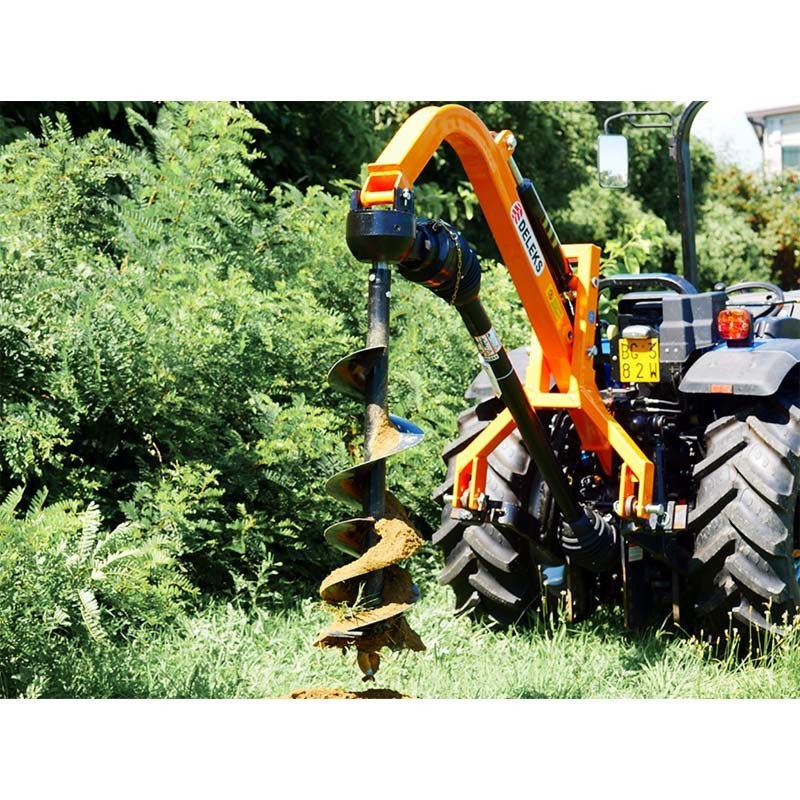

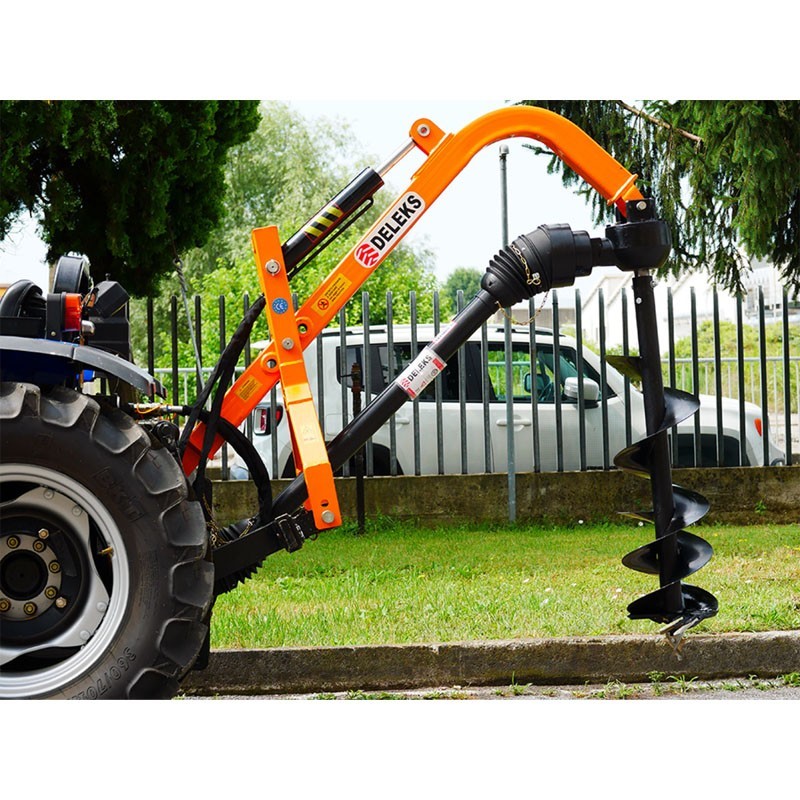

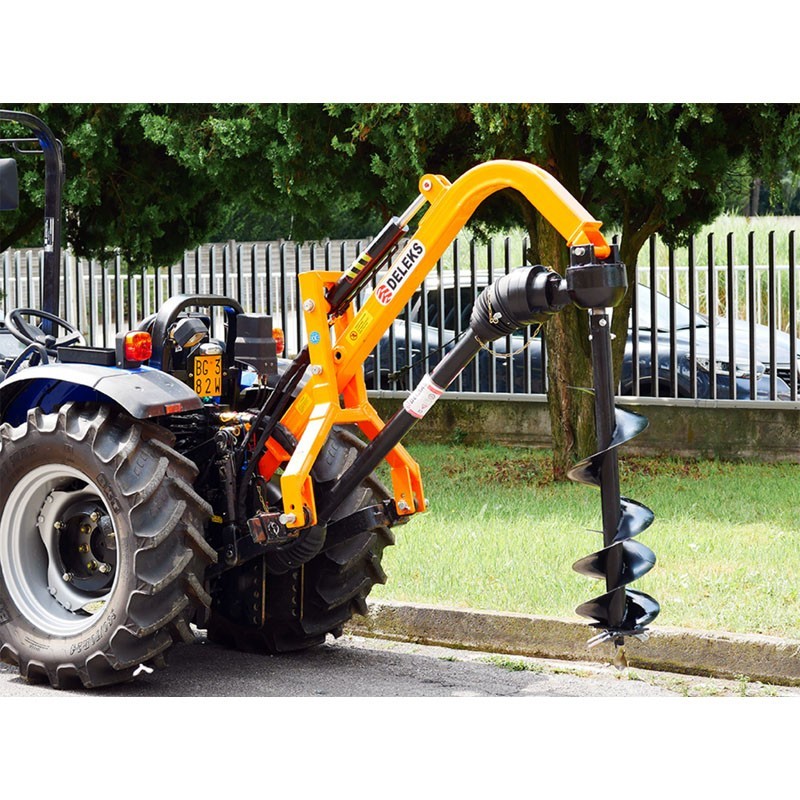

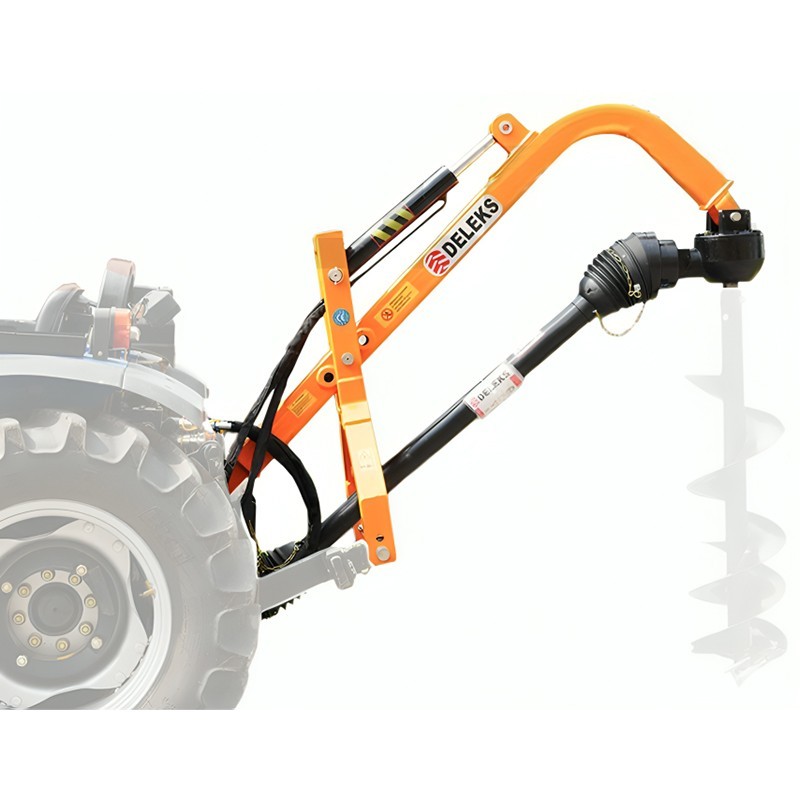

The hydraulic auger for tractor Deleks L-50H 40HP is an ideal complement for tractors with a minimum power of 40HP, giving great accessibility to a variety of tractors. This auger is perfect for making holes depending on the need. It is ideal for agriculture, gardening, for vines, trees, fences, sticks or in the sand.

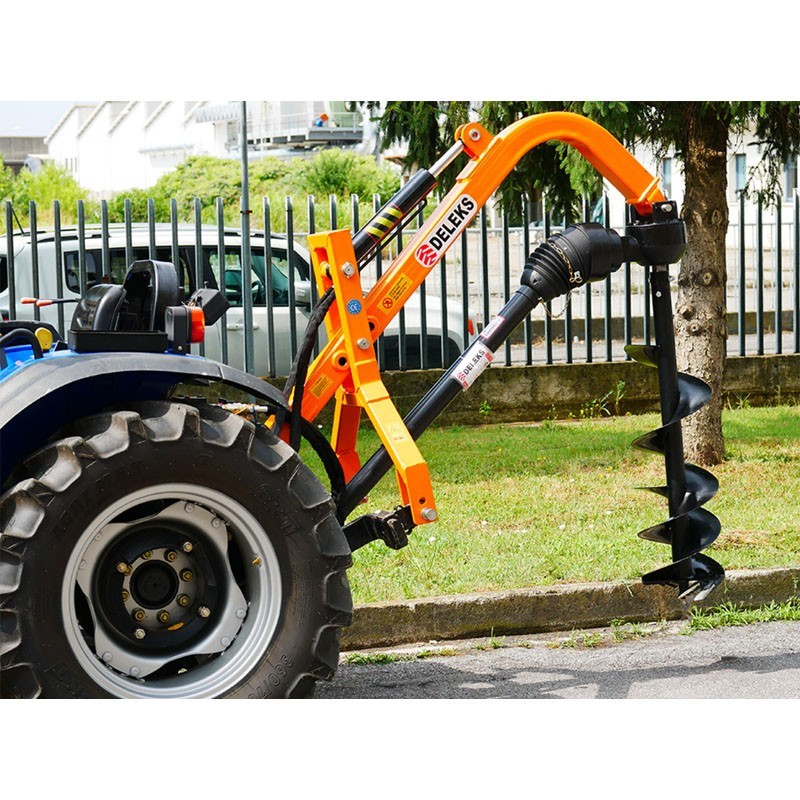

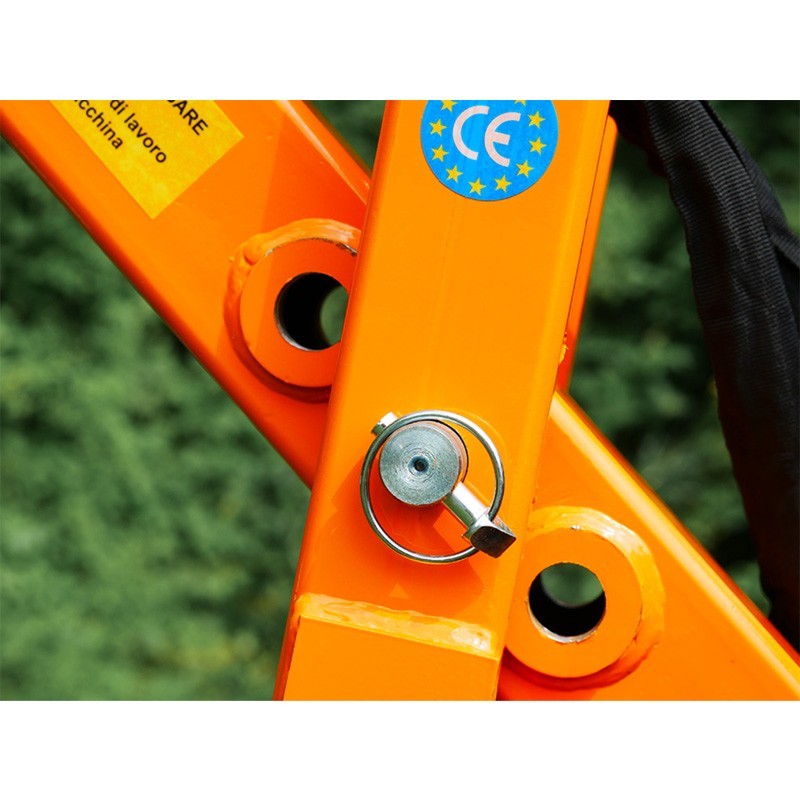

The model also features a universal category 2 3-point hitch. This auger has a bit rotation speed of 180r/rpm and a 1300mm CE shaft, which allows it to be easily connected to the tractor, and it also has a good CE safety protection.

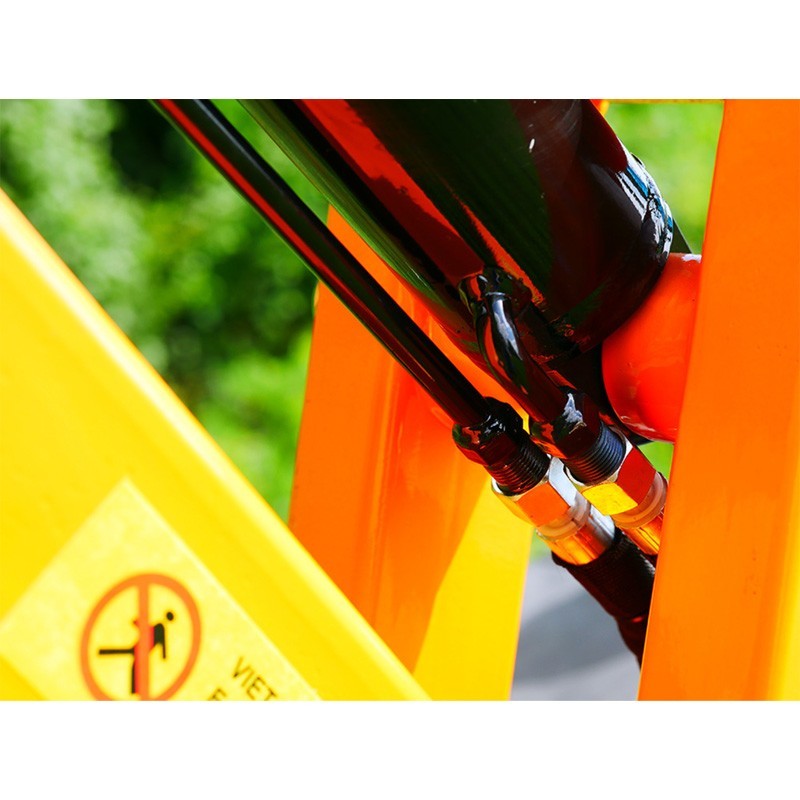

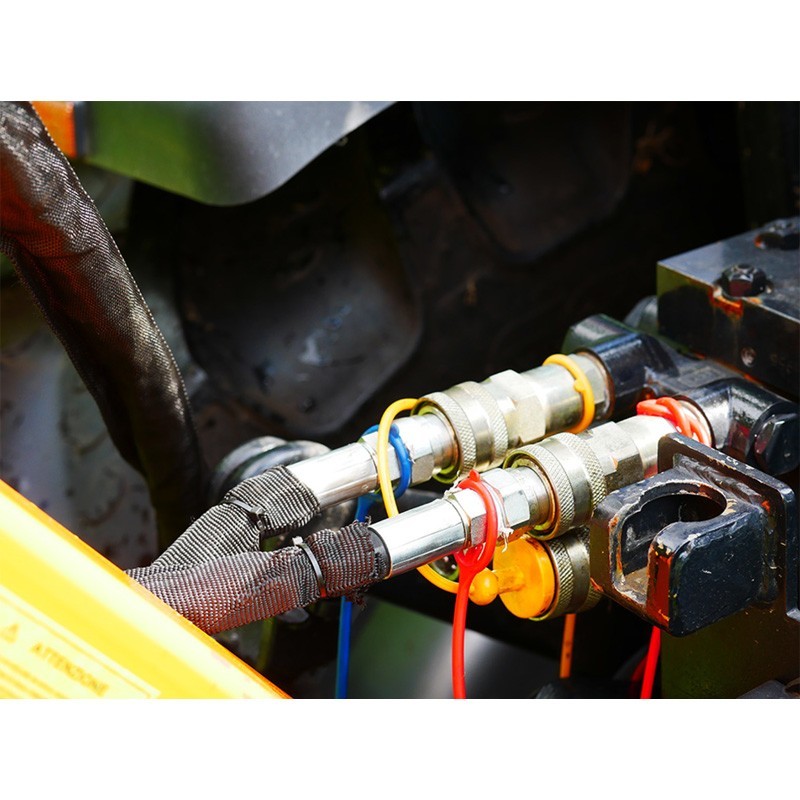

This auger comes with interchangeable drill bits, tilt arm adjustments, hydraulic drive and a light weight of 130 kg, making it an easy and simple to use addition to the job site.
Weight | 130.0 kg |
3-point hitch | Cat. 2 (ø 25.0-28.0mm) |
Distance between lower points | 630.0 - 740.0 mm |
Arm thickness | 5.0 mm + reinforcements |
Drill bit rotation speed | 180 r/min |
Arm thickness | 5 mm + reinforcements |

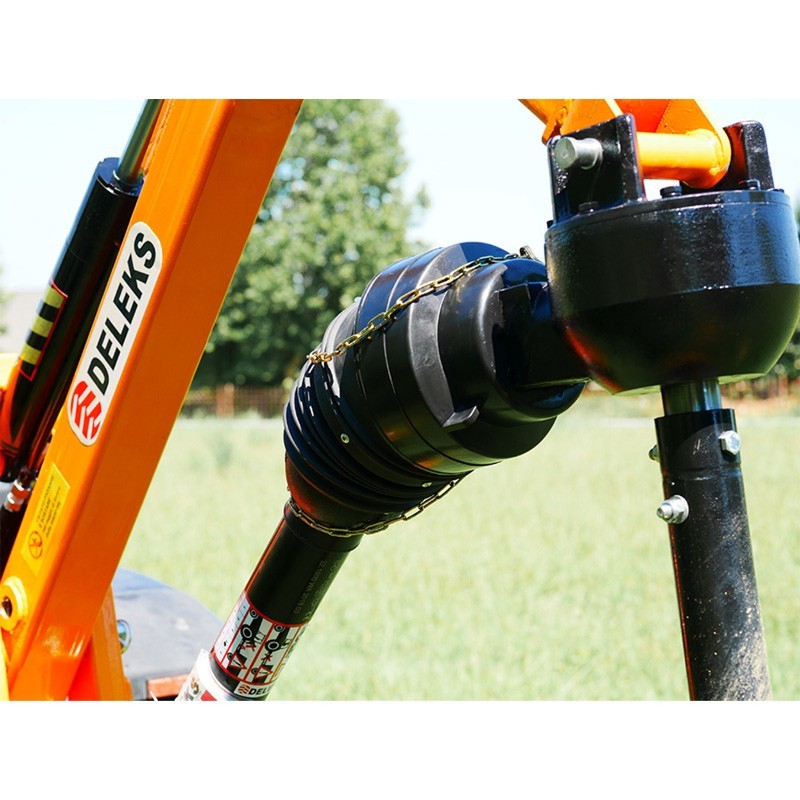

Cardan shaft | CE 5x1300 mm |
Maximum reach | 1770 mm |
Minimum power | 40 hp |
Transmission box | Lombarda Ingranaggi 540 r/min |
Direction of rotation PTO | Right side |
Gearbox oil | Yes/ SAE 120 - ISO 72925 |
Digging depth | |
Digging depth | 1250 mm |
drill bit ø | Optional |
Packing dimension | 1700*800*500 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
