Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

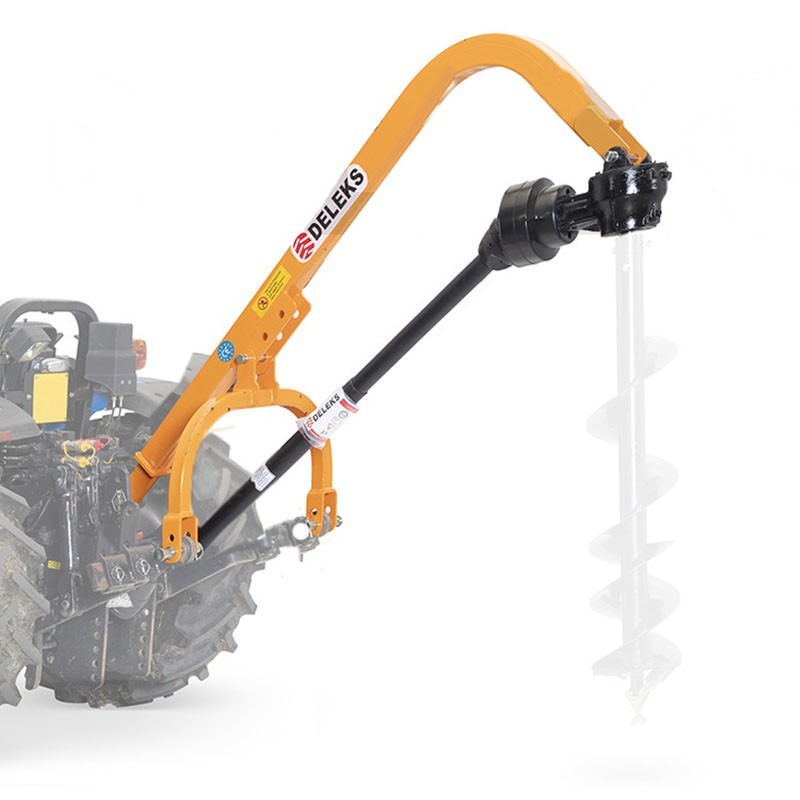

The Mechanical Auger Deleks L-50 is an attachment that works with tractors with a minimum power of 40HP. It is used for making vertical holes in the ground. It is ideal for agriculture, gardening, vineyards, trees, fences, posts, or in sand.
The model also features universal 3-point hitches of category 1 and 2. It offers a power take-off of 540 r/rpm and a CE cardan of 1300mm. This auger ensures great comfort and ease for making holes, and it also has good CE safety protection.
The Mechanical Auger Deleks L-50 includes interchangeable drill bits and arm inclination adjustments. This model does not require hydraulic outlets. It has a lightweight of only 100 kg.
Weight | 100 kg |

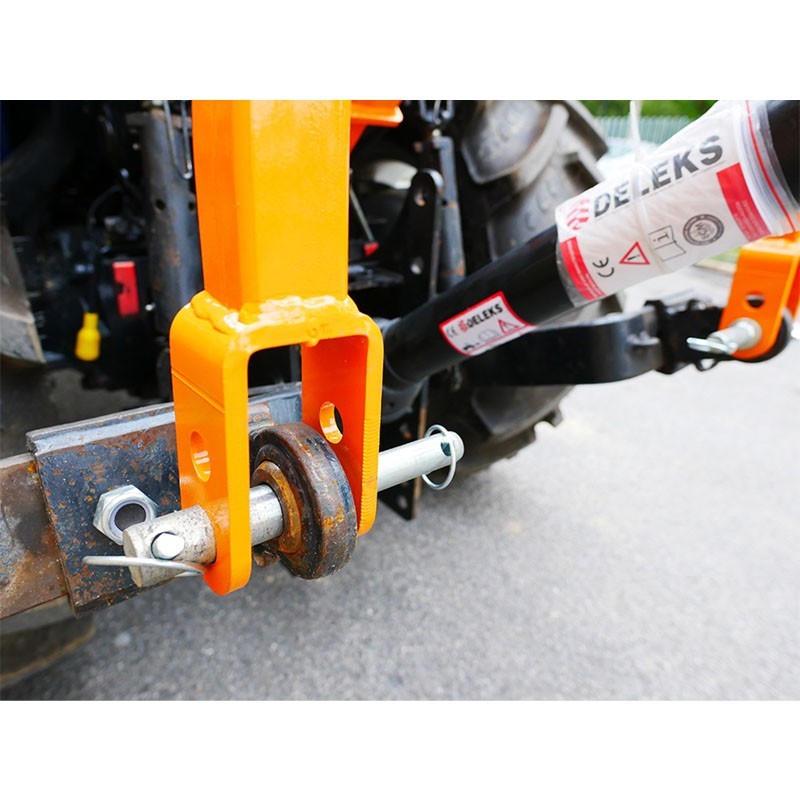

3-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
Distance between lower points | 450 - 730 mm |
Arm thickness | 5 mm + reinforcements |
Drill rotation speed | 180 r/min |
Arm thickness | 5 mm + reinforcements |
Cardan | CE 5x1300 mm |
Maximum reach | 1770 mm |
Minimum power | 40 hp |

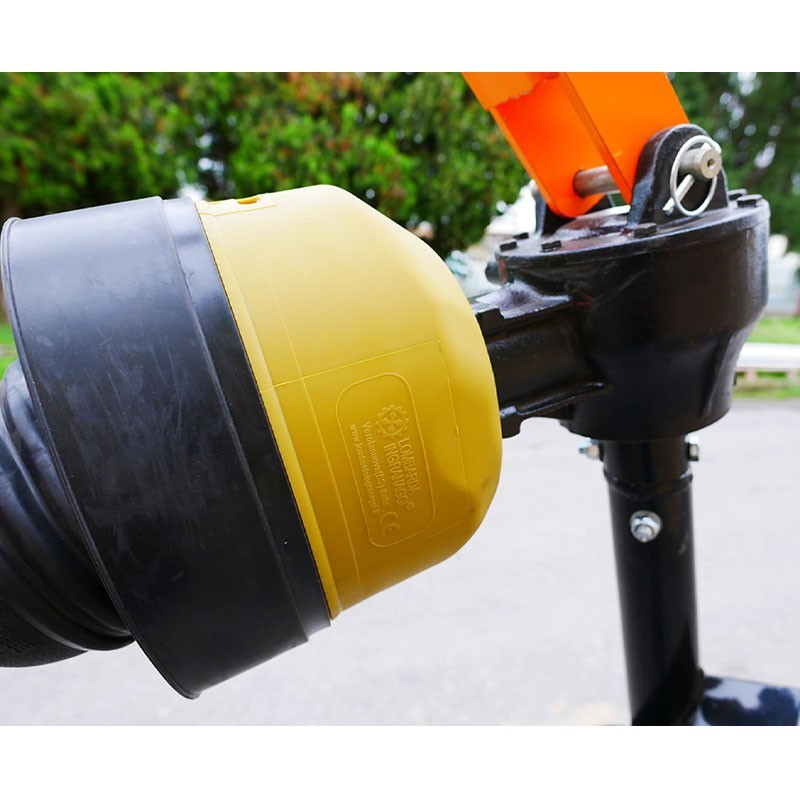

Transmission box | Lombarda Ingranaggi 540 r/min |
PTO rotation direction | Right side |
Box oil | Yes/ SAE 120 - ISO 72925 |
Excavation depth | 1250 mm |
ø drill | Optional |
Packaging dimensions | 1700*800*500 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
INCLUDES CARDAN
