ABAC EXP A39B 90 CM3 393 l/min ABAC EXP A39B 90 CM3 393 l/min air compressor
ABAC EXP A39B 90 CM3 393 l/min ABAC EXP A39B 90 CM3 393 l/min air compressor
ABAC EXP A39B 90 CM3 393 l/min ABAC EXP A39B 90 CM3 393 l/min air compressor

ABAC EXP A39B 90 CM3 393 l/min ABAC EXP A39B 90 CM3 393 l/min air compressor


  • Power : 3 HP
  • Tank : 100 L
  • Lubrication : With oil
  • Pressure : 10 bar
  • Air intake : 393 l/min
En stock
icon Power Supply
Power Supply
Electric
icon Current
Current
Single-phase
icon Power
Power
3 HP
icon RPM
RPM
1050 RPM
icon Deposit
Deposit
100 L
icon Lubrication
Lubrication
With oil
icon Pressure
Pressure
10 BAR
icon Pump Type
Pump Type
One stage
icon Cooling manifold
Cooling manifold
Yes
icon Transmission type
Transmission type
Belts
icon Motor type
Motor type
Induction
icon Air flow rate
Air flow rate
393 L/MIN
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
72 KG
€649.41 excl. VAT
- 4%
€623.43 excl. VAT
€754.35 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


ABAC EXP A39B 90 CM3 393 l/min ABAC EXP A39B 90 CM3 393 l/min air compressor
€754.35
Qty

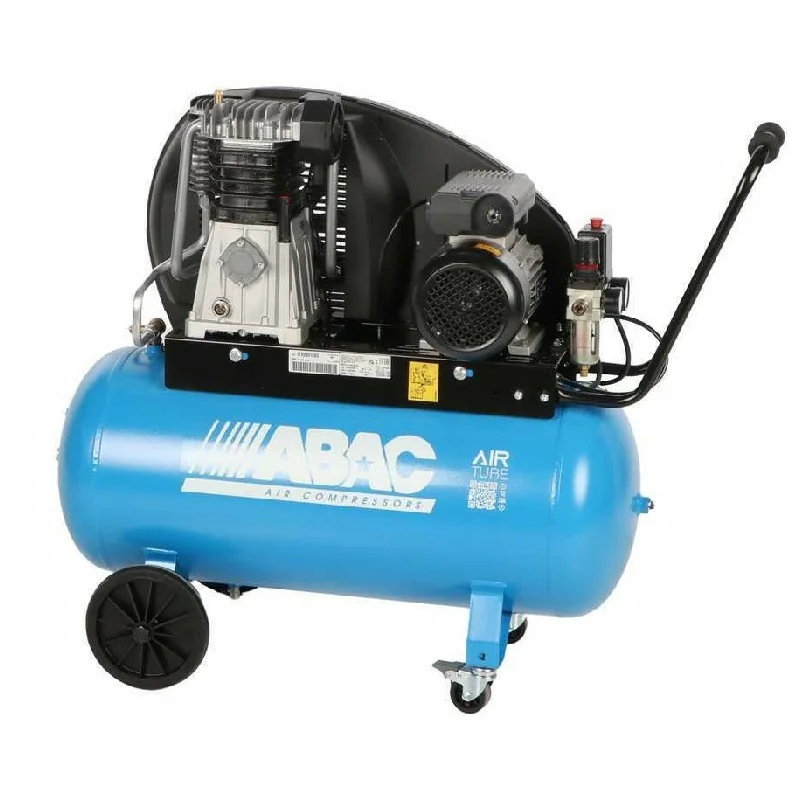

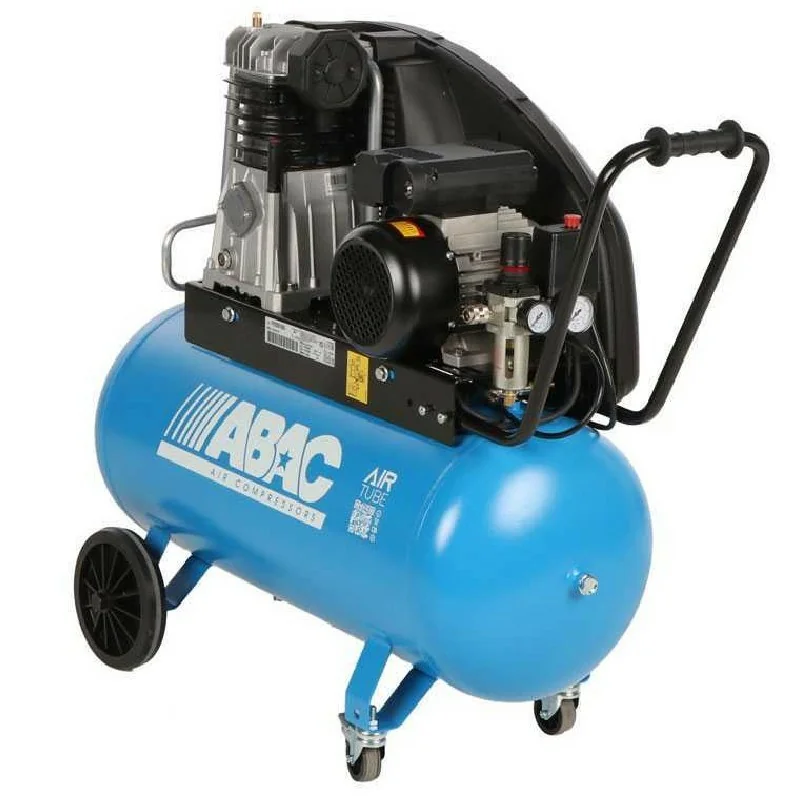

Air compressor ABAC EXP A39B 90 CM3 393 l/min

The ABAC EXP A39B 90 CM3 is a powerful and reliable compressor, ideal for those who need constant performance in demanding environments. Thanks to its 3 Hp motor and a capacity of 393 l/min, it guarantees an efficient and continuous air supply.

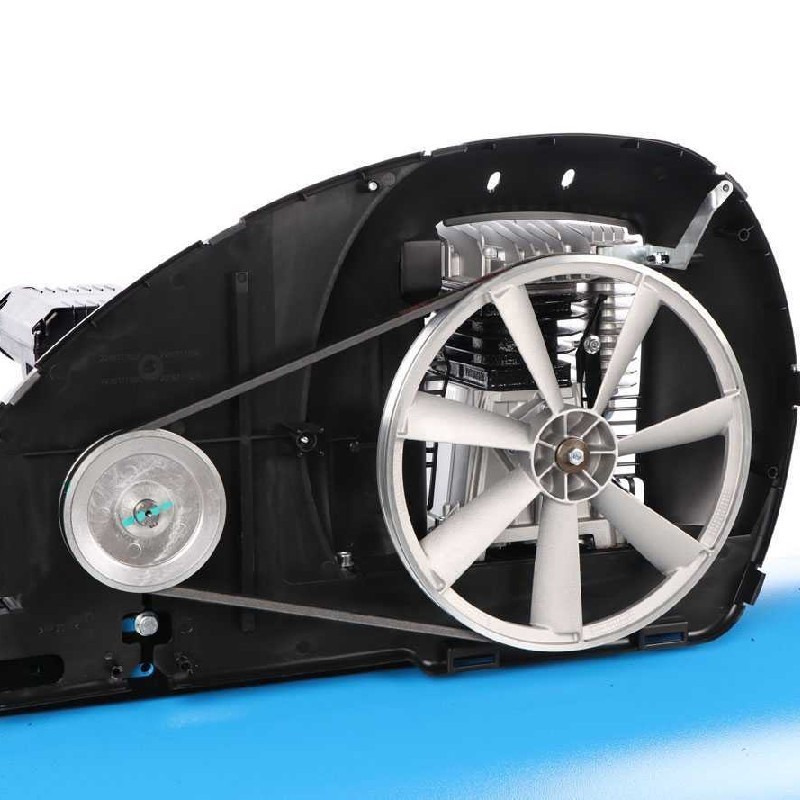

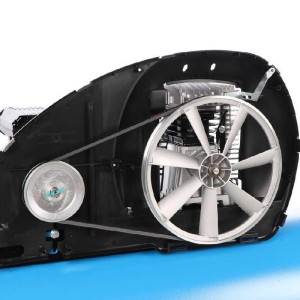

It is equipped with an oil-lubricated PAT38A pump, mounted on a 90-liter tank, which improves stability and extends its service life. Its design includes sturdy rear wheels and swivel front wheels with brakes.

The maximum pressure of 10 bar makes working with high-demand pneumatic tools effortless. In addition, its dual outlet air interface and filtration protects even the most delicate equipment.

Quiet (only 75 dB(A)), robust and easy to move, the ABAC EXP A39B is a professional choice with advanced technology built to last.

Features

Power 3 hp / 2.2 kW
Revolutions 1050 rpm
Dimensions (mm) 1180 x 460 x 930
Lubrication Oil
Starting type DOL
Head A39B
Pressure 10 BAR
Maximum Flow Rate 393 L/min
Voltage 230 V
Phase Single phase
Frequency 50 Hz
Sound power 75 dB(A)
Air tank capacity 100 L
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.

262349

Data sheet

Power Supply
Electric
Current
Single-phase
Power (HP)
3.0 - 3.9 HP
Power
3 HP
RPM
1050 RPM
Deposit
100 L
Lubrication
With oil
Tank (L)
100 - 149 L
Pressure
10 BAR
Pump Type
One stage
Cooling manifold
Yes
Transmission type
Belts
Motor type
Induction
Air flow rate
393 L/MIN
Country of manufacture
Italy
Weight
72 KG

Specific References

EAN-13
8024900736052
MPN
4116028203
