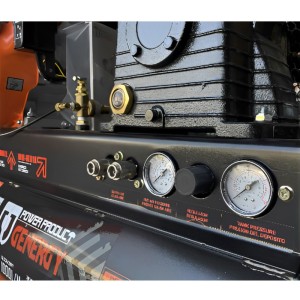

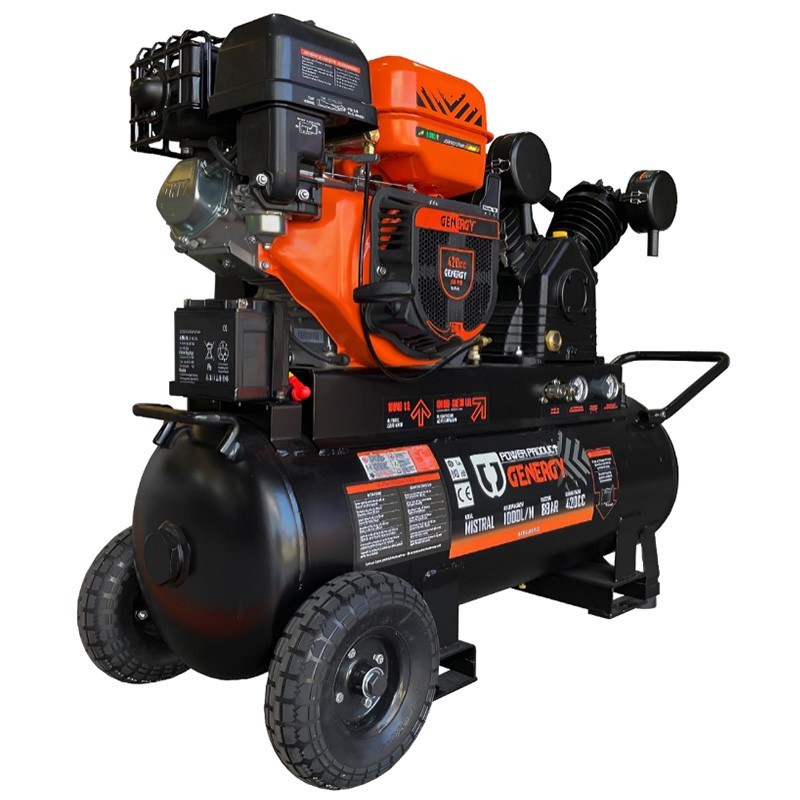

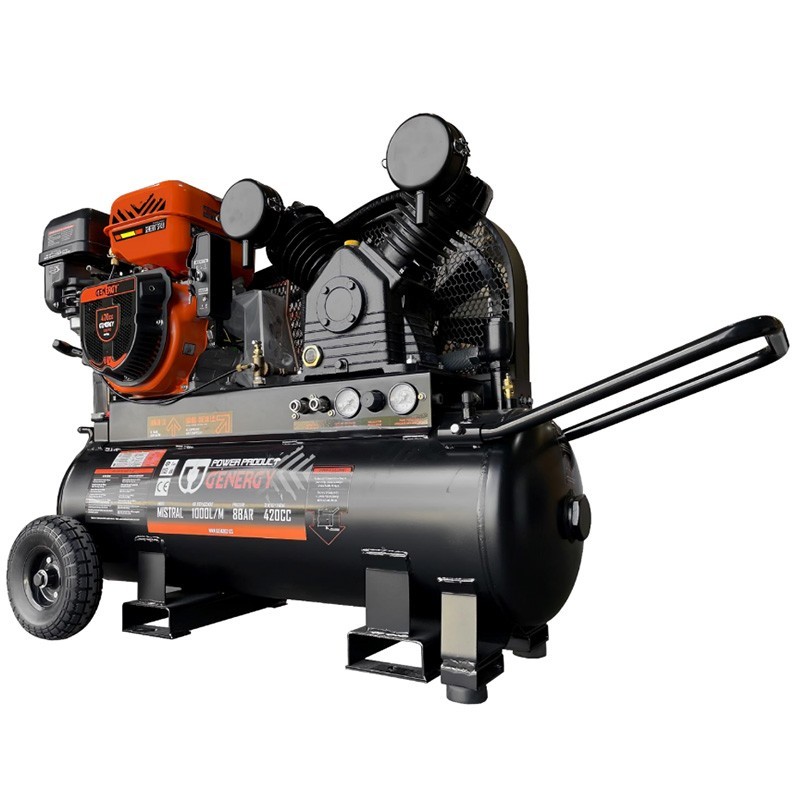

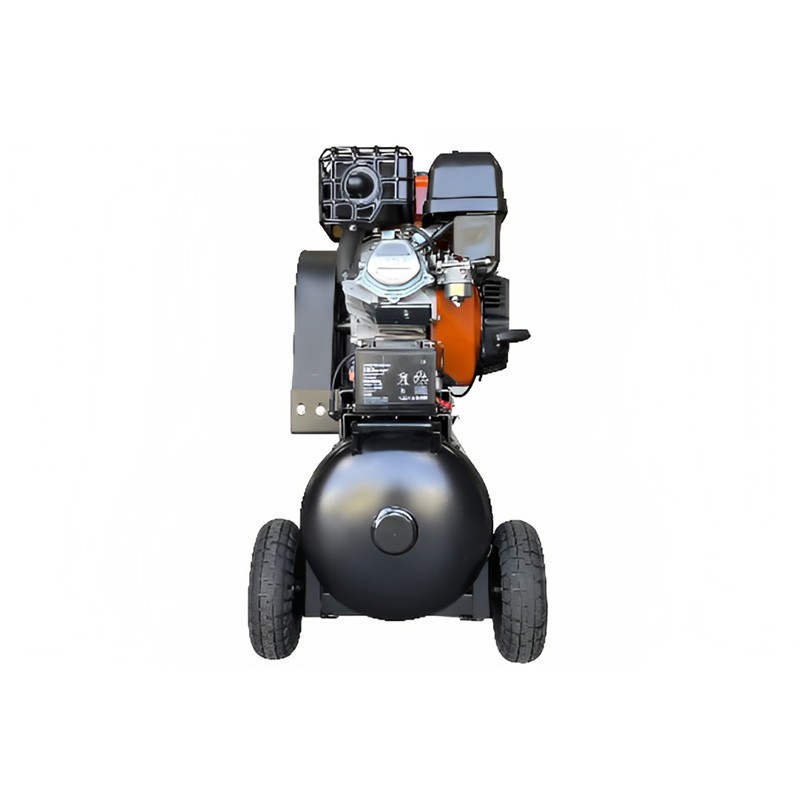

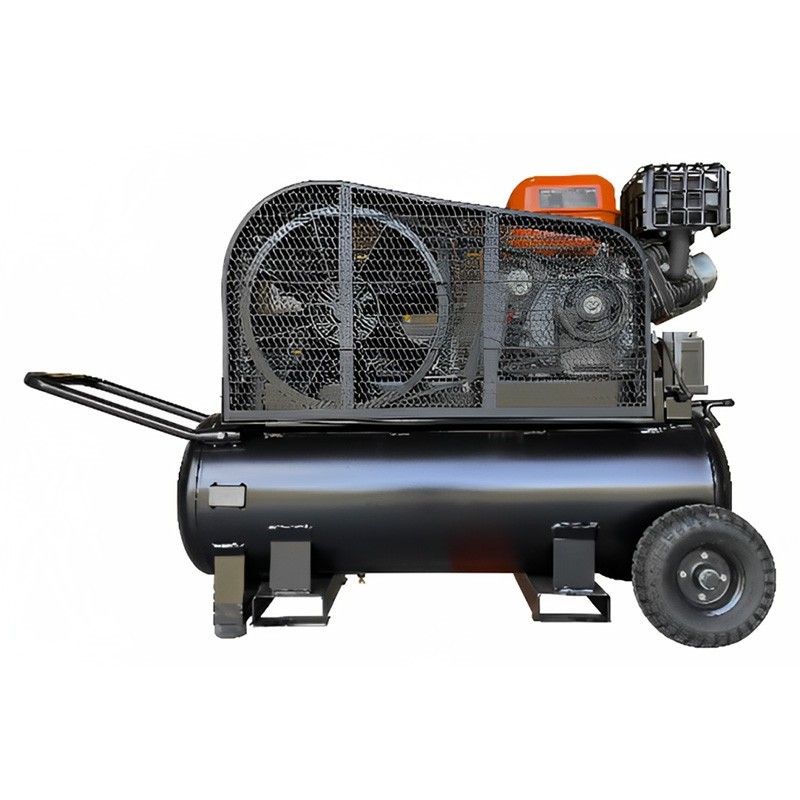

The Gasoline Compressor Genergy Mistral 1000 L/M 420 cc 8 BAR has a fuel tank capacity of 6 L, a manual and electric starter type, with a 4 stroke OHV air-cooled gasoline engine type, and a displacement of 420cc.
This compressor has a consumption at load of 1.0 L per hour and at rest of 2.6 L per hour and a pressurized time from 0 to 8 bars in 60 seconds. Its dimensions without handlebars are 1202X546X989 mm and it comes with a transport kit with 10" wheels.
The Gasoline Compressor Genergy Mistral 1000 L/M 420 cc 8 BAR has a weight of 187 kg, an air tank capacity of 110 L and has a maximum air displacement of 1000L/M with an estimated average autonomy of 3.3 hours.
Maximum air displacement | 1000L/M |
Air displacement 2BAR | 877L/M |
Air displacement 4BAR | 778L/M |
Air displacement 6BAR | 702L/M |
Air displacement 8BAR | 648L/M |
Air tank capacity | 110L |
Pressurized time 0 to 8BAR | 60SEC |
Engine model | GENERGY SGB420PRO |
Displacement | 420cc |
Engine type | Gasoline, 4-stroke OHV air-cooled |
Noise level at 4mts LpA (idling/loading) | 91dB - 88dB |
Starting type | Manual and electric |
Fuel tank capacity | 6L |
Consumption in load - rest | 1.0L/H 2.6L/H |
Estimated average range | 3.3H |
Engine oil | SAE10W40 (1.1L) |
Compressor oil | ISO100 - SAE30 (1.0L) |
Standard | ISO12100:2010 EN1012-1:2010 EN60204-1:2006+A1:2009+AC2010 |
Transport kit | Yes with 10" wheels |
Dimensions without handlebars | 1202X546X989 mm |
Weight | 187kg |
Reference | 31115 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
