Hyundai HYACB200-31T Three-Phase 200 L Air Compressor
- Motor power : 3 hp
- Protection ip : 54
- Transmission : Belt
€810.22 VAT incl.

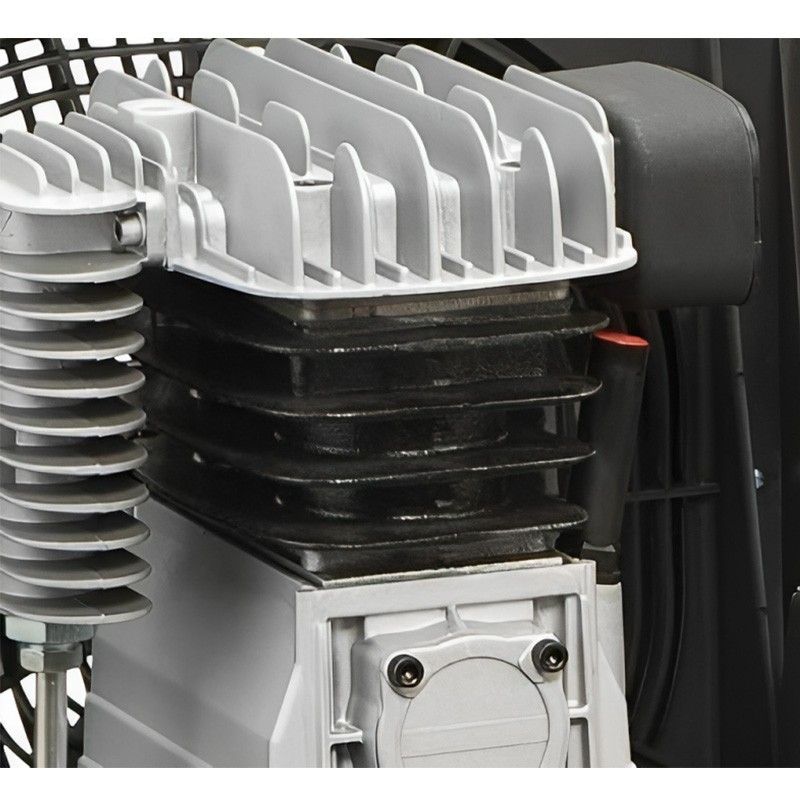

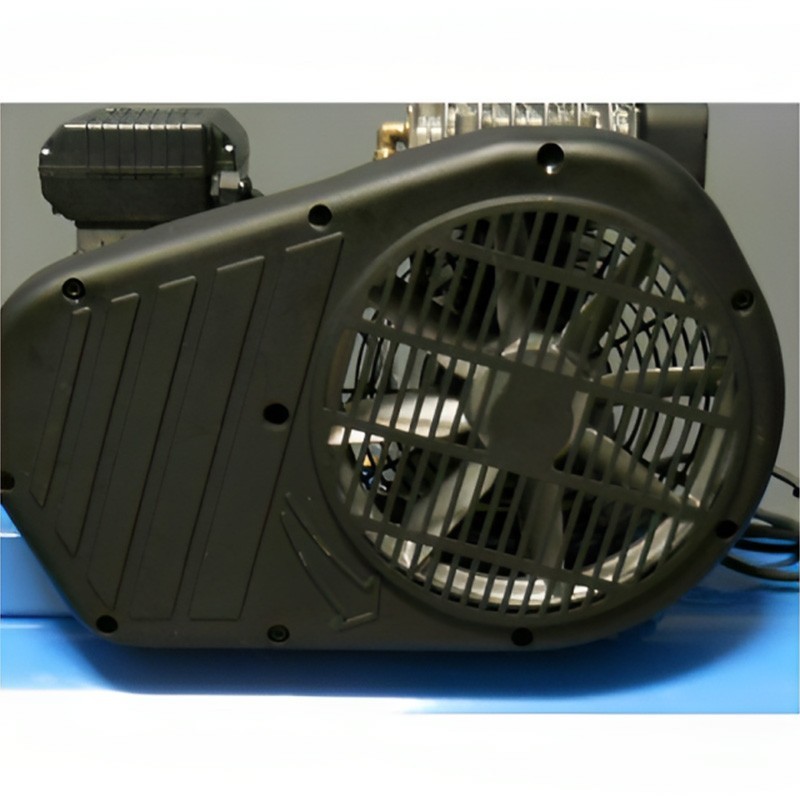

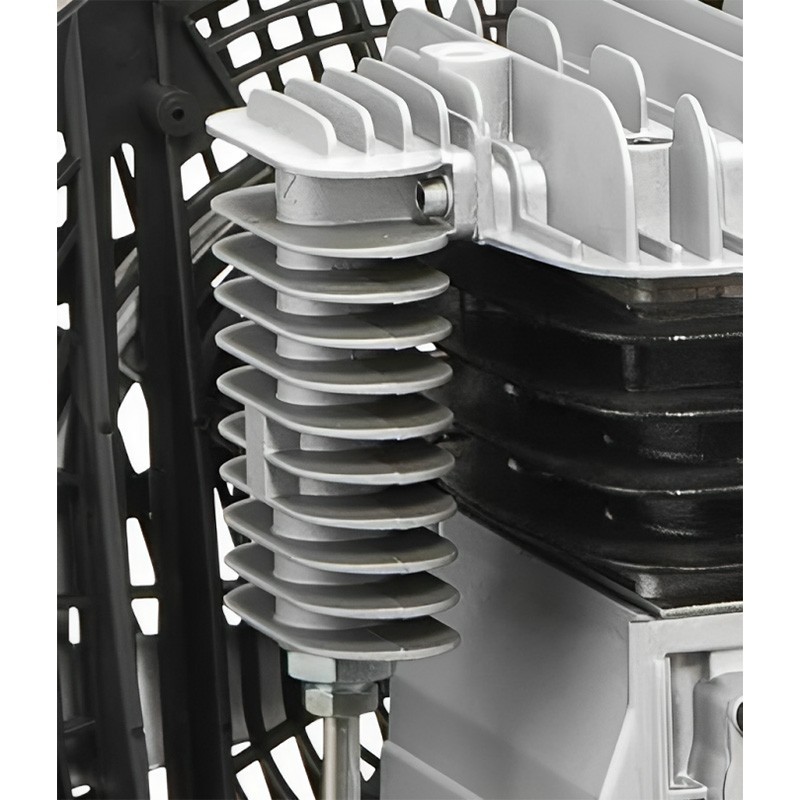

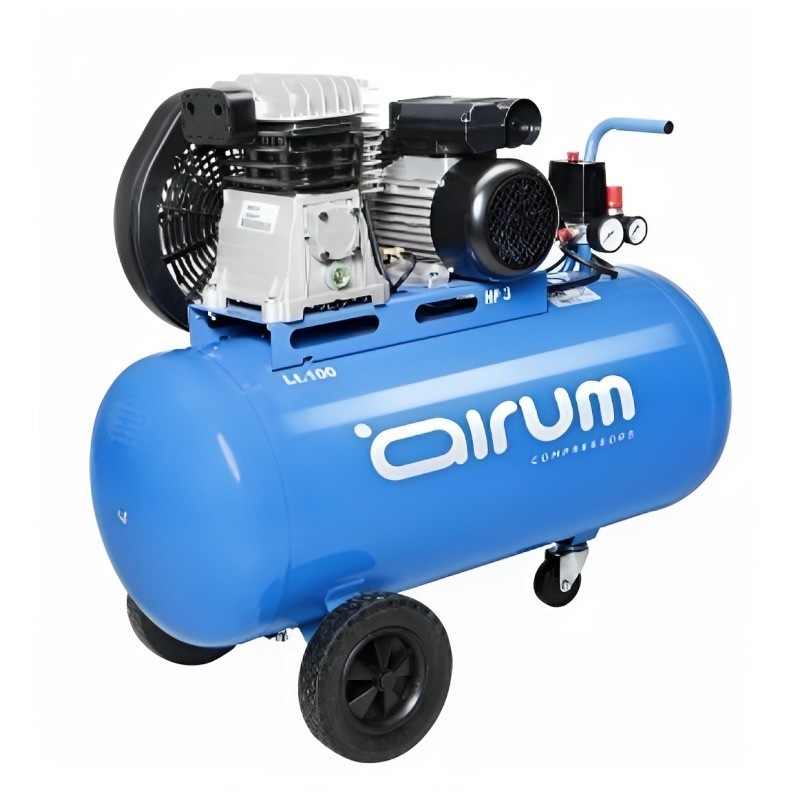

The Airum B2800B/100 CM3 air compress or is a robust tool with a heavy-duty plastic guard that improves ventilation and protects moving parts. It offers a maximum pressure of 10 bar and a suction air capacity of 330 liters per minute, making it ideal for a variety of applications.

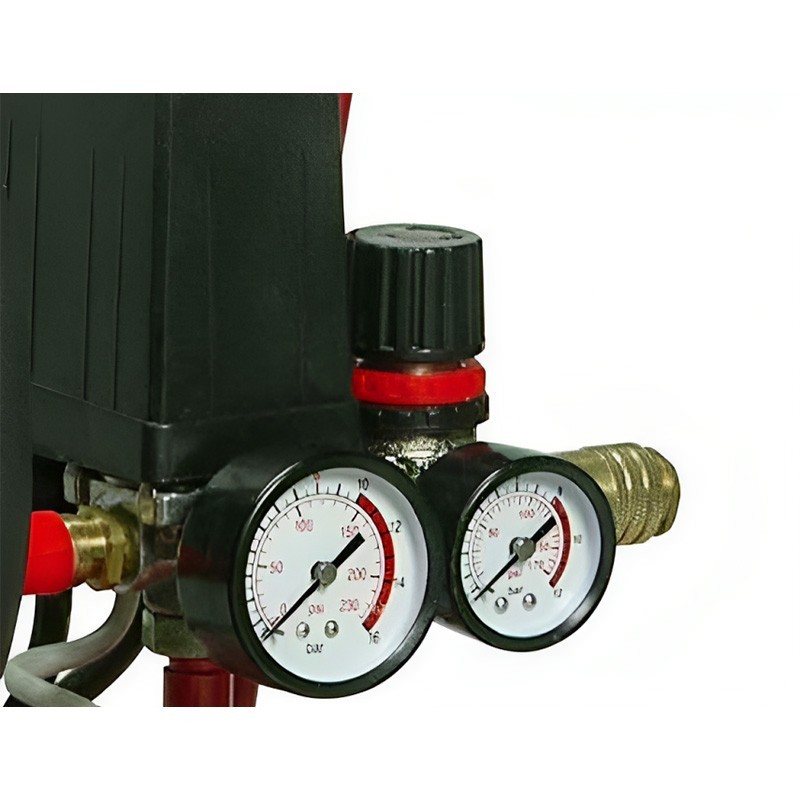

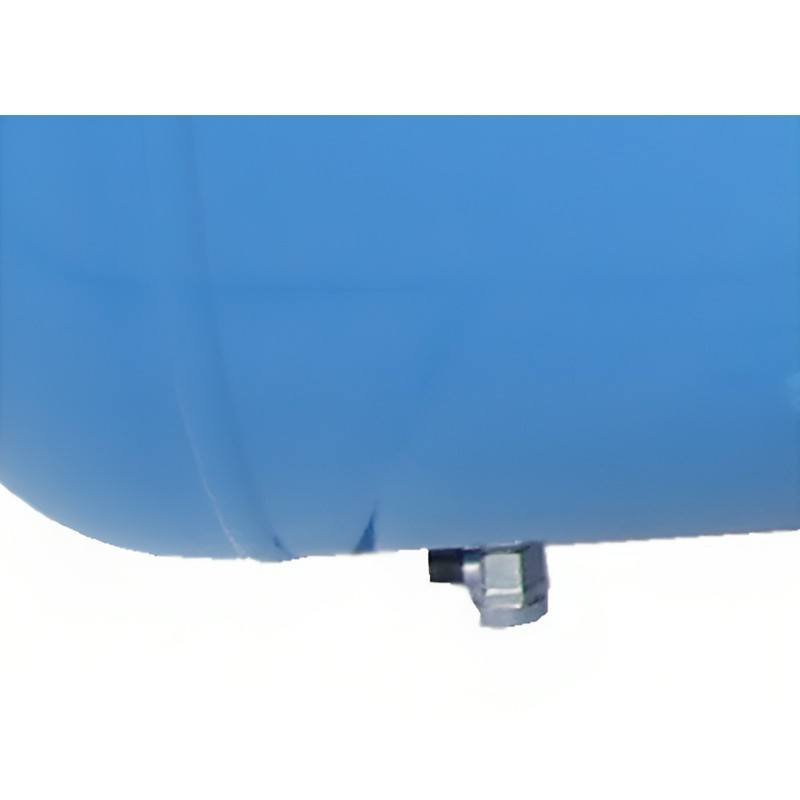

Its control panel is easy to use and offers a clear readout of settings. With 3 hp (2.2 kW) of power and a 100-liter air tank, this compressor provides a constant flow of compressed air. In addition, it features a ball bleeder cock to prevent clogging and facilitate maintenance.

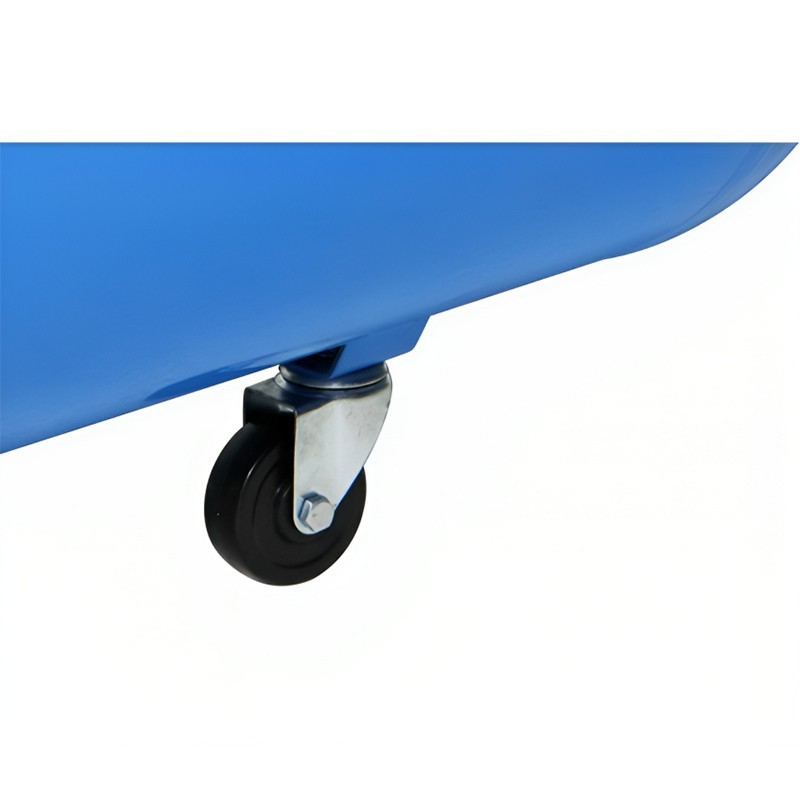

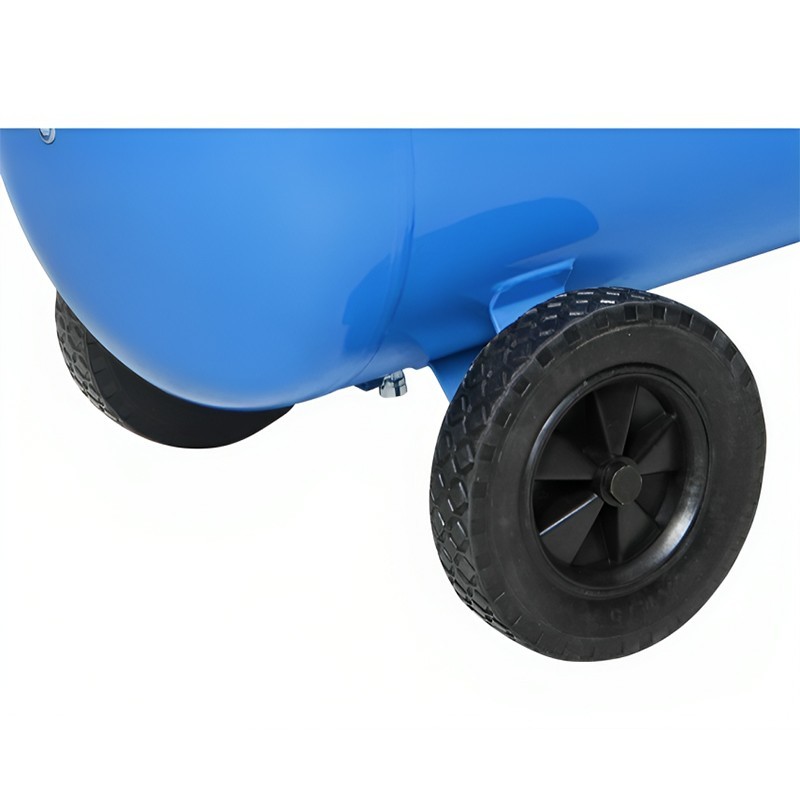

Operating at 131 psi and with a voltage of 230V on a single phase, this compressor has two cylinders and a single stage for efficient performance. Its oversized wheels and swivel caster wheel make transportation convenient, weighing 67 kg and measuring 950x390x770 mm.
Power | 3 hp / 2.2 kW |
Air tank capacity | 100 L |
Maximum pressure | 10 bar |
Air intake | 330 l/min |
Pressure | 131 psi |
Voltage | 230 V |
Phase | Single phase |
Frequency | 50 Hz |
Thread Connection | 1/2 |
Cylinders | 2 |
Stages | 1 |
Lubricated | Yes |
Weight | 67 kg |
Dimensions | 950x390x770 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
