ABAC POLE POSITION L20 air compressor 220 l/min
- Current : Single phase
- RPM : 2850 rpm
- Power supply : Electric
- Power : 2 HP
- Tank : 24 L
- Lubrication : With oil
- Pressure : 10 bar
- Pump type : Single stage
- Air intake : 220 l/min
€169.80 VAT incl.
The Nuair B2800B/3CT/200 TECH-PRO air compressor is a powerful machine designed to deliver exceptional performance in a variety of applications. This compressor features quiet operation thanks to its soundproof design, making it suitable for noise-sensitive working environments.

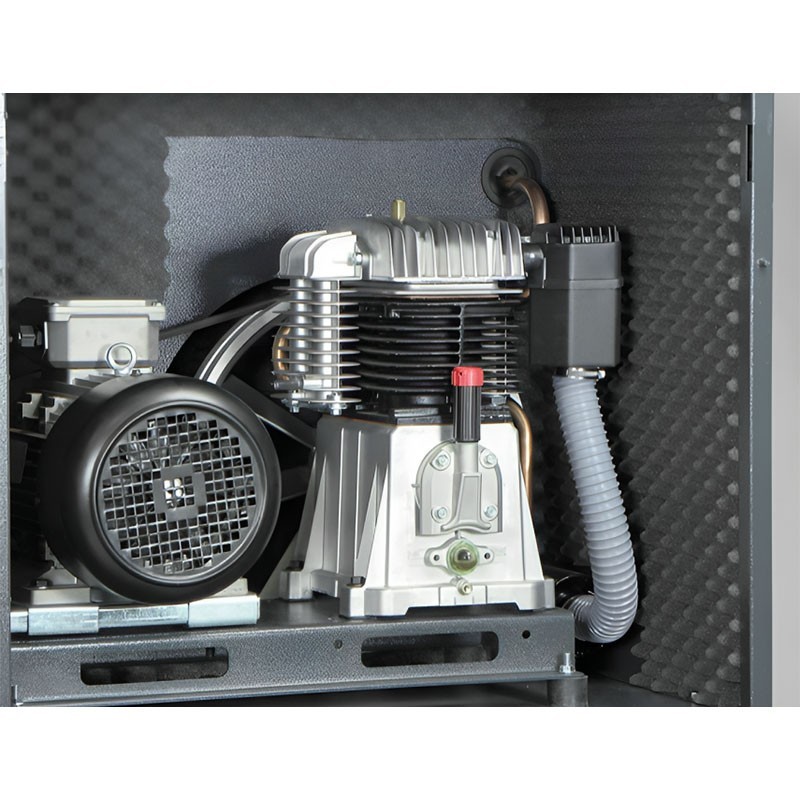

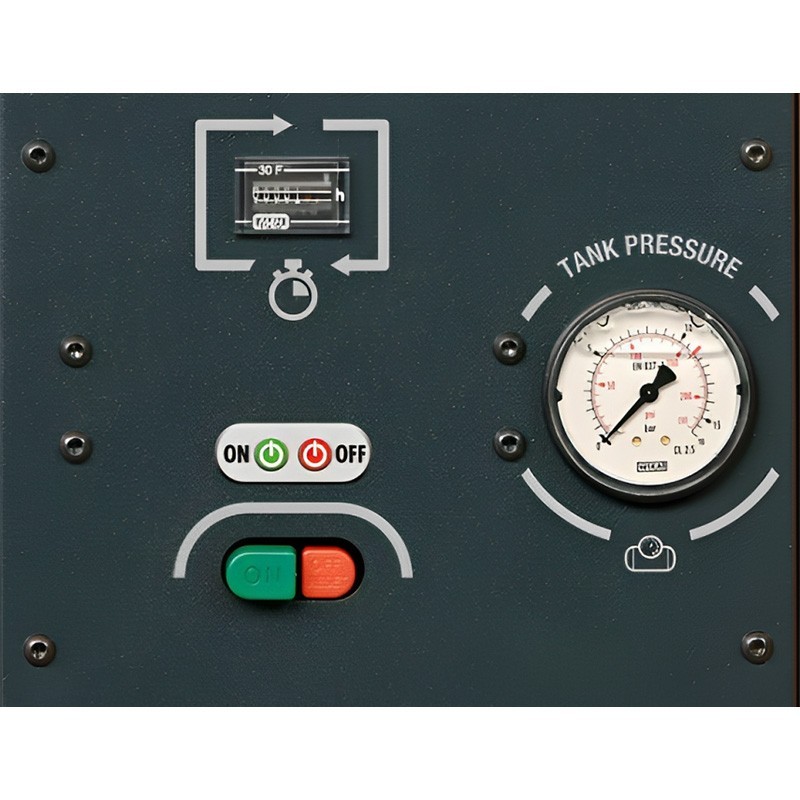

Equipped with a cast iron cylinder, this compressor ensures exceptional durability and long service life. In addition, its easy-to-read front panel allows precise control of operating parameters and pressure, making it easy to operate and maintain.
With a suction capacity of 640 liters per minute and a maximum pressure of 160 psi, this compressor is capable of handling a wide range of industrial applications. Its 400 V voltage, three-phase phase, 50 Hz frequency and 5.5 hp / 4 kW power ensure reliable and efficient performance.
Its 270-liter air tank provides a sufficient reserve of compressed air to meet the most demanding work requirements, with a maximum pressure of 11 bar. In summary, the Nuair B2800B/3CT/200 TECH-PRO air compressor is a solid choice for those looking for powerful, long-lasting performance in a quiet, easy-to-use package.
Power | 5.5 hp / 4 kW |
Air tank capacity | 270 L |
Maximum pressure | 11bar |
Air intake | 640 l/min |
Pressure | 160 psi |
Voltage | 400 V |
Phase | Three-phase |
Frequency | 50 Hz |
Thread Connection | 1/2 |
Acoustic power | 66 db(A) |
Cylinders | 2 |
Stages | 2 |
Lubricated | yes |
Weight | 193 kg |
Dimensions | 1190x900x1400 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
