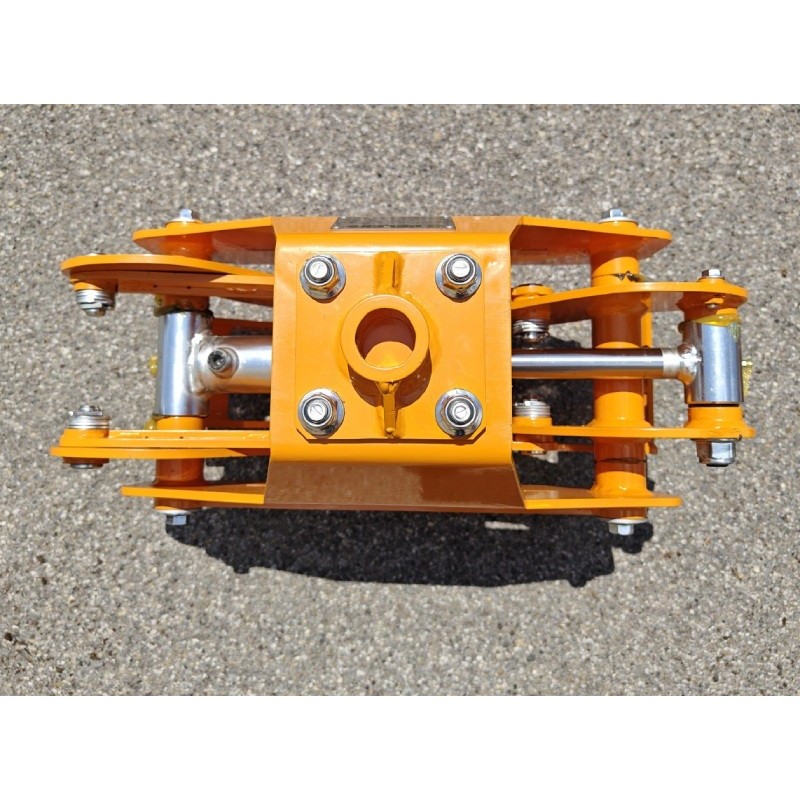

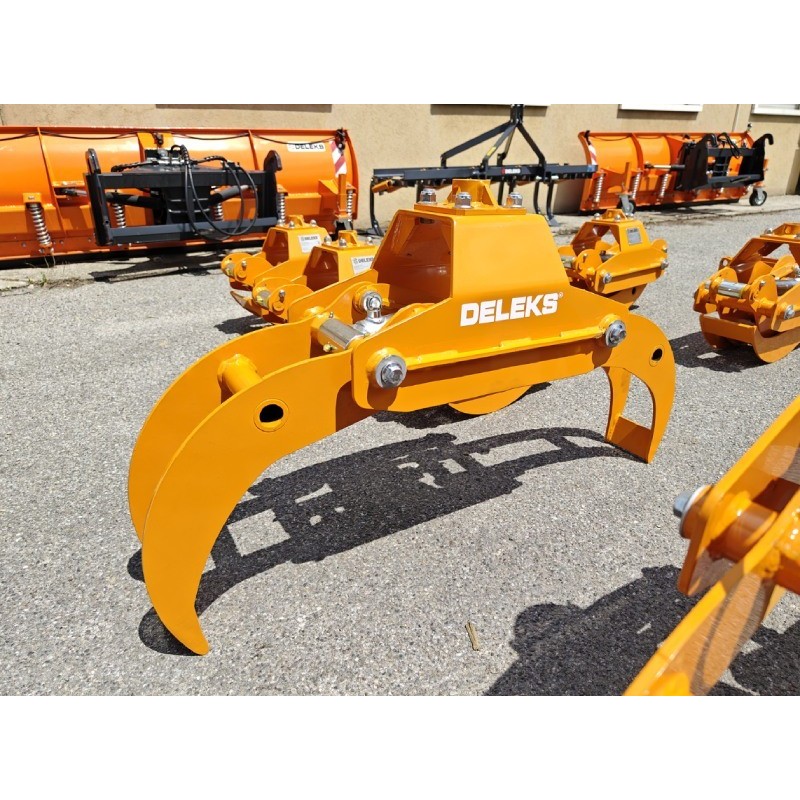

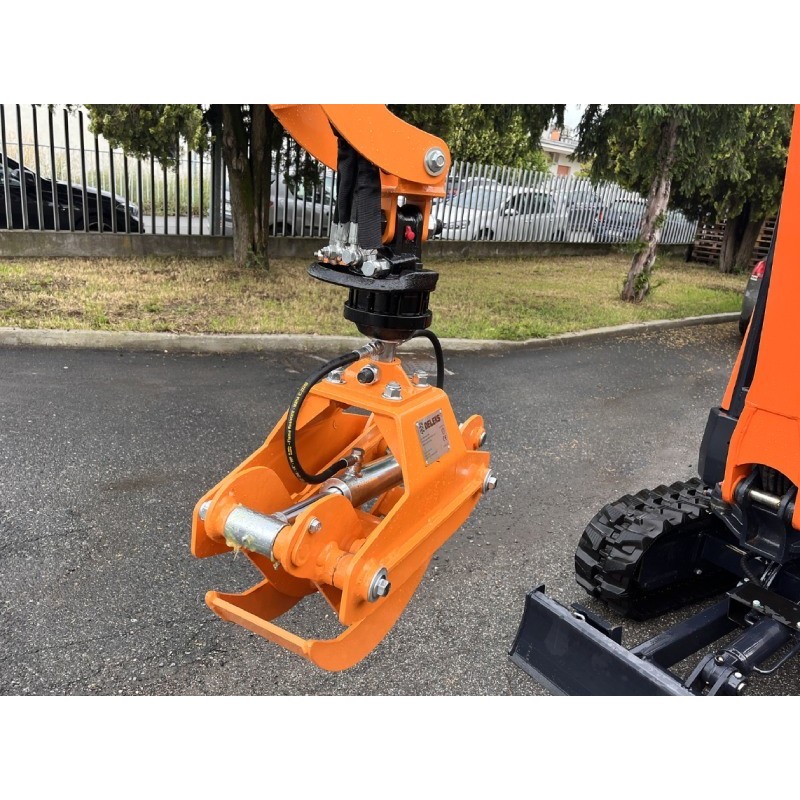

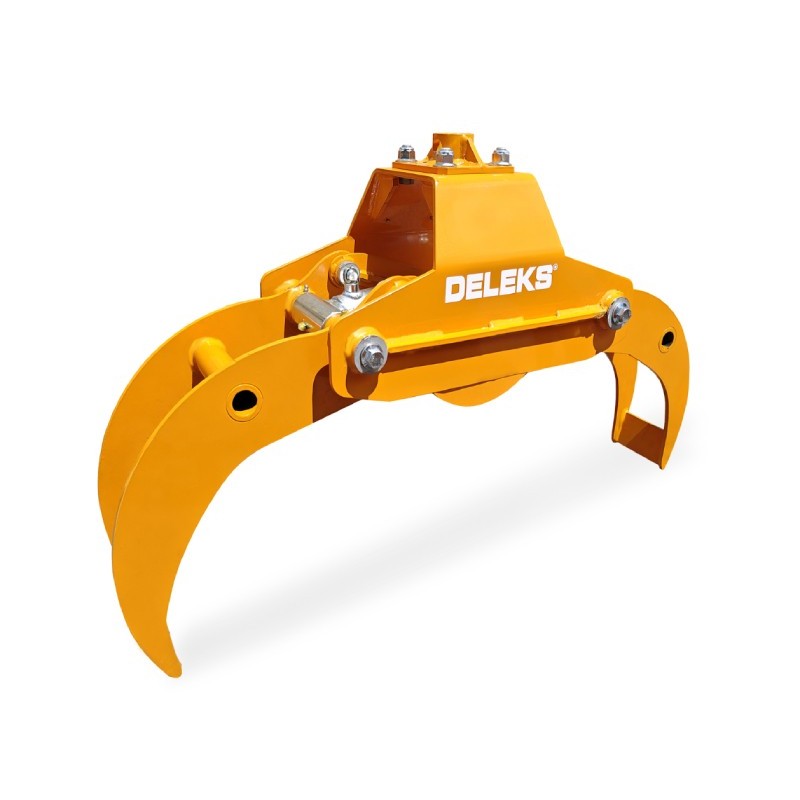

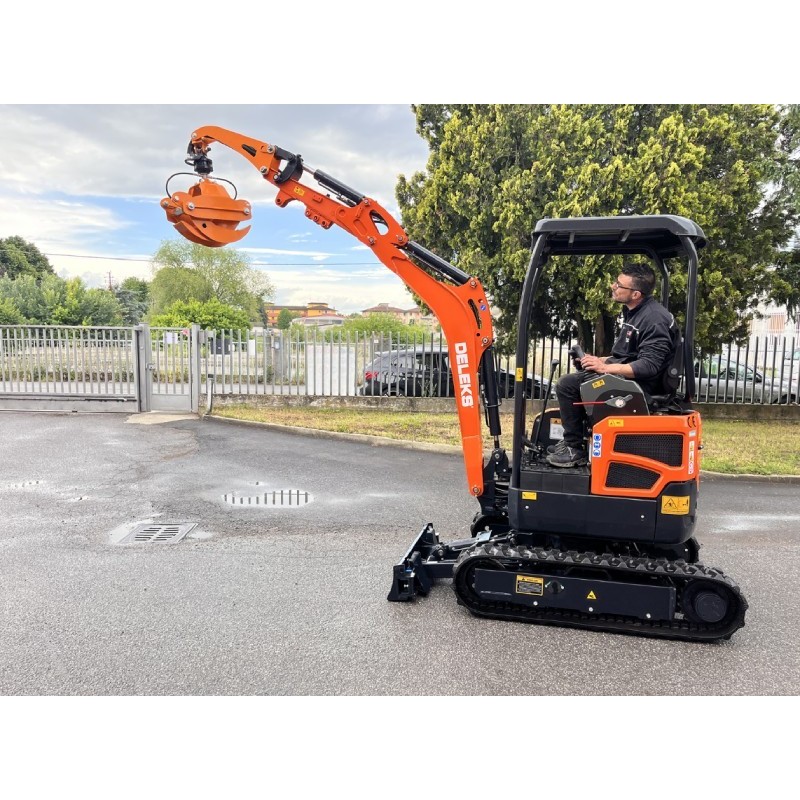

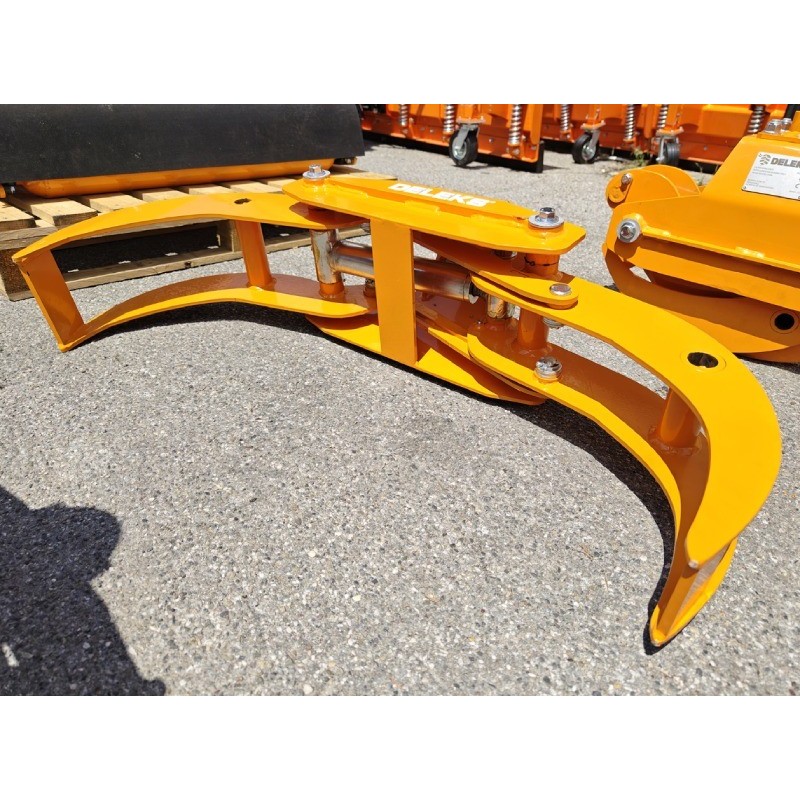

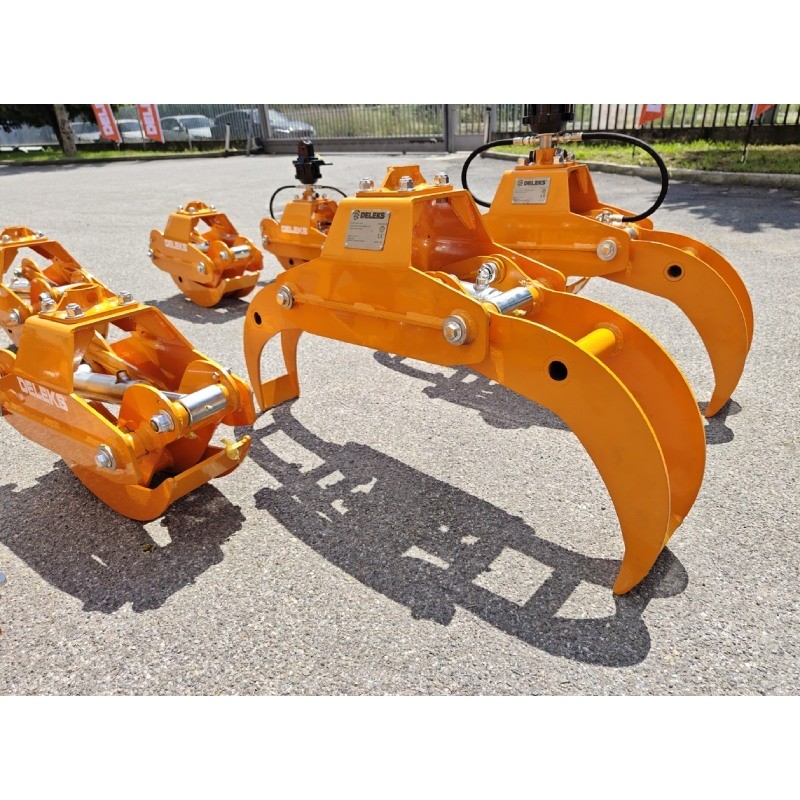

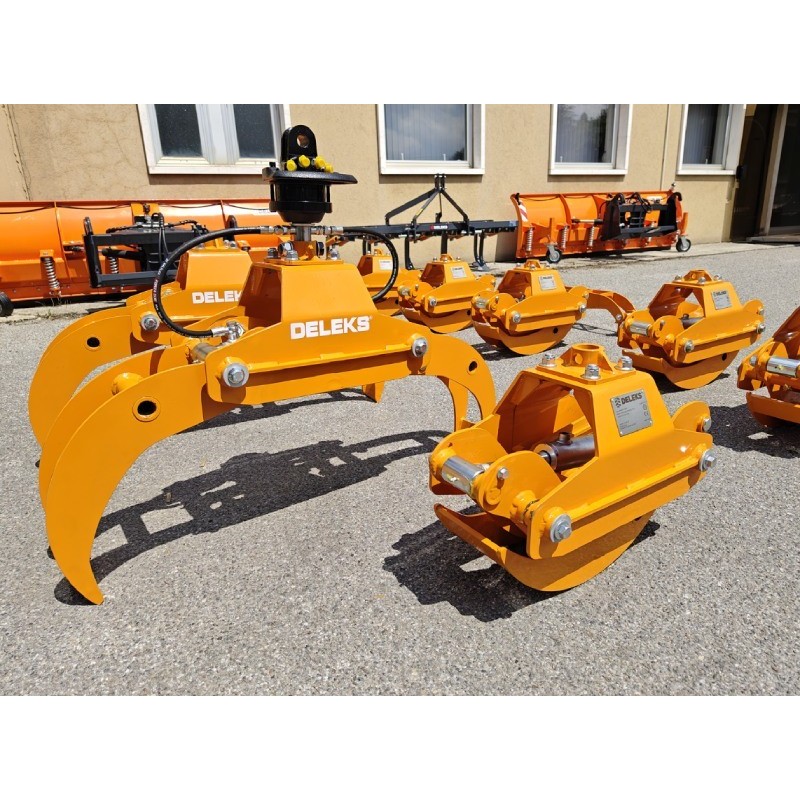

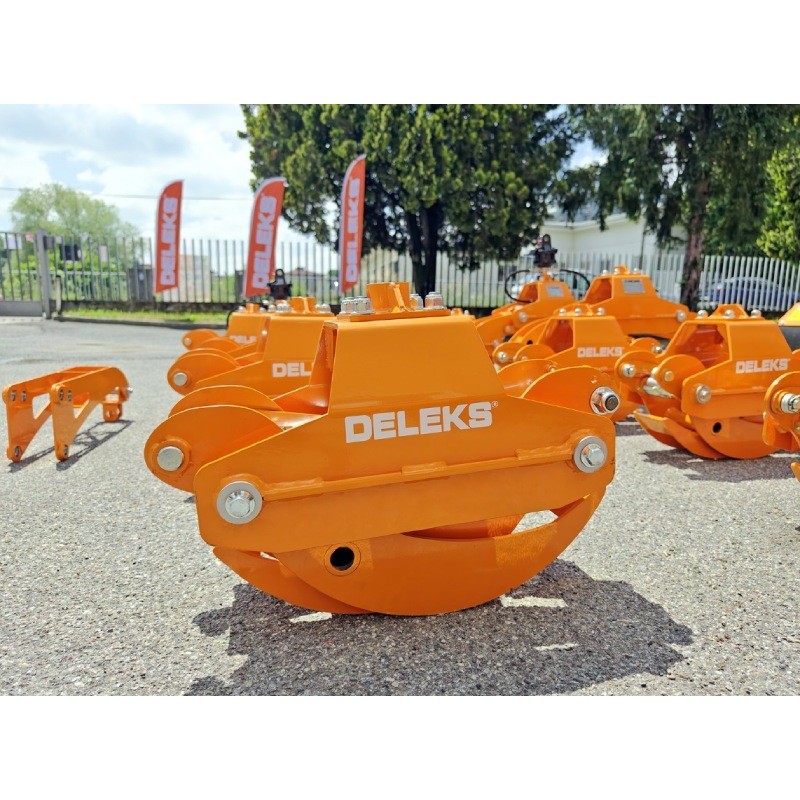

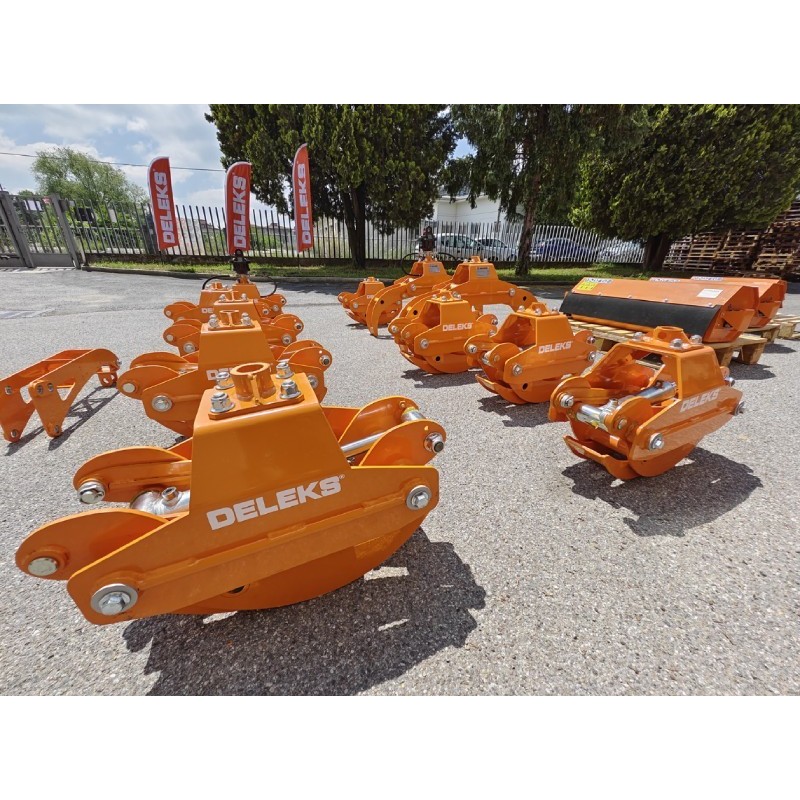

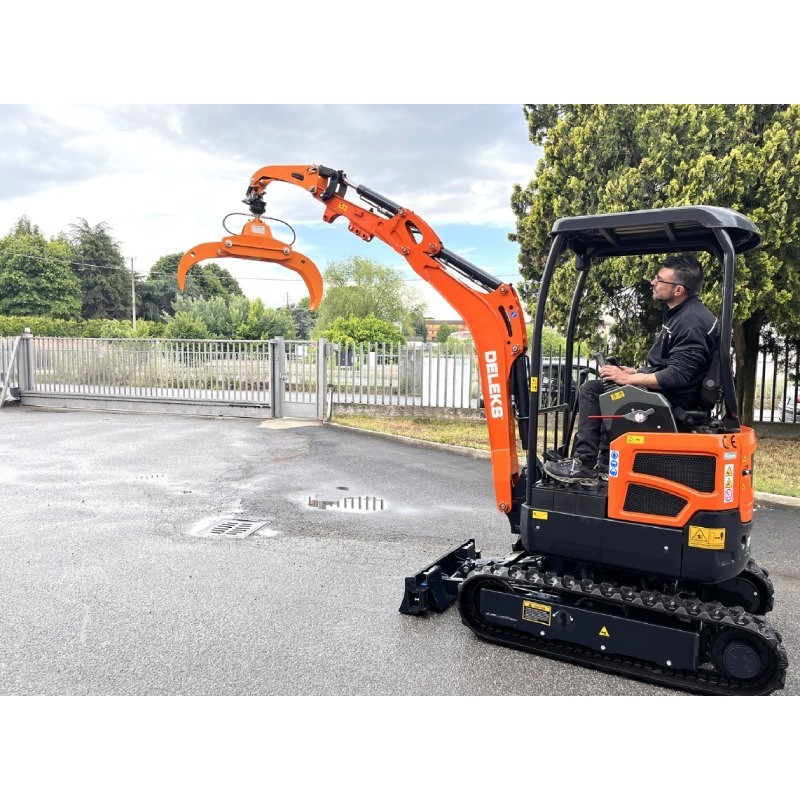

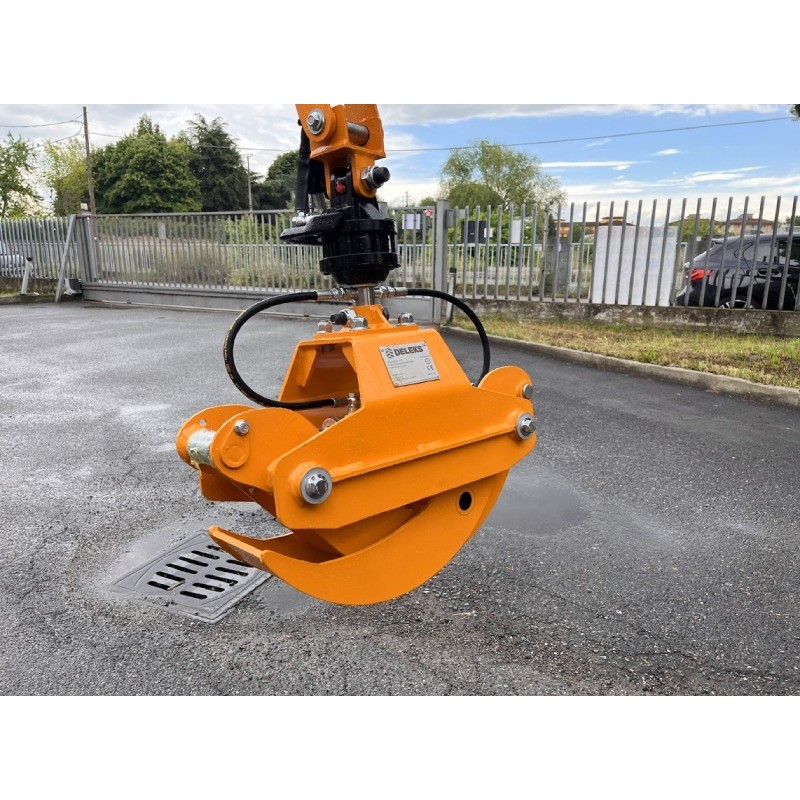

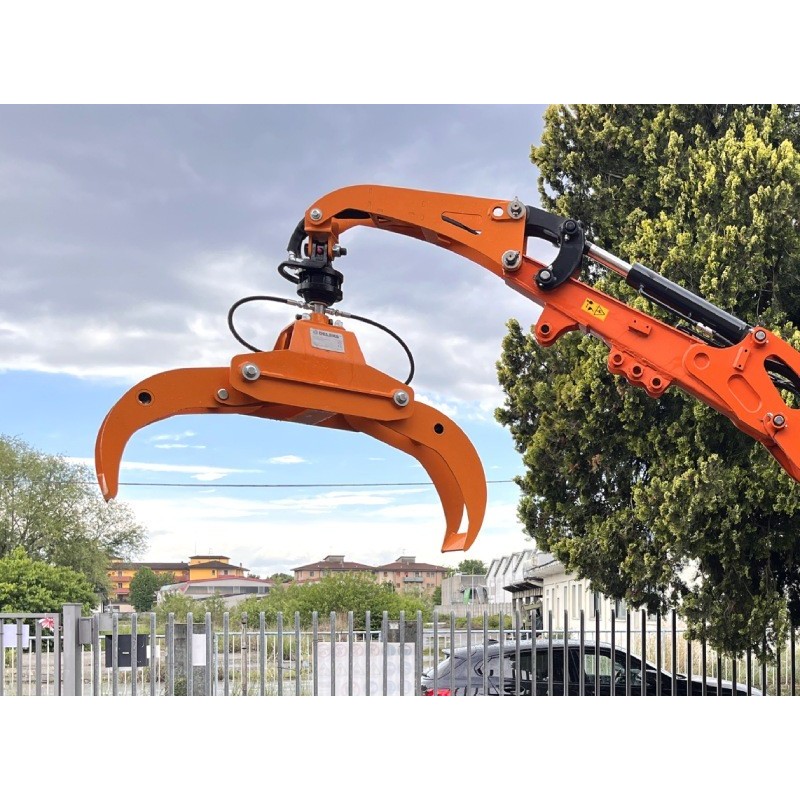

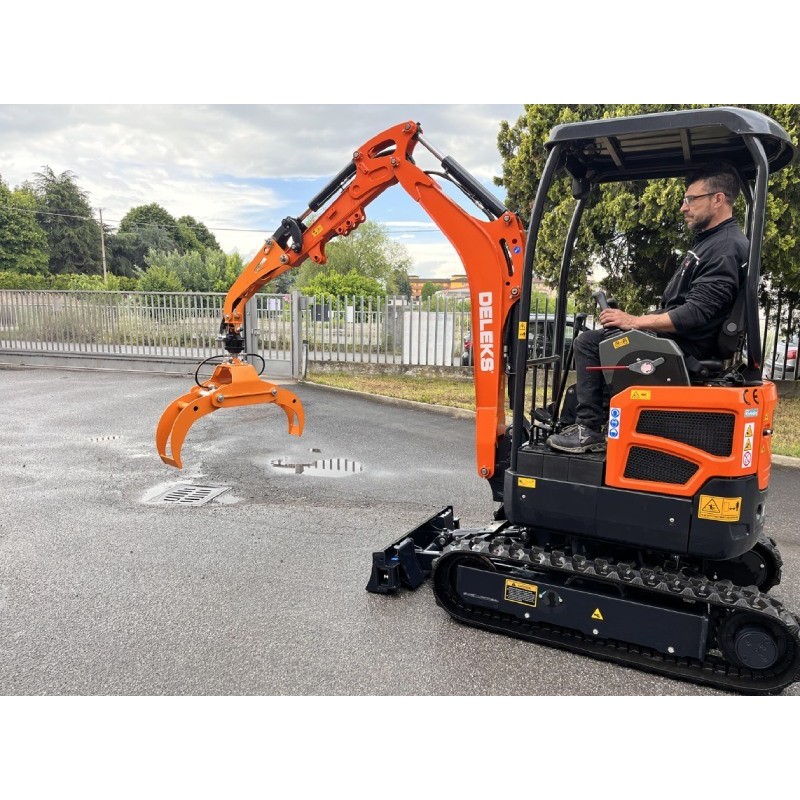

The DELEKS DK-10H forestry grapple for mini-excavators and cranes It is ideal for transporting wood, stones, for forestry work, or for moving debris, it features a maximum load capacity of 600 kg. It is adapted for mini excavators such as Bobcat, Case, Caterpillar, among others, and comes with CE conformity and a 2-year warranty.

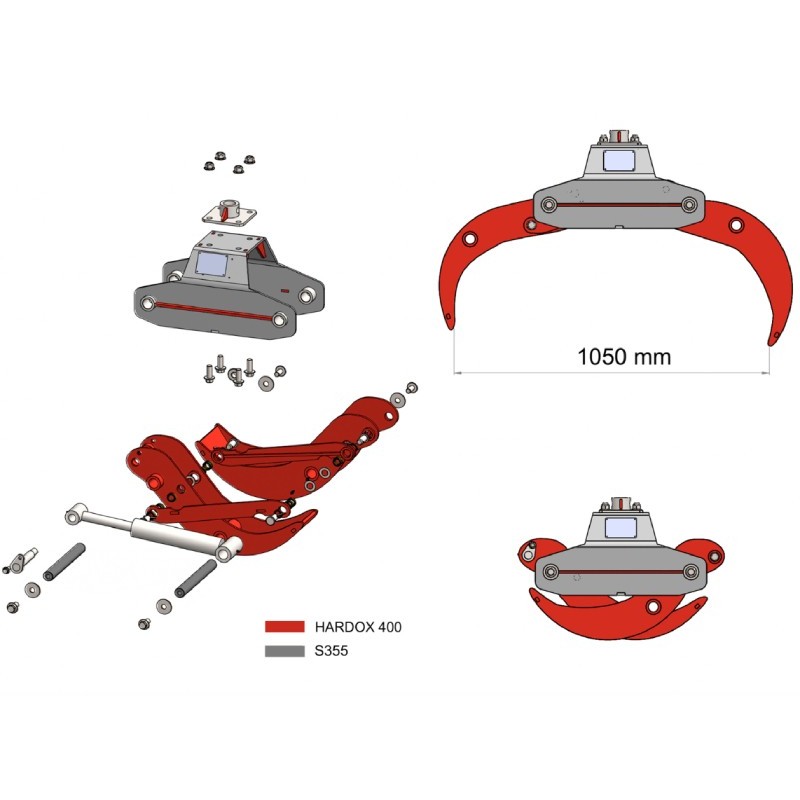

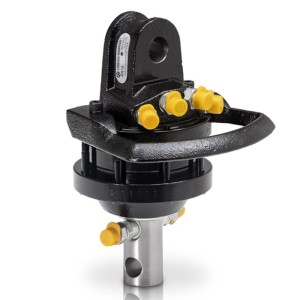

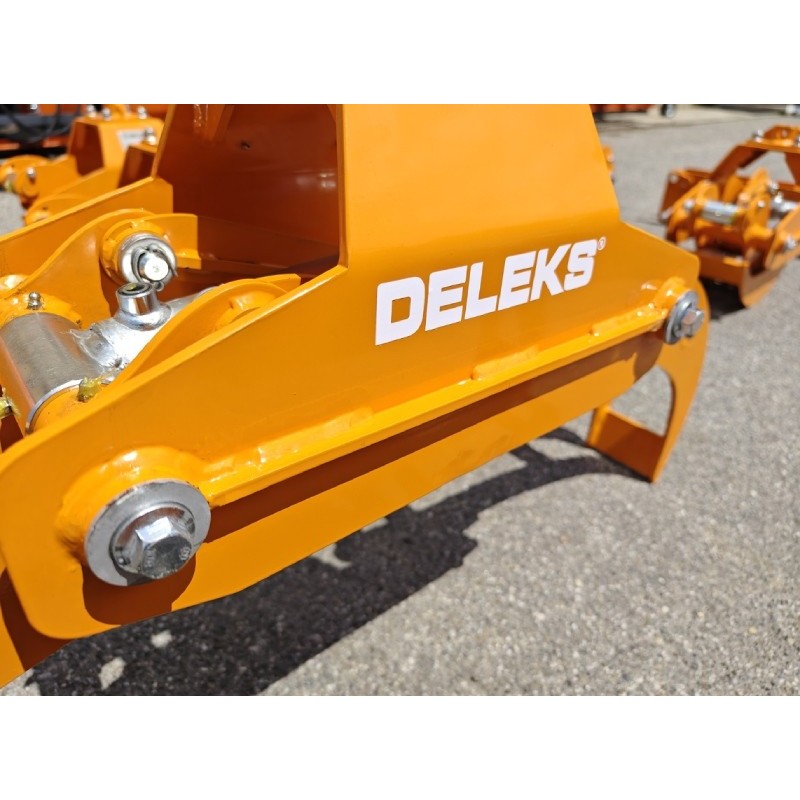

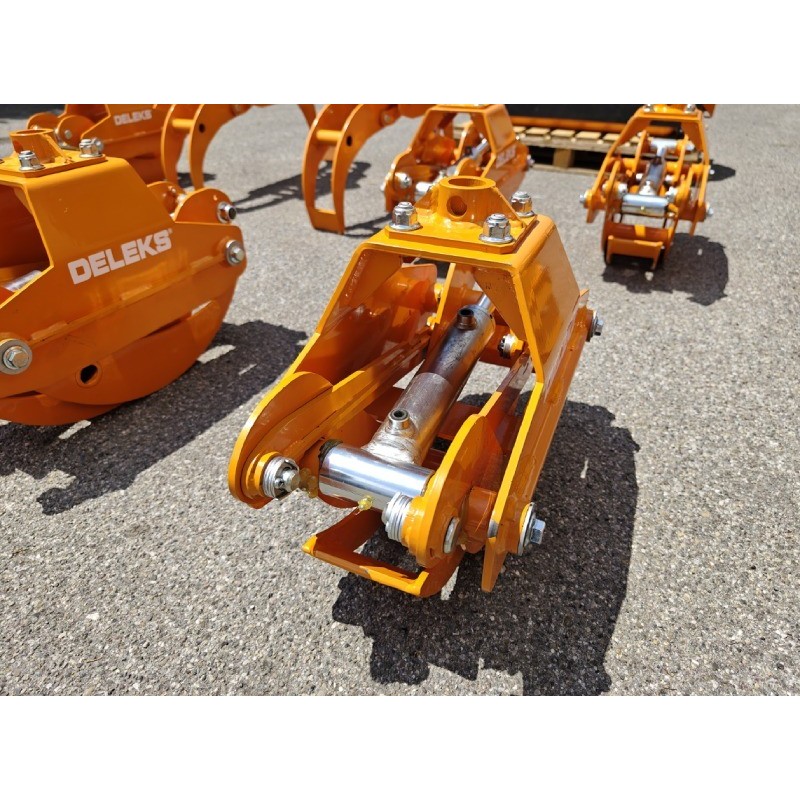

The unique design of the tweezers, allows to keep debris or rocks, manufactured in Hardox steel and it has a high clamping tension and reinforced clamps, available as an option with a rotator and hydraulic kit.
Weight | 62.0 kg |
Carrying capacity | 600.0 kg |
Sheet thickness | 8.0 mm |
Minimum/maximum oil pressure | 80 - 120 bar |
Optimal oil flow | 18 - 22 l/min |

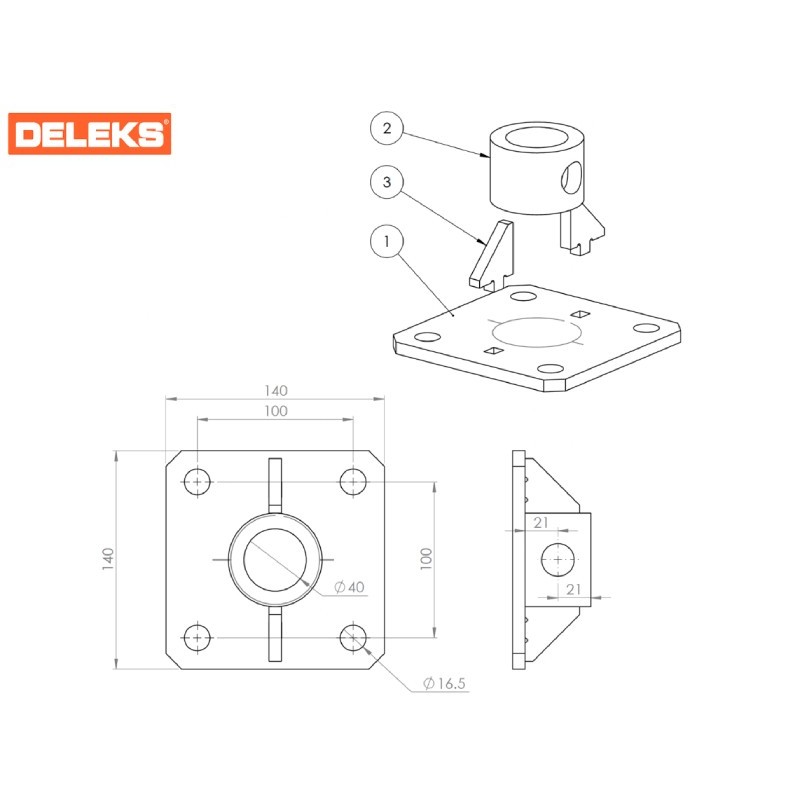

Other dimensions | See photos |
Hydraulic tubes | 400 bar pressure |
Maximal opening | 1050.0 mm |
Height, open clamp | 660.0 mm |
Height, closed clamp | 495.0 mm |
Width, open clamp | 1150.0 mm |
Depth | 350.0 mm |
Minimum branch diameter | 50.0 mm |

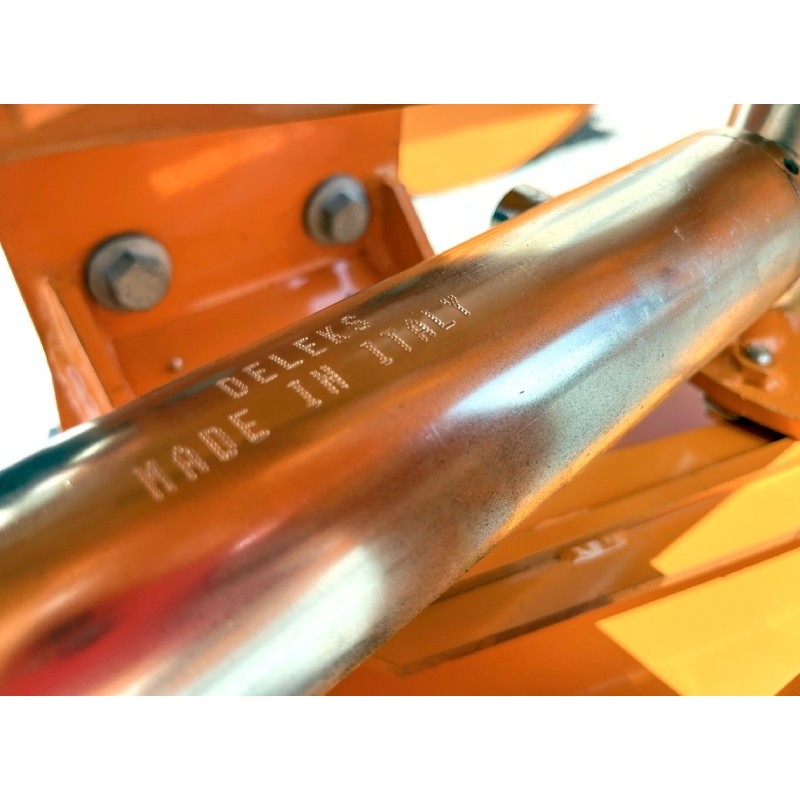

Hydraulic piston | 50.0 - 25.0 mm |
Maximal pressure | 200 Bar |
Range of excavators | 1.5 - 2.5 tons |
Width, closed clamp | 660.0 mm |
Packaging dimension | 60 x 80 x 45 cm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
