DELEKS GR Lombarda Ingranaggi Toast Clamp Rotator
There are several models of the DELEKS GR Lombarda Ingranaggi grapple rotator, which we will describe the features of each one:

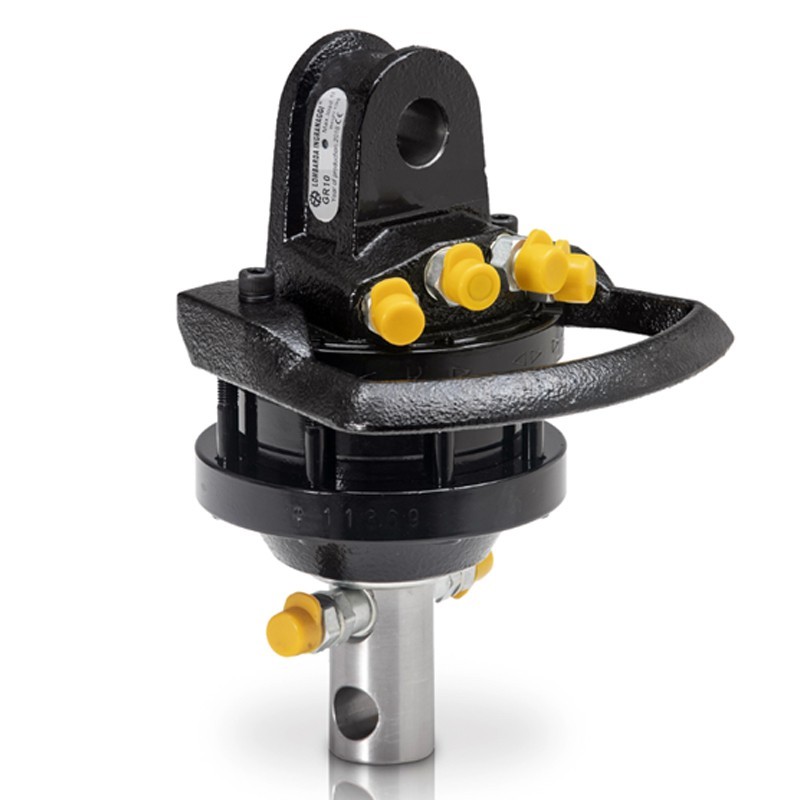

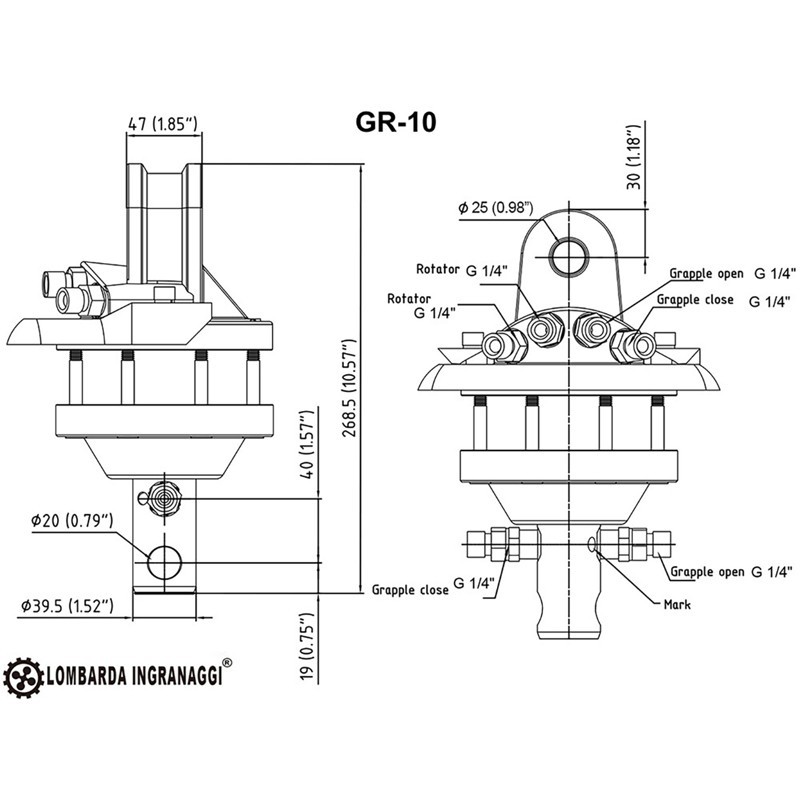

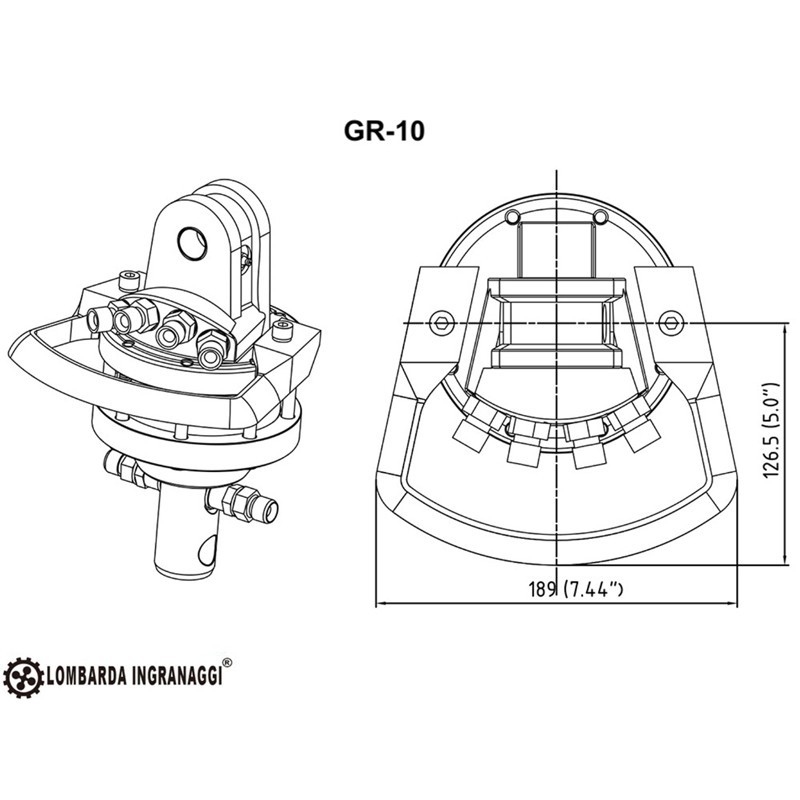

GR 10 hydraulic grapple rotator: it has a capacity of 1 ton, a hydraulic rotator slewing motor and a version with lower shaft, it is used for mounting grapples, octopuses, clamshells, clamshells, cranes, mini-blades, retros, etc. Its application is for forestry areas, gardening, recycling, scrap, etc.
It has an unlimited rotation of 360 degrees, a max static axial load of 10 KN and a dynamic axial load of 5 KN, its torque at 250 bar: 350nm, an oil flow of 10l/min, a maximum working pressure: max rotation 250 bar, closed clamp max 300 bar, open clamp max 200 bar and g 1/4 connections.
GR-30F hydraulic grapple rotator: has a capacity of 3 tons, a motor with hydraulic rotor rotation, for mounting grapples, octopuses, clamshells, clamshells, etc, on cranes, minipalas, retros, etc,. For mini excavators and forestry cranes 2.5 tons, it has a max static axial load of 30 KN and dynamic load of 15 KN, Torque at 250 bar: 900 Nm.
An oil flow of 20 liters per minute and a working pressure of Rotation max 250 bar, closed grapple max 300 bar, open grapple max 200 bar and G 3/8" connections.
Hydraulic grapple rotator GR-30FF: It has a capacity of 3 tons, a motor with hydraulic rotor rotation, for mounting grapples, octopuses, clamshells, clamshells, etc, on cranes, minipallets, retros, etc. It has a flat top connection, for quick coupling as S40 and a flange iferior connection.
It has an unlimited rotation, a max static axial load of 30 KN and dynamic load of 15 KN, torque at 250 bar 1000 Nm, has an oil flow of 20 liters/min and a max rotation of 250 bar and G 3/8" connections
GR-55FF hydraulic clamp rotator: It has a capacity of 4.5 ton. It has a hydraulic rotator rotation motor, for mounting grapples, octopuses, clamshells, clamshells, etc, on cranes, minipallets, retros, etc. Forestry, gardening, recycling, scrap, etc. applications. It has a flat top connection, for quick coupling as S40.
It has alower flange connection, allows to work vertically with the clamp. It has an unlimited rotation, has a maximum static axial load: 45 Kn and a dynamic load of 25 KN, Torque @mpa 1300 Nm, oil flow of 22 liters/min, has a rotation Max 250 bar and connections G 3/8"
