Espa leader SATURN4 04 18 M 6800 L/H wellhead pump
- Single phase : 230 V
- Max. height : 130 m
- Max. submersion depth : 37 m
€415.41 VAT incl.

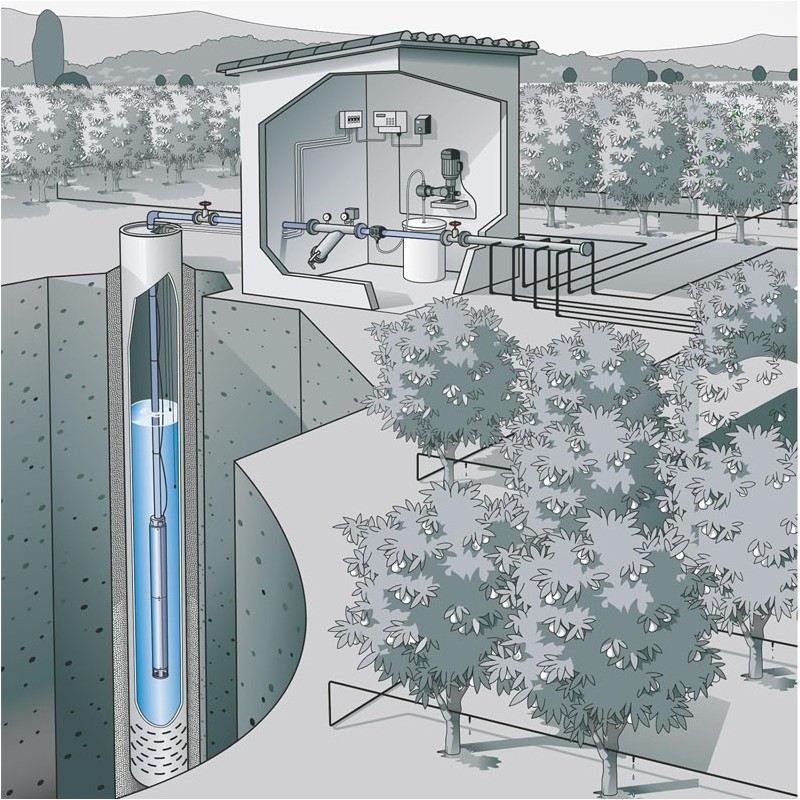

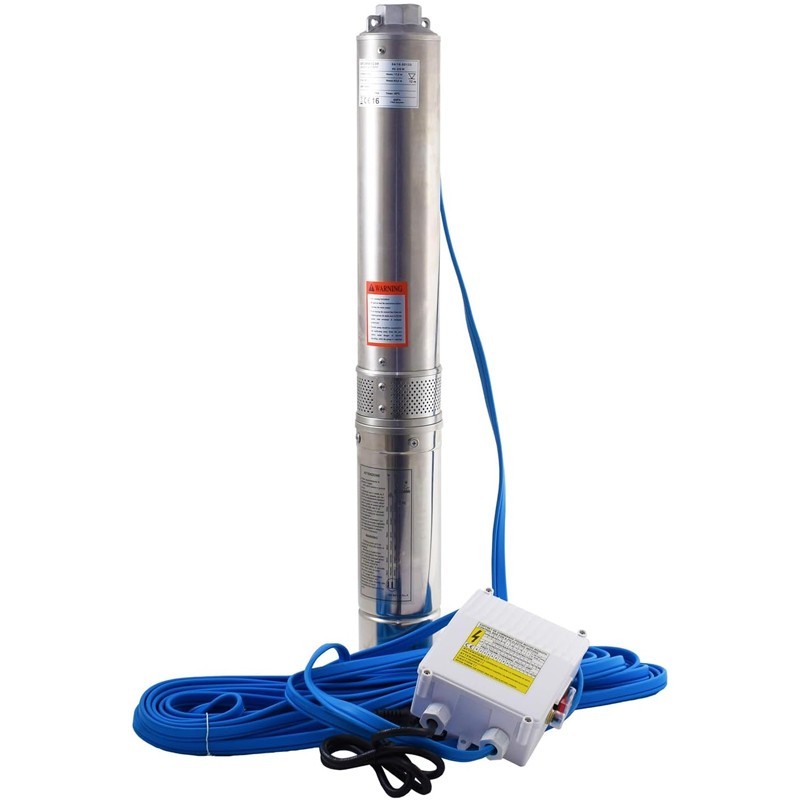

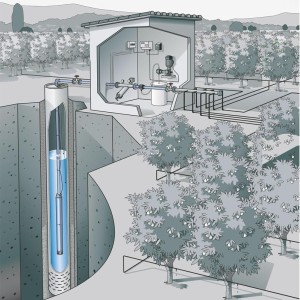

The Espa Leader SATURN4 04 14 M submersible pump is an efficient solution for water extraction in deep wells, perfect for domestic supply, agricultural irrigation or clean water transfer. With a maximum flow rate of 6,800 l/h and a delivery head of up to 102 meters, it offers reliable performance in installations requiring constant pressure.

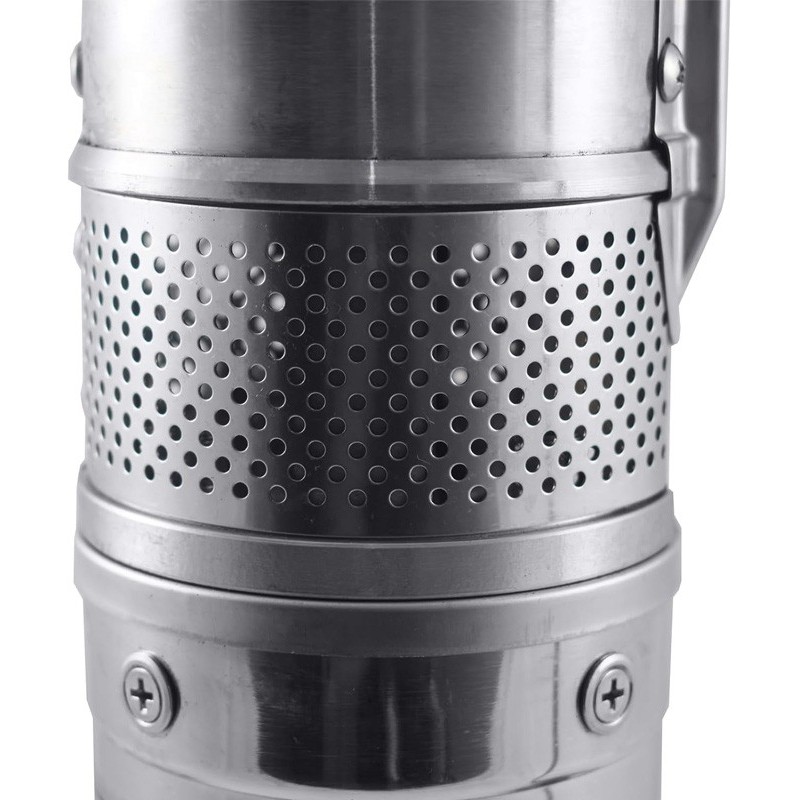

Manufactured with high quality materials such as AISI 304 and 316 stainless steel and technopolymer hydraulic components, it guarantees resistance and long life. It includes electrical panel, 30 meters of cable and 35 meters of rope, which allows a simple and safe installation from the first moment. Ideal for sprinkler or drip irrigation systems.
Motor | Electric |
Weight | 16.4 kg |
Single-phase | 230 V |
Max. height | 102 m |
Max. immersion depth | 27 m |

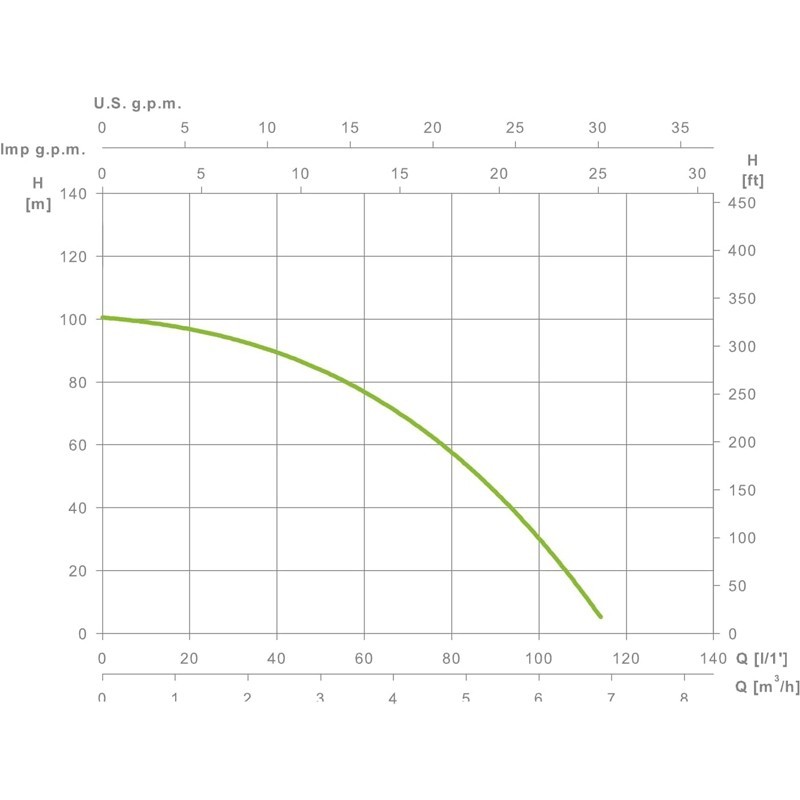

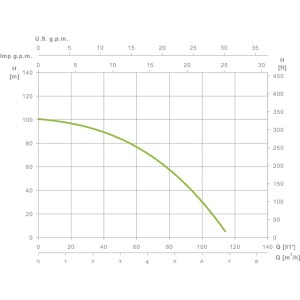

Max. flow rate | 6800 l/h |

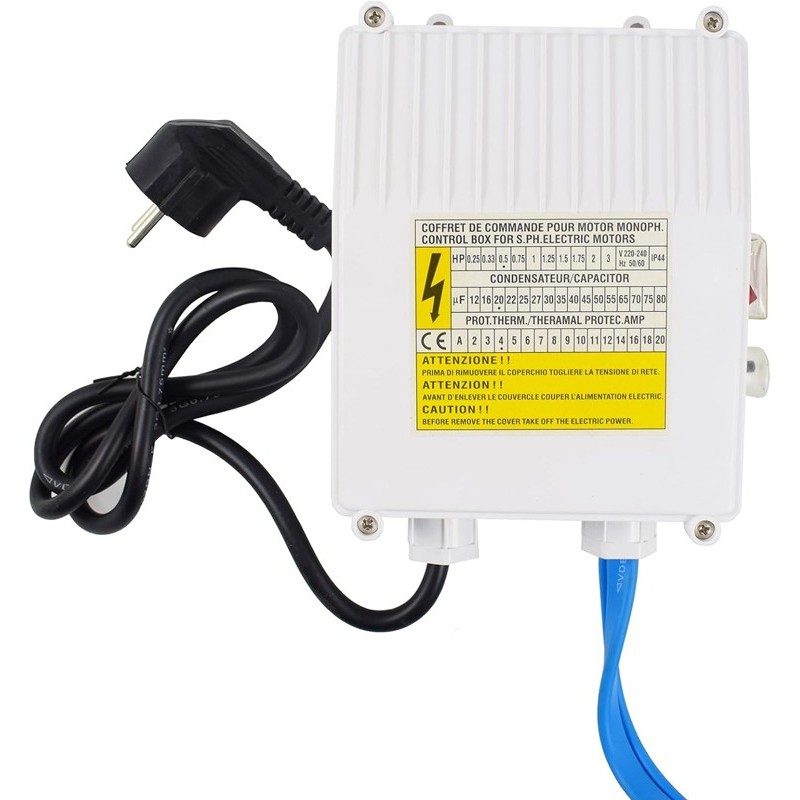

Other features | Supplied with connection board, 30 m of cable and 35 m of rope |
Pump consumption | 1900 W |
Hydraulic power | 1100 W / 1,5 Hp |
Intensity | 8,8 A |
Compound | 45 µF |

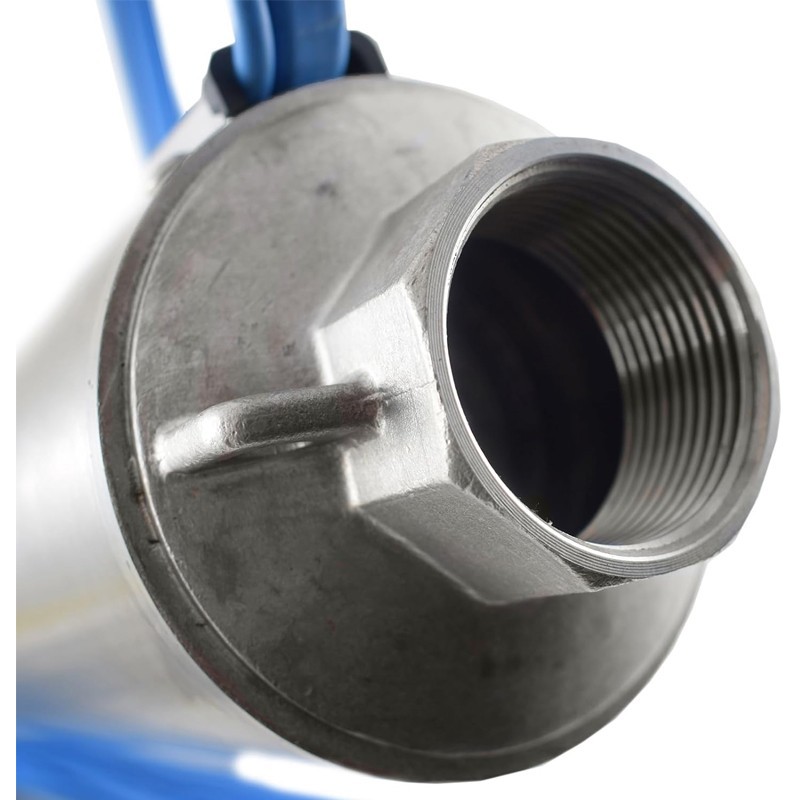

Discharge diameter | 1+1/2" |
Dimensions | 1029x100 mm |
Data sheet
Specific References
