High-pressure pump for Campeon Sondy well 75 7800 L/H
- Power - 550W
- Maximum flow rate - 7800 l/h
- Maximum pressure - 32 m
- Suction mouth: 1 1/4″
- Max. sand content: 150gr/m3
- Max. suction level: 20 m
- No. of turbines: 3
- Weight: 12,5 Kg
€273.63 VAT incl.

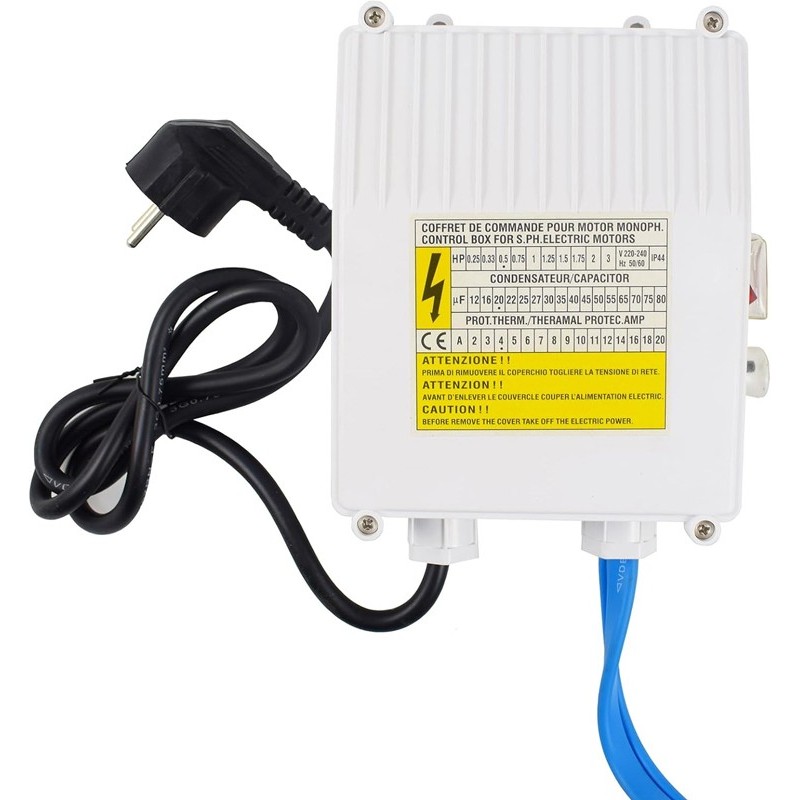

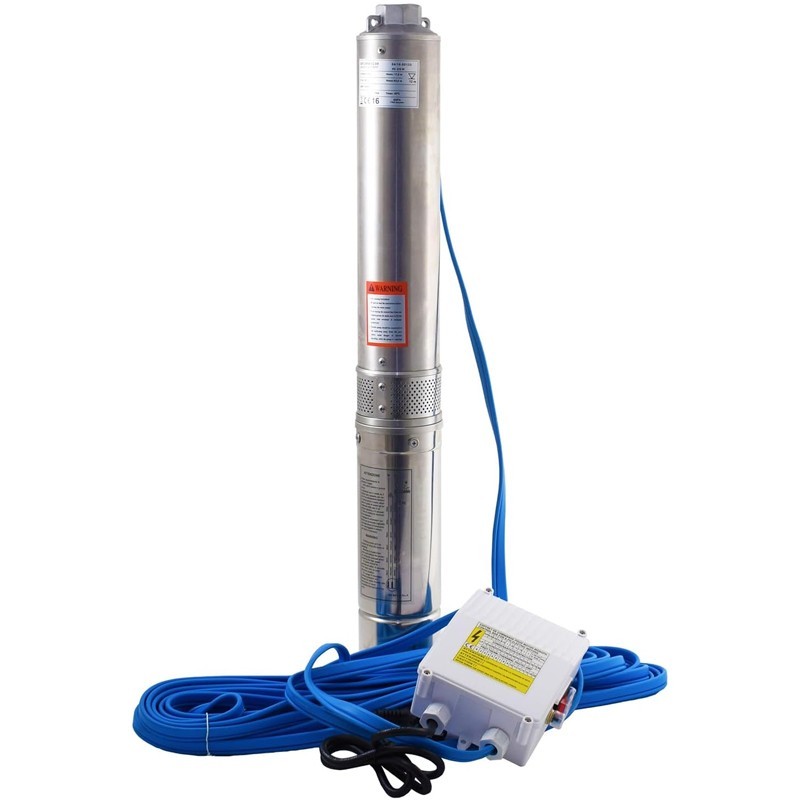

The Espa Leader SATURN4 02 09 M submersible pump is equipped with a switchboard, 15 meters of cable and 20 meters of rope, which facilitates its installation in wells up to 12 meters deep. It operates with a 230 V single-phase motor, consumes 800 W and has a compact design of 630 mm in length and 100 mm in diameter.

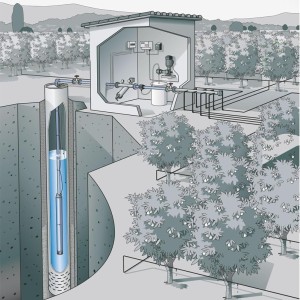

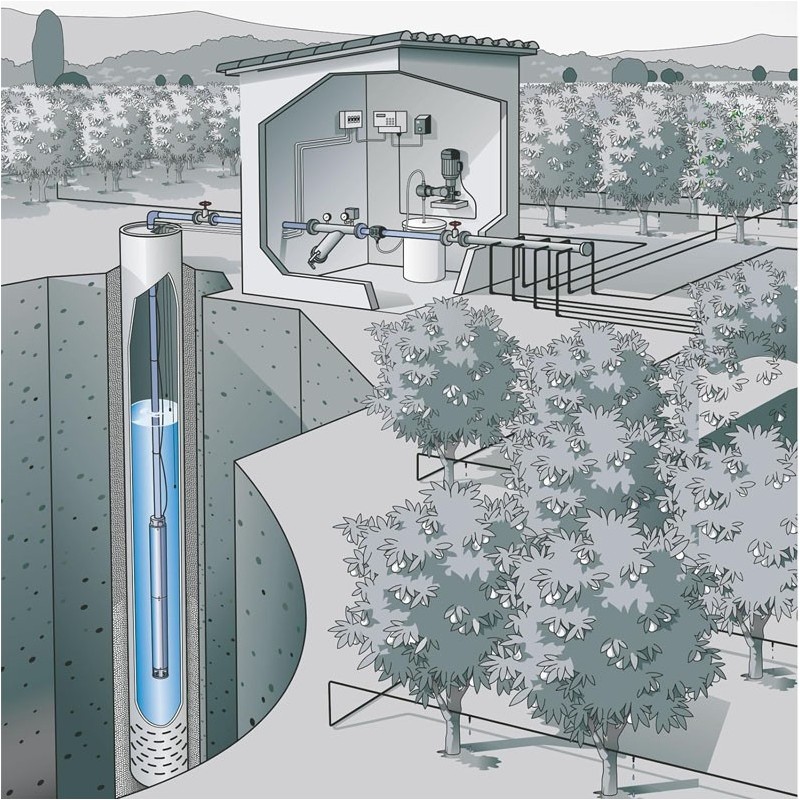

Designed for pumping clean water, it is perfect for drip or sprinkler irrigation, domestic supply and agricultural applications. With a maximum flow rate of 3,600 liters per hour and a delivery head of up to 64 meters, it offers efficient and consistent performance in all types of pressure systems.
Motor | Electric |
Weight | 11 kg |
Single-phase | 230 V |
Max. height | 64 m |
Max. immersion depth | 12 m |
Max. flow rate | 3.600 l/h |

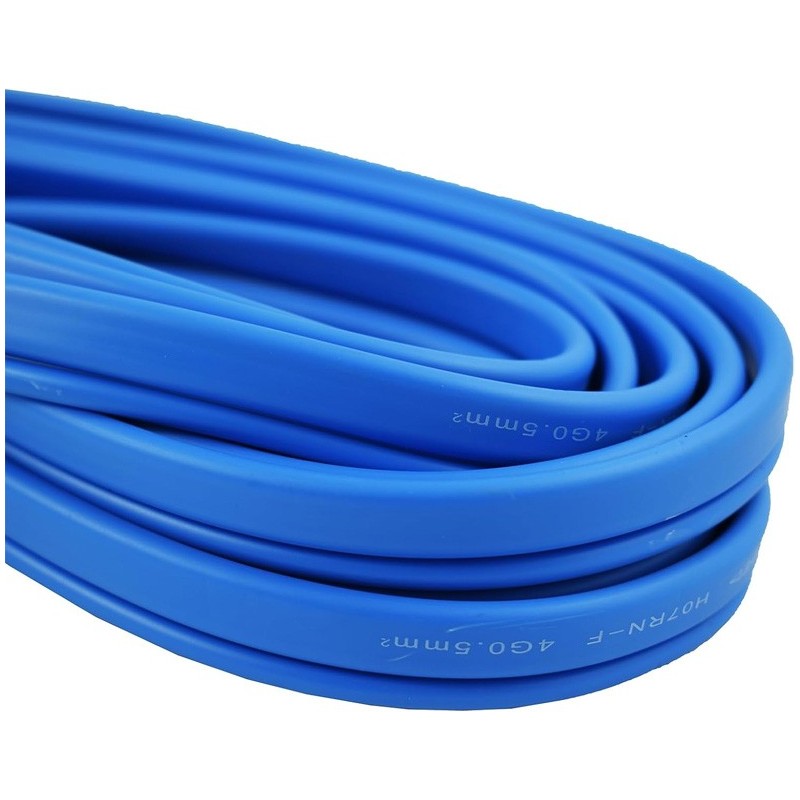

Other features | Supplied with connection board, 15 m of cable and 20 m of rope |
Pump consumption | 800 W |
Hydraulic power | 370 W / 0,75 Hp |
Intensity | 3,7 A |
Compound | 20 µF |

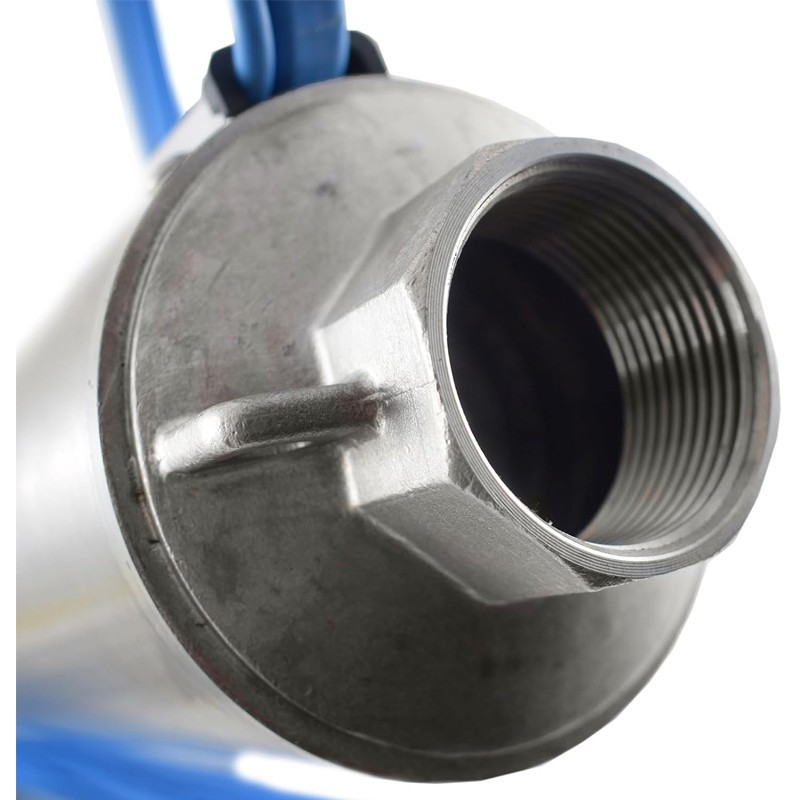

Discharge diameter | 1+1/2" |
Dimensions | 630x100 mm |
Data sheet
Specific References
