  • Power: 35-50 HP
  • Pressure: 0-40 BAR
  • Weight: 428 - 635 Kg
  • Turbine diameter: 800 - 920 mm
Assembly and set-up INCLUDED
En stock
icon Tractor power
Tractor power
35 - 50 HP
icon Flow rate
Flow rate
125 l/min
icon Deposit
Deposit
1000 - 2000 L
icon Pressure
Pressure
0 - 40 BAR
icon Double speed
Double speed
Double speed
icon Weight
Weight
428 - 635 Kg
€6,812.95 excl. VAT
- 10%
€6,131.66 excl. VAT
€7,419.30 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Trailed Atomizer 35-50 HP Zeppelin
€7,419.30
Select
Qty

Trailed Atomizer 35-50 HP Zeppelin

The eL and SON sprayers of Zeppelin include:

  • Herbicide and insecticide equipment with diaphragm pump
  • Double nozzle made of anti-drip brass

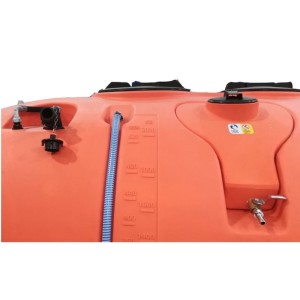

  • Hand washing tank
  • Circuit washing tank
  • They are homologated for road circulation

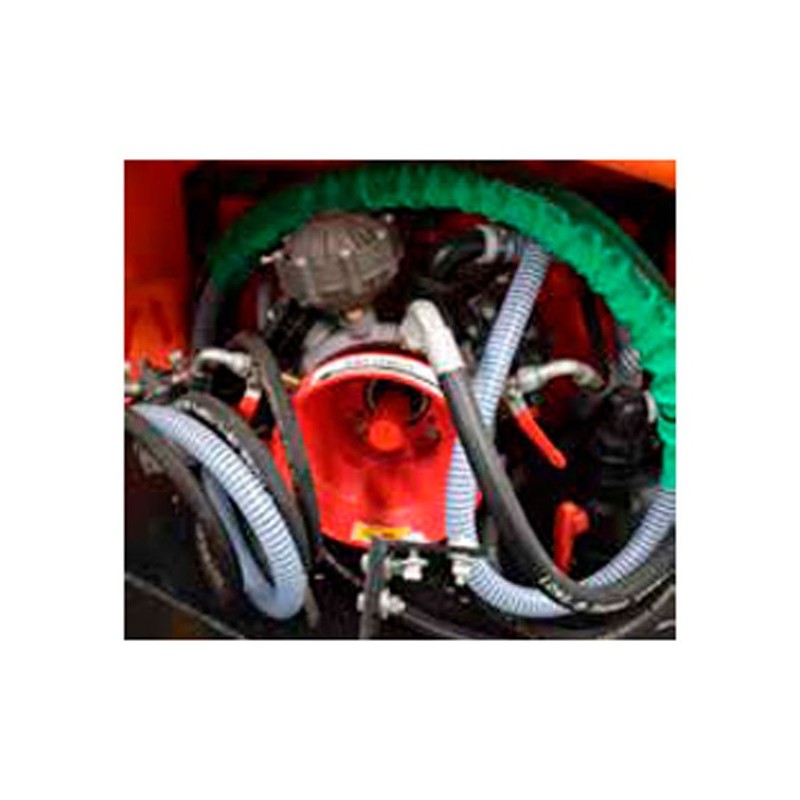

  • Diaphragm pump

Characteristics of trailed atomizers

ModelESATOM1000ES71671ES71672
Tractor power35 HP35 HP35 HP
Turbine diameter800 mm920 mm920 mm
Deposit capacity1000 liters2000 liters2000 liters
Performance125 l/min125 l/min125 l/min
Scope>10 m>10 m>10 m
No. Nozzles101212
Pressure0-40 BAR0-40 BAR0-40 BAR
Shaft width130 cm150 cm175 cm
Speeds122
Wheel10.0/80-1211.5/80-15.3-12400/60-15.5 14
Measures2360 x 1370 x 1460 mm3490 x 1490 x 1670 mm3490 x 1910 x 1695 mm
Weight428 Kg635 Kg635 Kg

Characteristics of trailed atomizers with electronic devices

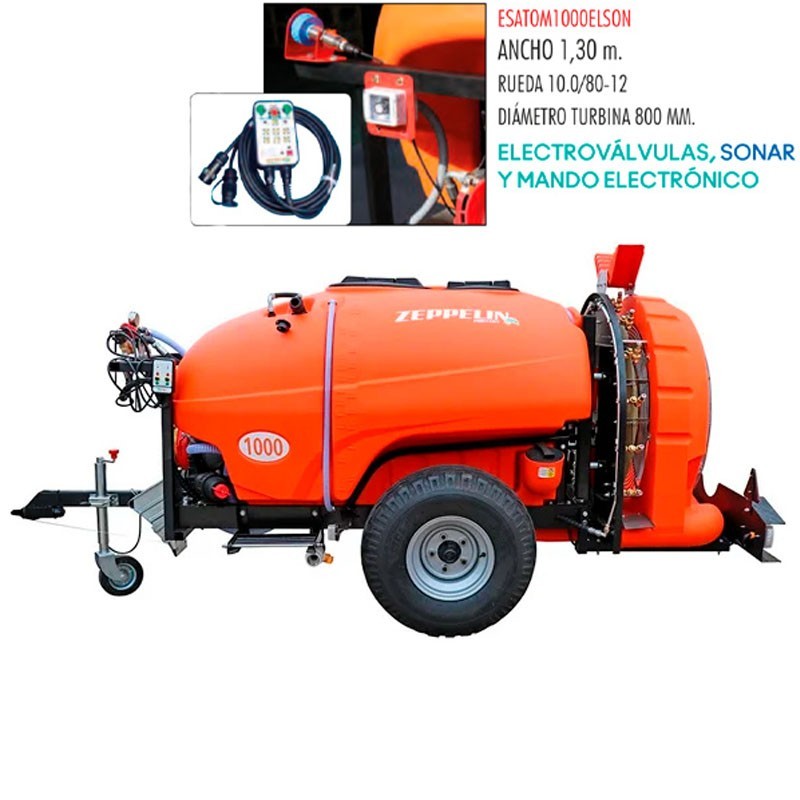

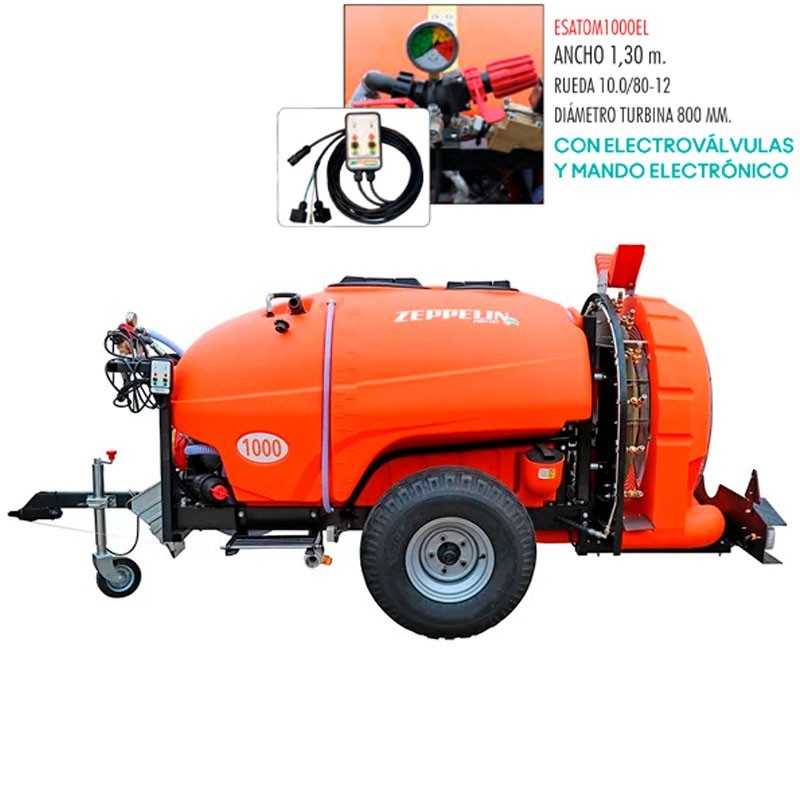

ESATOM1000EL / ESATOM1000ELSONwithout or with sonar
Tractor power35 HP
Turbine diameter800 mm
Deposit capacity1000 L
Performance125 L/min
Scope>10 m
No. Nozzles10
Pressure0-40 bar
Shaft width130 cm
Speeds1
Wheel10.0/80-12
Measures2360x1370x1460 mm
Weight428 Kg

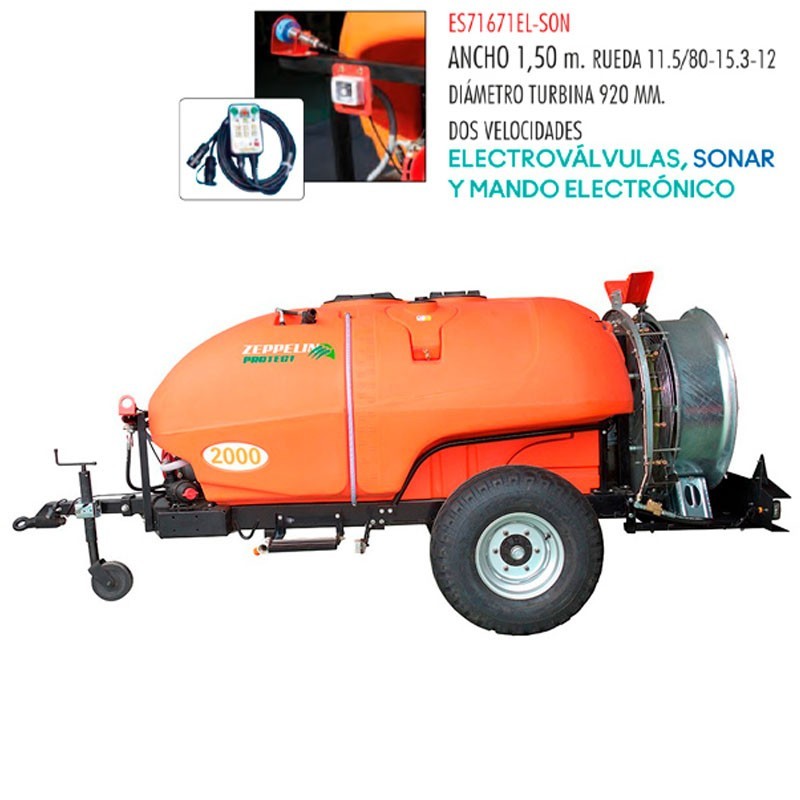

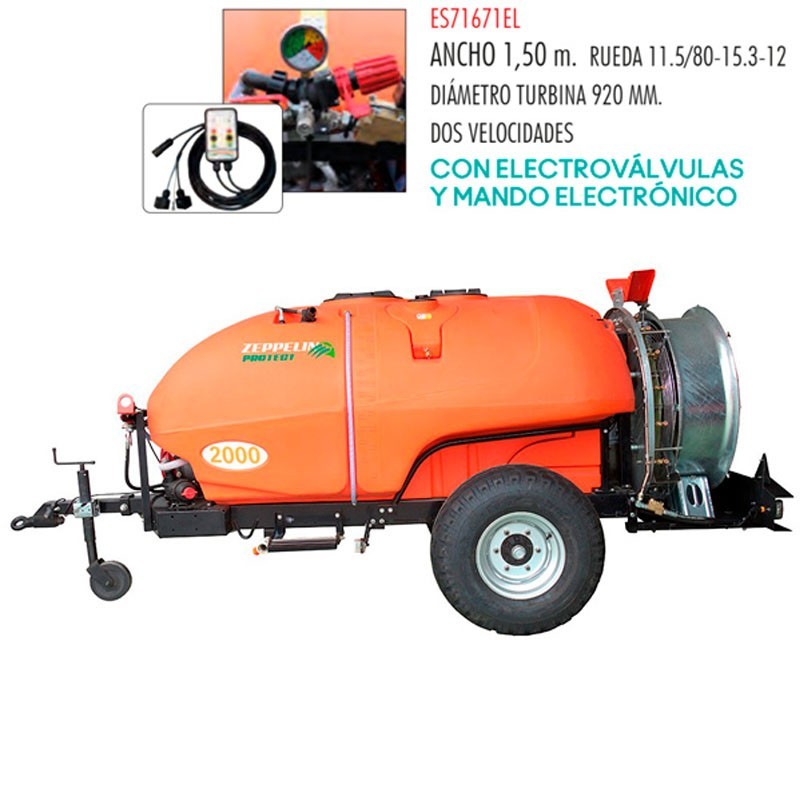

ES71671EL / ES71671EL-SONwithout or with sonar
Tractor power50 HP
Turbine diameter920 mm
Tank capacity2000 L
Performance125 L/min
Scope>10 m
No. Nozzles12
Pressure0-40 bar
Shaft width150 cm
Speeds2
Wheel11.5/80-15.3-12
Measures3490x1490x1670 mm
Weight635 Kg

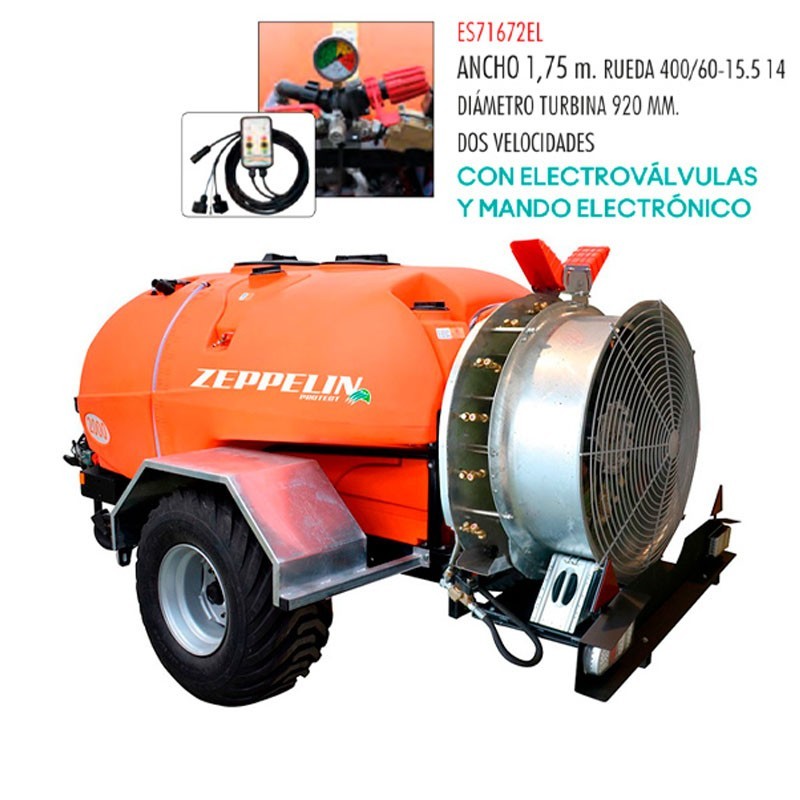

ES71672EL / ES71672EL-SONwithout or with sonar
Tractor power50 HP
Turbine diameter920 mm
Tank capacity2000 L
Performance125 L/min
Scope>10 m
No. Nozzles12
Pressure0-40 bar
Shaft width175 cm
Speeds2
Wheel400/60 15.5 14
Measures3490x1910x1695 mm
Weight635 Kg

*EL: Electric control, solenoid solenoid valves 12V 27W, 3-pole connector.

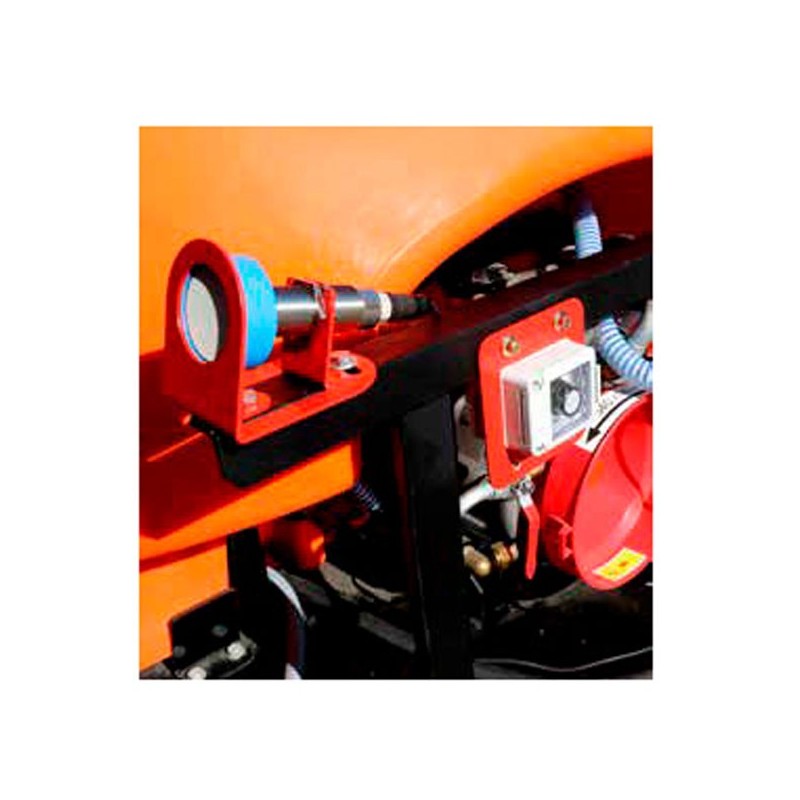

*SON: System of 2 electro-valves of 12V 27W and two ultrasonic sensors of 24V 200mA.

IMPORTANT NOTICES
The stock of this machine is due to see before placing the order, otherwise we do not guarantee early delivery and price.
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
