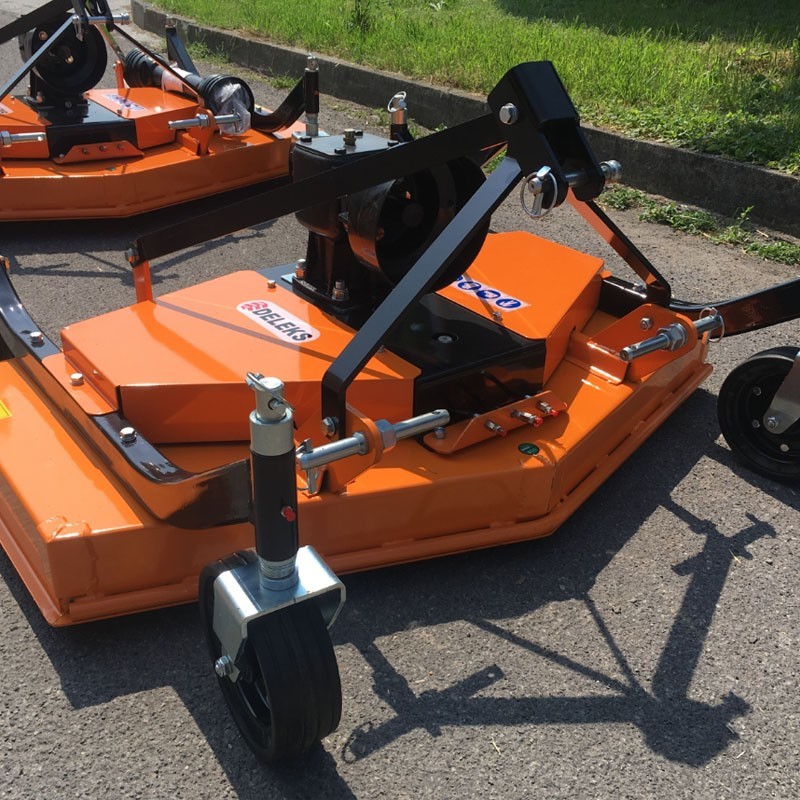

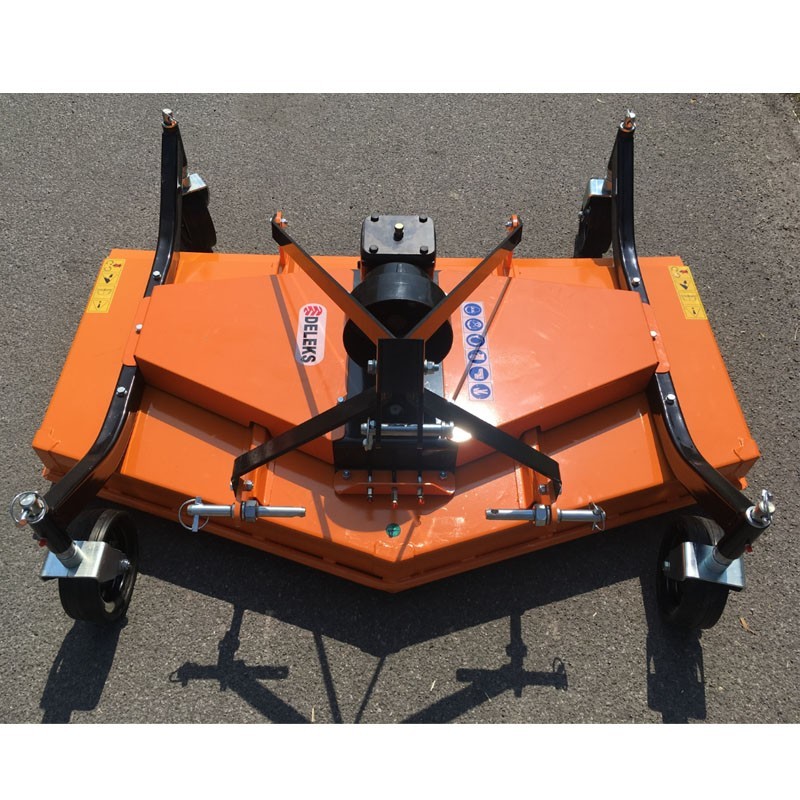

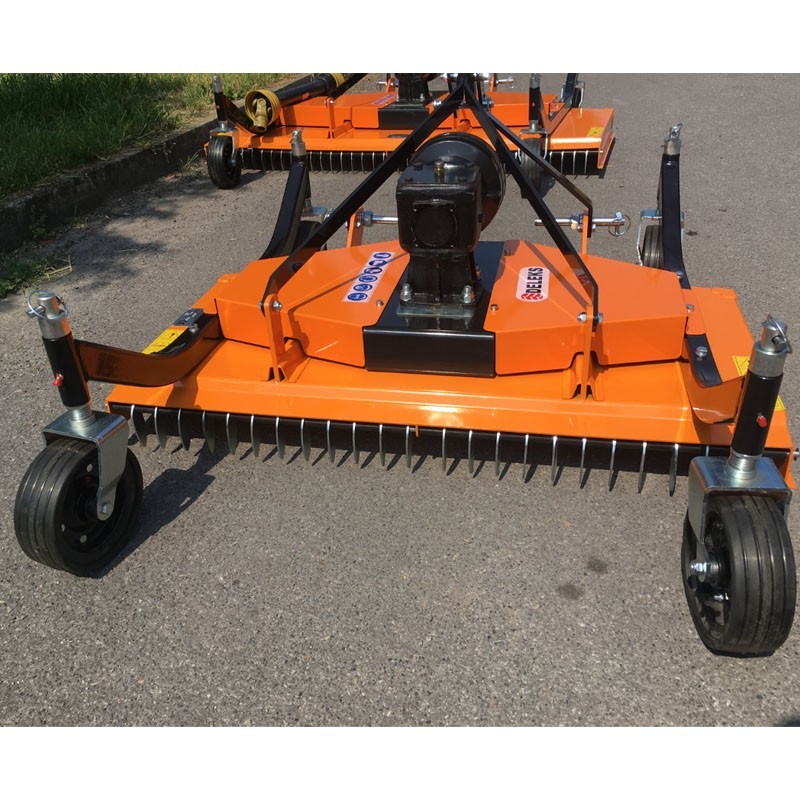

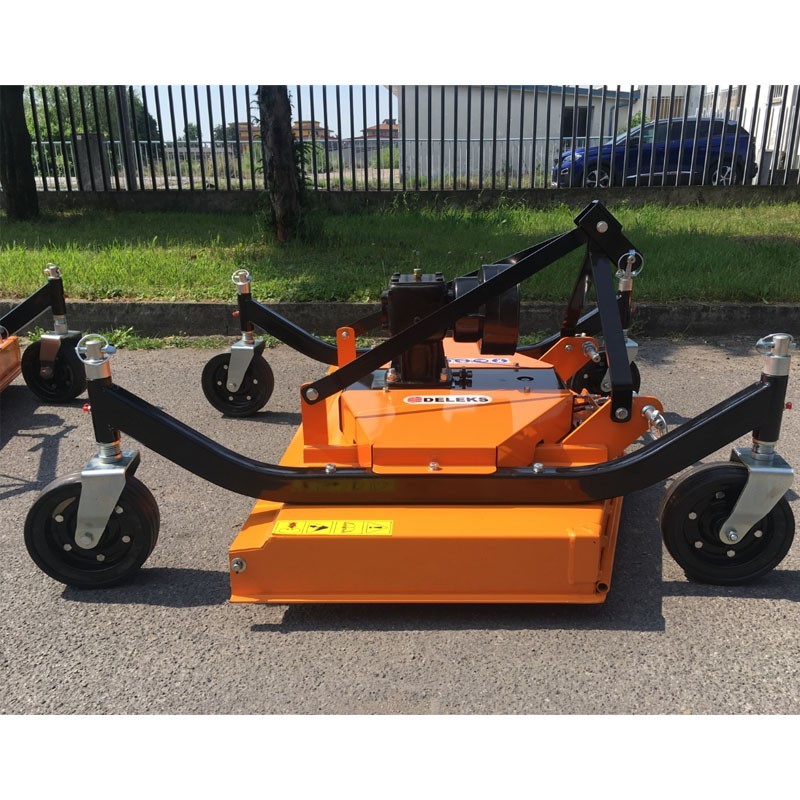

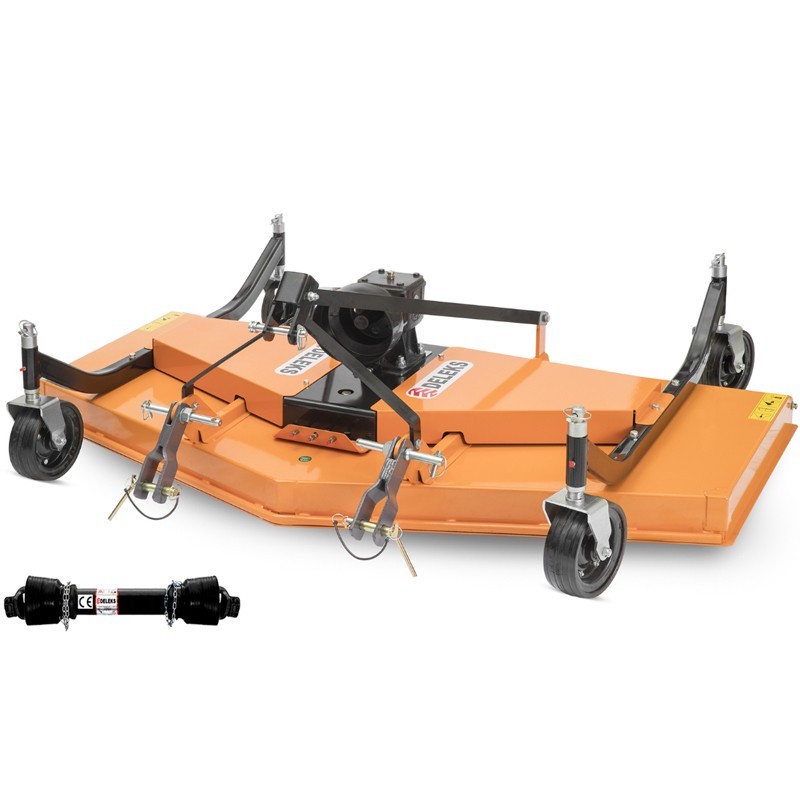

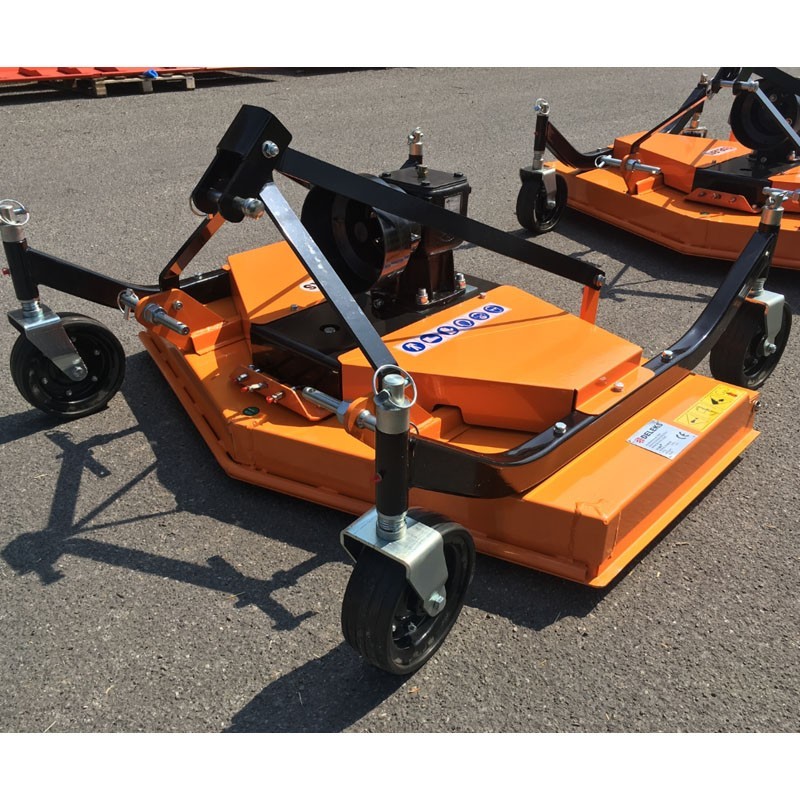

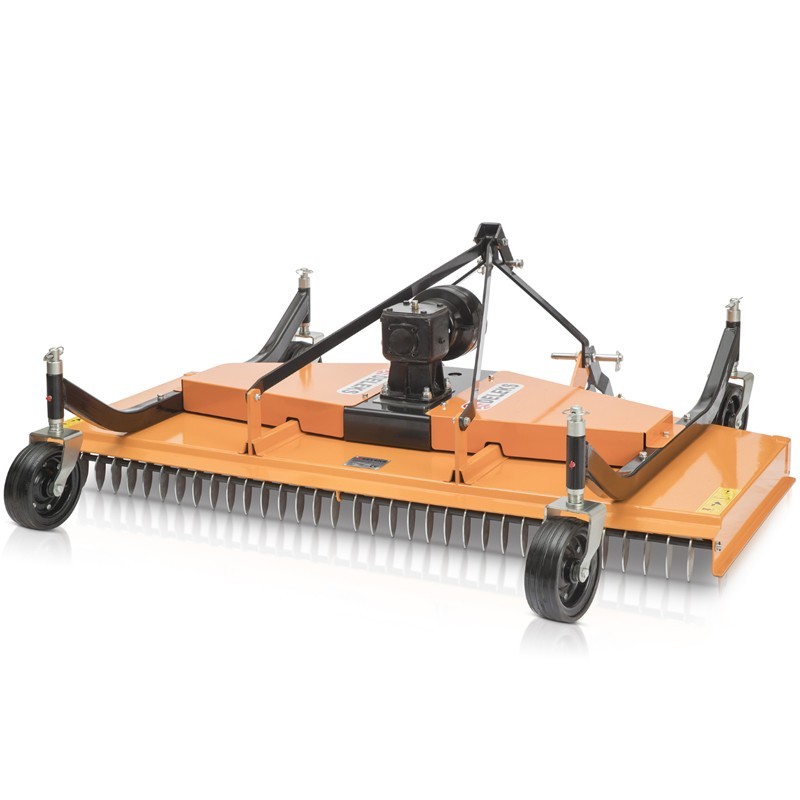

The DELEKS DM 180 205 kg Tractor Mower is a machine made for people who are looking for a professional finish, the DM range ensures the user a clean and perfect cut. This mower is the ideal solution for golf courses, campsites, parks and sports facilities.
With its light and robust design, the DM 180 model can be used for tractors from 25 to 50 HP and has a 540g/min transmission box.

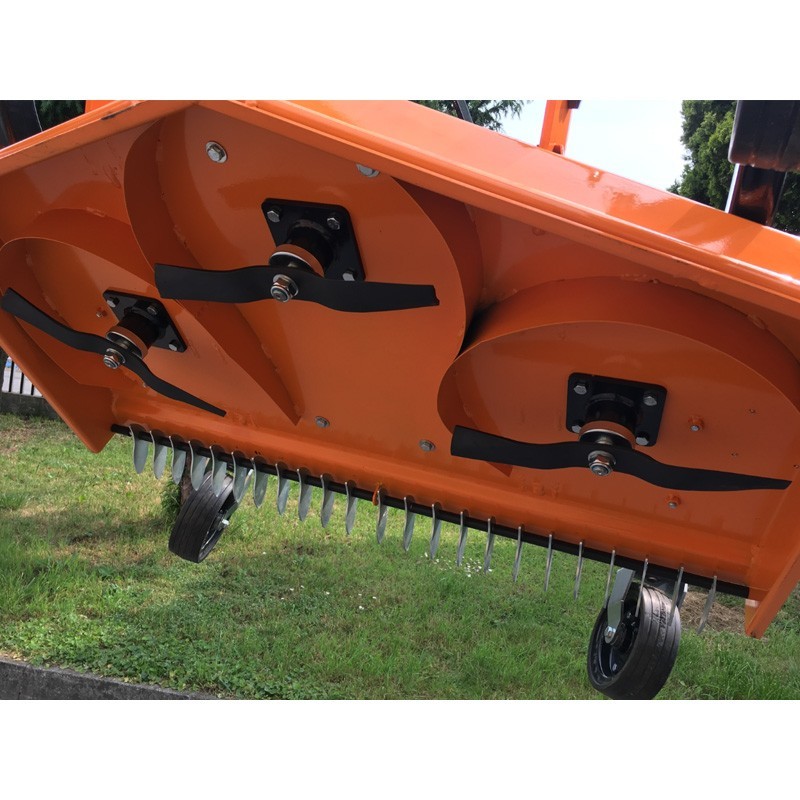

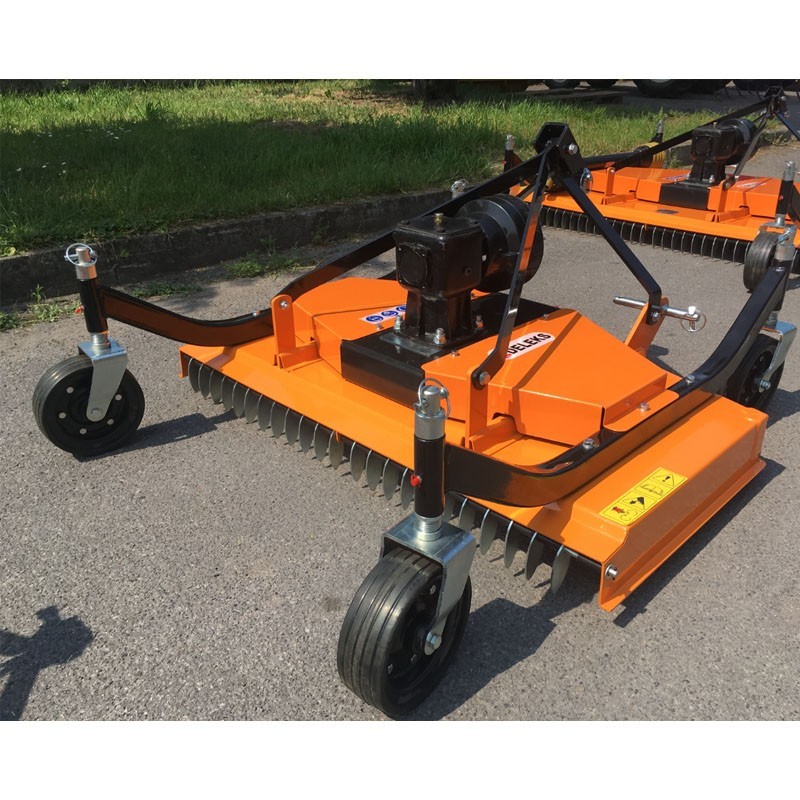

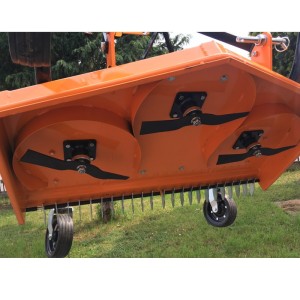

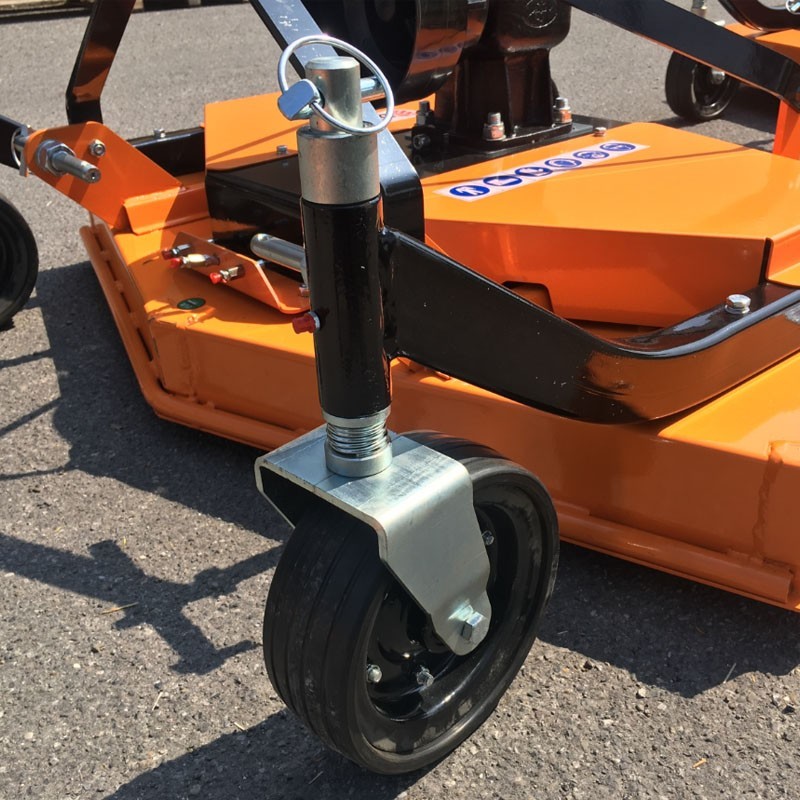

It has a high rotation speed of the 3 blades, which ensures a very fine cut for the grass and leaves no residue behind. Its 4 swivel wheels ensure the horizontal position of the machine and an adjustment of the cutting height.
Its light and robust design allows its use with micro-tractors. It has 2 heavy duty belts, with an external tension adjustment, its freewheel is integrated in the cardan shaft transmission
Working width | 1800.0 mm |
Total width | 1880.0 mm |
Cutting height min/max | 5.0 - 50.0 mm |
Weight | 205.0 kg |
Total height | 750.0 mm |
Tractor power | 25-50 hp |

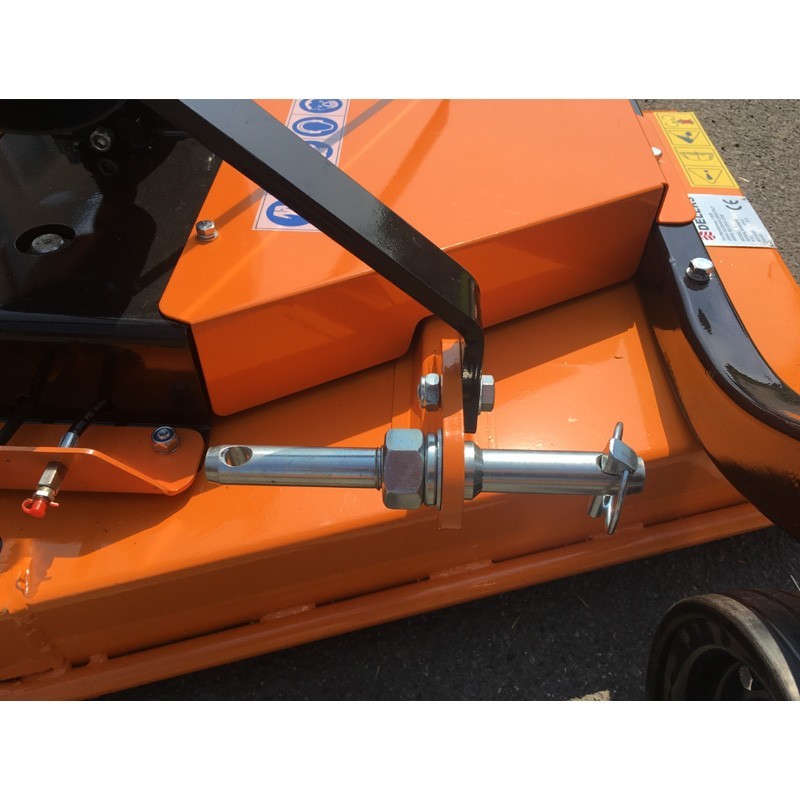

3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 375.0-715.0 mm |
Total length | 1350.0 mm |
Space between ground and transmission box | 450.0 mm |
Plate thickness | 4.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Garantie 3 ans) |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Schedule |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 2 |
Transmission: dimensions of cores | 17x1930 |

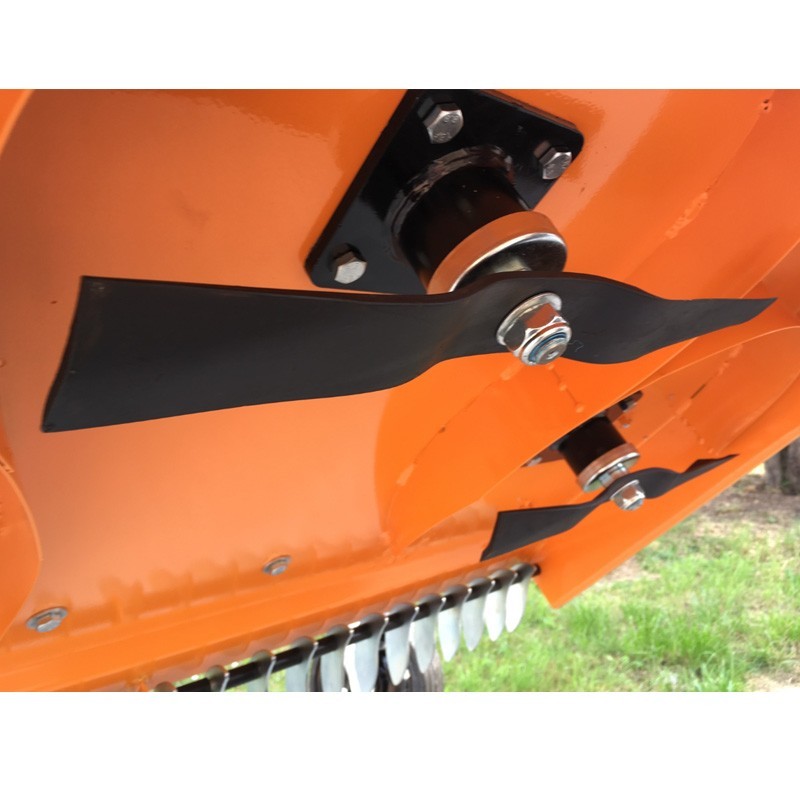

Number of blades | 3 |
Blade rotation speed | 2600 r/min |
Blades: length and width | 600.0/50.0 mm |
Blades: hole diameter | 20.0 mm |
Number of side wheels | 4 |
Lateral wheels: dimensions | 200.0/77.0 mm |
Cardan shaft | CE 2x1000 mm + Freewheel |
Transmission: ø Pulleys | 245.0/14.0 mm |
Blades: Weight | 1320.0 g |
Packing dimension | 1900.0*1000.0*500.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
