€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

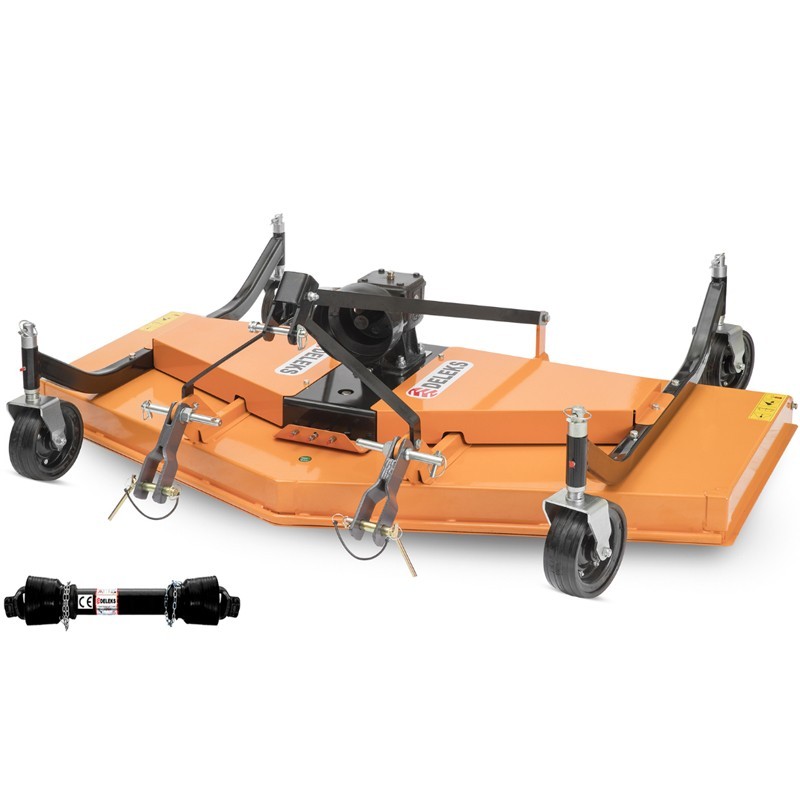

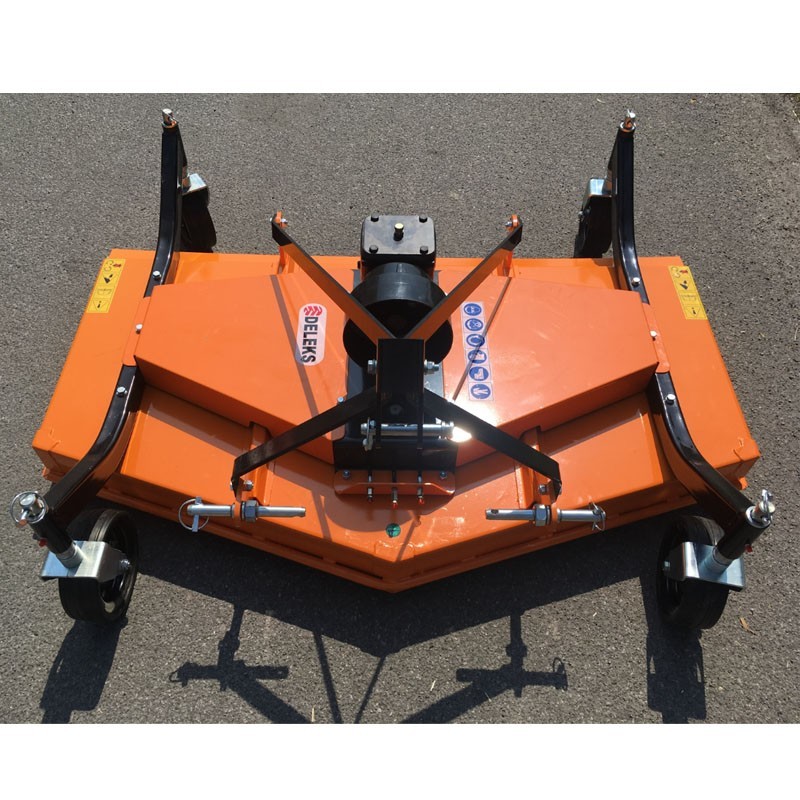

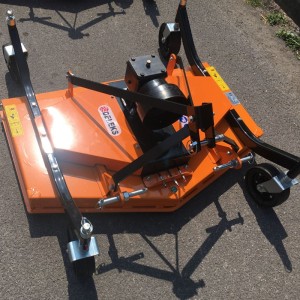

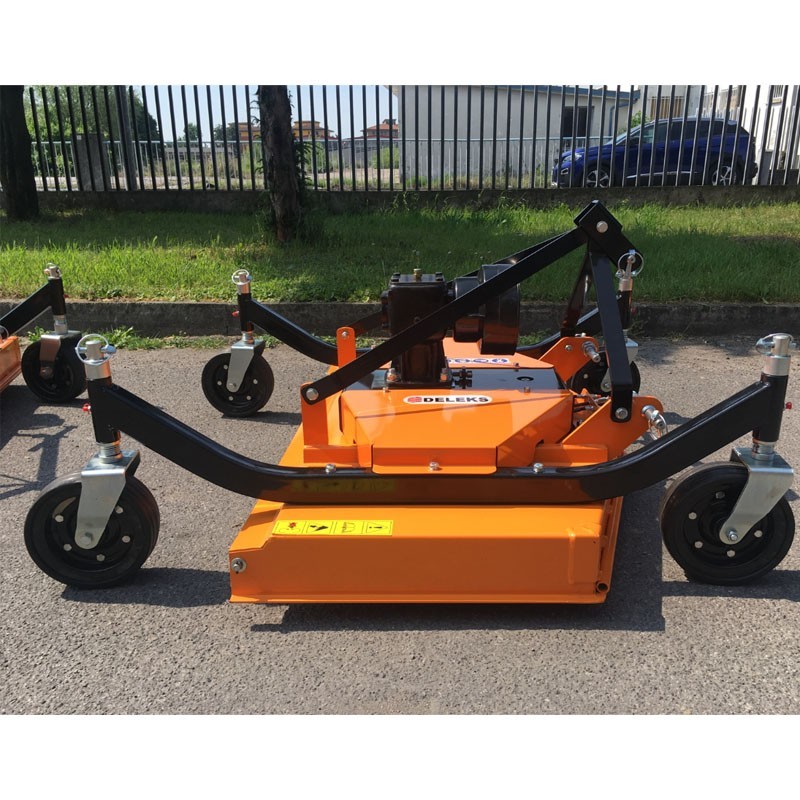

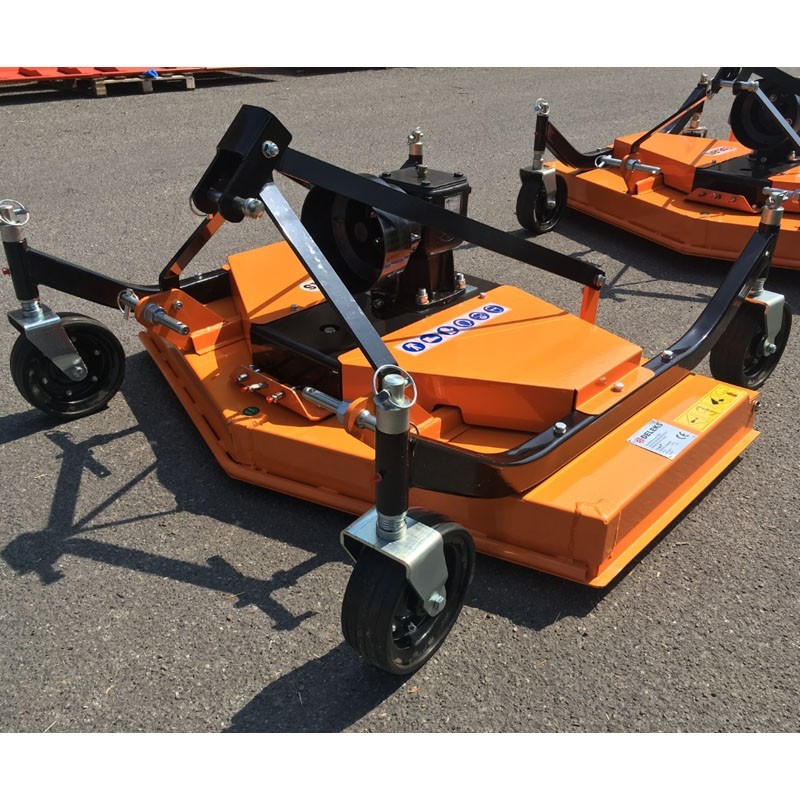

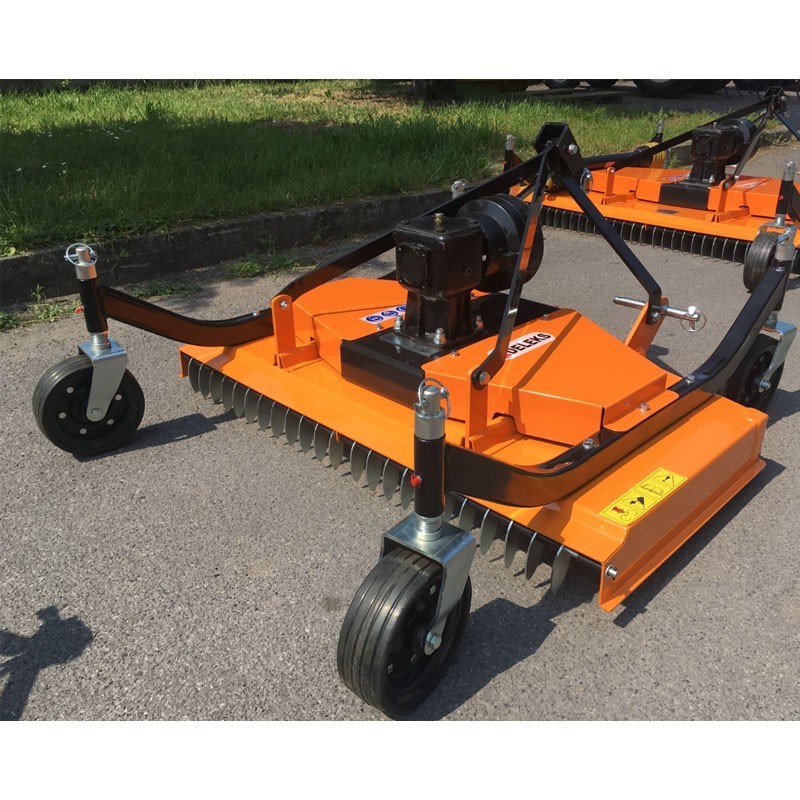

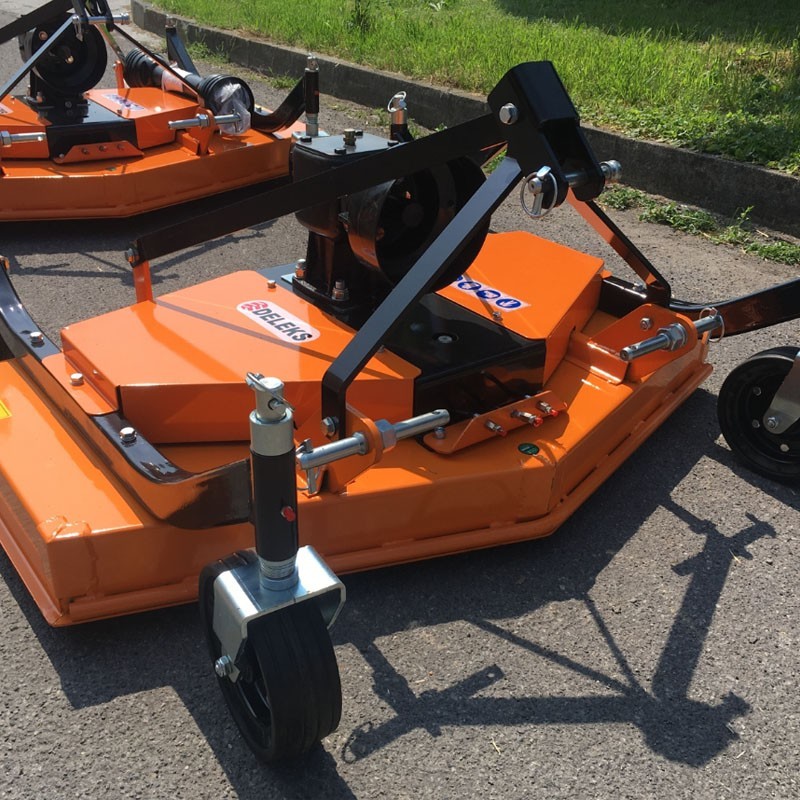

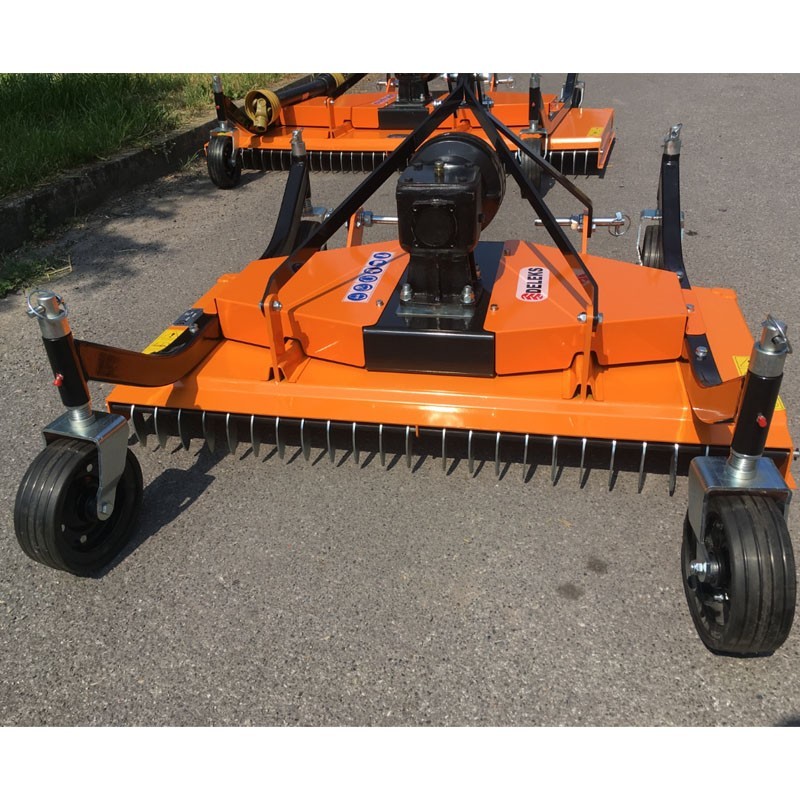

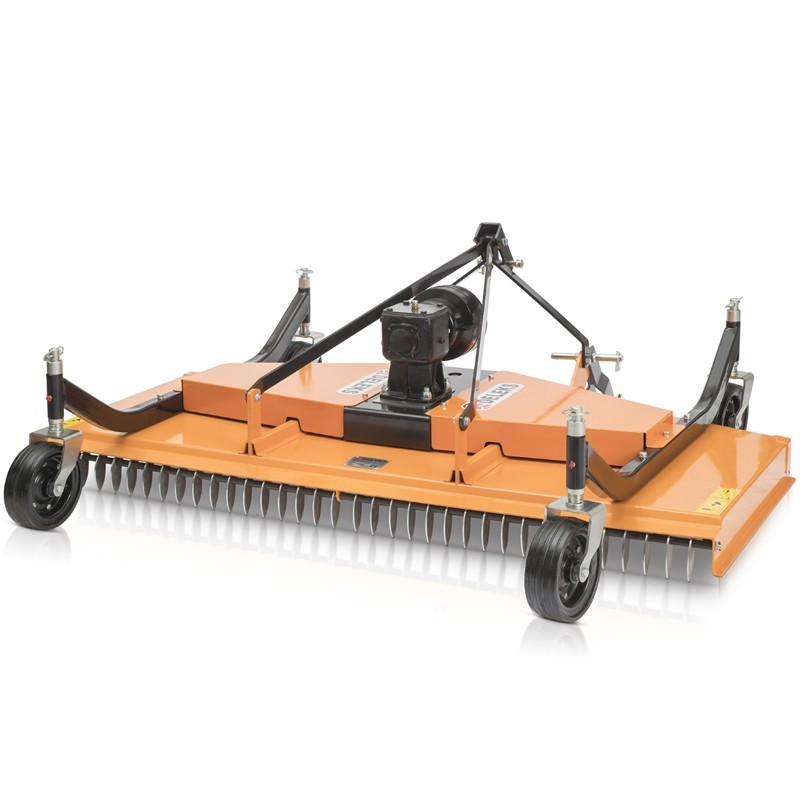

The DELEKS DM 120 140 kg Tractor Mower is for people looking for a professional finish, the DM range ensures a clean and perfect cut. The ideal solution for golf courses, campsites, parks and sports facilities. With its light and robust design, the DM-120 model can be used for tractors from 12 to 40 HP.

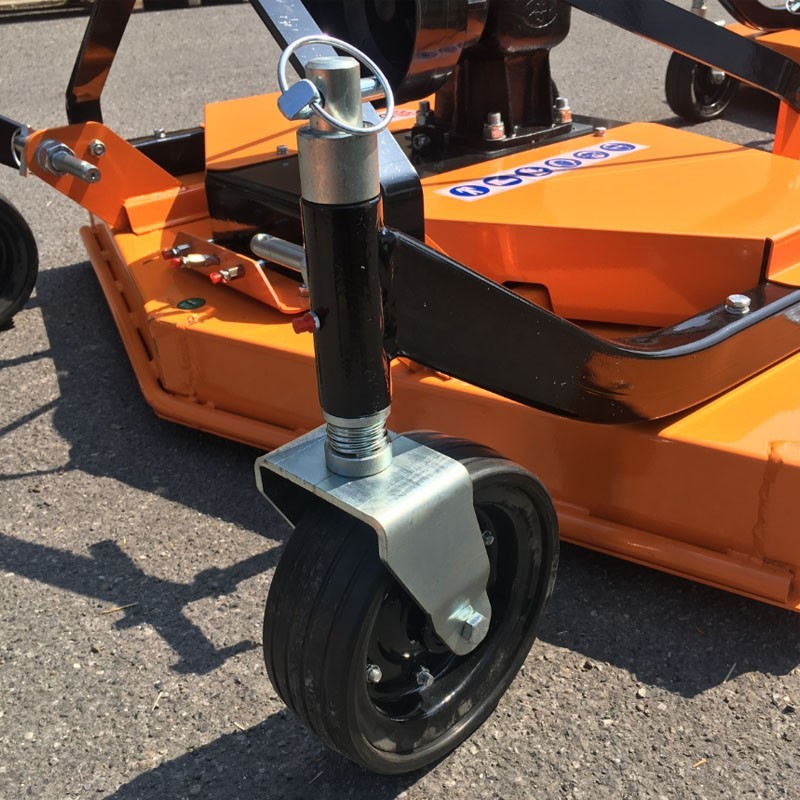

It has a 540g/min transmission box. The high rotation speed of the 3 blades ensures a very fine cut of the grass and leaves no residue behind, the 4 swivel wheels ensure the horizontal position of the machine and an adjustment of the cutting height. Its light and robust design allows its use with micro-tractors.
It has 2 heavy-duty belts, with external tension adjustment. Freewheel integrated in the cardan transmission.
Working width | 1200.0 mm |
Total width | 1280.0 mm |
Cutting height min/max | 5.0 - 50.0 mm |
Weight | 140.0 kg |
Total height | 750.0 mm |
Tractor power | 12-40 hp |

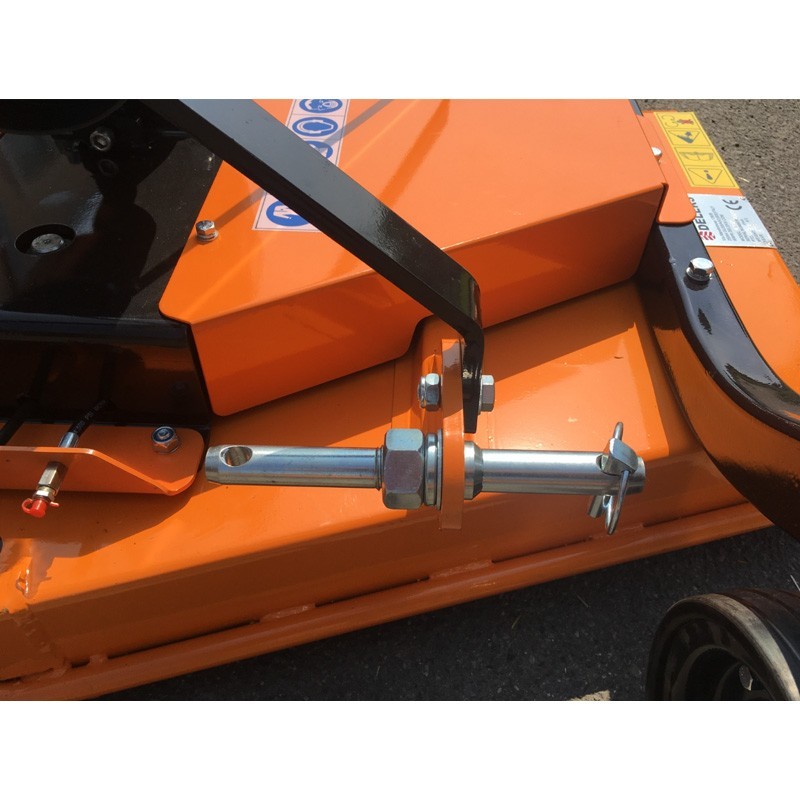

3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 375.0-715.0 mm |
Total length | 1150.0 mm |
Space between ground and transmission box | 450.0 mm |
Plate thickness | 4.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Garantie 3 ans) |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Schedule |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 2 |
Transmission: dimensions of cores | 17x1549 |

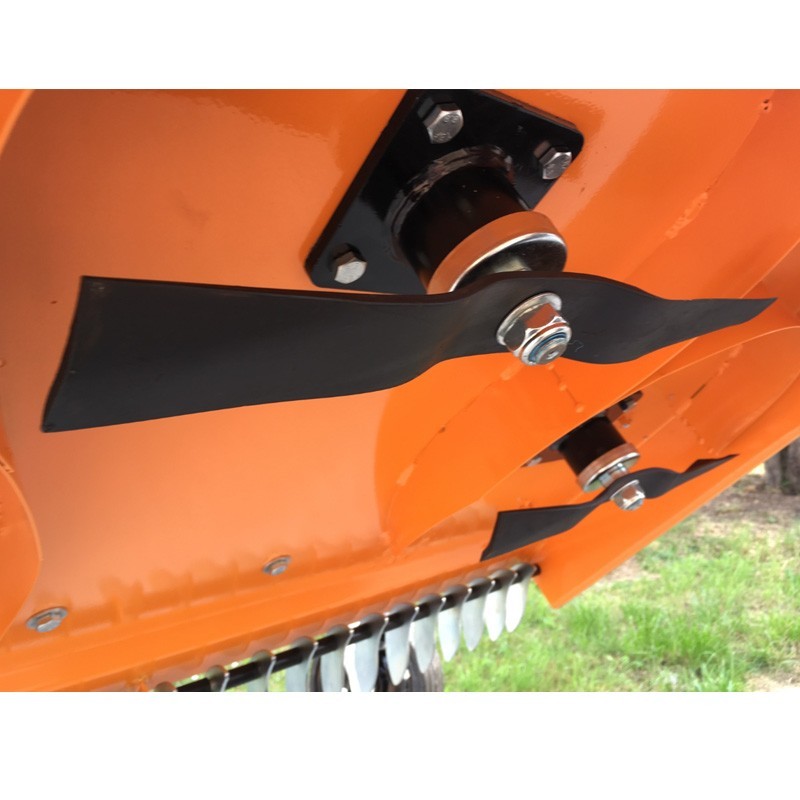

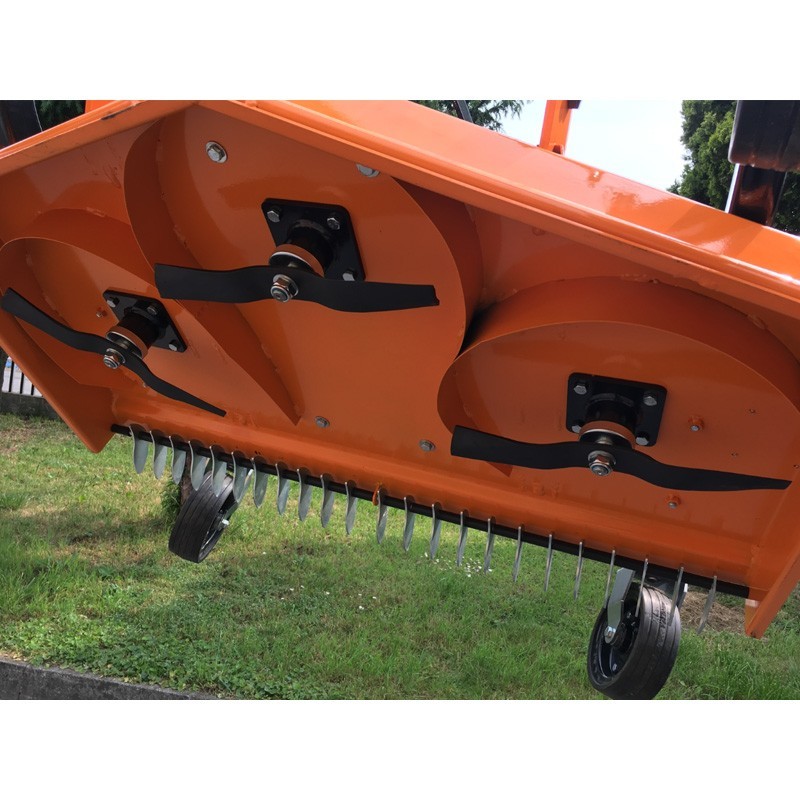

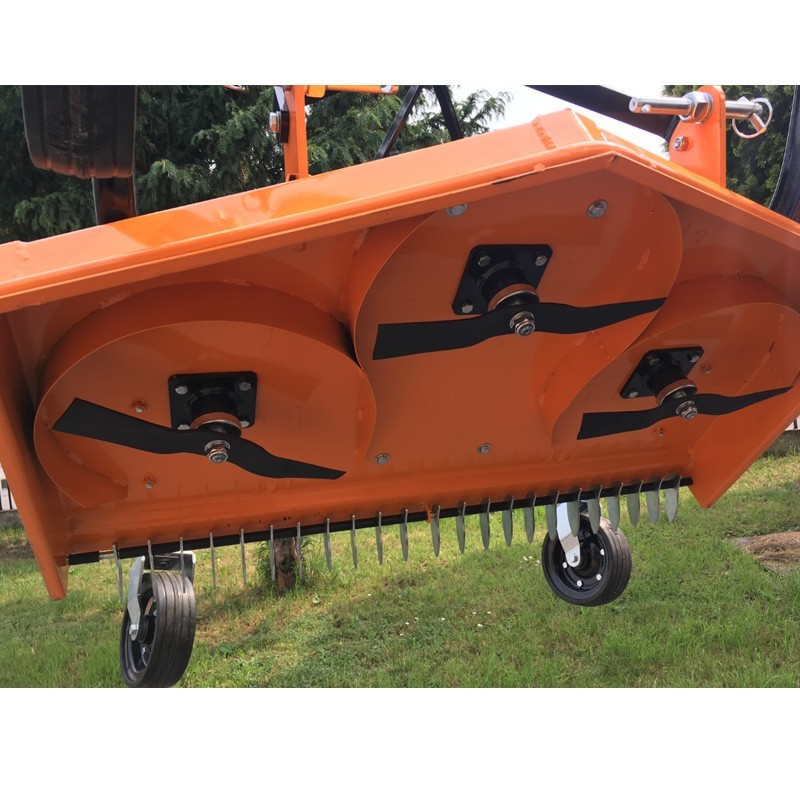

Number of blades | 3 |
Blade rotation speed | 2600 r/min |
Blades: length and width | 400.0/50.0 mm |
Blades: hole diameter | 20.0 mm |
Number of side wheels | 4 |
Lateral wheels: dimensions | 200.0/77.0 mm |
Cardan shaft | CE 2x1000 mm + Freewheel |
Transmission: ø Pulleys | 245.0/14.0 mm |
Blades: Weight | 920.0 g |
Packing dimension | 1300.0*800.0*500.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
