Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

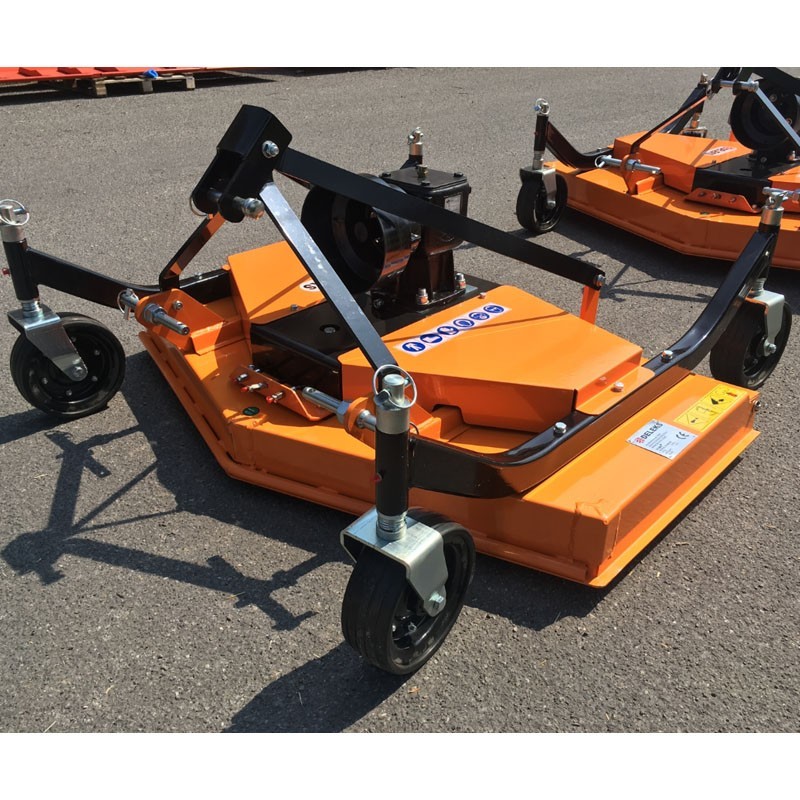

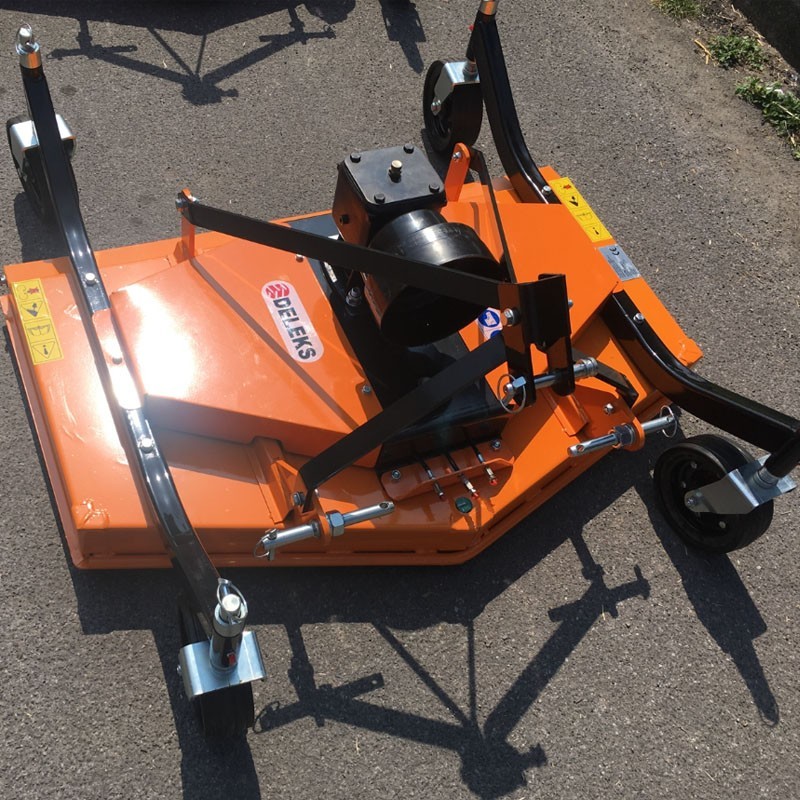

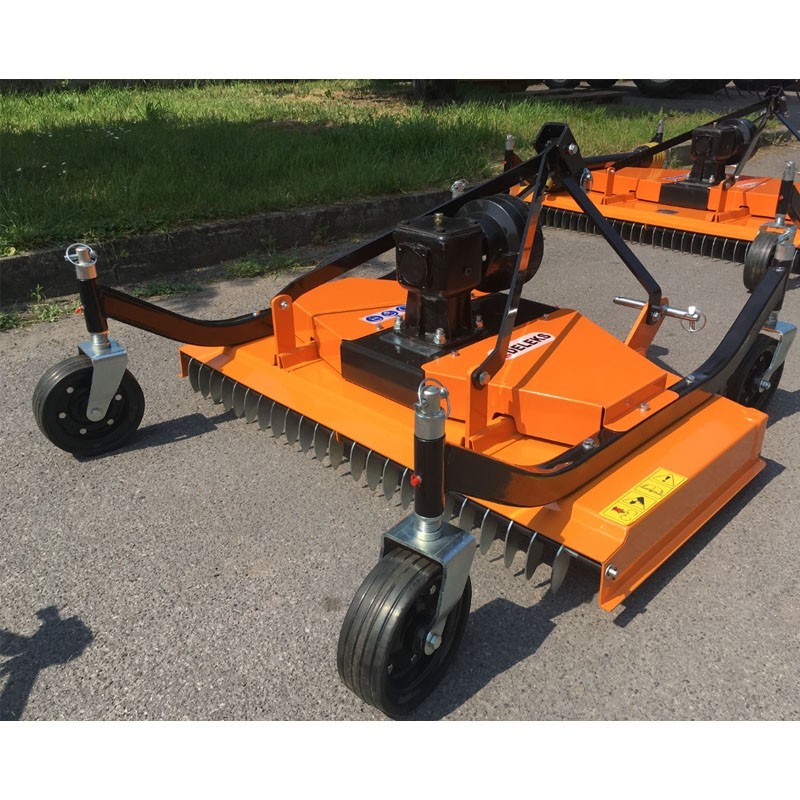

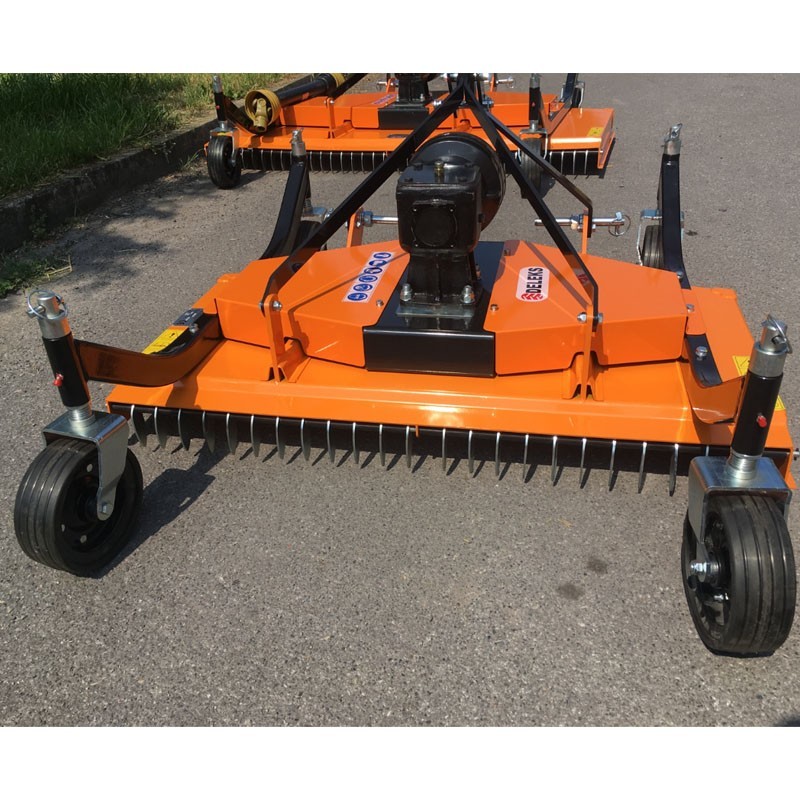

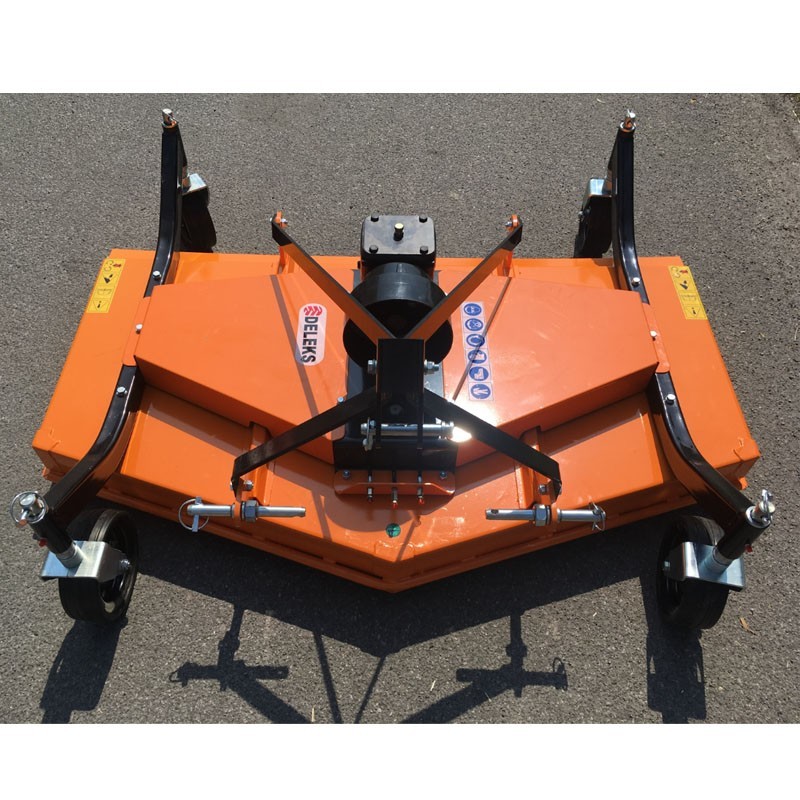

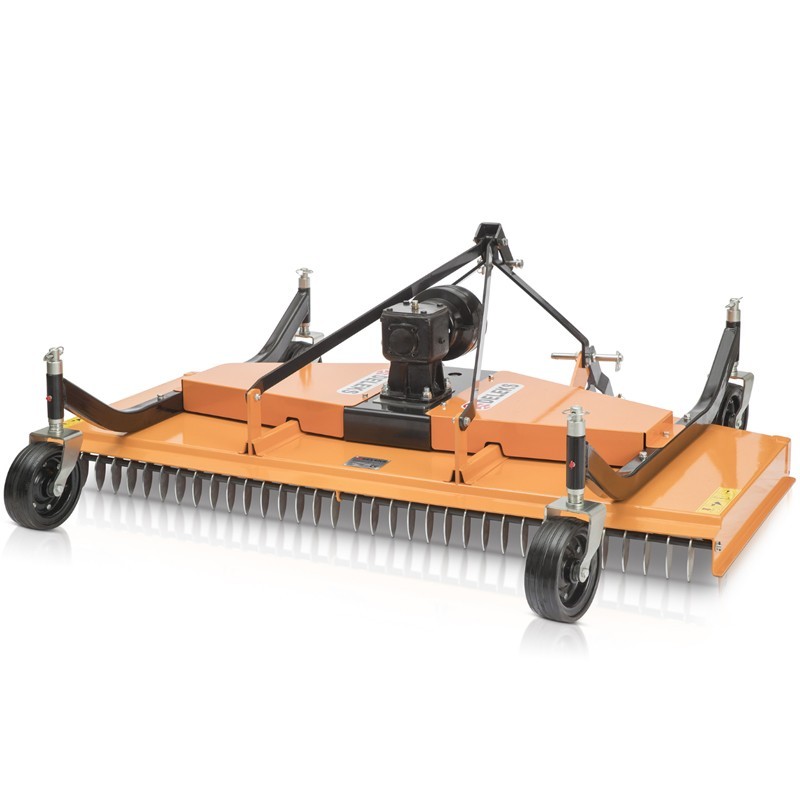

The DELEKS DM 150 Tractor Lawn Mower 180 kg It is made for people who seek a professional finish, the DM range ensures a clean and perfect cut, it is the solution. Ideal for golf courses, camping, parks, and sports facilities.
With its lightweight and robust design, the DM-150 model can to be used for tractors from 18 to 45 HP, it has a transmission box of 540g/min.

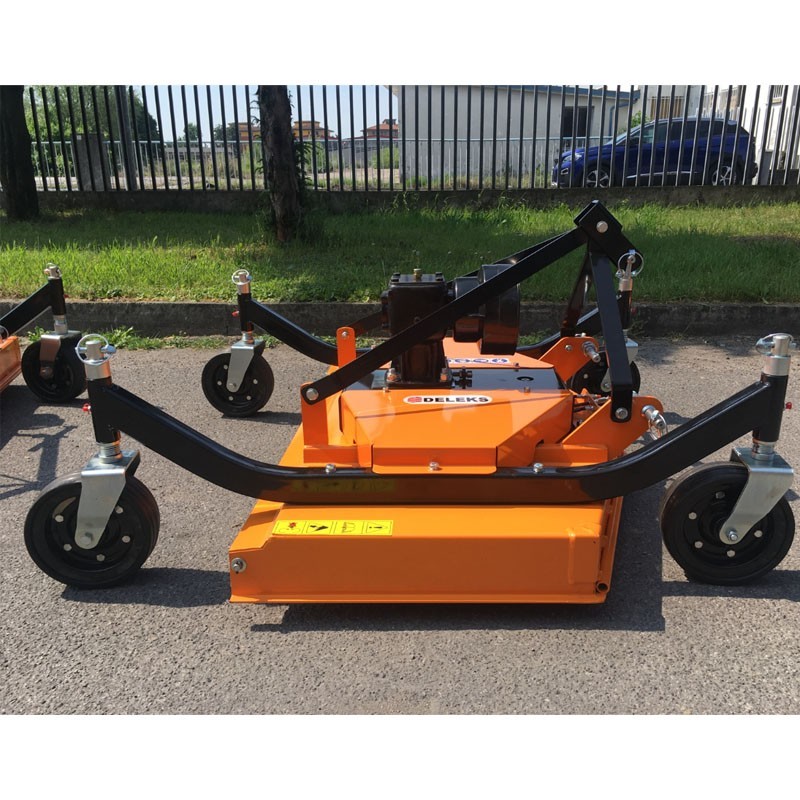

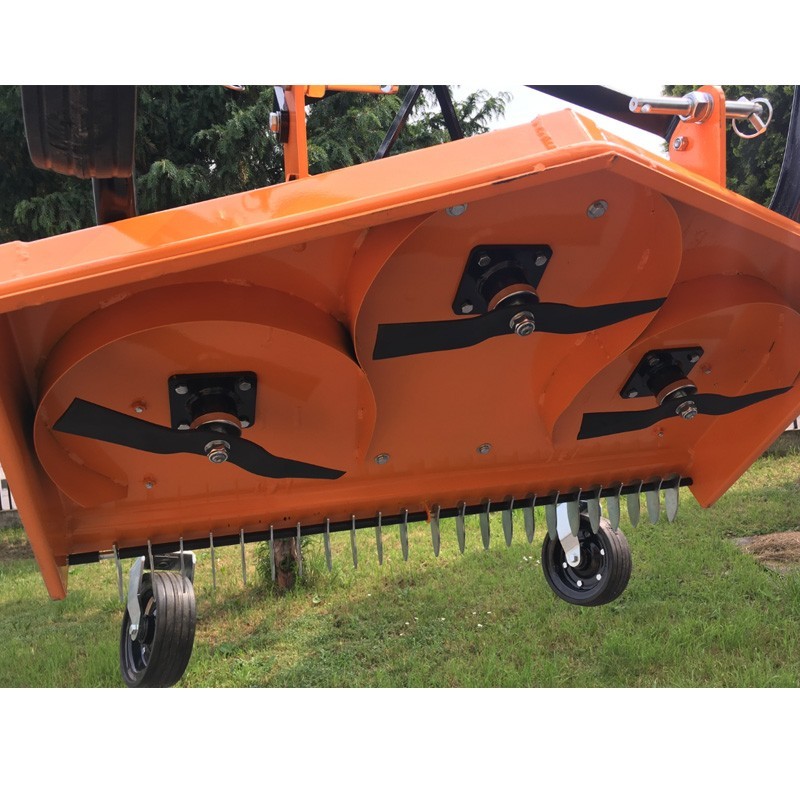

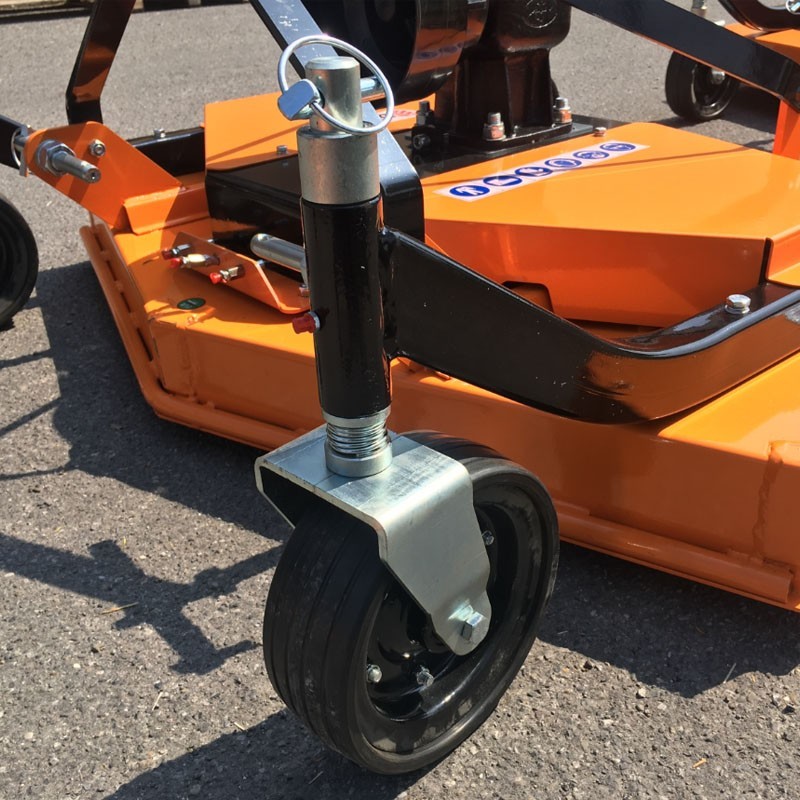

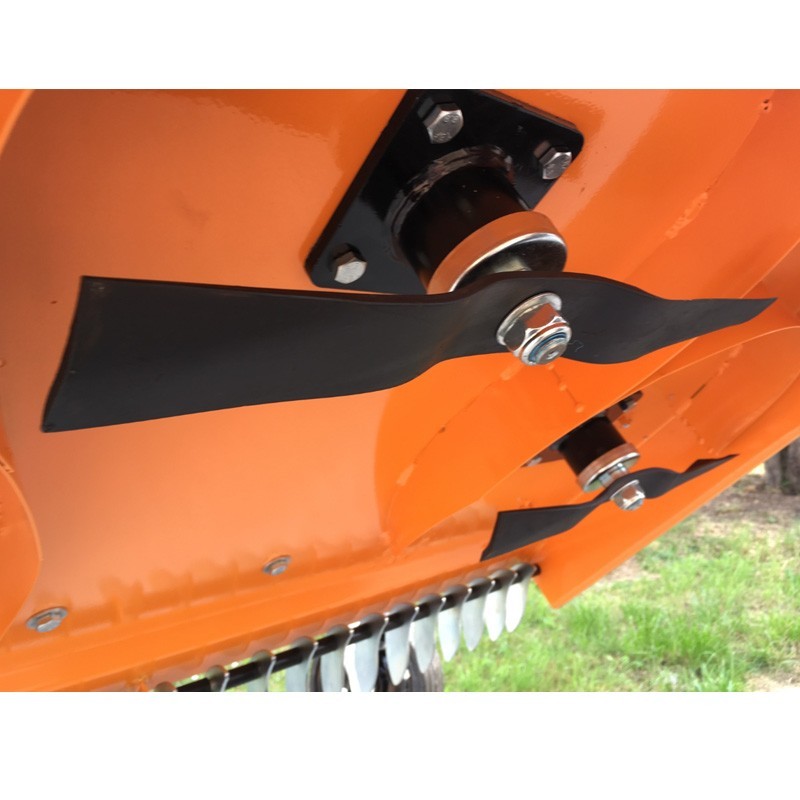

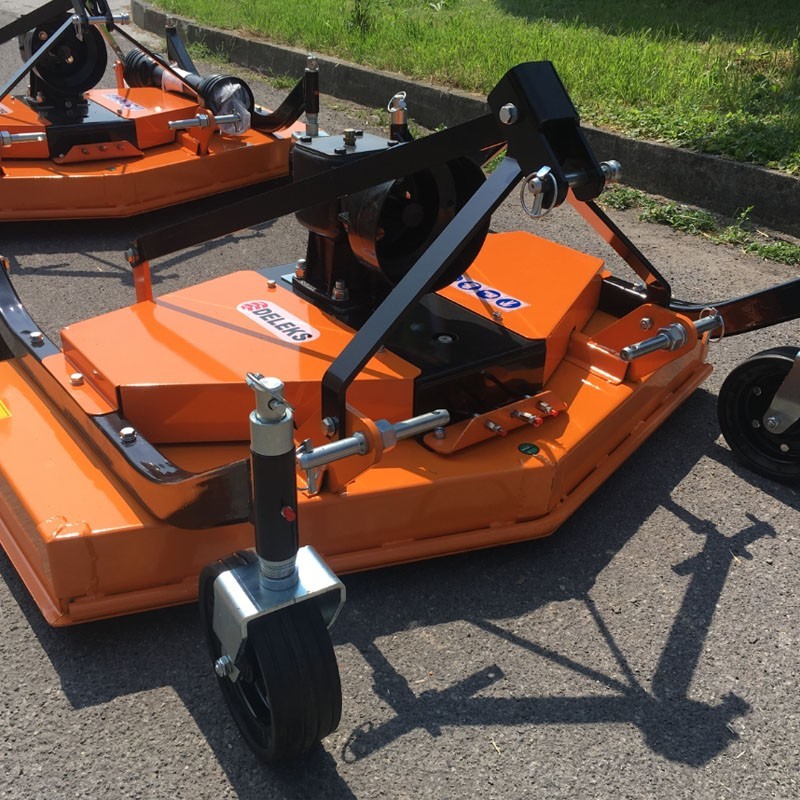

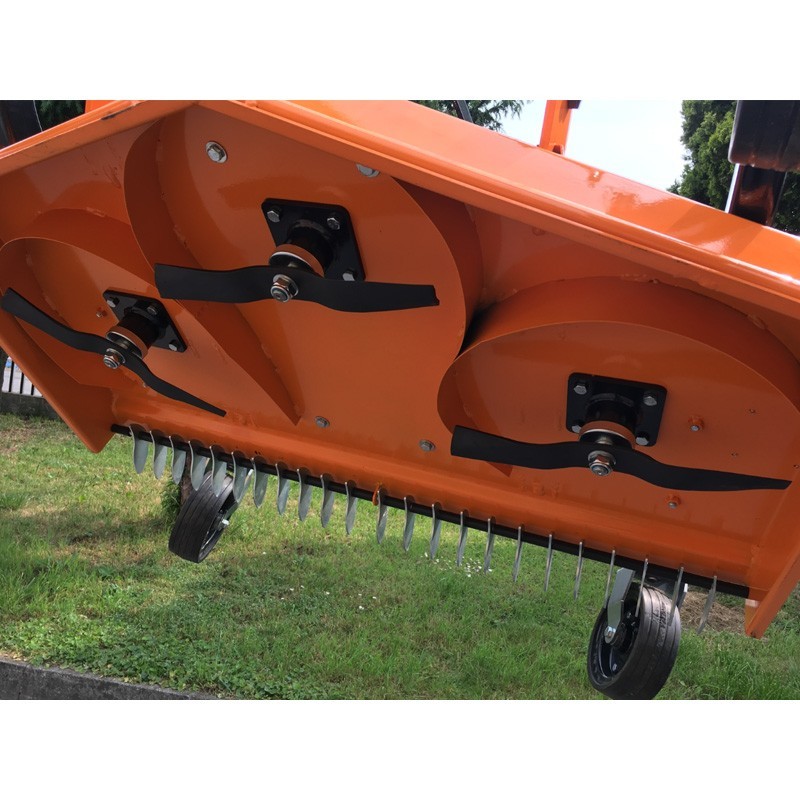

It features a high rotation speed in the 3 blades., which ensures a very fine cut of the grass and leaves no residue behind, the 4 swivel wheels ensure the horizontal position of the machine and an adjustment of the cutting height, its Lightweight and robust design allows its use with micro-tractors..

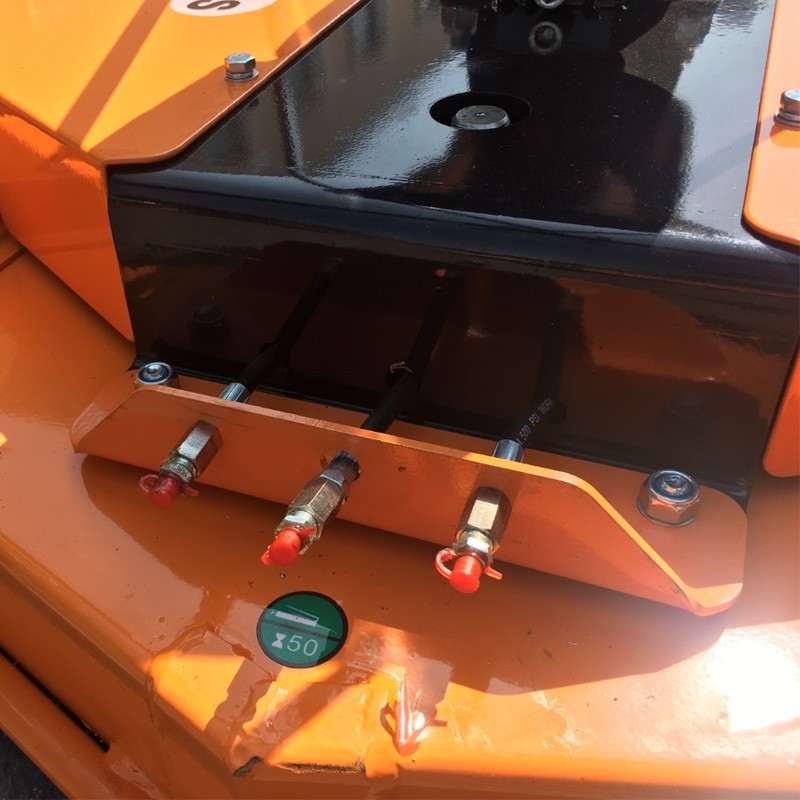

It features 2 high-strength belts, with external tension adjustment and a freewheel integrated into the cardan transmission.
Working width | 1500.0 mm |
Total width | 1580.0 mm |
Minimum/maximum cutting height | 5.0 - 50.0 mm |
Weight | 180.0 kg |
Total height | 750.0 mm |
Tractor power | 18-45 hp |

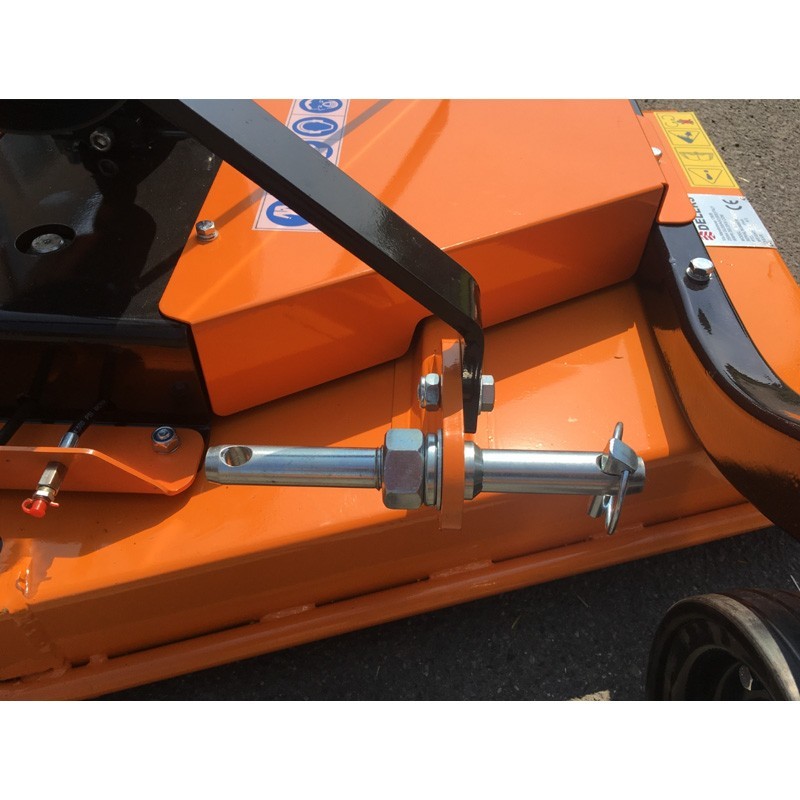

Three-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between the lower points | 375.0-715.0 mm |
Total length | 1250.0 mm |
Space between the ground and the transmission box | 450.0 mm |
Thickness of the sheet | 4.0 mm |
Type of transmission | Correas V |
Transmission: Gearbox | Lombarda Ingranaggi Srl (3-year warranty) |
Broadcast: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 2 |
Transmission: Dimensions of the Koreas | 17x1753 |
Number of slats | 3 |
Blade rotation speed | 2600 rpm (revolutions per minute) |
Lamas: length and width | 500.0/50.0 mm |
Lamas: hole diameter | 20.0 mm |
No. Side wheels | 4 |
Side wheels: dimensions | 200.0/77.0 mm |
Cardan | CE 2x1000 mm + Pin |
Transmission: ø Pulleys | 245.0/14.0 mm |
Lamas: Weight | 1120.0 g |
Packaging dimension | 1600.0*900.0*500.0 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
