Ball clamp for tractor Dimago 800 Kg
- Maximum opening : 1700 mm
- Height : 1200 mm
- Weight : 190 kg
€1,214.75 VAT incl.
Deleks products take about 15 to 25 days. |

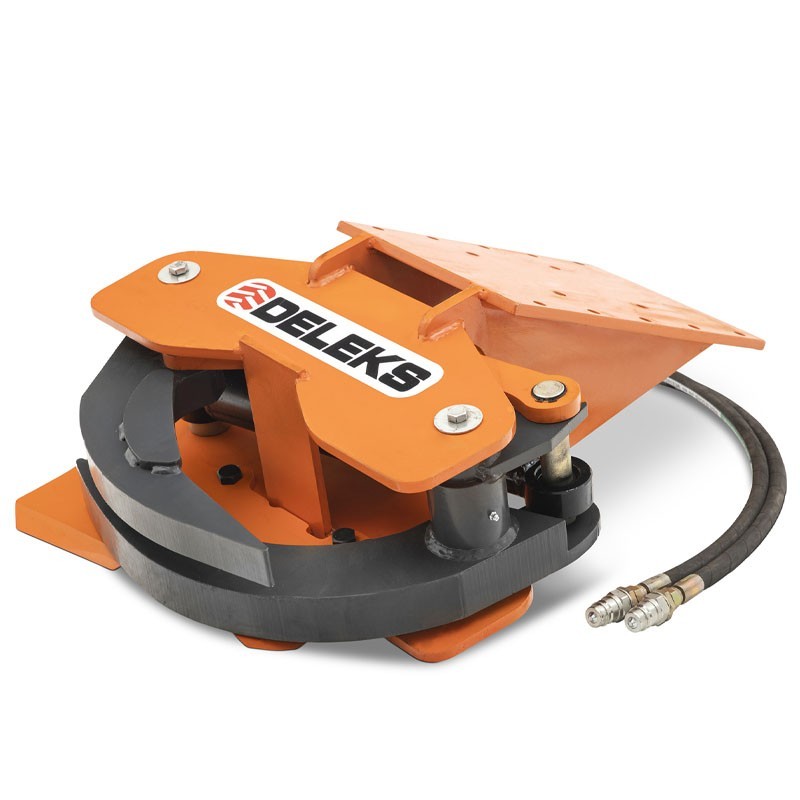

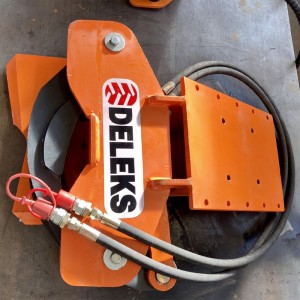

The Forestry Head for Mini Tractors Deleks CF-11 is designed for versatile professional use. It is adapted for mini-excavators up to 3 tons or mounted on a compact loader, a telescopic handler, or a tractor.
The CF-11 forestry head model is ideal for felling and collecting wood for energy use, for clearing fields and roadside edges. This model can also cut thinner trees or group wood with the head.

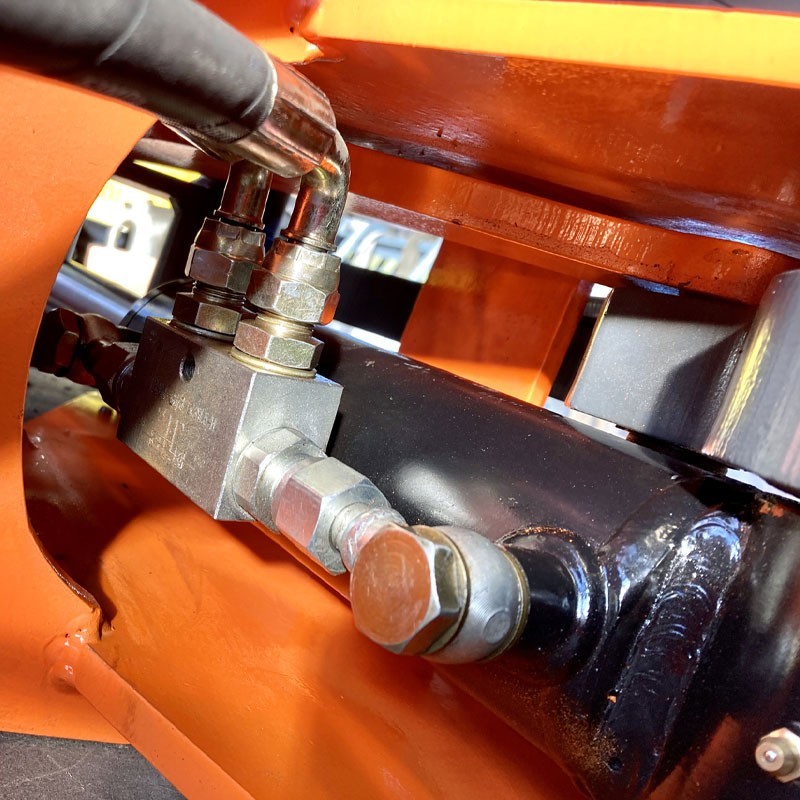

The head has a powerful reinforced blade that ensures clean and safe wood cutting. It has couplings for an excavator. Additionally, it features fixed or full 360-degree rotation. It includes a hydraulic rotor for pruning trees or cutting fallen wood.
This model of forestry head from Deleks ensures the operator good comfort and ease of installation and use. Moreover, the CF-11 model is one of the smallest in the range and has a lightweight of 97 kg. This allows the mini tractor to maintain its capacity.
The CF-11 forestry head cuts at ground level, allowing for cutting stumps at low height. It cuts wood cleanly and precisely at the desired point at ground level. It features two-in-one, cuts and collects.
Thanks to the large opening of the CF-11 head from Deleks, it is also easy to cut several small trees at once. If necessary, the cutting blade can be removed. If removed, the head acts as a classic log clamp.
Weight | 97 kg |
Maximum cutting diameter | 130-150 mm |
Oil pressure min./max | 175 - 210 bar |
Optional oil flow | 25 - 50 l/min |
Hydraulic hoses | 400 bar pressure |
Maximum opening | 650 mm |

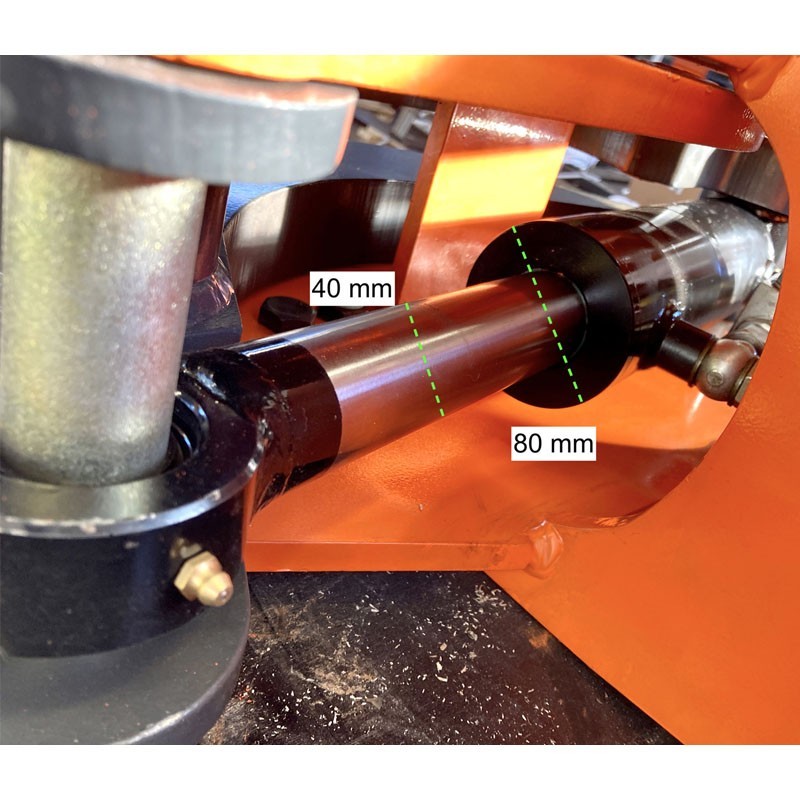

ø hydraulic piston | 80 - 40 mm |
Excavator range | 2 - 3 ton |
Packaging dimensions | 600*800*450 mm |
Data sheet
