| Deleks products take about 15 to 25 days. |
The Deleks D-700 pallet loader is an ideal accessory for tractors with a power range of 25 to 90 HP. Thanks to the forks measuring 112cm in length, with a height of 3cm and a width of 10cm, it is possible to load a pallet of up to 700kg. Additionally, each fork weighs only 24kg.
This D-700 pallet loader has a distance between the forks ranging from 27cm to 78cm. This model has overall dimensions of 95cm in width, 98cm in height with the forks raised, and 113cm with the forks open, with a total weight of just 107kg.
| Total Width | 950 mm |
| Weight | 107 kg |
| Total Height | 980 mm (open) |
| Tractor Power | 25 - 90 HP |
| 3-Point Hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Load Capacity | 700 kg |
| Thickness of 3-Point Hitch Plate | 10 mm |
| Distance Between Lower Points | 580 / 840 mm |
| Usable Fork Length | 950 mm |
| Fork Length | 1120 mm |
| Fork Height | 30 mm |
| Fork Width | 100 - 670 mm |
| Fork Thickness | 30 - 14 mm |
| Weight of One Fork | 24 kg |

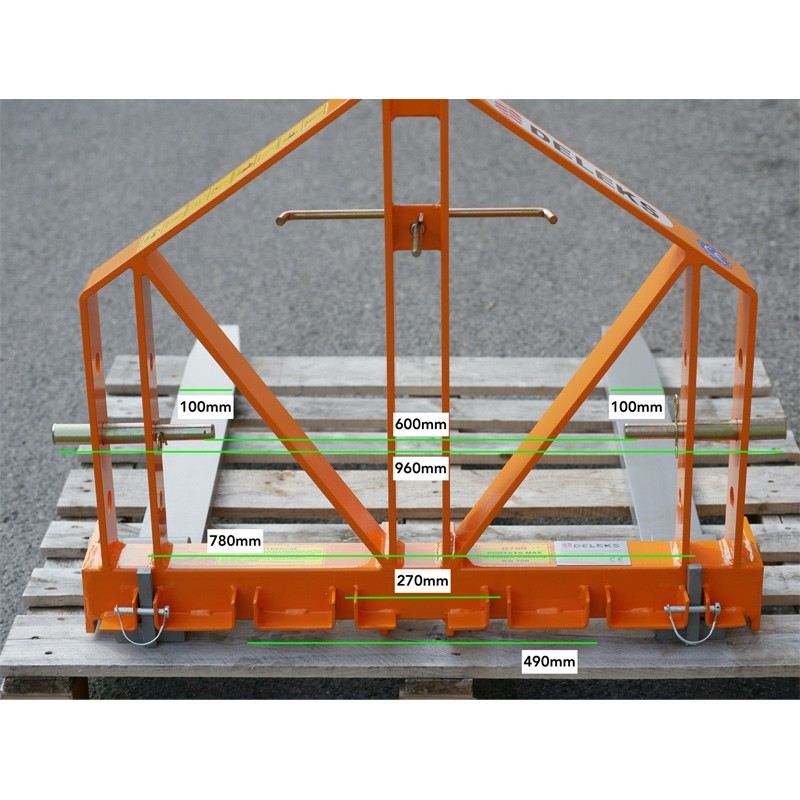

| Distance Between Forks (min.max) | 270 / 780 mm |
| Fork Position | 3 + 3 |
| Horizontal Tube Diameter | 40 mm |
| Distance Between 2 Points and the Ground | 185 / 285 / 385 mm |
| Total Length (open and closed) | 1130 / 225 mm |
| Packaging Dimensions | 1200*950*300 mm |
