Forestry grapple for mini tractors Deleks DK-11-C 1230mm
- Load capacity: 1000 kg
- Width of open clamp: 1230 mm
- Hydraulic hoses: 400 bar pressure
- Weight: 88 kg
€928.88 VAT incl.
Deleks products take about 15 to 30 days. |

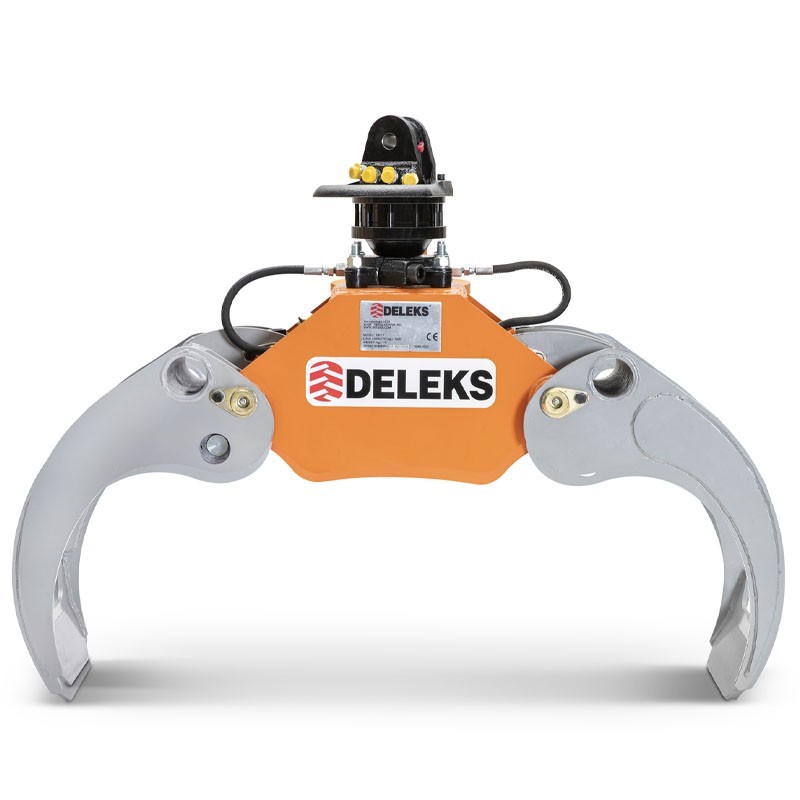

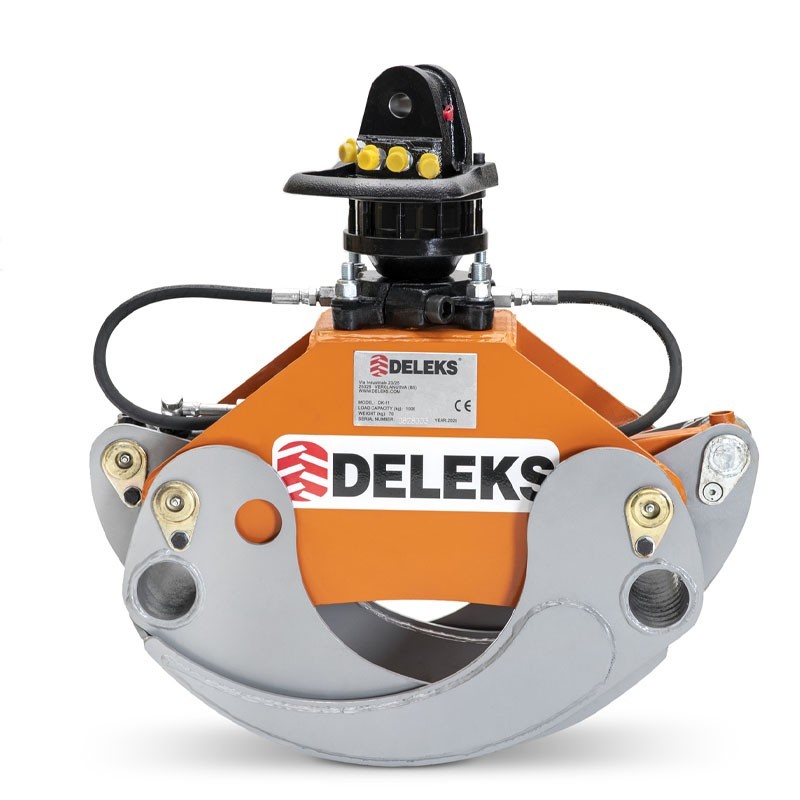

The forestry grapple for mini tractors Deleks DK-16 with GR-30F is a complement for mini excavators and forestry cranes. This grapple features a robust shape that provides a maximum capacity of 2000 kg. It also features a light weight of only 150 kg.
The DK-16 forestry grapple model DK-16 with GR-30F from Deleks is ideal for wood, stones for forestry work or for moving debris. This is thanks to its lifting capacity. This model is suitable for some mini excavators. It has a gripping area of 0.24 m2.
The DK-16 forestry grapple with GR-30F has a unique design of grapples. This conception allows to hold debris or rocks. It also has a high clamping tension and the grapples are reinforced. The model is available with optional rotator and hydraulic kit.
This forestry grapple has a plate thickness of 10mm and an oil pressure of 120/150bar. It also has an optimum oil flow of 18 to 22 l/min and a maximum pressure of 200 bar . In addition, it has a maximum opening of 1280 mm.
The DK-16 model with GR-30F from Deleks guarantees the operator a great comfort to perform the work. This is thanks to the outstanding features provided by the model. Among these, we highlight its hydraulic hoses that have 400 bar of pressure.
We can also highlight some of the measures of the clamp. It has an open caliper height of 800 mm and closed caliper height of 540 mm. It offers an open clamp width of 1460 mm and a closed clamp width of 730 mm.
The DK-16 forestry grapple for mini excavators with GR-30F from Deleks has a minimum branch diameter of 40 mm. The model has a total depth of up to 475 mm. In addition, it has hydraulic piston dimensions of 90-50 mm.
The Deleks model, DK-16 with GR-30F, is for the 4 to 8 ton excavator range. It has dimensions of 1200 mm x 800 mm x 500 mm. The GR-30F rotor is powerful, robust and reliable. It is designed to lift a load of 3000kg with great effectiveness while minimizing downtime.
Weight | 173 kg |
Load capacity | 2000 kg |

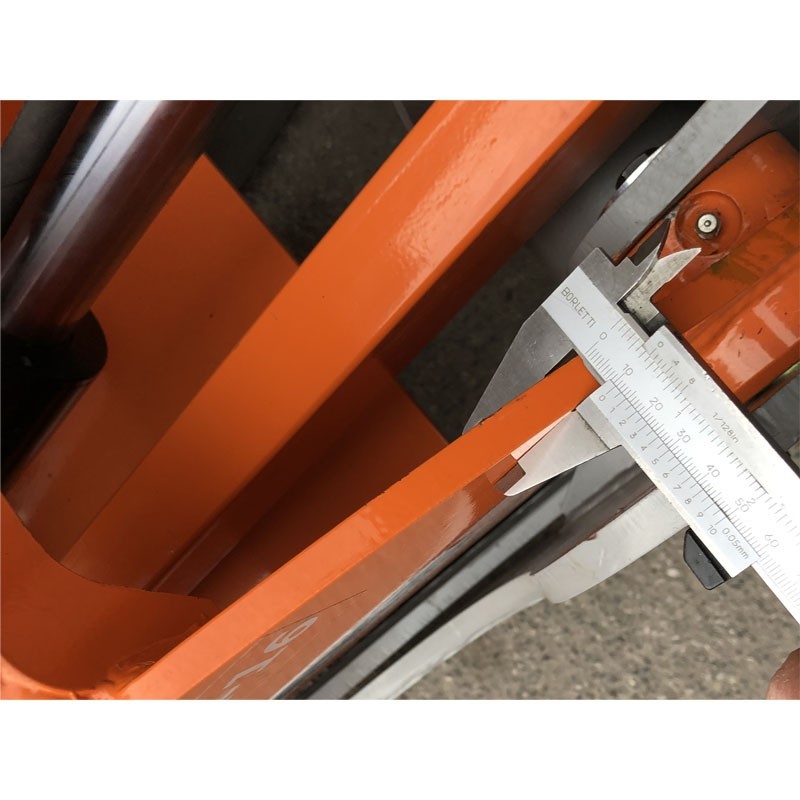

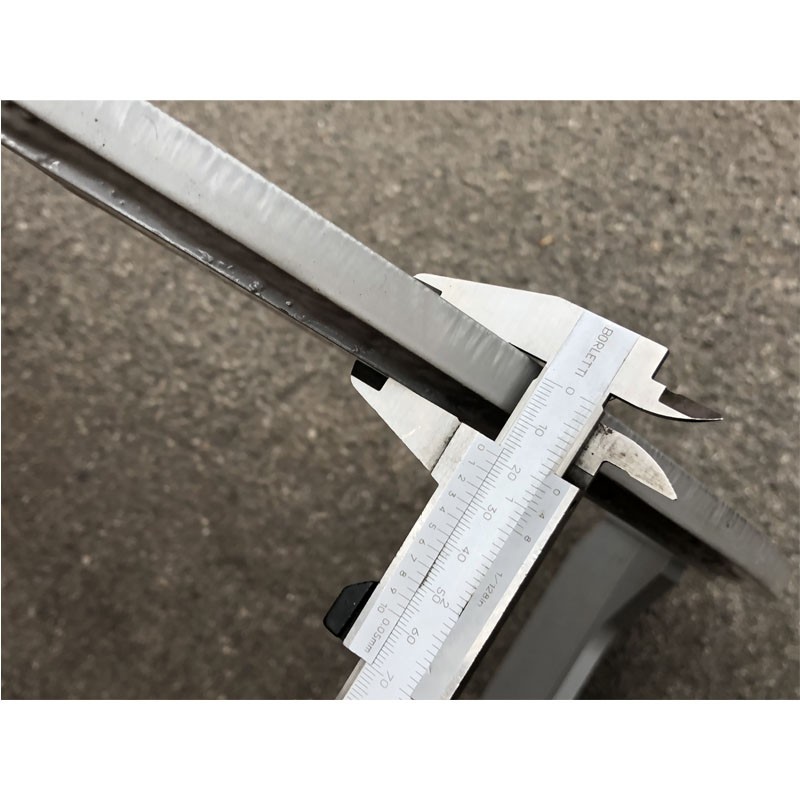

Plate thickness | 10 mm |
Min./max. oil pressure | 120 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Other dimensions | See pictures |
Hydraulic hoses | 400 bar pressure |
Maximum opening | 1280 mm |
Height, clamp open | 1040 mm |
Height, clamp closed | 760 mm |
Width, clamp open | 1460 mm |
Depth | 475 mm |
Minimum branch diameter | 40 mm |

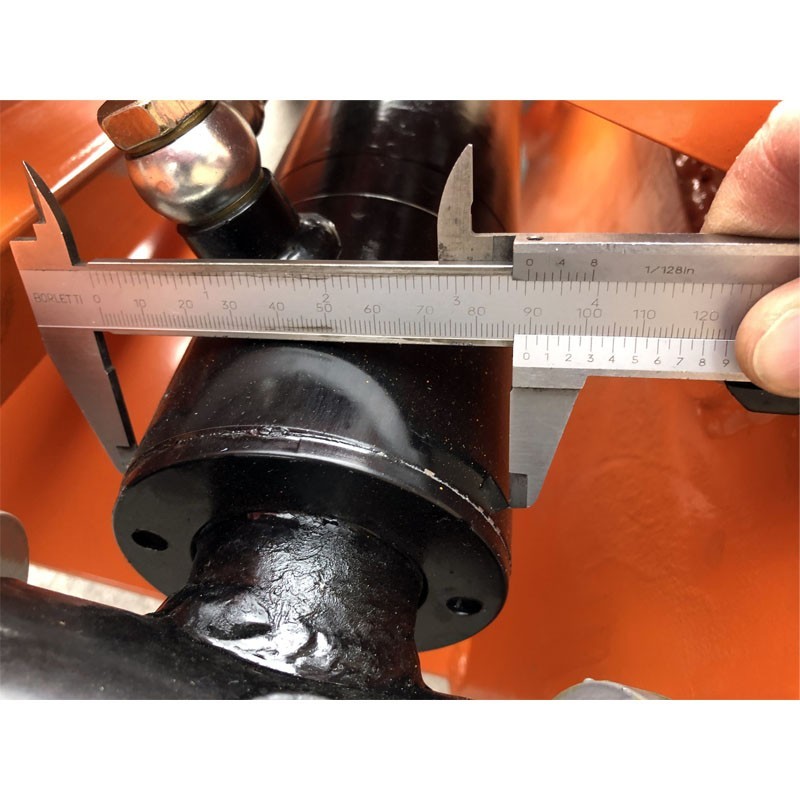

ø hydraulic piston | 90 - 50 mm |
Maximum pressure | 200 bar |
Rotator | Lombarda Ingranaggi GR-30F (3,0 ton) |
Excavator range | 4 - 8 ton |
Width, closed grapple | 730 mm |
Packing dimensions | 1200*800*500 mm |
