Forestry grapple for mini tractors Deleks DK-11-C 1230mm
- Load capacity: 1000 kg
- Width of open clamp: 1230 mm
- Hydraulic hoses: 400 bar pressure
- Weight: 88 kg
€928.88 VAT incl.
Deleks products take about 15 to 20 days. |

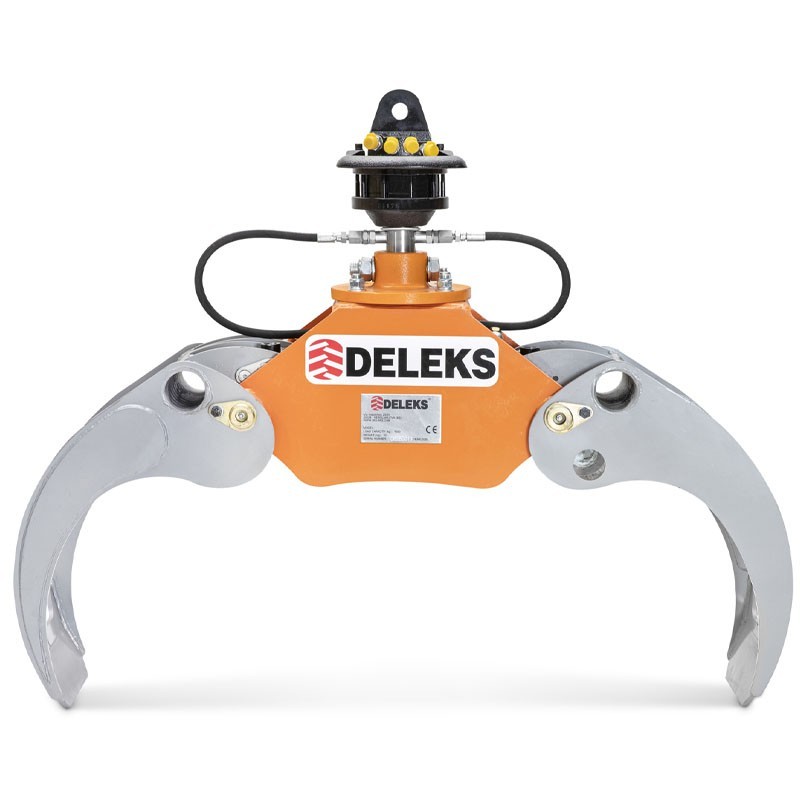

The forestry grapple for mini tractors Deleks DK-11C with GR-30 is a complement for mini excavators and forestry cranes. This grapple features a robust shape that provides a maximum capacity of 1000 kg. It also features a light weight of only 106 kg.
The DK-11C forestry grapple model with GR-30 from Deleks is ideal for timber, forestry stones or moving debris. This is thanks to its lifting capacity. This model is suitable for some mini excavators. It has a gripping area of 0.16 m2.
The DK-11C forestry grapple with GR-30 has a unique grapple design. This design allows to hold debris or rocks. It also has a high clamping tension and the grapples are reinforced. The model is available with optional rotator and hydraulic kit.
This forestry grapple has a plate thickness of 8mm and an oil pressure of 80/120bar. It also has an optimum oil flow of 18 to 22 l/min and a maximum pressure of 200 bar . In addition, it has a maximum opening of 1080 mm.
The DK-11C model with GR-30 from Deleks guarantees the operator a great comfort to perform the work. This is thanks to the outstanding features provided by the model. Among these, we highlight its hydraulic hoses that have 400 bar of pressure.
We can also highlight some of the measures of the clamp. It has an open caliper height of 980 mm and closed caliper height of 810 mm. It offers an open grapple width of 1230 mm and a closed grapple width of 720 mm.
The DK-11C forestry grapple for mini excavators with GR-30 from Deleks has a minimum branch diameter of 40 mm. The model has a total depth of up to 260 mm. In addition, it has hydraulic piston dimensions of 70-30 mm.
The Deleks model, DK-11C with GR-30, is for the 1.8 to 3.5 ton excavator range. It has dimensions of 600 mm x 800 mm x 450 mm. The GR-30 rotor is powerful, robust and reliable. It is designed to lift a load of 3000kg with great effectiveness while minimizing downtime.
Weight | 106 kg |
Load capacity | 1000 kg |

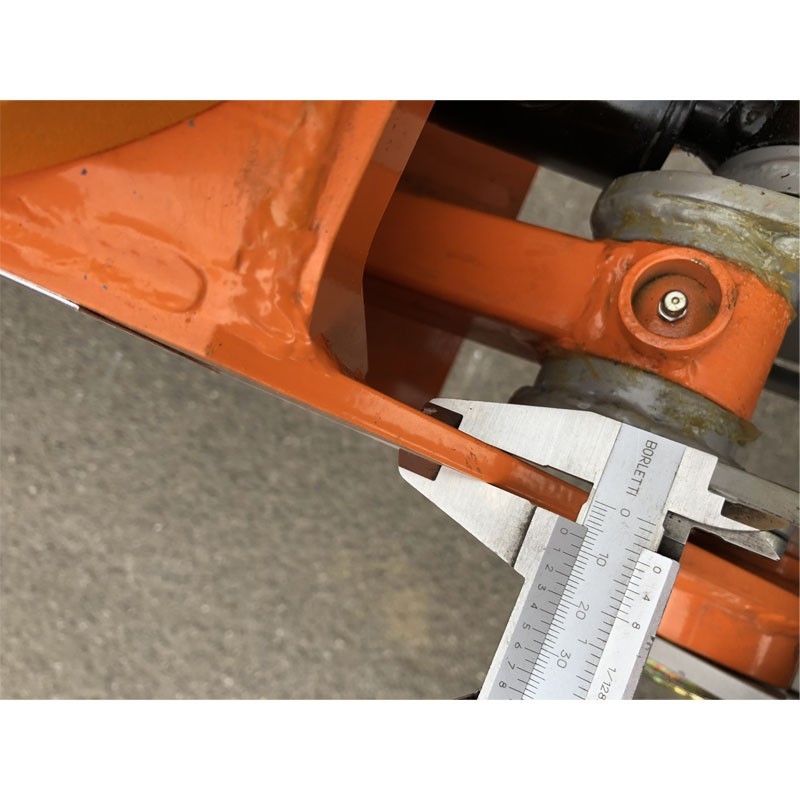

Plate thickness | 8 mm |
Min./max. oil pressure | 80 - 120 bar |
Optional oil flow | 18 - 22 l/min |
Other dimensions | See pictures |
Hydraulic hoses | 400 bar pressure |
Max. opening | 1080 mm |
Height, clamp open | 980 mm |
Height, clamp closed | 810 mm |
Width, clamp open | 1230 mm |
Depth | 260 mm |
Minimum branch diameter | 40 mm |

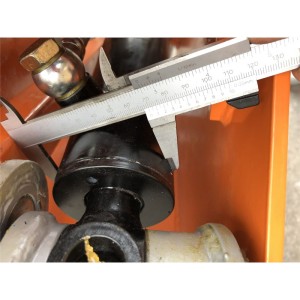

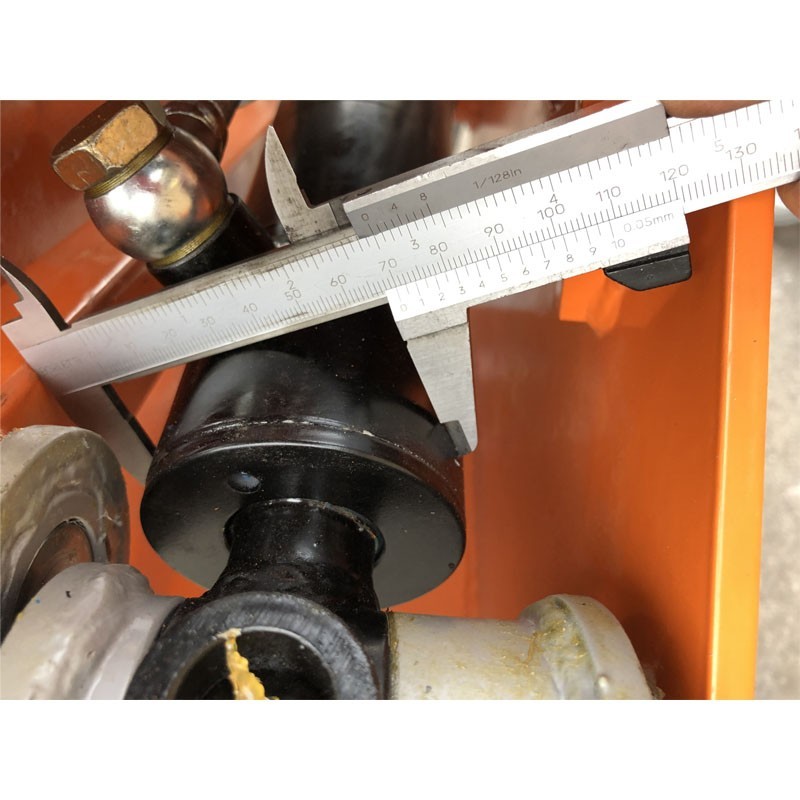

ø hydraulic piston | 70 - 30 mm |
Maximum pressure | 200 bar |
Rotator | Lombarda Ingranaggi GR-30 (3,0 ton) |
Excavator range | 1.8 - 3.5 ton |
Width, closed grapple | 720 mm |
Packing dimensions | 600*800*450 mm |
