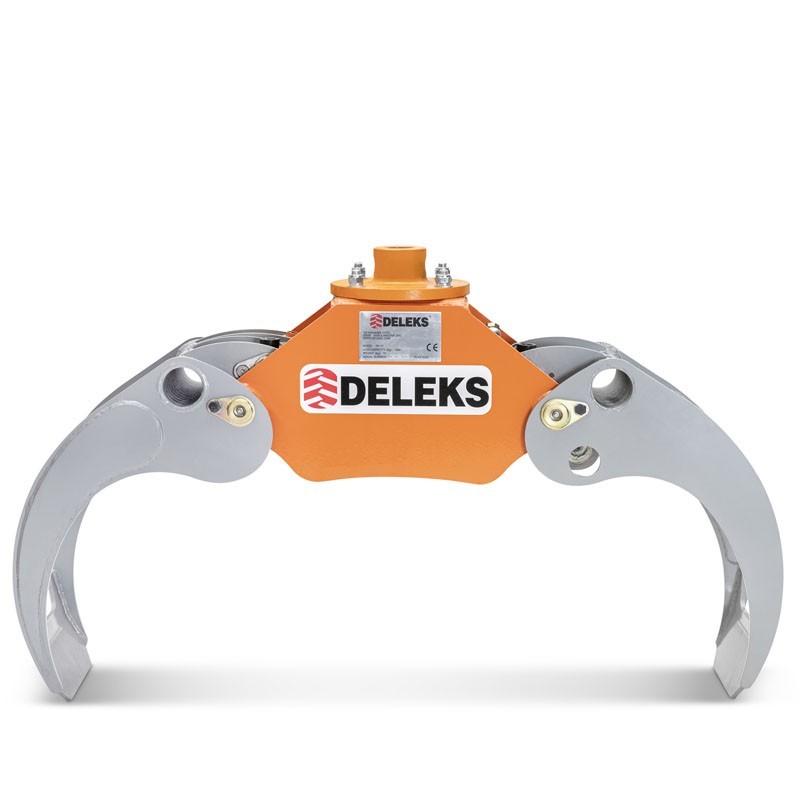

Forestry Grapple for Mini Tractors Deleks DK-16
The Forestry Grapple for Mini Tractors Deleks DK-16 is an attachment for mini excavators and forestry cranes. This grapple features a robust design that provides a maximum capacity of 2000 kg. It also has a lightweight of only 150 kg.
The model of forestry grapple DK-16 from Deleks is ideal for wood, stones for forestry work, or for moving debris. This is thanks to its lifting capacity. This model is adapted for some mini excavators. It has a gripping area of 0.24 m².
The DK-16 forestry grapple features a unique design of the tongs. This design allows for holding debris or rocks. It also has a high clamping tension and the tongs are reinforced. The model offers an option with a rotator and hydraulic kit.

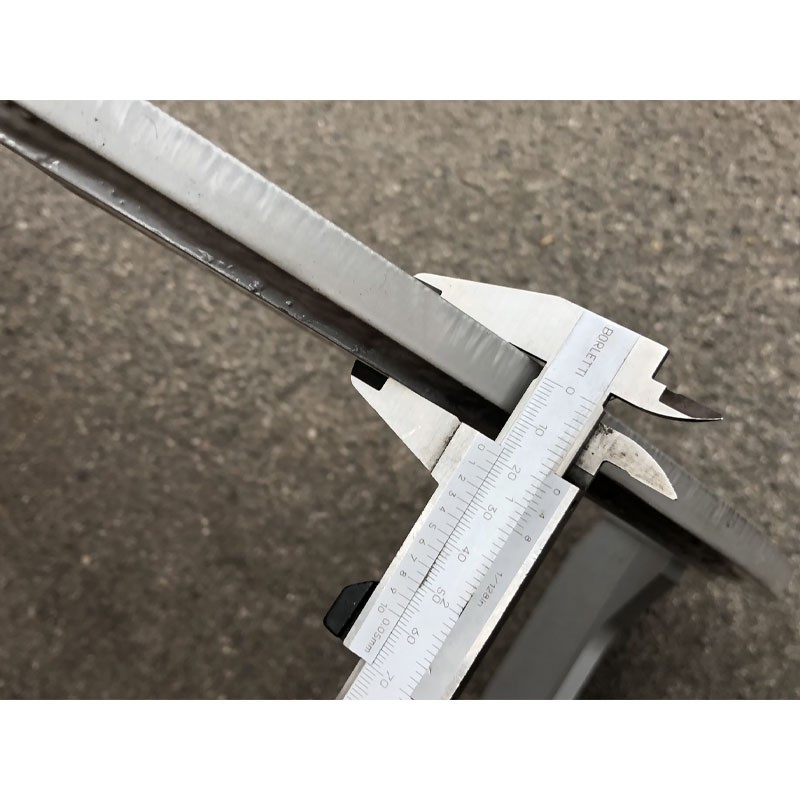

This forestry grapple has a sheet thickness of 10mm and an oil pressure of 120/150 bar. It also has an optimal oil flow of 18 to 22 l/min and a maximum pressure of 200 Bar. Additionally, it has a maximum opening of 1280 mm.
The model DK-16 from Deleks ensures the operator great comfort to perform the work. This is thanks to the remarkable features provided by the model. Among these, we highlight its hydraulic hoses that have a pressure of 400 bar.
We can also highlight some of the grapple's measurements. It has a height of open grapple of 800 mm and a height of closed grapple of 540 mm. It offers a width of open grapple of 1460 mm and a width of closed grapple of 730 mm.

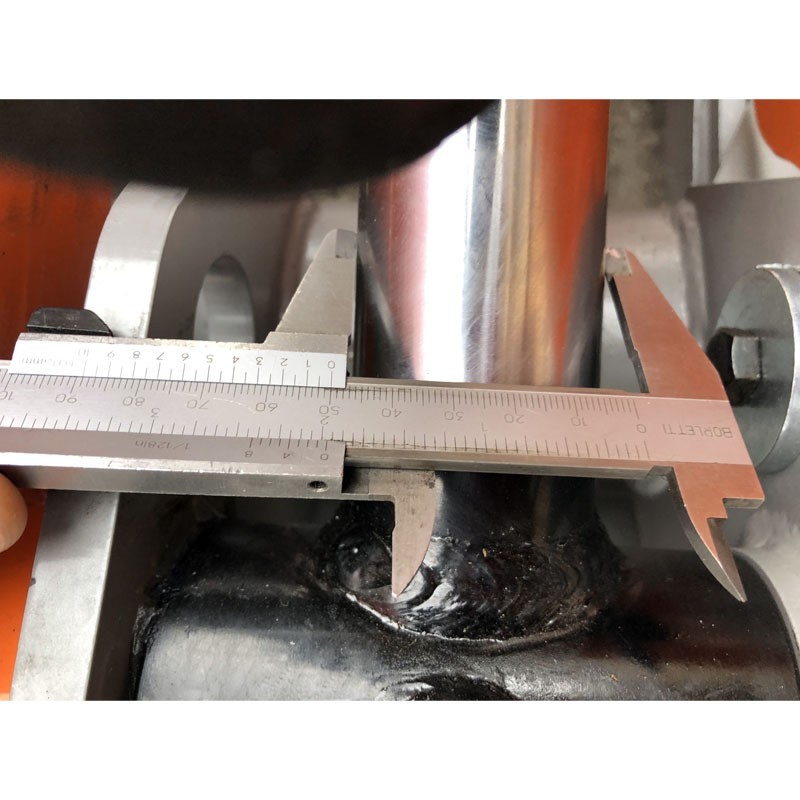

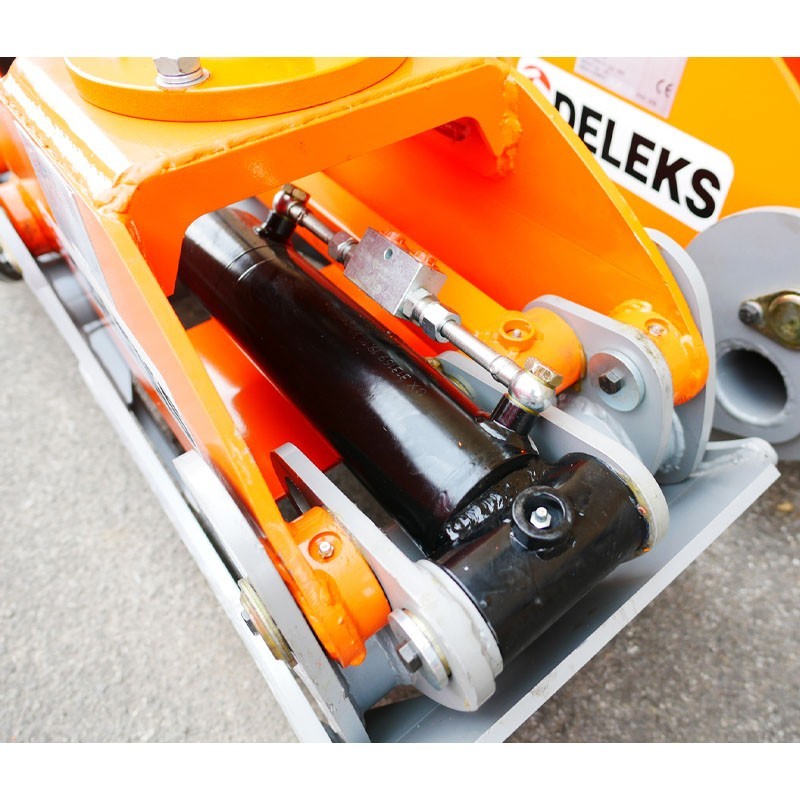

The Forestry Grapple for Mini Excavators DK-16 from Deleks has a minimum branch diameter of 40 mm. The model has a total depth of up to 475 mm. Additionally, it has hydraulic piston dimensions of 90-50 mm.
The model from Deleks, DK-16, is for a range of excavators from 4 to 8 tons. It has dimensions of 1200 mm x 800 mm x 500 mm.
Features
| Weight |
150 kg |
| Load capacity |
2000 kg |
| Sheet thickness |
10 mm |
| Oil pressure min./max |
120 - 150 bar |
| Optional oil flow |
18 - 22 l/min |
| Other dimensions |
See photos |
| Hydraulic hoses |
400 bar pressure |
| Maximum opening |
1280 mm |
| Height, open grapple |
800 mm |
| Height, closed grapple |
540 mm |
| Width, open grapple |
1460 mm |
| Depth |
475 mm |
| Minimum branch diameter |
40 mm |
| ø hydraulic piston |
90 - 50 mm |
| Maximum pressure |
200 Bar |
| Rotator |
x |
| Excavator range |
4 - 8 ton |
| Width, closed grapple |
730 mm |
| Packaging dimensions |
1200*800*500 mm |
