Tracked Barrow gasoline Garto MDP-G
Tracked Barrow gasoline Garto MDP-G

Tracked Barrow gasoline Garto MDP-G 6.5 HP

Rating:
(0)
  • Manual start
  • Engine: Loncin 6,5 HP
  • Displacement: 196 cc
  • Gear transmission
En stock
icon Power Supply
Power Supply
Gasoline
icon Load capacity
Load capacity
500 Kg
icon Forklift Type
Forklift Type
From Tracked
icon Startup
Startup
Manual
icon Engine
Engine
Loncin
icon Displacement
Displacement
196 cc
icon Power
Power
6.5 HP
icon Engine type
Engine type
2 times
icon Gears
Gears
3+1
icon Max. slope
Max. slope
35%
icon Drawer turning
Drawer turning
Manual
icon Type of box
Type of box
Extendable box
icon Weight
Weight
240 Kg
€2,303.96 excl. VAT
- 4%
€2,211.80 excl. VAT
€2,676.28 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Tracked Barrow gasoline Garto MDP-G 6.5 HP
€2,676.28
Qty

Minidumper gasoline Garto MDP-G 6.5 HP

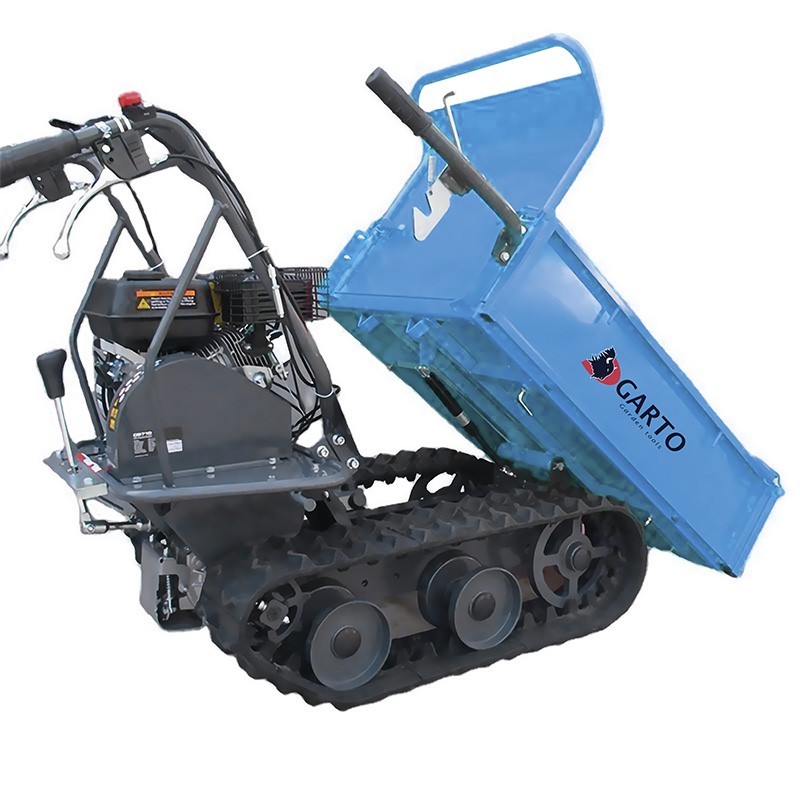

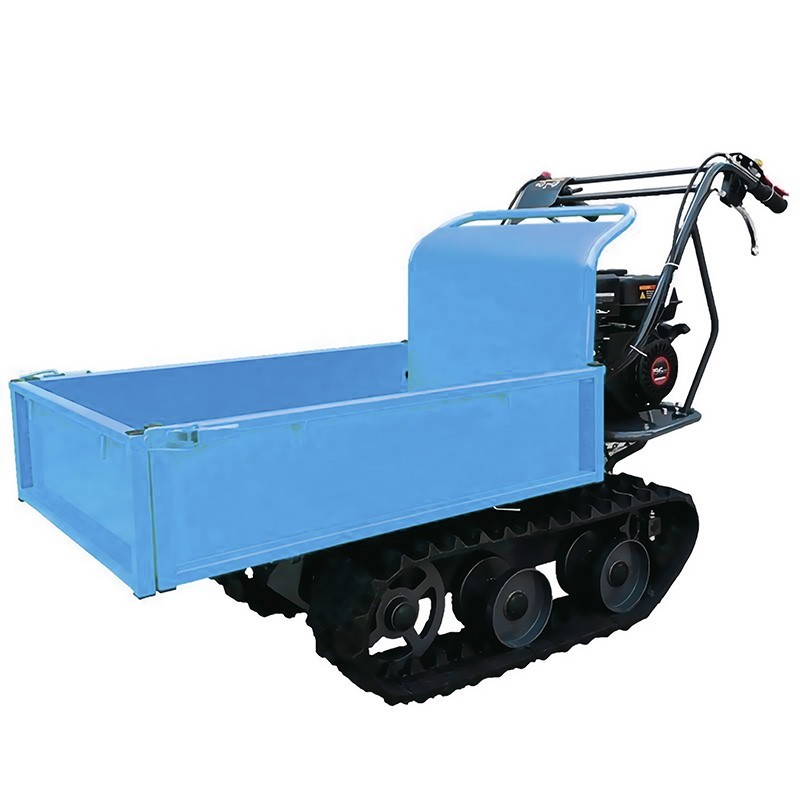

The Garto MDP-G tracked forklift has a maximum load capacity of 500 kg with a mechanical tilting system. The maximum inclination of this gasoline minidumper is 35% and the actual weight of the machine is 240 kg.

The tracked forklift is equipped with a gear transmission system as well as an automatic safety braking system.

On the other hand, the gears with which this minidumper has 3 forward and a single reverse gear . As for its box, it has extendable and folding edges and its width is up to 83 cm.

The power required to move this tracked truck is 6.5 HP delivered by a gasoline engine of the brand Loncin of 196 cc displacement and with manual engine start.

Technical Specifications

MODEL MDP-G
Engine Loncin OHV 2T
Power 6.5 HP / 6.72 kW
Displacement 196 cc
Safety brake Automatic
Tracked rubber 180 mm
Drawer type With extendable and hinged edges
Starter Manual with handle
Fuel Gasoline
Transmission By gears
Gears 3 forward and 1 reverse
Load capacity 500 Kg
Tilting system Mechanical
Box length 1100 / 1240 mm
Drawer width 700 - 830 mm
Drawer depth 320 mm
Track width 180 mm
Maximum inclination 35%
Weight 240 Kg
IMPORTANT NOTICE
It is obligatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
