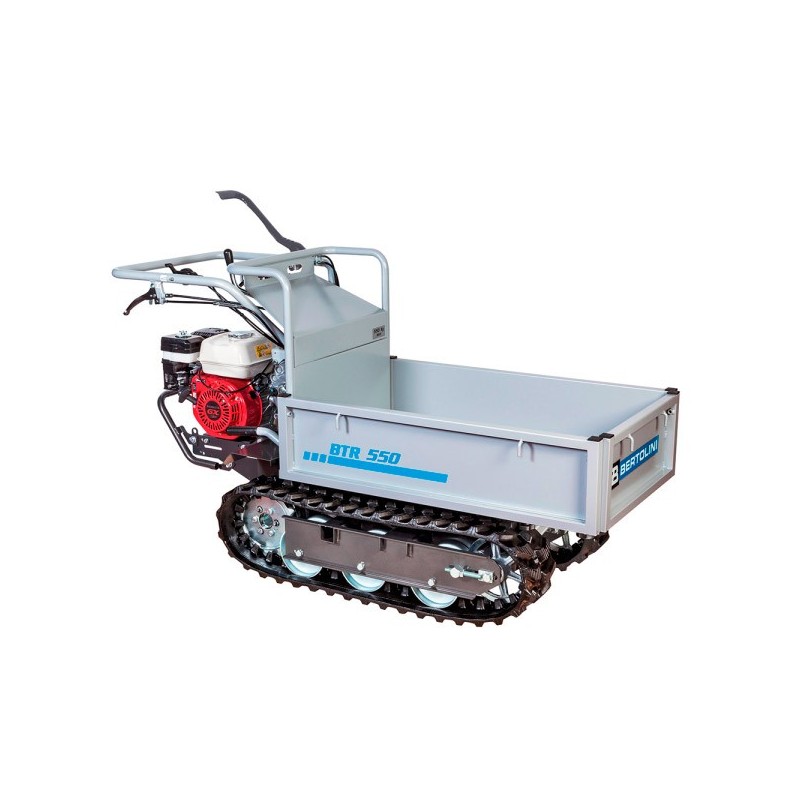

The Bertolini BTR 550 crawler truck is powered by a Honda GX 160 engine that delivers 163cc and 4.8 HP. This model of crawler truck is equipped with a six-speed gearbox, four forward and two reverse speeds.
The BTR 550 crawler truck operates with an oil-bath gear transmission. It offers manual unloading and is capable of carrying a load of up to 550 kg. It has a minimum turning range of 700mm with a dumping angle of 50º.
This crawler truck has a steering with independently controlled releases and brakes. In addition, the truck's drive structure has been developed from army tanks. It comes with brakes with automatic expansion and cut-off.
This is a powerful, rugged and compact professional machine that is ideal for use in all terrains. This model has a large load capacity. This machine stands out for its versatility and for the safety devices installed.
| Engine | Honda GX 160 |
| Gears | 4 front + 2 rear |
| Load capacity | 550kg |
| Transmission | Oil bath gears |
| Brakes | Automatic cut-off when clutch is released |
| Unloading angle | 50º |
| Max. no-load inclination | 20% |
| Clutch | Belt with automatic disengagement when lever is released |
| Minimum turning radius | 700 mm |
| Weight | 200kg |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini
Oil immersed clutch brake (Other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
