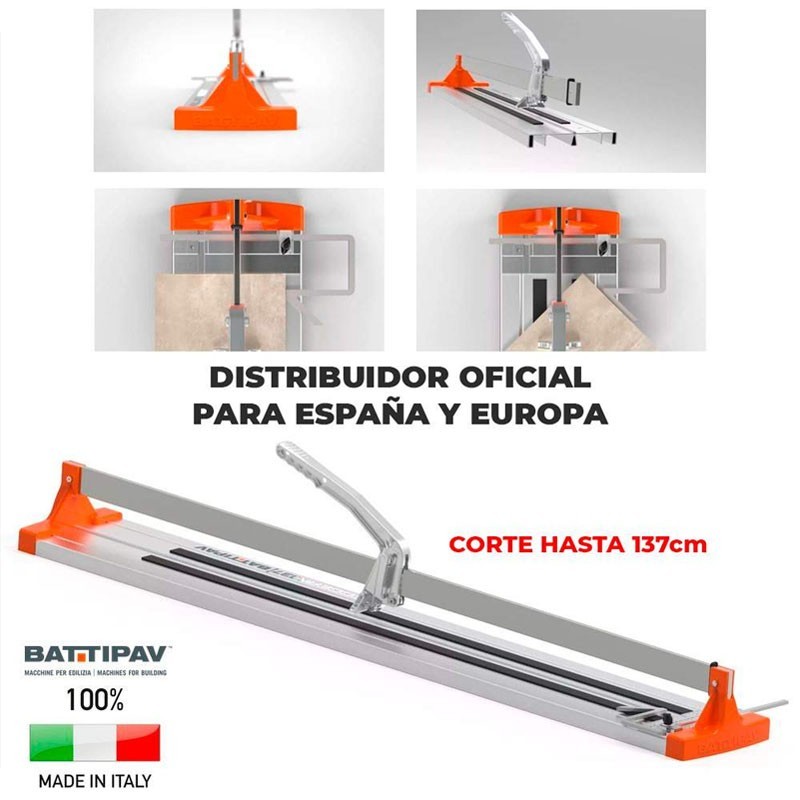

Tile cutter from Battipav Leggera "TO PUSH" for diagonal and straight cuts on ceramic tiles and porcelain stoneware with one or two firings.
Aluminum carriage with two adjustable ball bearings for perfect sliding and maximum precision. Super light weight for maximum portability.
Cutting length | 1370 mm |
Tile size for diagonal cut | 965 x 965 mm |
Cutting thickness | 4 - 15 mm |
Cutting type | Push to cut |
Pallet dimension | 1750 × 720 mm |
Weight | 14 kg |
Dimension of cutting tool | 15 x 6 x 1.5 mm |
Machine dimensions for transport | 1575 x 224 x H 309 mm |
Traverse bar cross-section | 50 x 10 mm |
Full pallet size | 72 x 175 x 208 cm |
Fence | Standard |
![]() |
100% ALUMINUM ROD SUPPORTStrong die-cast aluminium rod support |
![]() |
STRUCTURESturdy body made of aluminum handle for rigidity and lightness at the same time |
![]() |
STRAIGHT CUTSSquare ruler with direct reading for straight cuts |
![]() |
DIAGONAL CUTSSquare ruler with direct reading for straight cuts |
