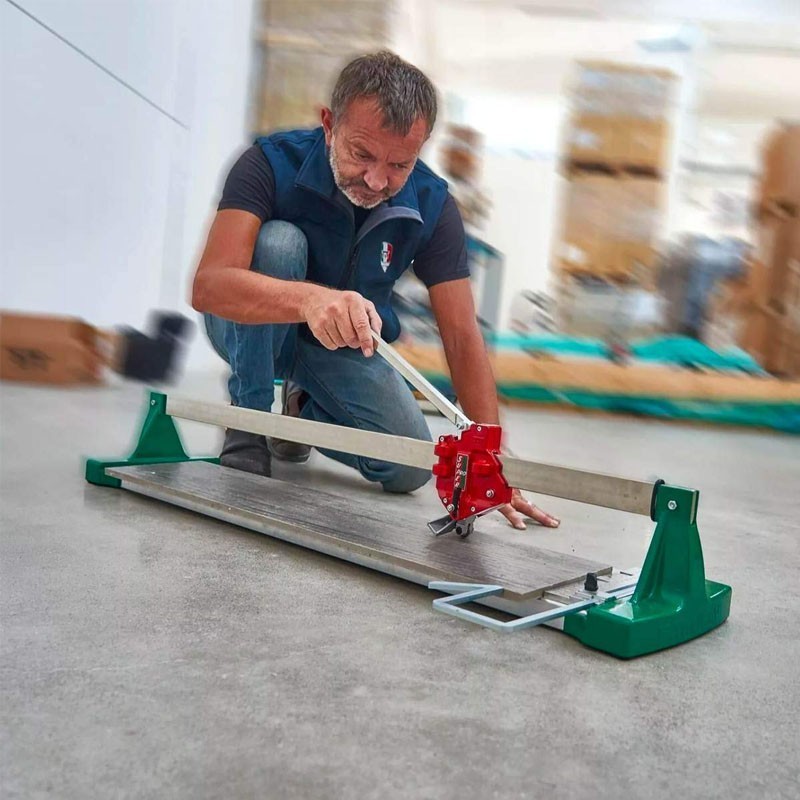

The Super Evo tile and porcelain tile cutter Battipav provides a maximum cutting length of 1250 mm. It also offers a maximum mosaic size for diagonal cutting of 884 x 884 mm.
This Super Evo cutting machine model from Battipav offers a maximum cutting thickness from 5 to 19 mm. The cutter guarantees good cuts thanks to its pressure cutting method.
The Super Evo 125cm cutter Battipav includes a Ø22 × 6.1 × 4.7 mm cutting wheel and a standard stand. In addition, it also features a sliding bar section measuring 10 x 40 mm.
The cutter model Battipav Super Evo has a good sized work surface. It measures 1250 x 220 mm. The size of the individually packaged machine is 160 x 29 x 19 x 19 cm.
This slicer from Battipav, the Super Evo 125cm, has dimensions of 1503 x 340 x H265 mm. The machine has a total weight of only 11.5 kg. A spare wheel set is available as an option.
Maximum cutting length | 1250 mm |
Maximum mosaic size for diagonal cutting | 884 x 884 mm |
Maximum cutting thickness | 5 to 19 mm |
Size of individually packaged machine | 160 x 29 x 19 cm |
Cutting method | Pressure cutting |
Machine dimensions | 1503 x 340 x H265 mm |
Machine weight | 11.5 kg |
Cutting wheel size | Ø22 × 6,1 × 4,7 mm |
Sliding bar cross-section | 10 x 40 mm |
Support | Standard |
Work surface size | 1250 x 220 mm |
Spare wheel set | Optional |
![]() |

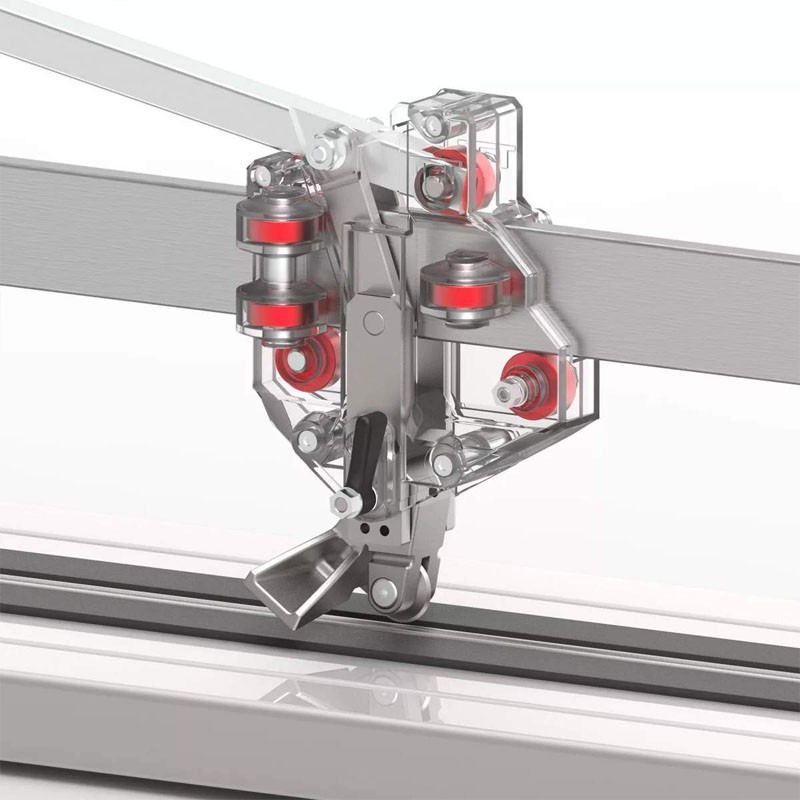

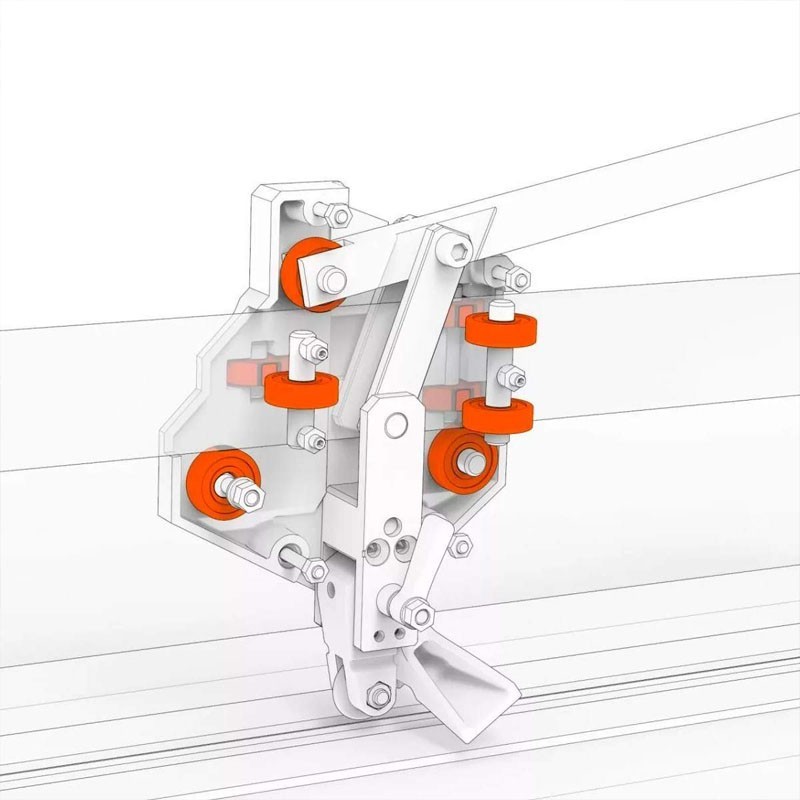

CART Composed of 9 ball bearings, 4 of them adjustable, for a perfect sliding. |
![]() |

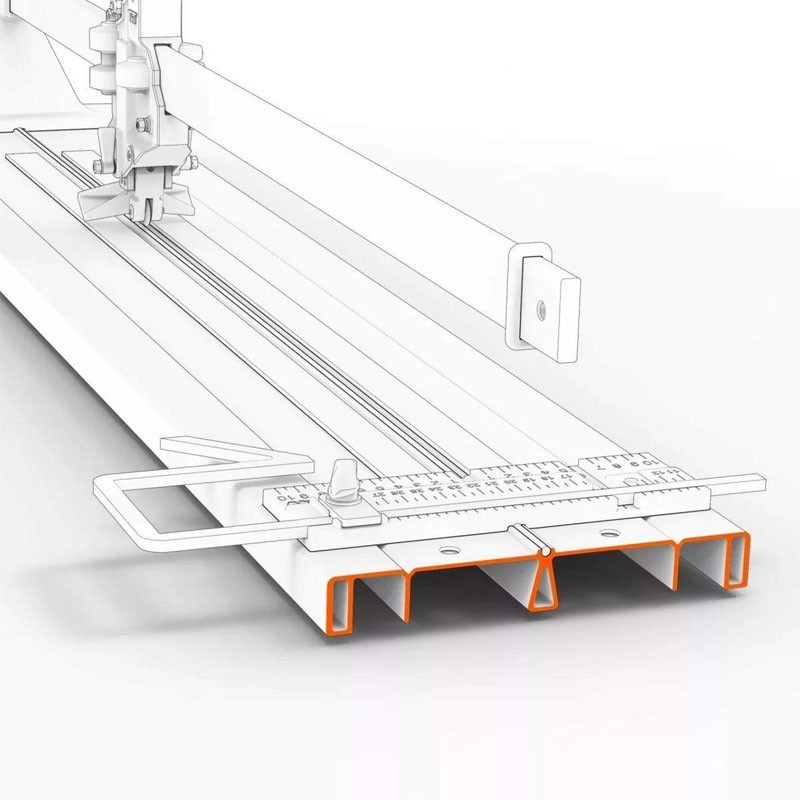

STRUCTURE In drawn aluminum for maximum strength and, at the same time, lightness. |
![]() |

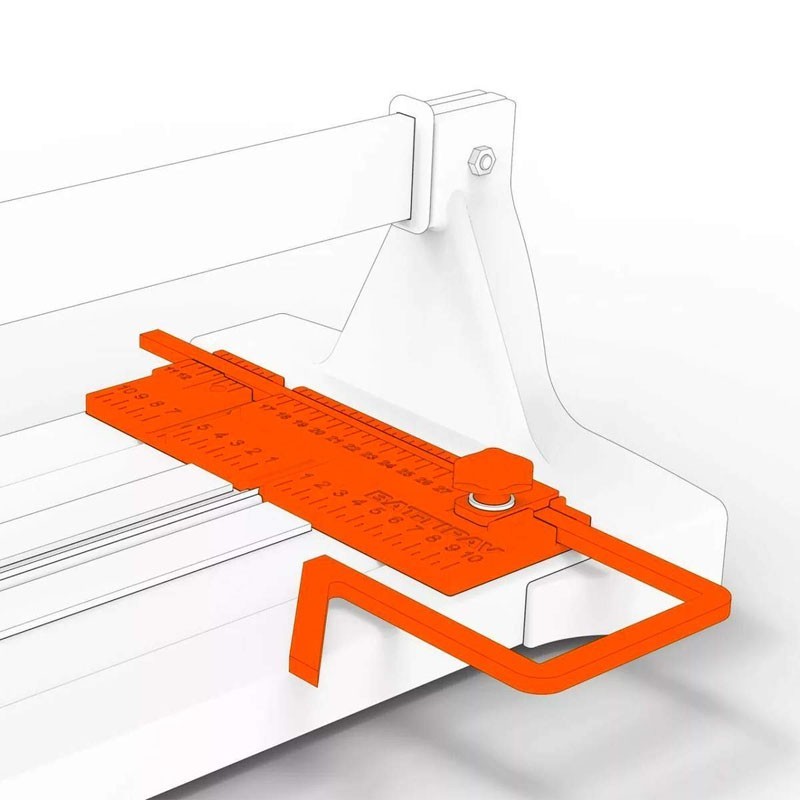

TILE SUPPORT Made of aluminum with millimetric scale. |
![]() |
TRANSPORT Lightweight and easy to carry |
