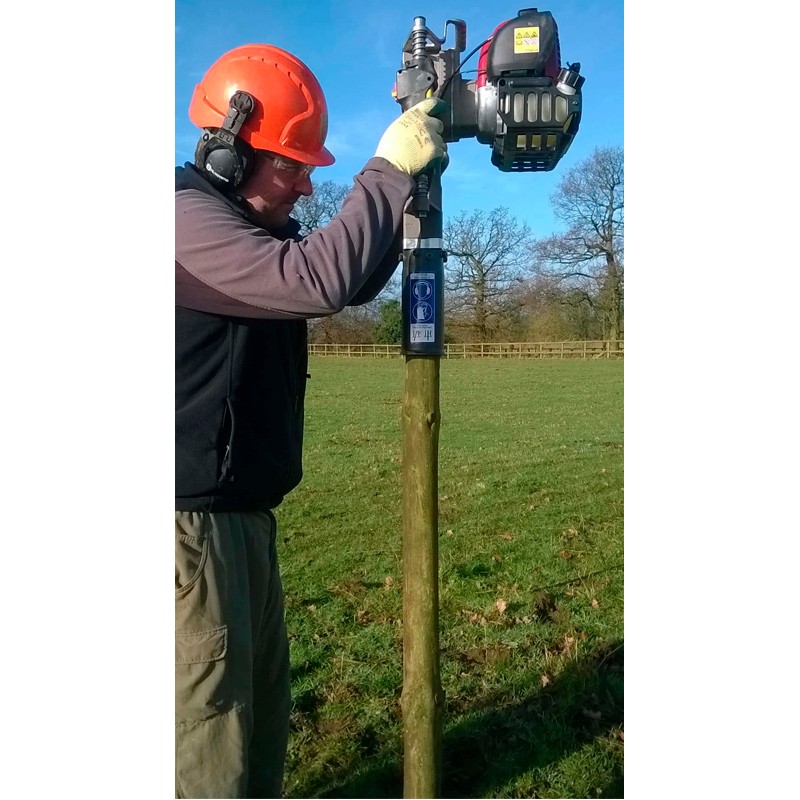

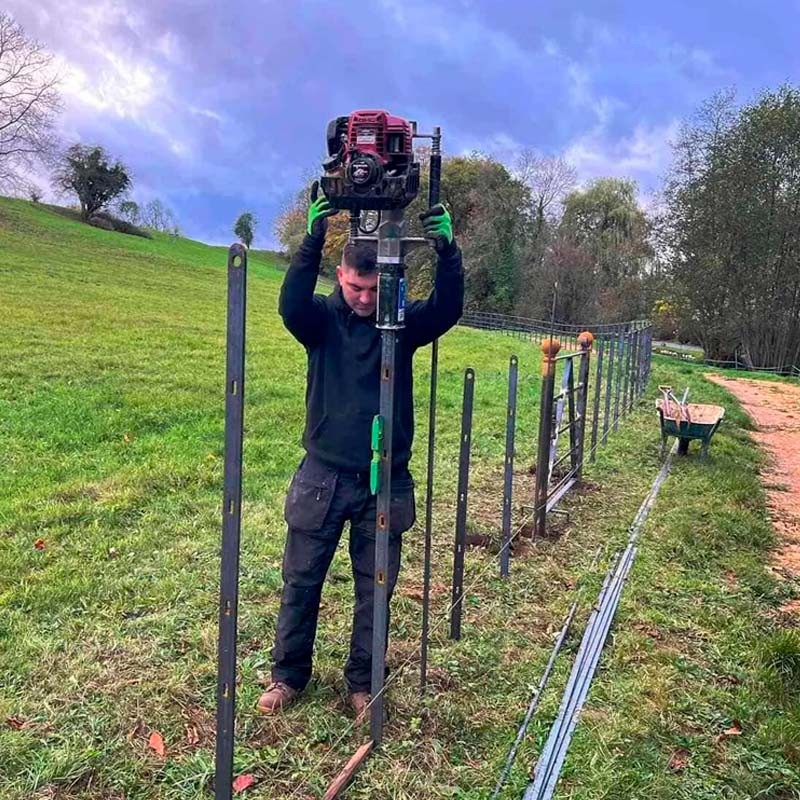

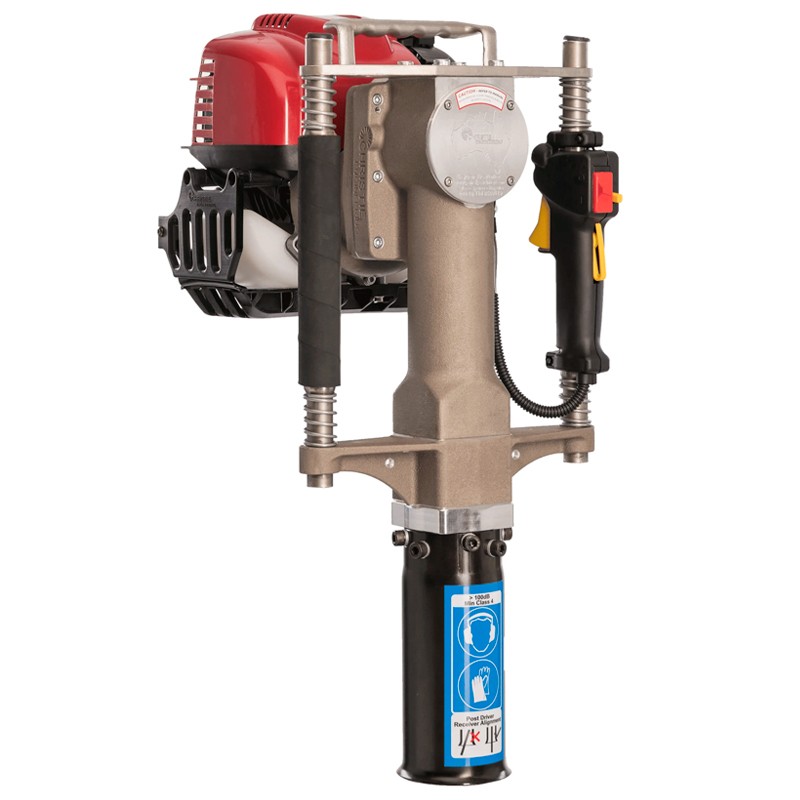

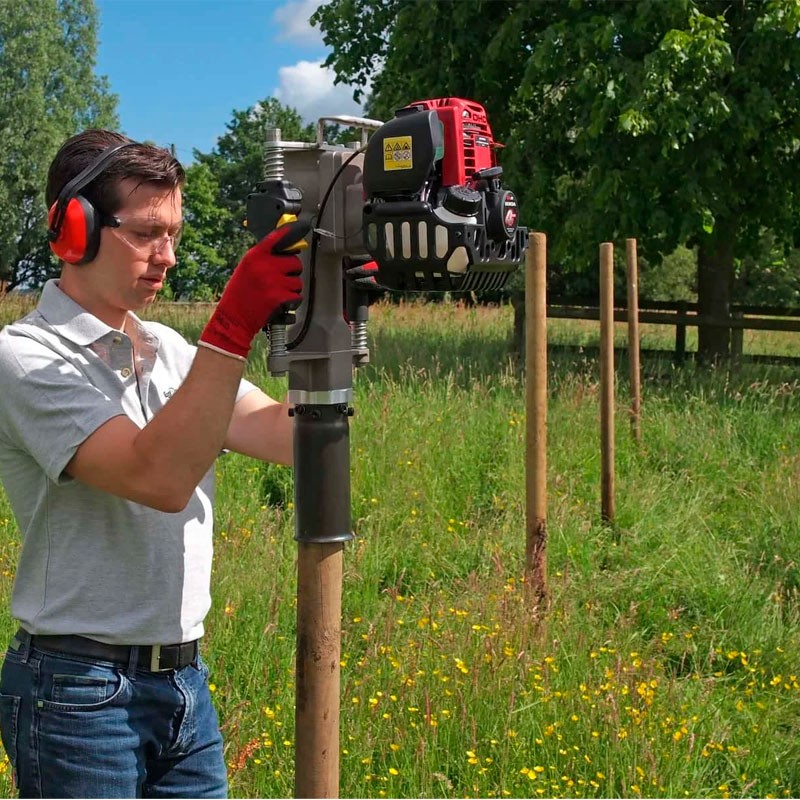

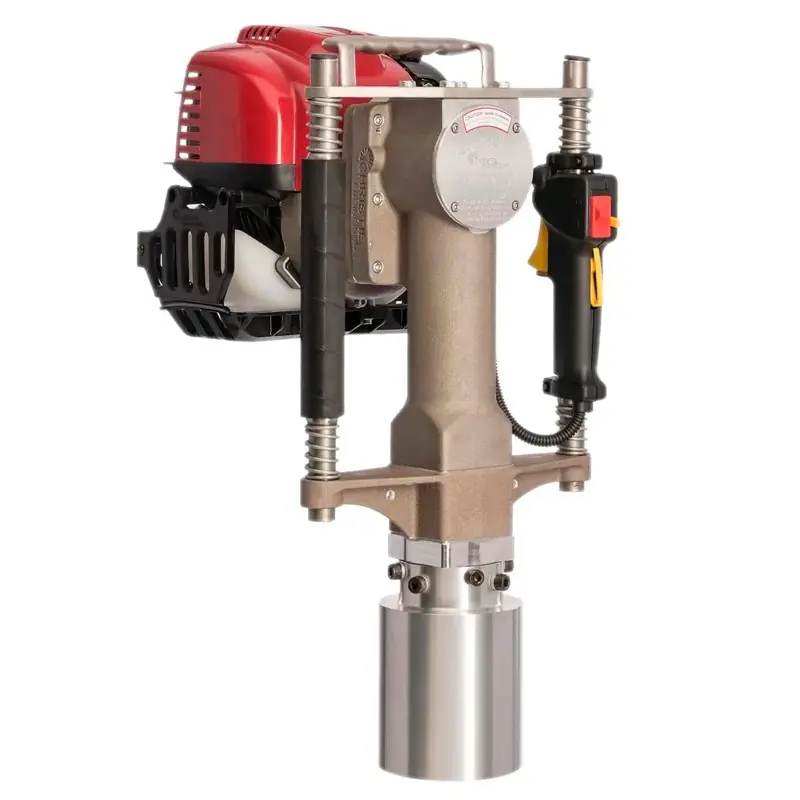

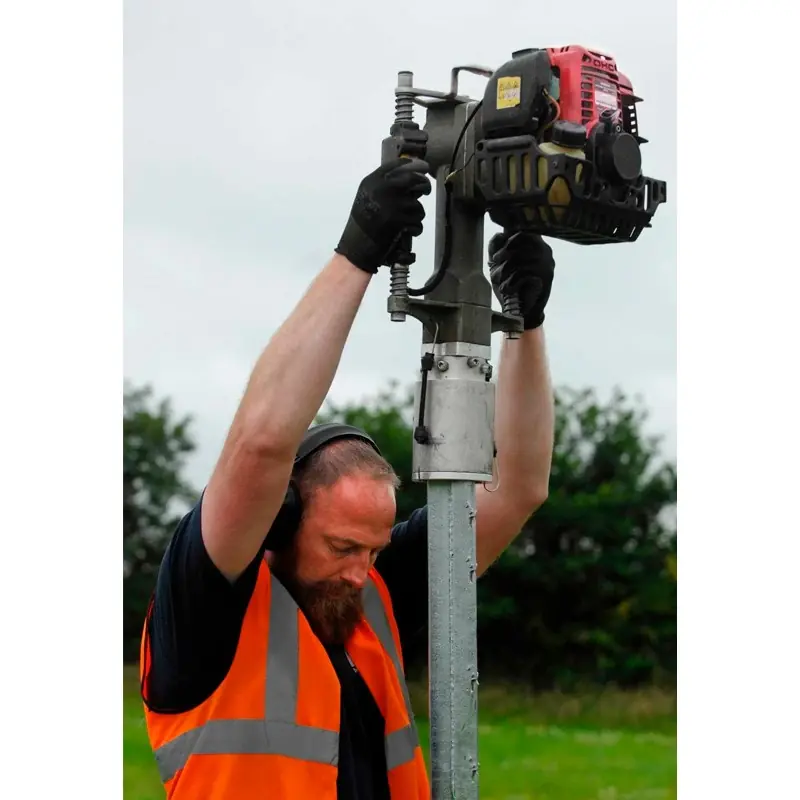

The Iberfence IBF-107 is a professional gasoline nailer that drives poles up to 107 mm with speed and precision. It has a Honda GX35 engine and weighs between 15.3 and 18 kg to work on slopes and complicated accesses without compressors.
Delivers 36 to 46 J per stroke at 1,720 strokes per minute for driving wood and metal profiles with little effort. Spring-loaded handles reduce vibration and the double trigger stop provides control and safety all day long.
It adapts to multiple diameters through a wide range of adapters and is suitable for agricultural fencing, vineyards, greenhouses, micropiles and tent anchors. Includes carrying case, maintenance set and oil to start working from the first day.
| Engine | |
|---|---|
| Model | Honda GX35 OHC 4T |
| Power | 1 kW / 1.5 hp at 7,000 rpm |
| Fuel | 4-stroke gasoline |
| Consumption | Approx. 0.65 L/h at 7,000 rpm |
| Impact performance | |
| Energy per stroke | 36-46 J |
| Nailing speed | 1.720 bpm |
| Capacity and compatibility | |
| Maximum post diameter | 107 mm |

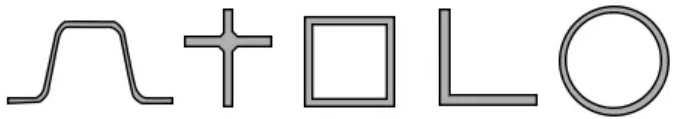

| Adapters | Wide range of options for different diameters |
| Ergonomics and safety | |
| Handles | Ergonomic handles with spring isolation |
| Accelerator | Double throttle with STOP function |
| Weight, vibration and noise | |
| Weight | 15.3-18 kg |
| Vibration | 9.94 m/s² (9.94 m/s²) |
| Noise level | Approx. 105 dB (hearing protection recommended) |
| Kit included | |

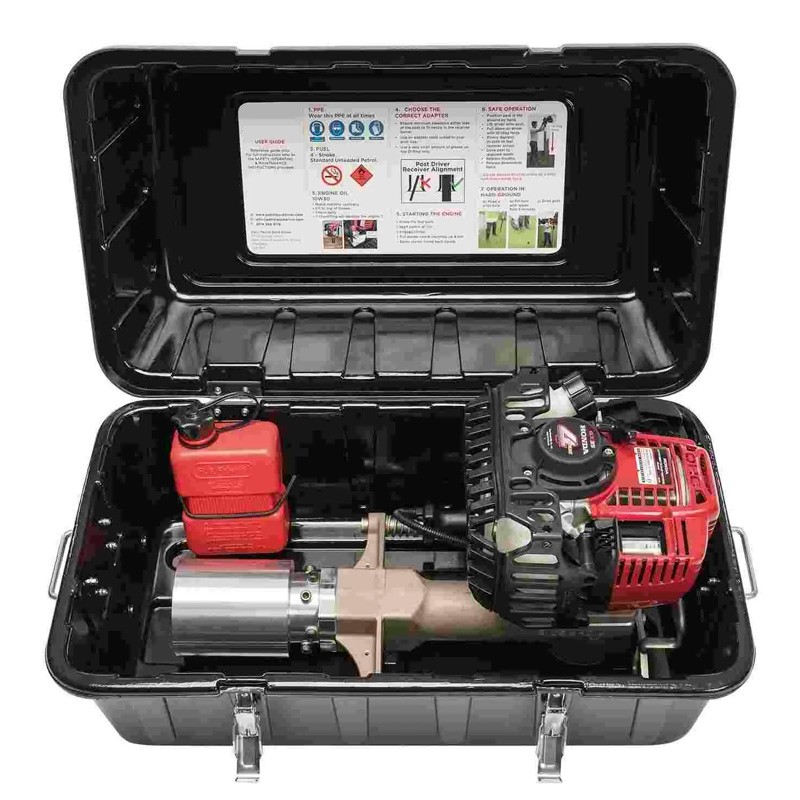

| Hard carrying case, maintenance set, SAE 10W-30 oil (600 ml), instruction and maintenance manual | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
