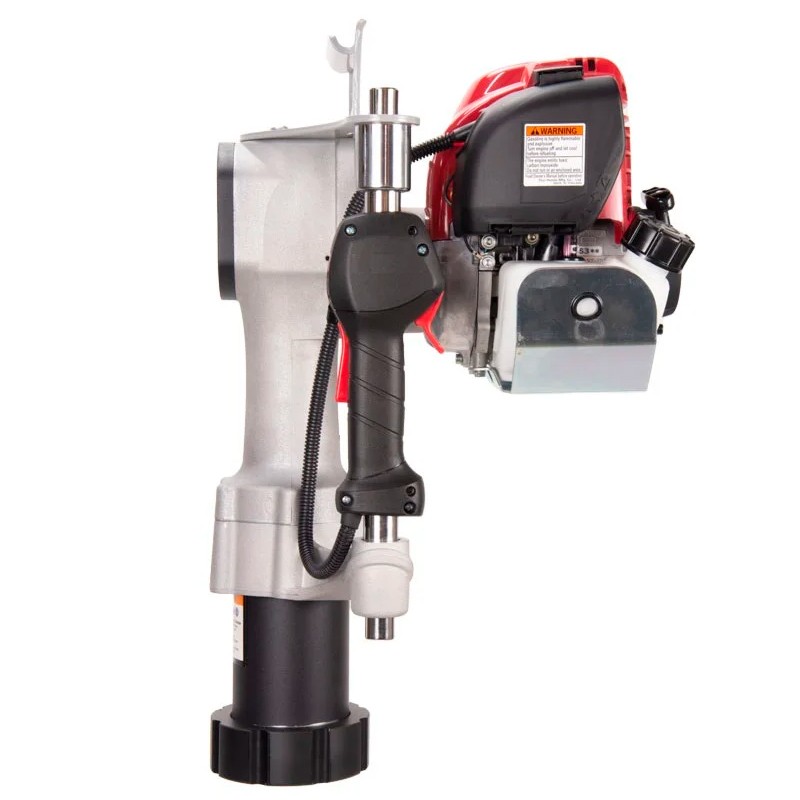

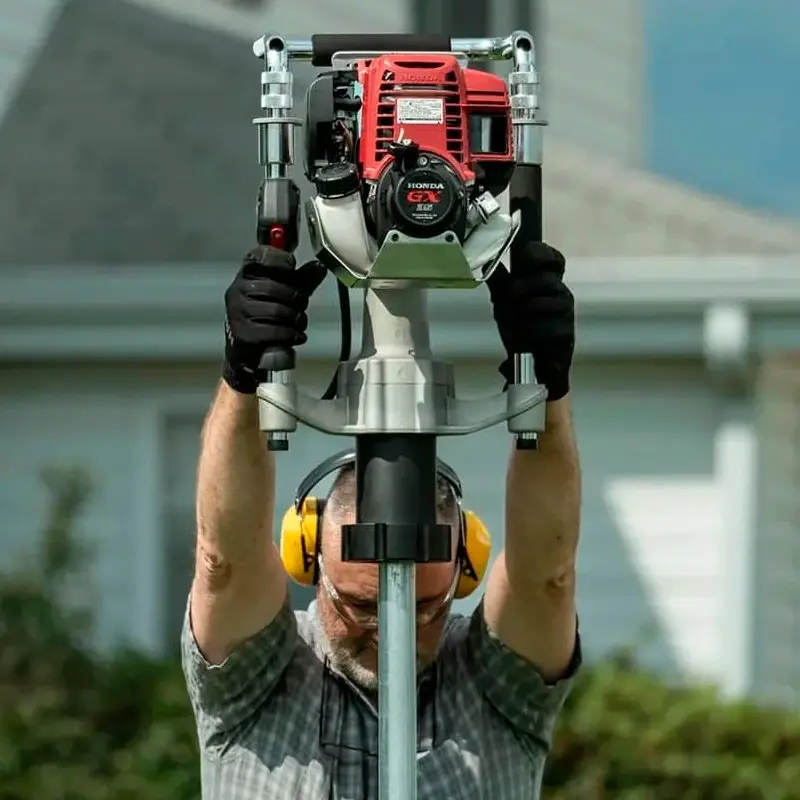

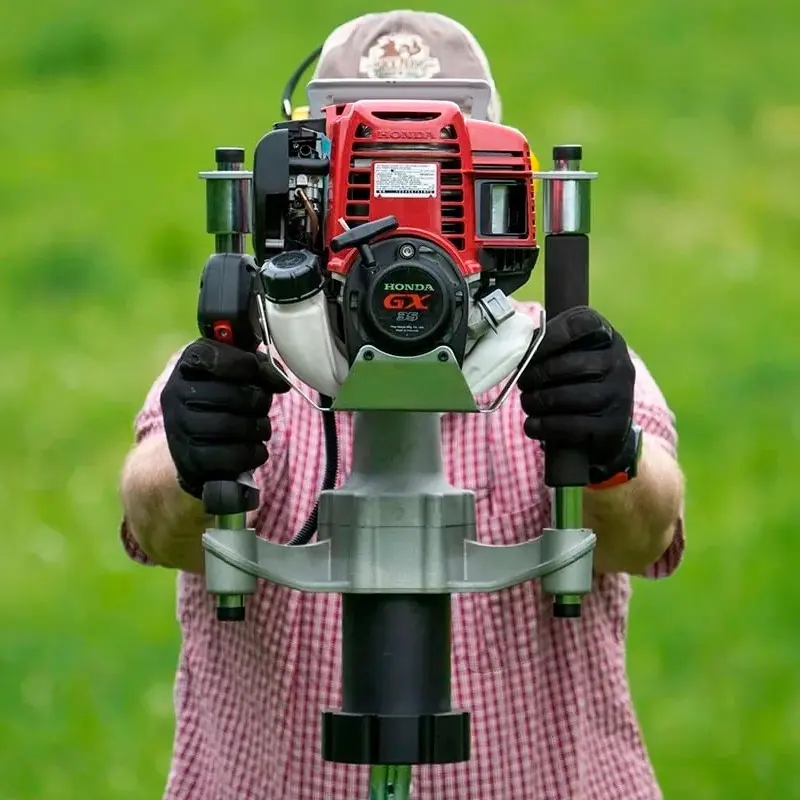

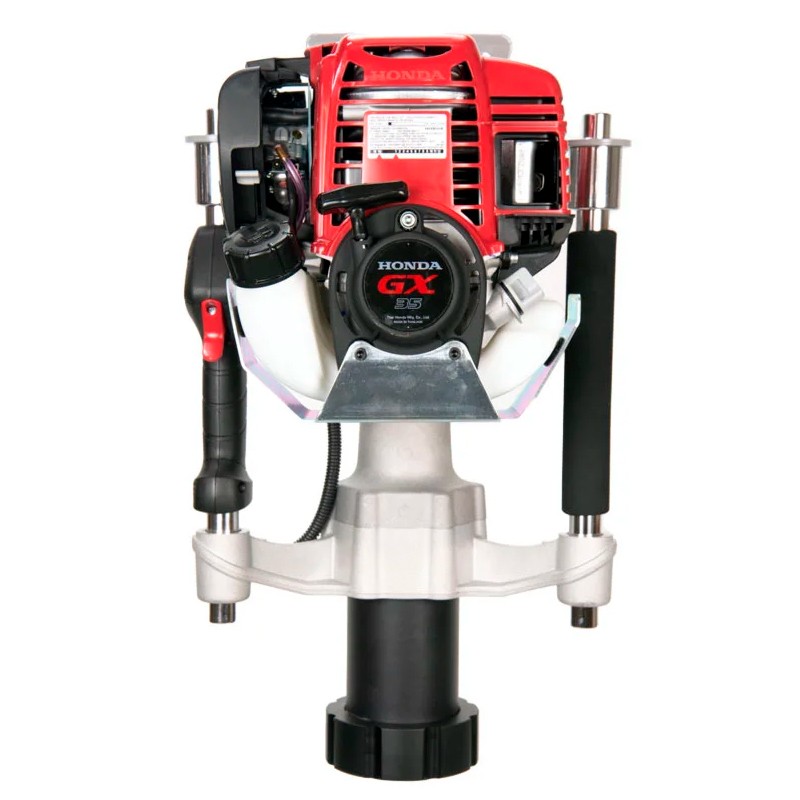

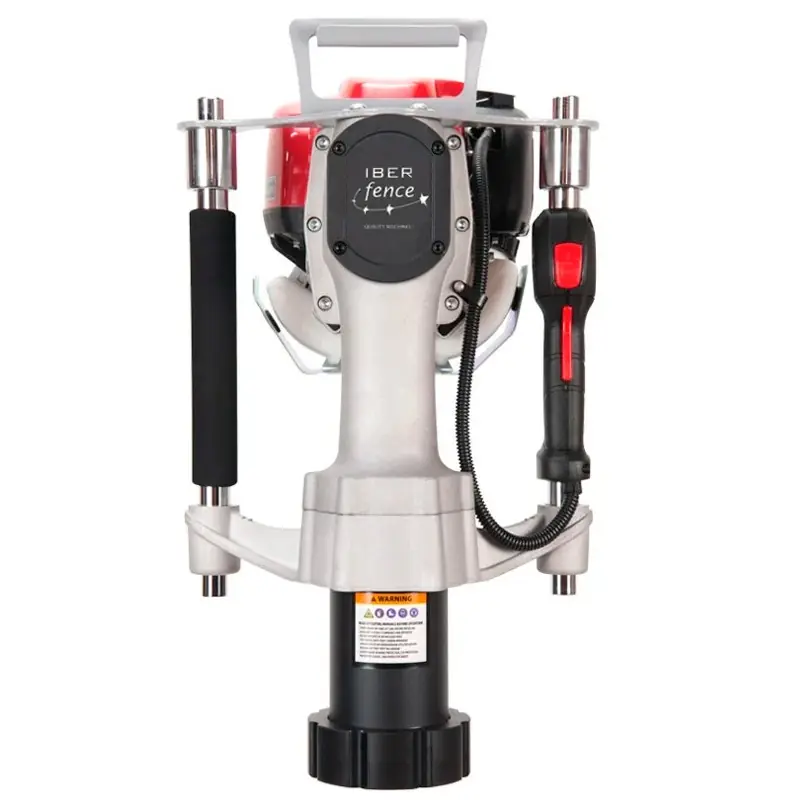

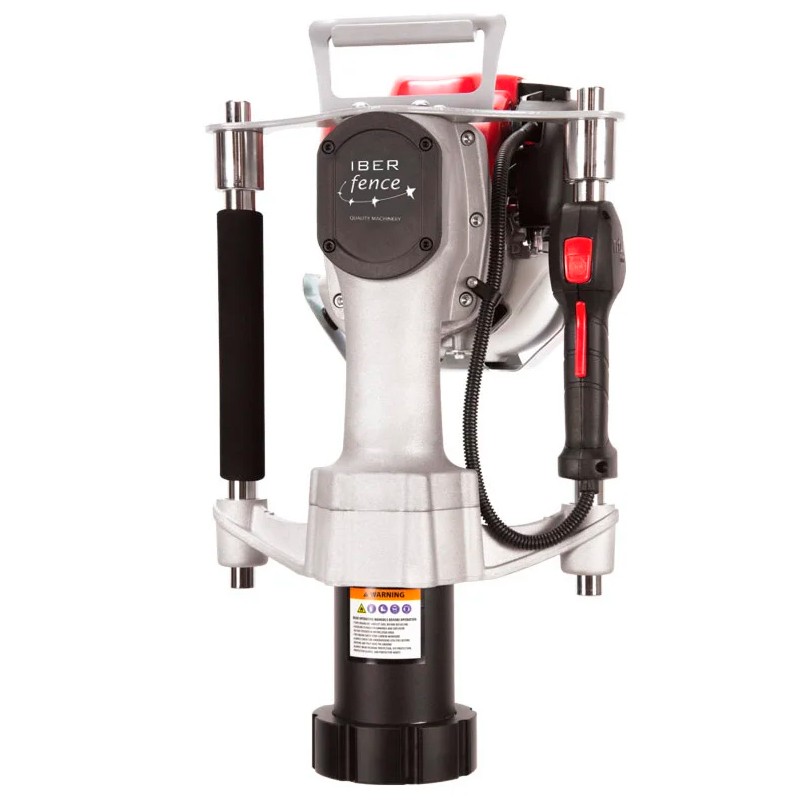

The Iberfence IBF-82X is a professional gasoline-powered stake hammer designed for difficult terrain and reduced access. It has a Honda GX35 4-stroke engine with 1 kW 1.5 HP and works at 1,720 strokes per minute with a contained consumption of 0.65 L per hour. Its weight of 18 kg and the carrying case make it easy to move it between construction sites.
It accepts posts and stakes up to 82 mm and offers 1,600 kgf of force with 36 J per blow for driving wood and metal profiles without compressors or hydraulics. It drives directly to the required depth at a constant and reliable rate.

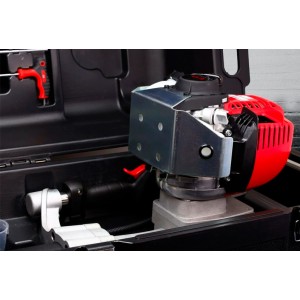

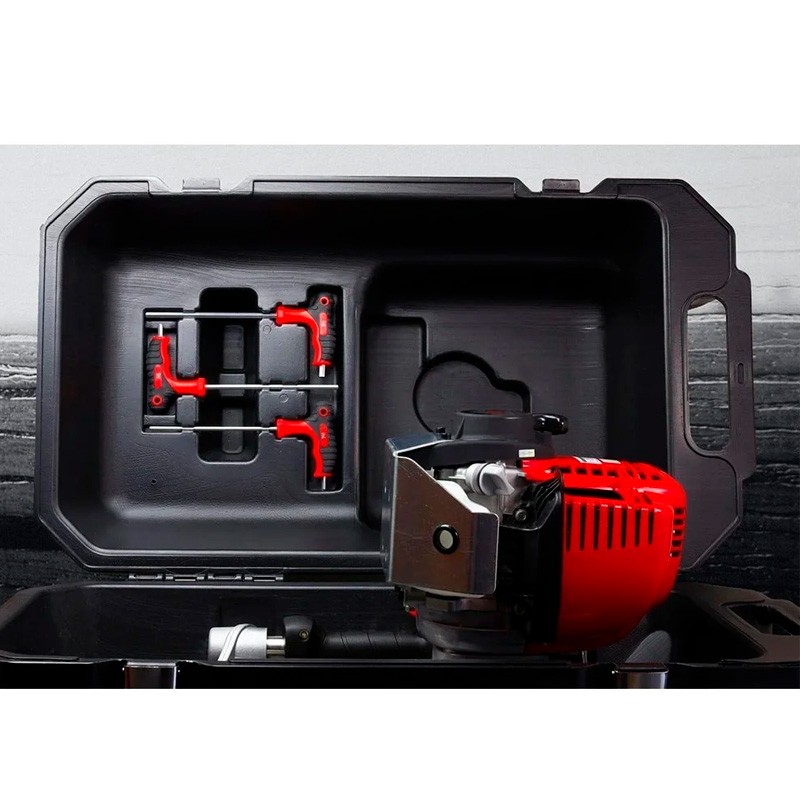

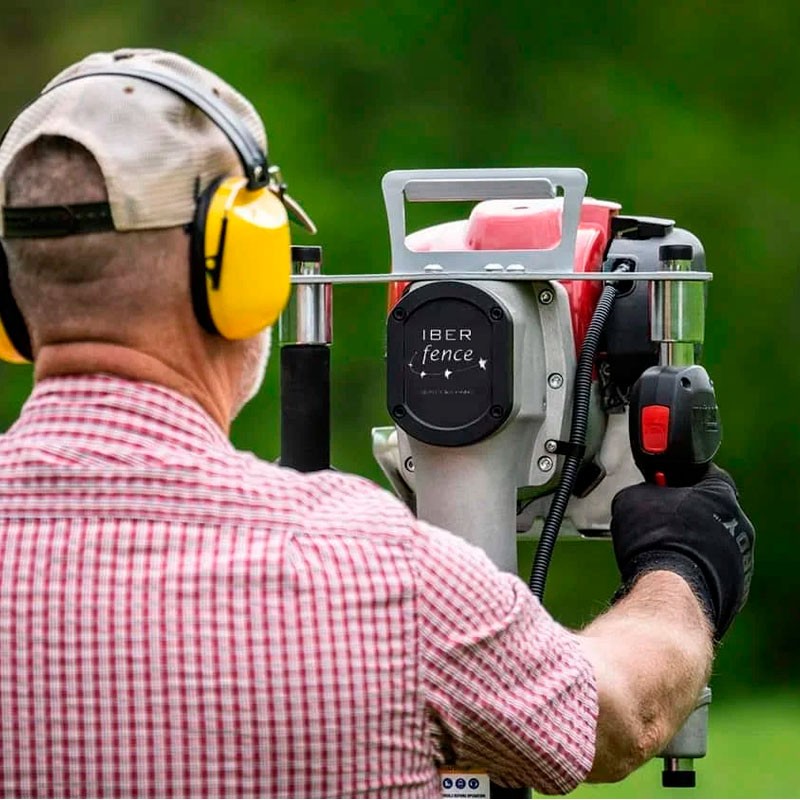

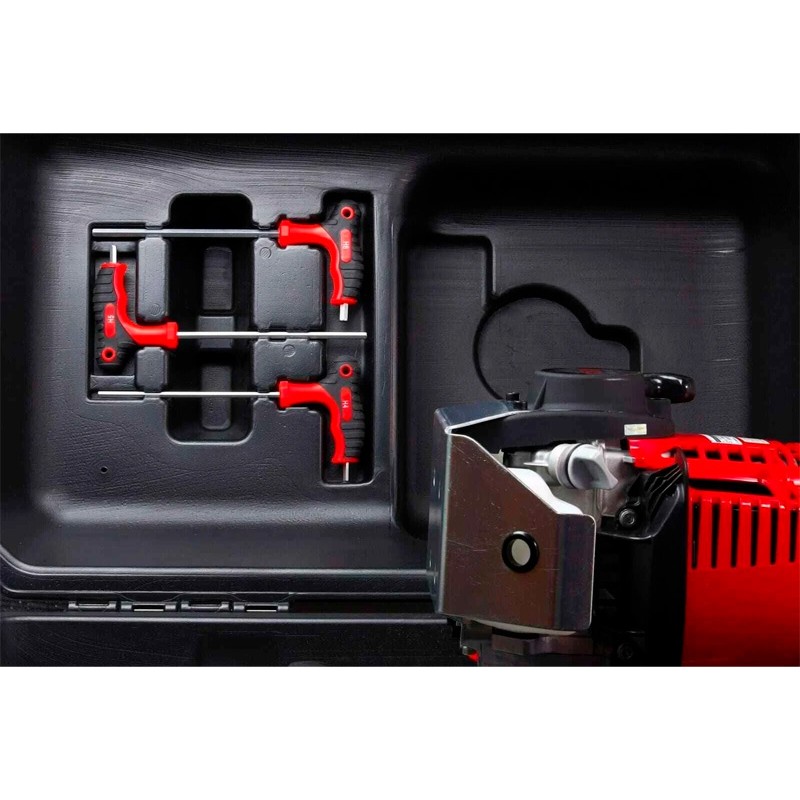

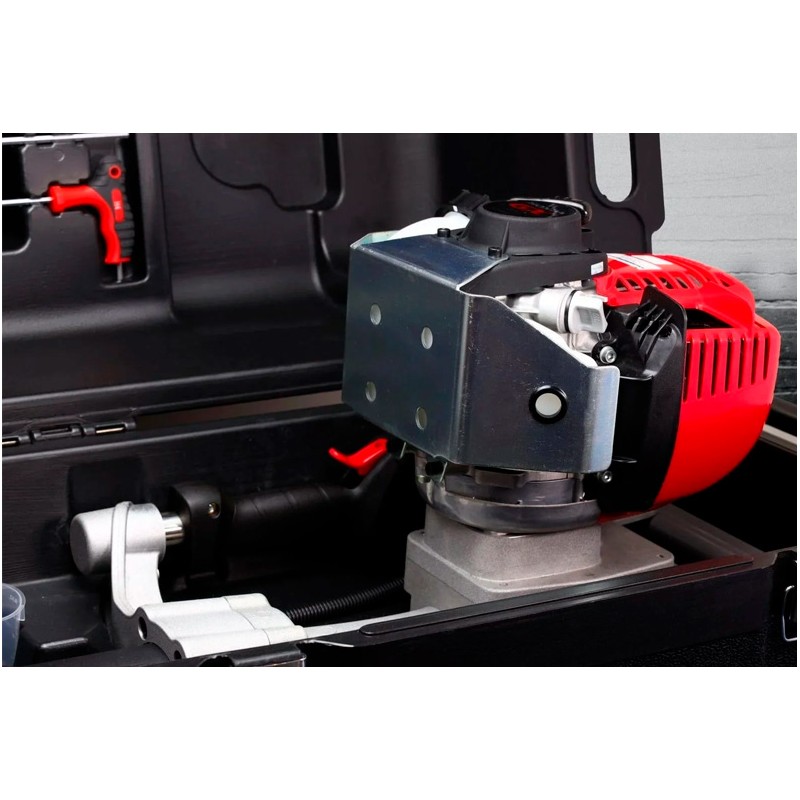

Ergonomics are well thought out with spring-suspended handles that reduce vibration and a double trigger with safety stop that provides control on slopes or between obstacles. Vibration level 9.94 m/s² and noise above 90 dB with recommended hearing protection. Includes case and tool kit for quick maintenance.

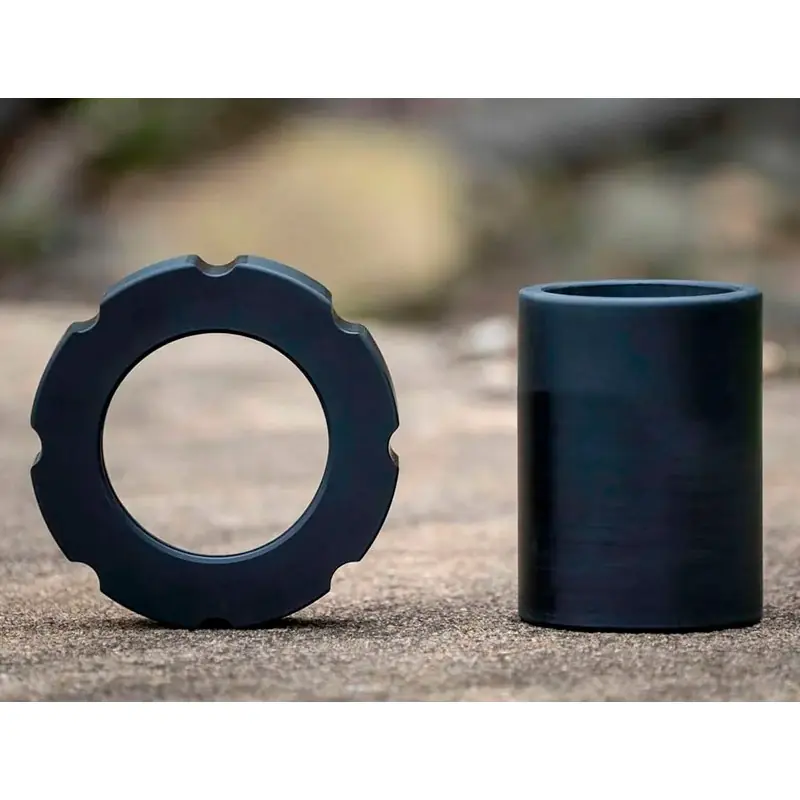

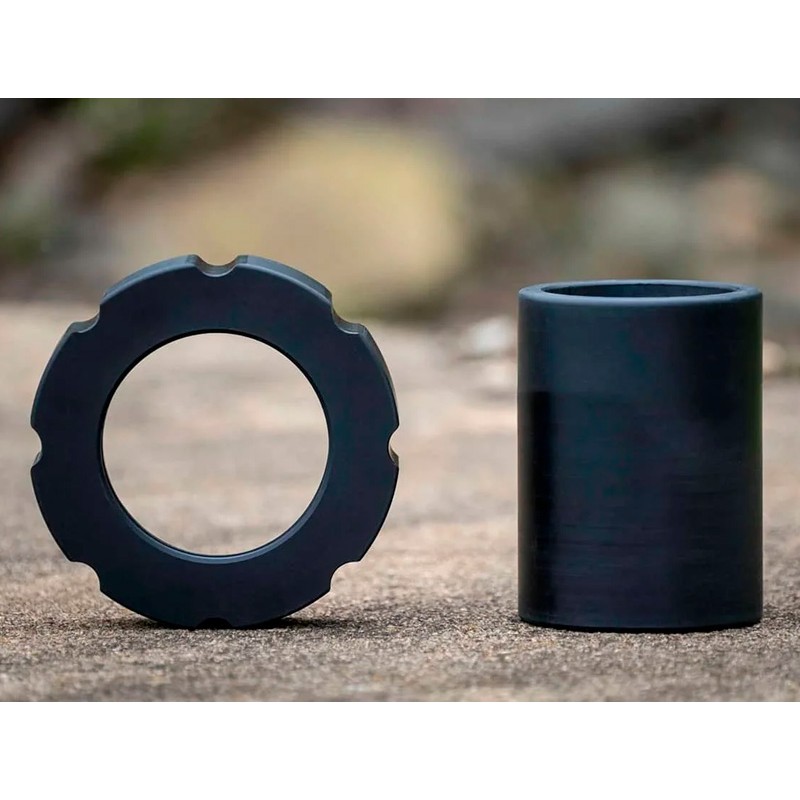

Adaptable to different diameters with 35 and 55 mm adapters included and 20 50 and 60 mm options. There is a system of extenders and handles to work in different positions. Ideal for agricultural and livestock fences, forestry tutors, vineyards, greenhouses, micropiles and tent anchors, as well as perimeter protection on roads and hunting grounds.
Maximum opening | 82 mm |
Impact force | 1.600 kgf |
Energy per stroke | 36 J |
Impact velocity | 1.720 bpm |
Engine | Honda GX35 OHC 4T |
Power | 1 kW / 1.5 hp at 7,000 rpm |
Consumption | 0.65 L/h |
Vibration | 9.94 m/s² (9.94 m/s²) |
Noise | > 90 dB |
Weight | 18 kg |
Ergonomics and safety | |
---|---|
Accelerator system | Double trigger with integrated STOP |
Handles | Ergonomic handles with spring suspension |
Compatibility and adapters | |
Adapters included | 35 mm and 55 mm |
Optional adapters | 20 mm, 50 mm, 60 mm |
Compatible reduction range | 20 to 60 mm |
Kit included | |

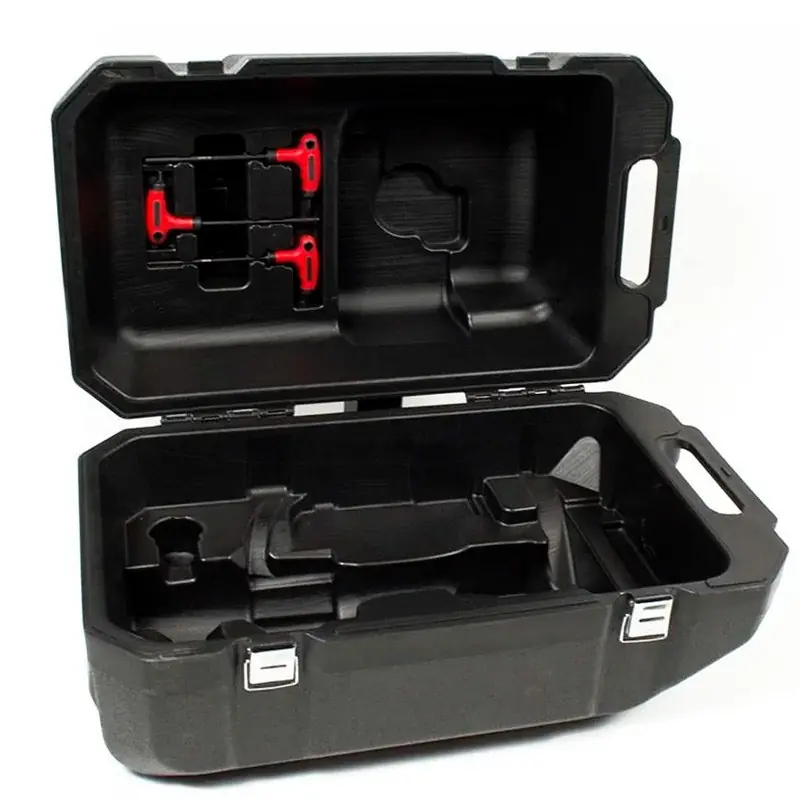

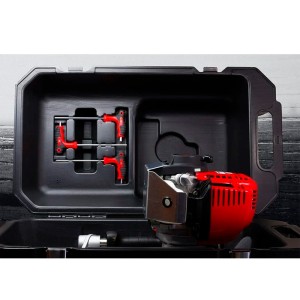

Rigid carrying case, maintenance tool kit |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
