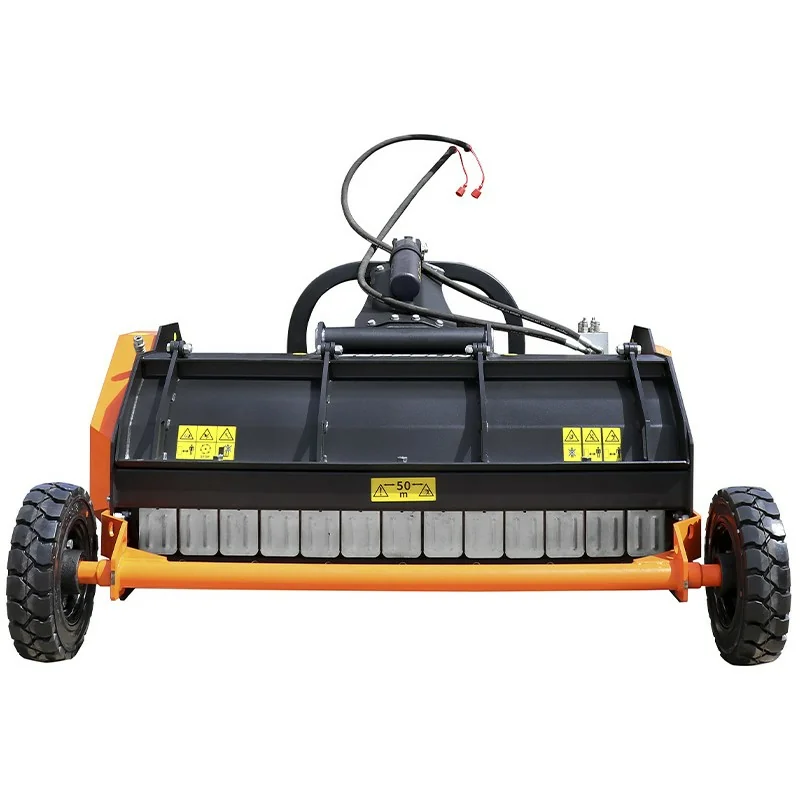

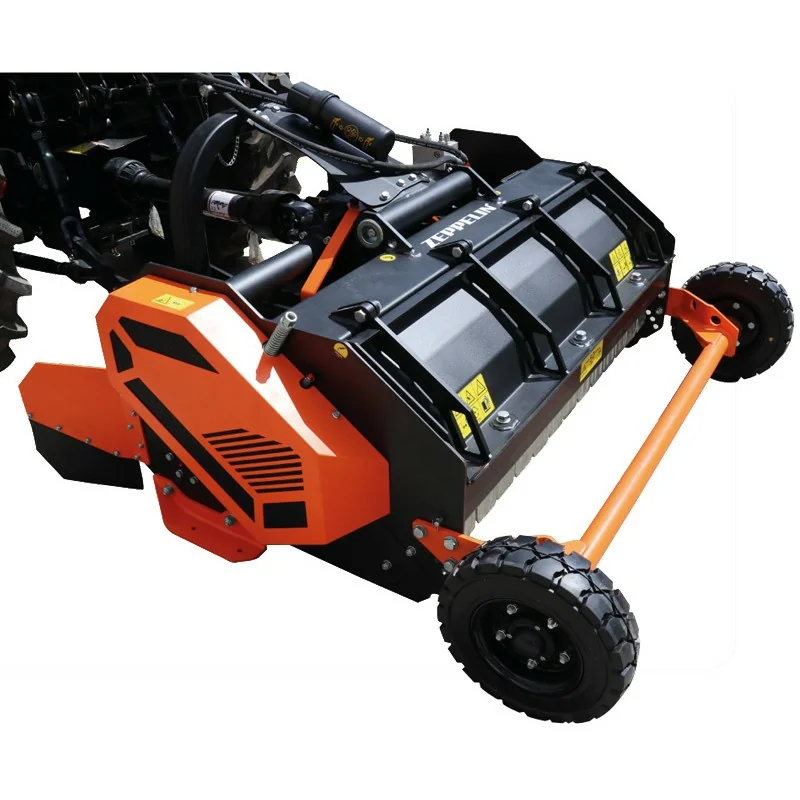

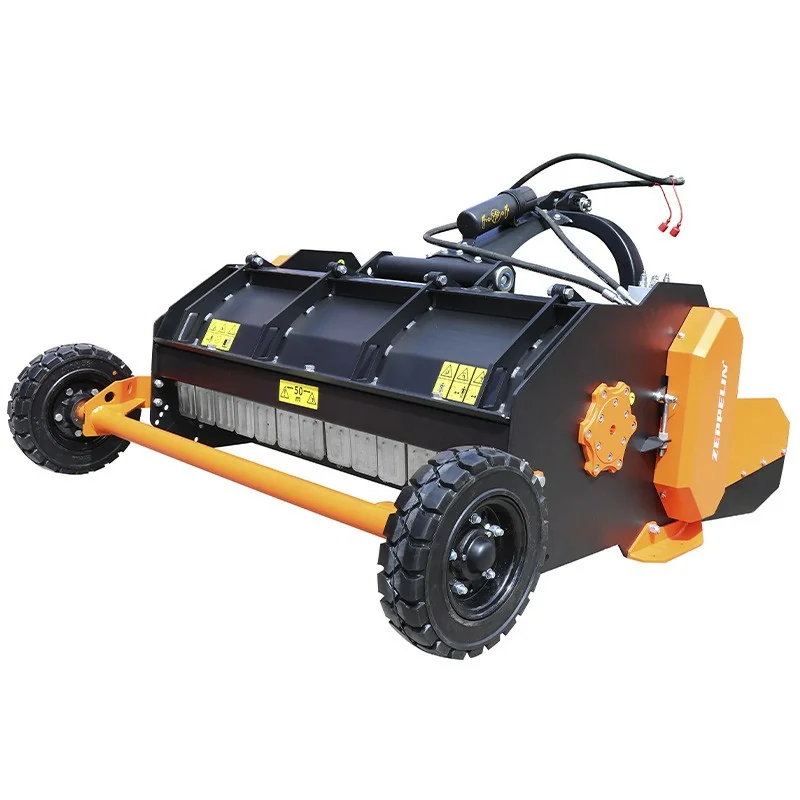

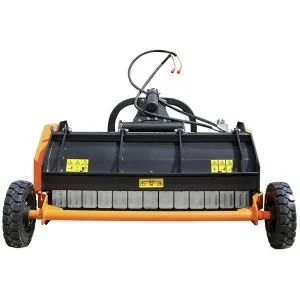

The shredder Zeppelin Top Ram HT is specifically designed for the maintenance of vineyards and olive groves, offering an efficient solution for the management of pruning residues. Thanks to its rotary feeder, it facilitates the entry of branches and residues, optimizing the shredding process and guaranteeing clean and fast work.

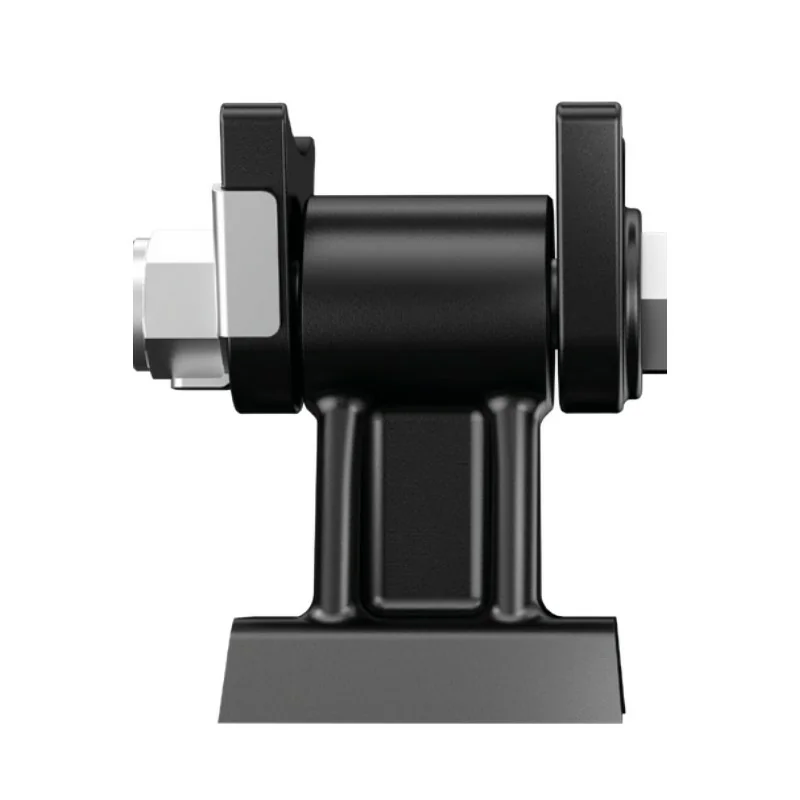

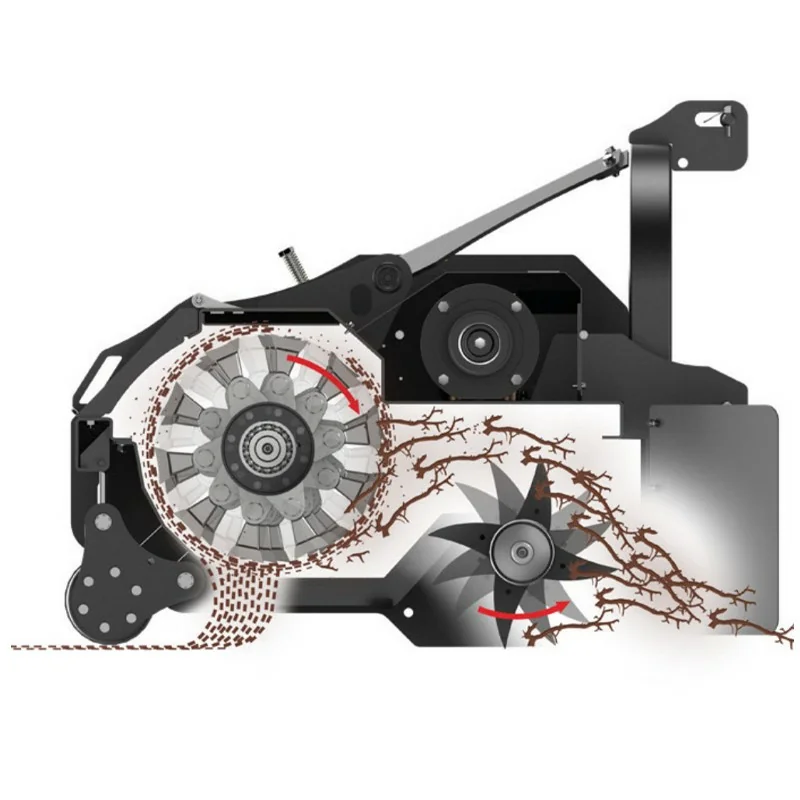

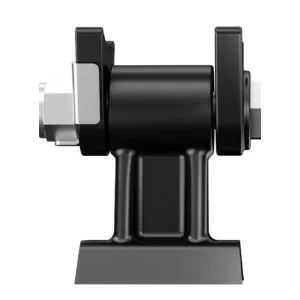

This model incorporates an exclusive transmission system with two groups of gears and double-edged hammers, which allows a powerful and homogeneous shredding. The collection roller transports the debris from the ground to the cutting cavity, where it is shredded and spread evenly by the screen, improving the fertility of the soil.

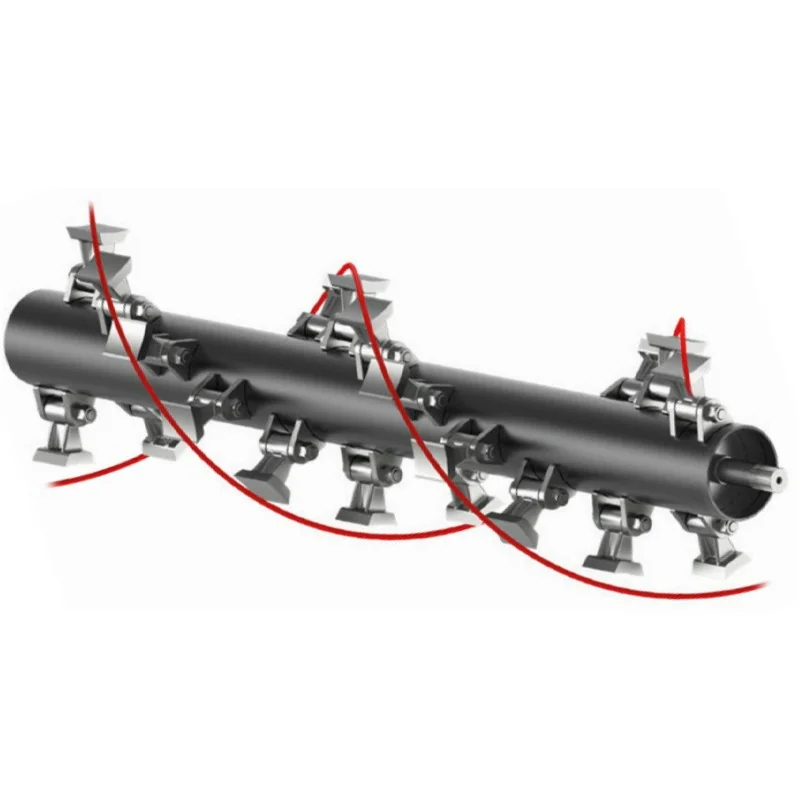

The gate opening is adjustable, allowing the size of the chopping to be adjusted according to the user's needs. In addition, the double helix arrangement of the blades reduces energy consumption and ensures smooth operation, even in heavy work.
Available in two versions, the ESTOPRAMW140 with a working width of 140 cm and the ESTOPRAMW180 of 180 cm, the Zeppelin Top Ram HT adapts to different farm sizes, offering robustness, efficiency and versatility for the professional farmer.
Model | ESTOPRAMW140 | ESTOPRAMW180 |
Working width | 140 cm | 180 cm |
No. of hammers | 18 | 24 |
Belts | 7 | 7 |

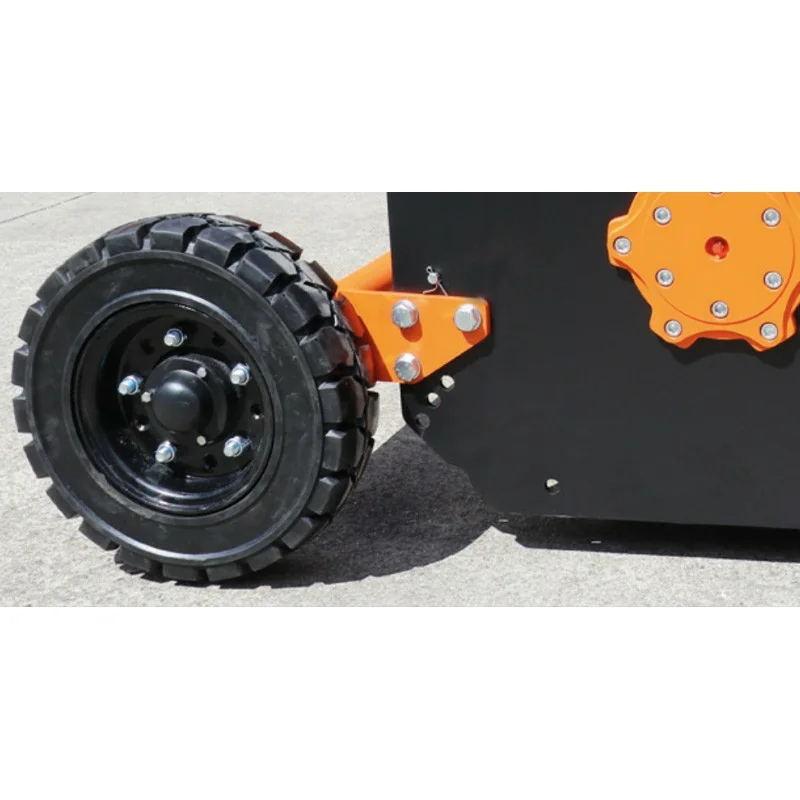

Wheel diameter | 10 x 40 cm | 10 x 40 cm |
Tractor power required | 80-120 hp | 90-200 hp |
PTO | 540 RPM | 540 RPM |
Weight | 758 Kg | 898 Kg |
Dimensions | 167 x 172 x 99 cm | 207 x 172 x 99 cm |
IMPORTANT NOTICES |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Cardan shaft included
