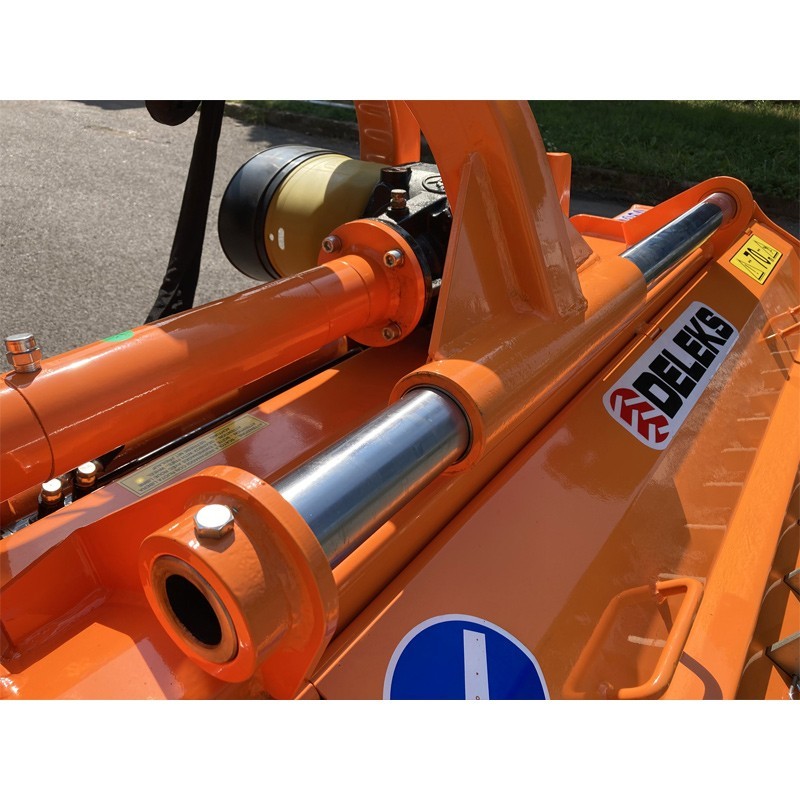

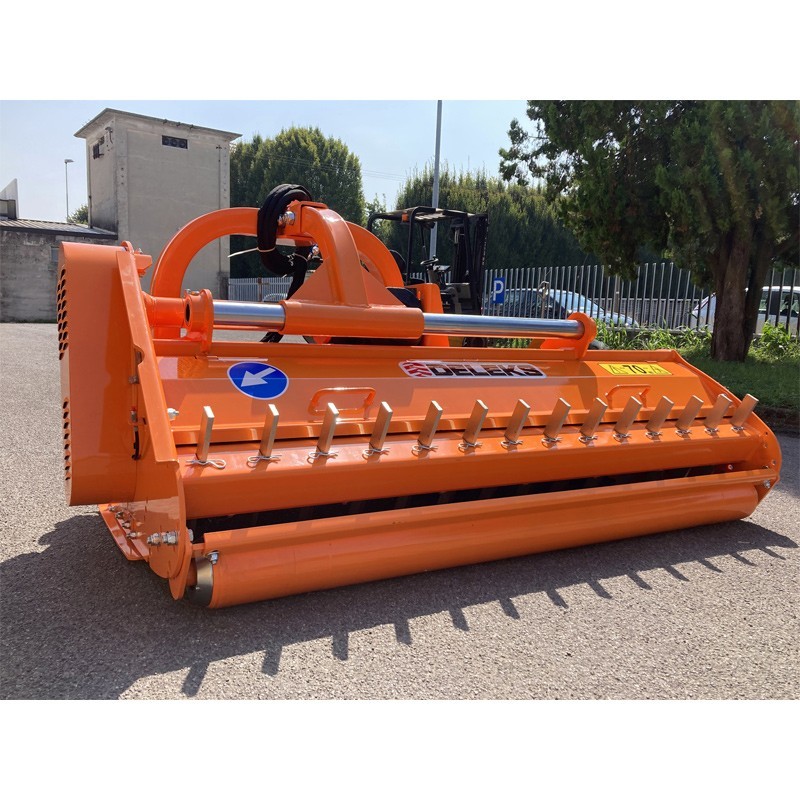

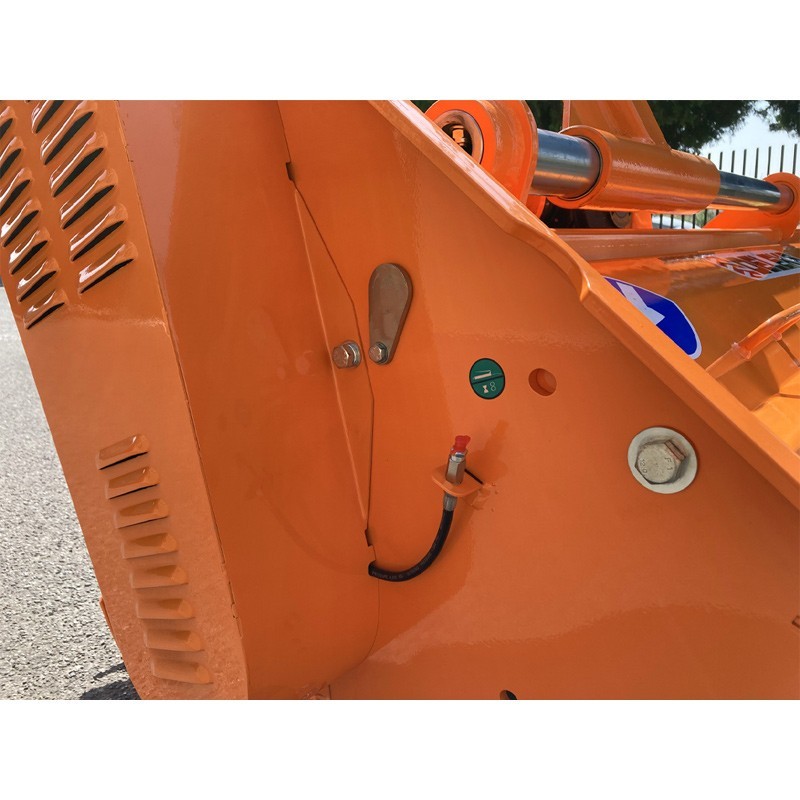

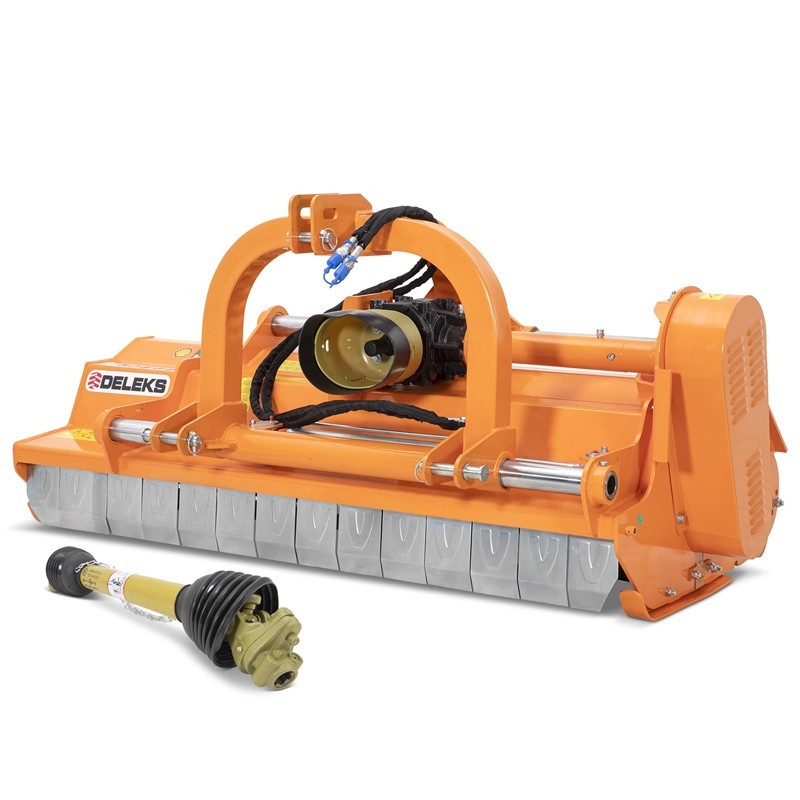

The Hammer crusher Deleks TORO-220 is specially designed for tractors with a power output of 70-120HP. This model of shredder is used for lawn mowing, olive tree pruning and for vineyard.
The model Deleks TORO-220Has a robust chassis for use in fields and orchards. This model is suitable for mowing lawns and also for pruning olive trees and vine shoots.
This Crusher Deleks also has a cAT 2 universal 3-point hitch. It is compatible with all tractors. As for its features we can highlight its good transmission box Lombarda IngranaggiManufactured in Italia. This one comes with freewheel.
The Shredder TORO-220 comes with cE gimbal included, it also includes an electronically balanced 170mm rotor bearing. The implement can be used on tractors with power in gardens and orchards. This is thanks to its weight of 730kg.
This model ofShredder of hammers Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 2200mm and the total width 2380mm. We can also highlight the cutting height adjustable from 10 to 75mm and the total height of 990mm.
Working width | 2200 mm |
Overall width | 2380 mm |

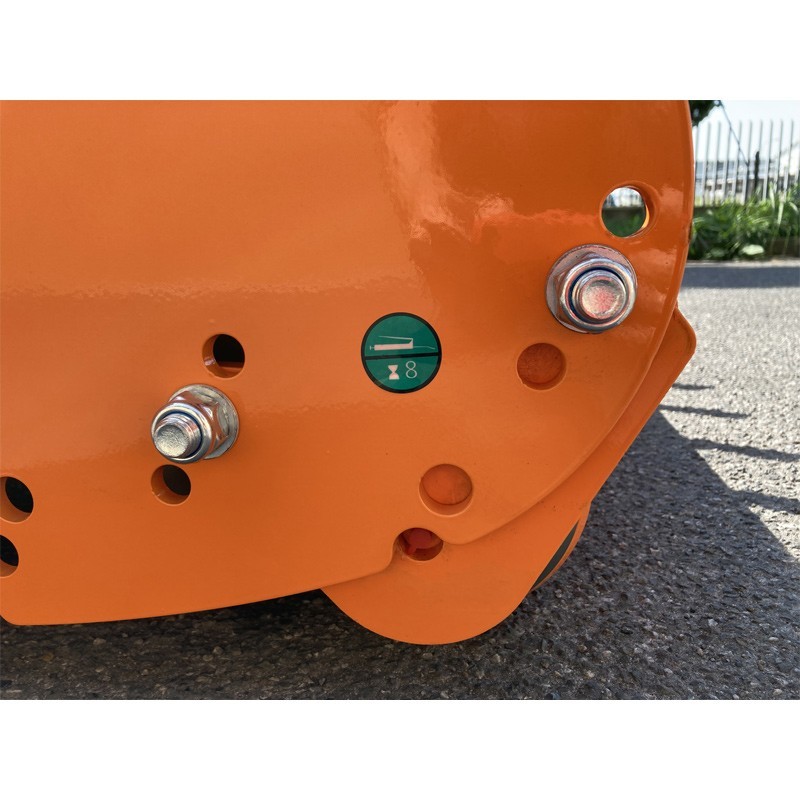

Cutting height min/max | 10.0 - 75.0 mm |
Weight | 730 kg |
Total height | 990 mm |
Tractor power | 70 - 120 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the gearbox | 1000 mm from left side / 1200 mm from right side. |
Hood height | 550 mm |
Distance between the lower points | 735 - 890 mm |

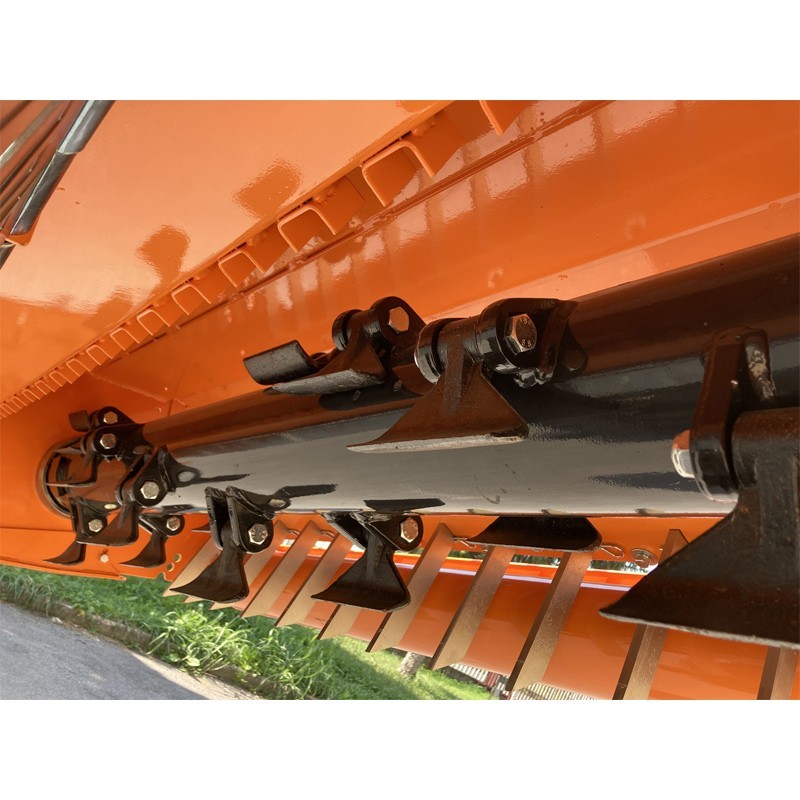

Number of hammers | 20 (or 60 knives) |
Max. cutting diameter | 50-60 mm |
Total length | 1100 mm |
Ground to gearbox spacing | 580 mm |
Plate thickness | 5 mm |
Thickness of sheet metal on the sides | 10 mm |
Skid thickness | 12 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2403 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 230 mm |
Drive: diameter of lower pulley | 155 mm |
Transmission: number of Koreas | 5 |
Transmission: dimensions of the Koreas | 17x1300 |
Rotor: diameter | 170 mm |
Rotor: bearing type and dimension | 1309 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 10.0 mm |
Hammers: weight | 1100 g |
Hammers: hole dia | 16 mm |
Hammers: base width | 140 mm |
Hammers: head width | 40 mm |
Hammers: diagonal | 97 mm |

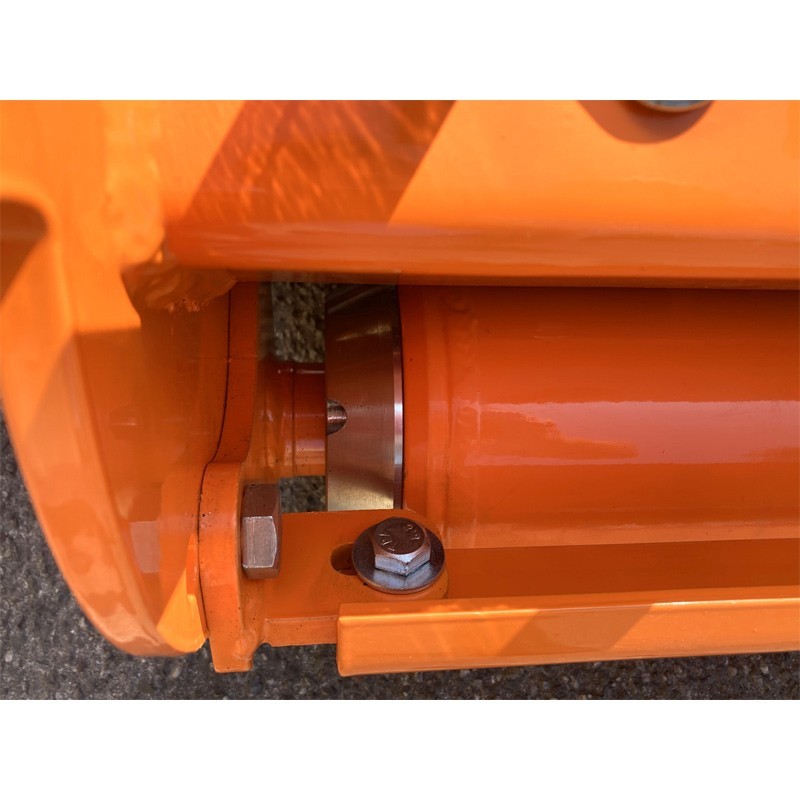

Roll: diameter | 152 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | 6308 |
Cardan | CE 8x1300 mm + Bolt |
Hood length | 1000 mm |
Horizontal displacement | 500 mm hydr. |
Packing dimensions | 2450*1150*950 mm |
Data sheet
Specific References

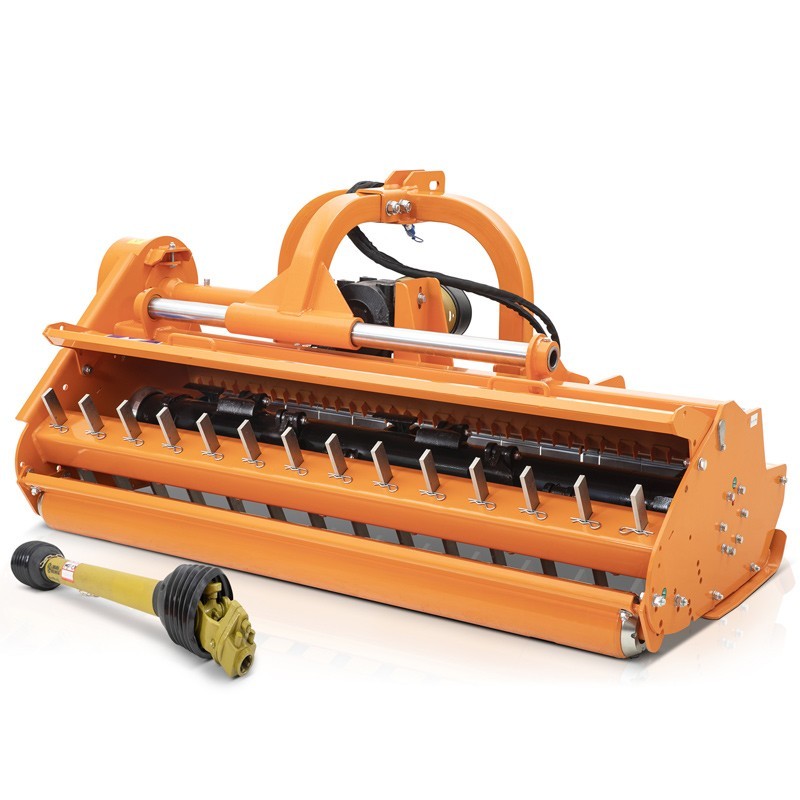

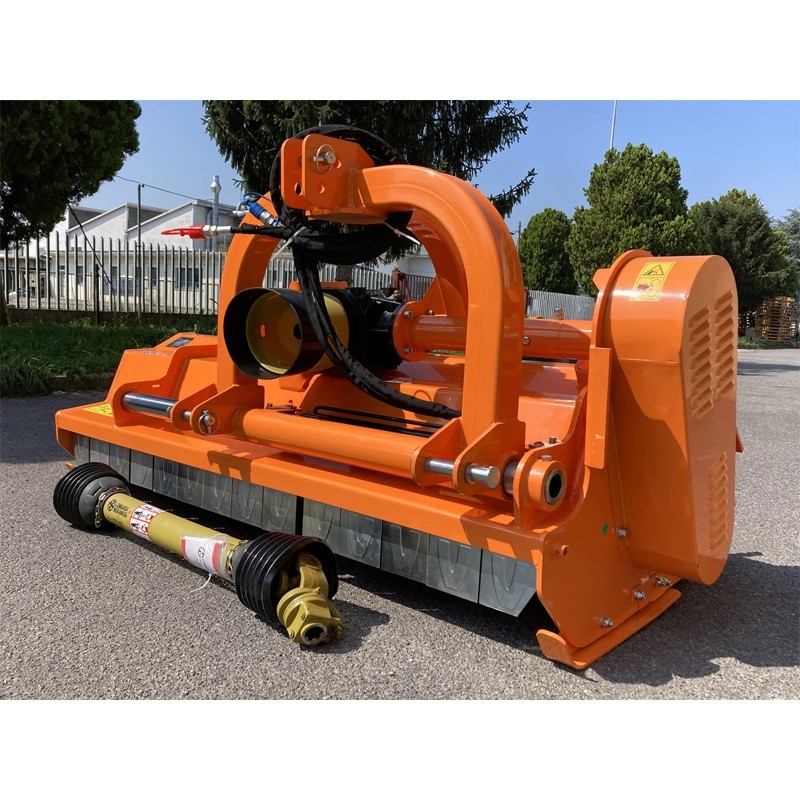

CARDAN SHAFT INCLUDED
Cardan shaft included
