GARTO HCGH-2 Shredder with Side Disk
GARTO HCGH-2 Shredder with Side Disk
GARTO HCGH-2 Shredder with Side Disk

GARTO HCGH-2 Shredder with Side Disk


  • Weight : 590 - 650 Kg
  • Power requirement : 35 - 160 hp
  • Working width PTO : 160 - 220 cm
En stock
icon Shredder type
Shredder type
Rear shredder
icon Type of cut
Type of cut
Hammers
icon Cutting width
Cutting width
160 - 220 cm
icon Tractor power
Tractor power
35 - 160 hp
icon Deposit
Deposit
25 L
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Medium
icon Number of hammers
Number of hammers
20 - 26
icon Weight
Weight
590 - 650 Kg
€4,508.29 excl. VAT
- 13%
€3,922.21 excl. VAT
€4,745.88 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


GARTO HCGH-2 Shredder with Side Disk
€4,745.88
Select
Qty

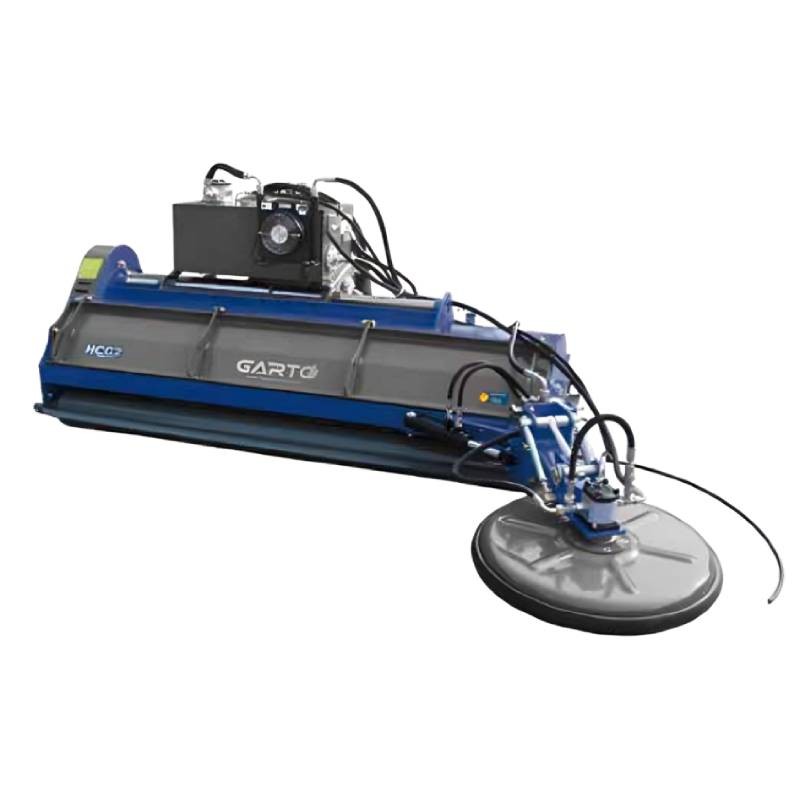

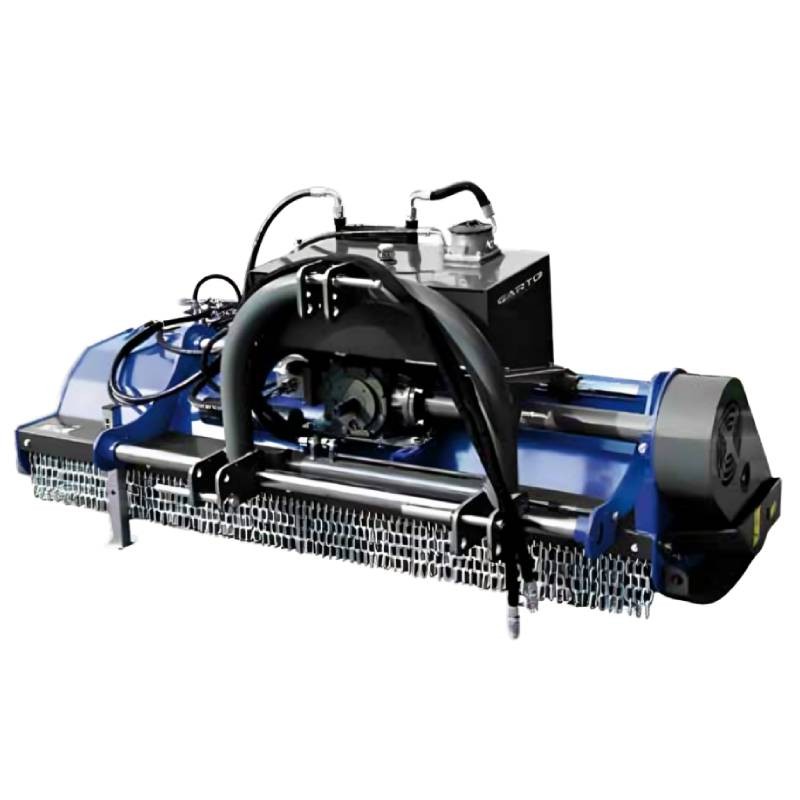

GARTO HCGH-2 + DISC 650 Shredder

The GARTO HCGH-2 + DISC 650 is designed for professionals looking for versatility in a single pass. Its hammer shredding system is perfectly complemented by the inter-row disc, making it possible to clean both the main fairway and hard-to-reach edges.

Thanks to its integrated oil cooler, the machine can work in intensive days while maintaining the optimum temperature of the hydraulic system, which extends the service life of all its components.

The robust chassis design and 14 ml/r pump flow rate ensure smooth and efficient power transmission. The hydraulic offset allows the operator to adjust the position of the shredder in real time, adapting to uneven terrain or crop layout. It is the perfect tool for the maintenance of farms, olive groves and vineyards that require a thorough control of the vegetation.

There are different models of the HCGH-2 + DISC 650 series, with different weights and number of hammers, to adapt to the needs of each farm and the power of your tractor.

Technical Specifications

Model HCGH-2 160 HCGH-2 180 HCGH-2 200 HCGH-2 220
Weight 590 kg 610 kg 630 kg 650 kg
Fuel tank 25 L 25 L 25 L 25 L
Working width 160 cm 180 cm 200 cm 220 cm
Number of hammers 20 22 24 26
Power required 35 x 160 hp 35 x 160 hp 35 x 160 hp 35 x 160 hp

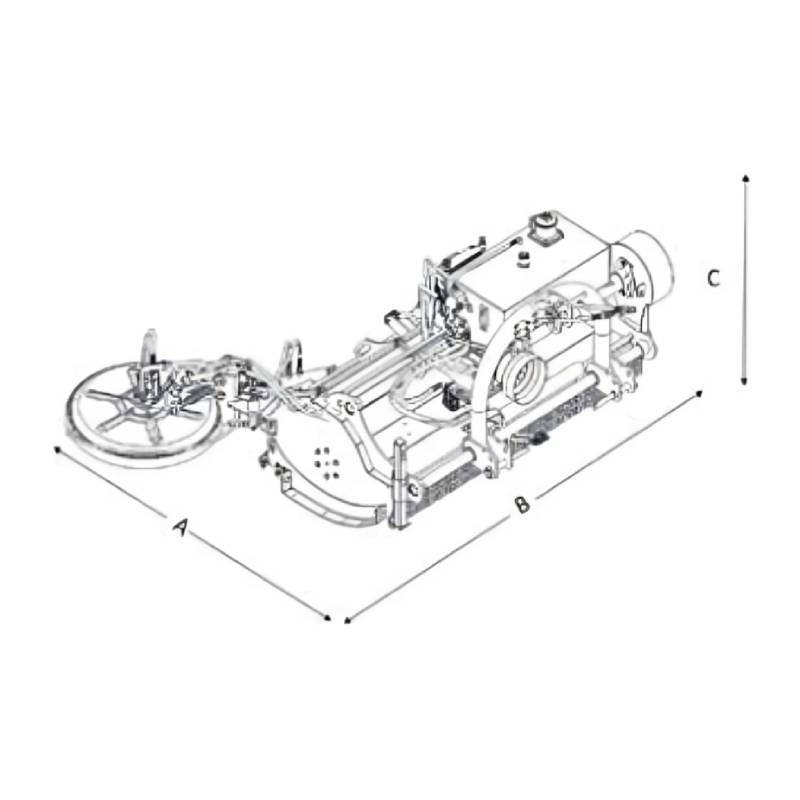

Dimension A 1920 mm 1920 mm 1920 mm 1920 mm
Size B 2440 mm 2690 mm 2870 mm 3070 mm
Size C 990 mm 990 mm 990 mm 990 mm
Brushcutting disc 650 mm 650 mm 650 mm 650 mm
Oil cooler Yes Yes Yes Yes
Hydraulic equipment Yes Yes Yes Yes
Cardan shaft included Yes Yes Yes Yes
DISC 650" overall disc width 620 mm
Number of blades of the ''DISC 650" Disc 2

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department.
2627133

Data sheet

Shredder type
Rear shredder
Type of cut
Hammers
Cutting width
160 - 220 cm
Tractor power
35 - 160 hp
Deposit
25 L
Tank (L)
25 - 49 L
Cardan shaft
Including
Type of coupling
Lateral displacement
Displacement
Hydraulic
Robustness
Medium
Number of hammers
20 - 26
Working width (cm)
160 - 169 cm
180 - 189 cm
200 - 209 cm
220 - 229 cm
Weight
590 - 650 Kg

Specific References

mpn
HCGH-2 160
New

Agricultural Machinery After-Sales Service

At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.

Warranty and Factory Repair

Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.

Online Mechanics - Fast and Efficient

To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.

In-Shop Repair

If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.

☎️ Always by your side

Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

✔️ Advantages of buying in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
