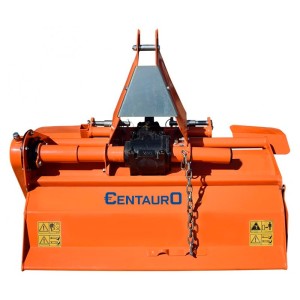

Zeppelin light tractor rotovator
- Working width: 900-1300 mm
- Required power: 12-20 / 40-60 Hp
- Weight: 175-255 kg
CARDAN SHAFT INCLUDED
€1,704.74 VAT incl.
CARDAN SHAFT INCLUDED

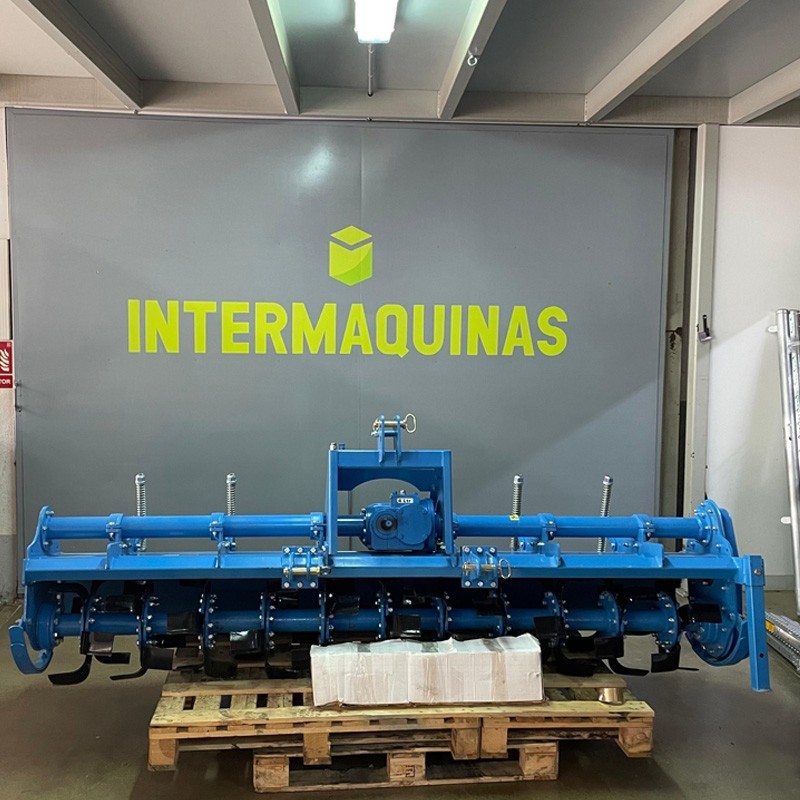

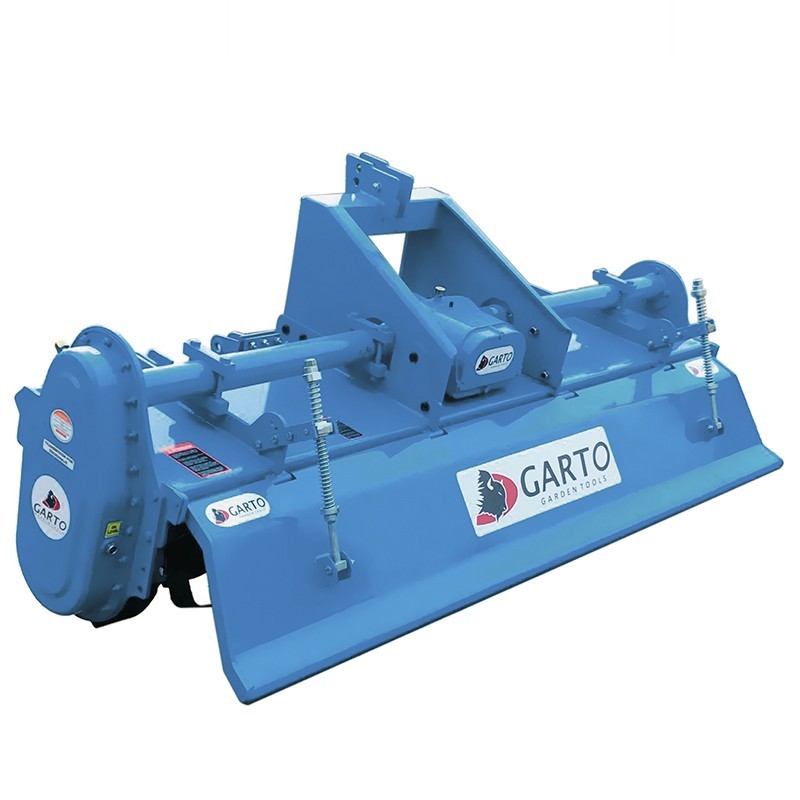

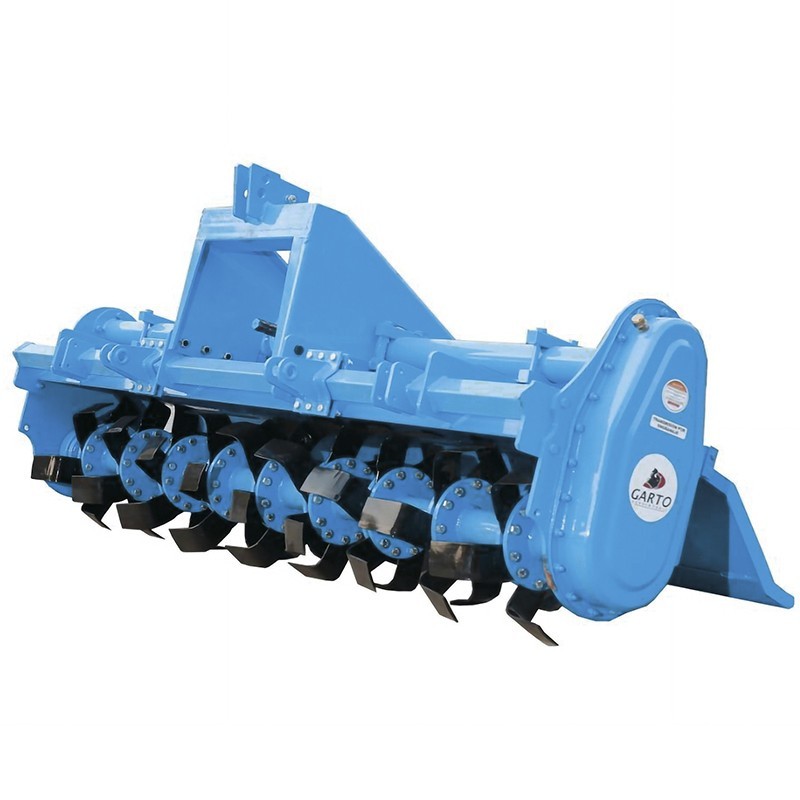

The Rotovator reinforced tractor milling machine Garto MGLR 170 mm is a robust and rugged machine designed for larger jobs. It comes equipped with a power take-off included to harness the tractor's power and ensure optimum performance.

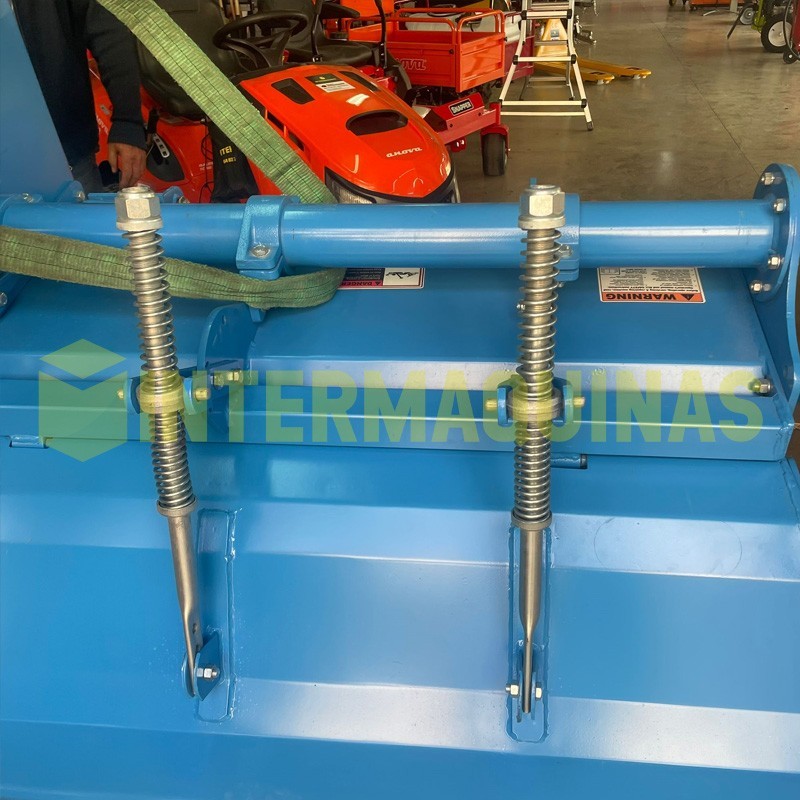

It has a 3-point hitch that ensures a secure and stable connection. The height-adjustable skids allow the working depth to be adjusted according to soil requirements and crop type.

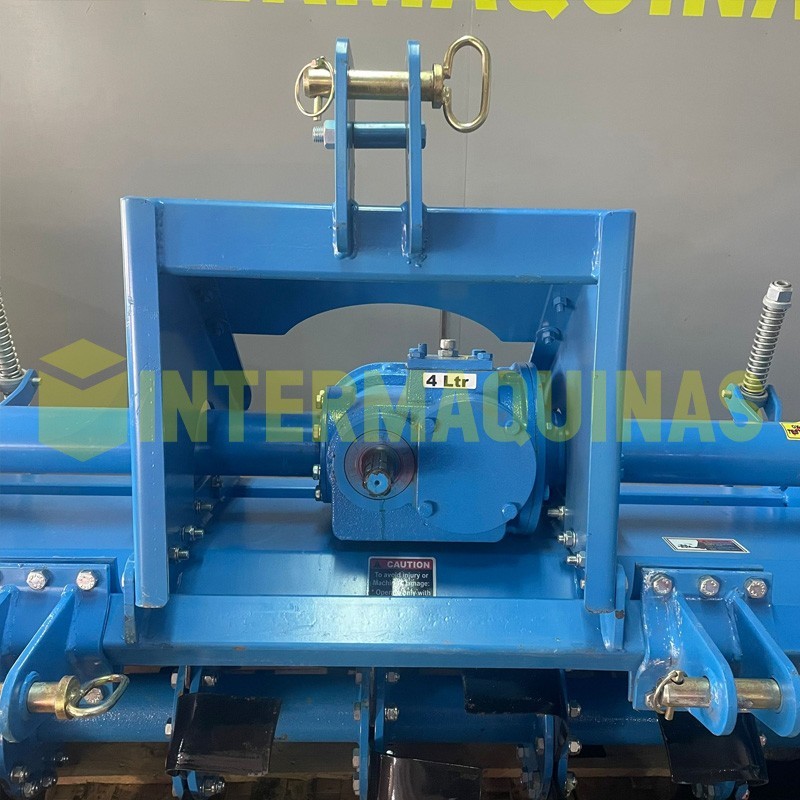

Its reinforced cast iron central group provides greater durability and resistance, even in demanding working conditions. The rear safety door is adjustable, which allows to control the waste output and to maintain a clean working environment.

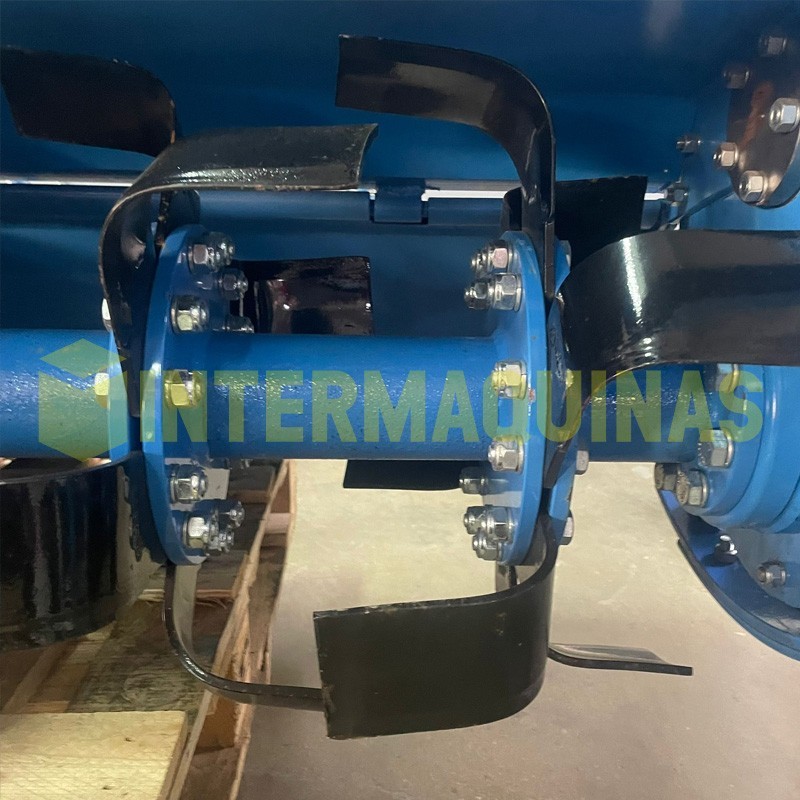

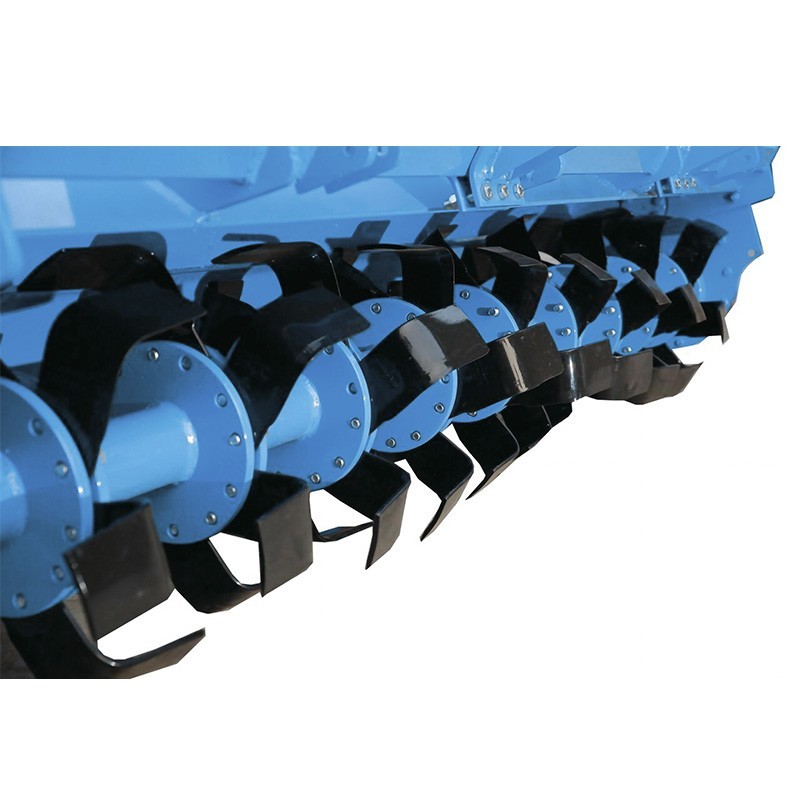

The blades are held in place by a reinforced double platen, ensuring a firm grip and efficient performance.
In conclusion, the Rotovator milling machine Garto MGLR is a reinforced attachment with features such as 3-point linkage, PTO, adjustable skids, reinforced cast iron center group, adjustable rear door and double platen blade clamping. It is ideal for larger jobs and offers reliable performance in agricultural work
Model | MGLR200 | MGLR225 | MGLR250 | MGLR275 |
Weight | 695 kg | 745 kg | 785 kg | 855 kg |
Working width | 2000 mm | 2250 mm | 2500 mm | 2750 mm |
Working depth | 170 mm | 170 mm | 170 mm | 170 mm |
No. of blades | 54 | 60 | 66 | 72 |
Blade thickness | 8 mm | 8 mm | 8 mm | 8 mm |
PTO rotation speed | 540/720/100 | 540/720/100 | 540/720/100 | 540/720/100 |
Power requirement | 90 hp | 90 hp | 90 hp | 90 hp |
IMPORTANT NOTICE |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
