Rotovator for Mini Tractor Dimago 125 16-26 HP
- Tractor power: 16 - 26 HP
- Working width 125cm
- Blades 28 (4 per disc)

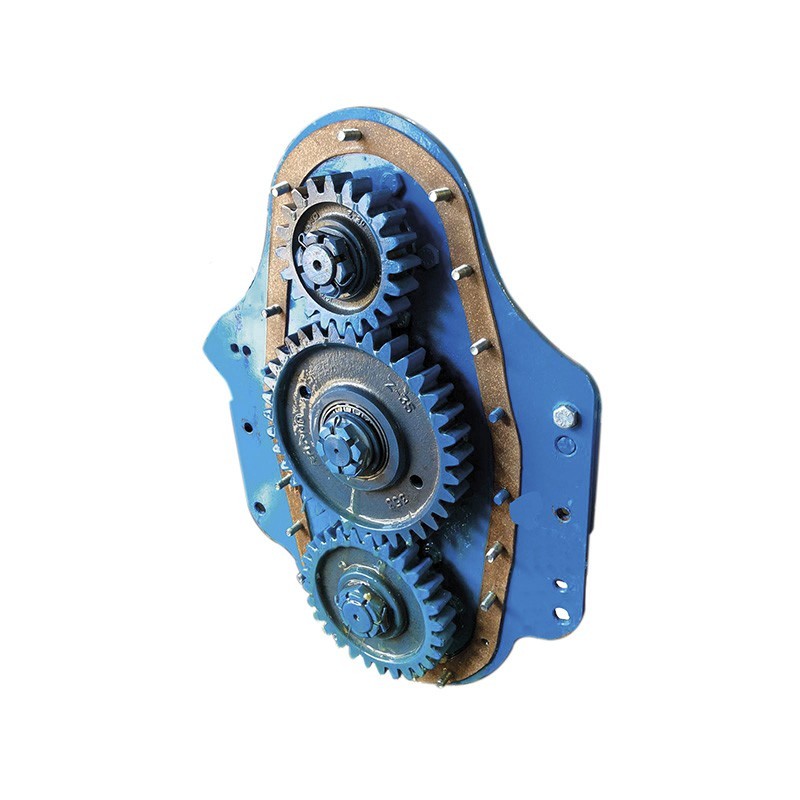

- Chain transmission
€1,465.85 VAT incl.
CARDAN SHAFT INCLUDED

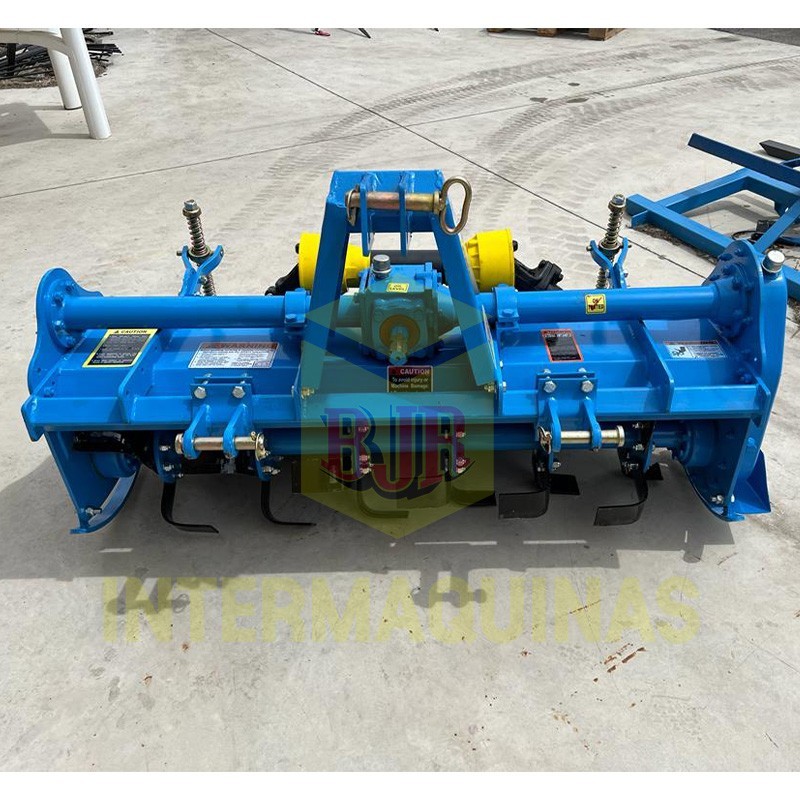

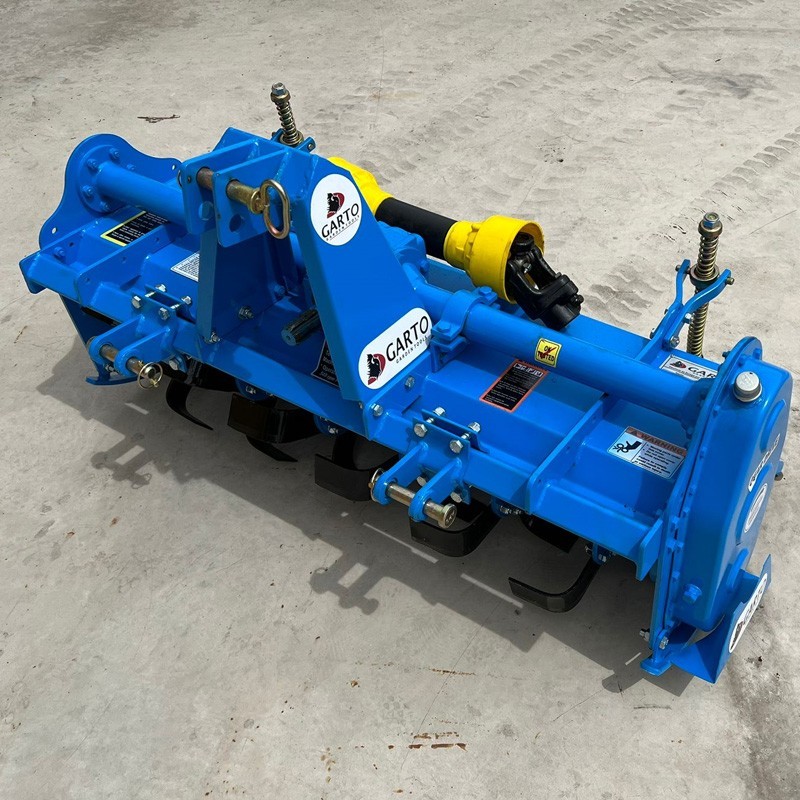

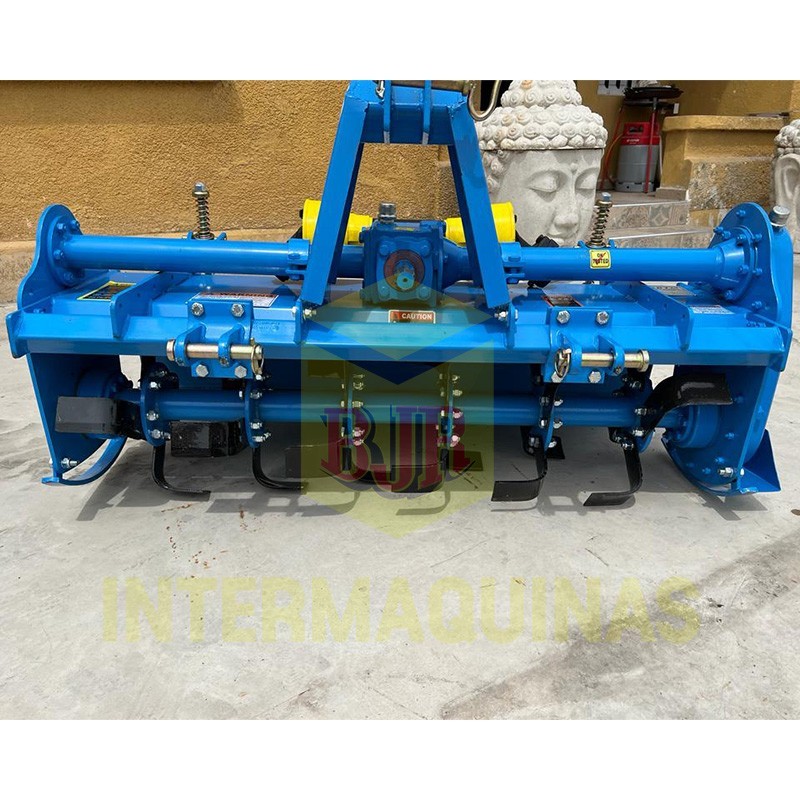

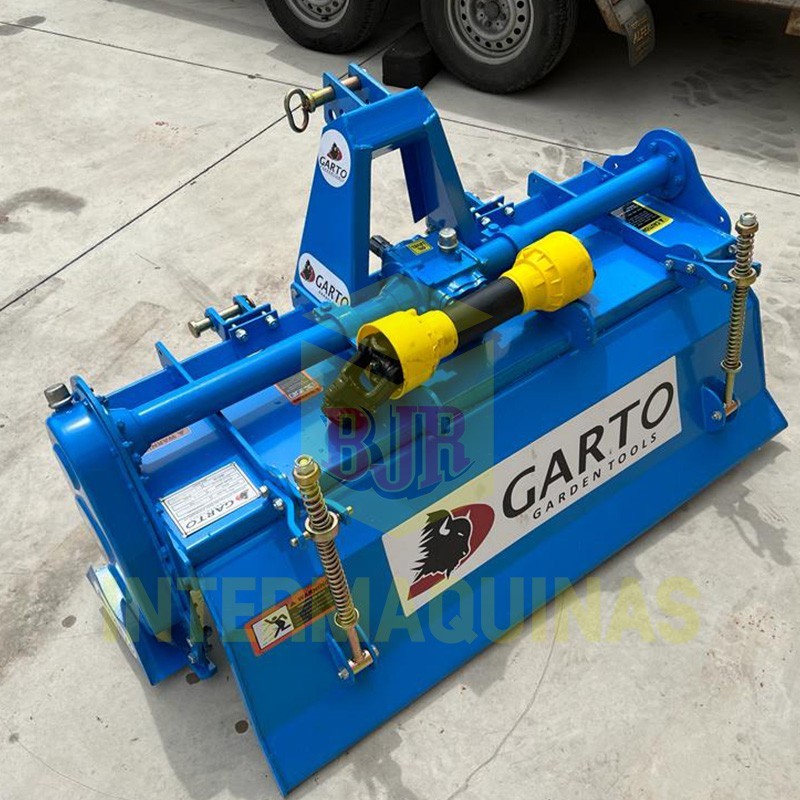

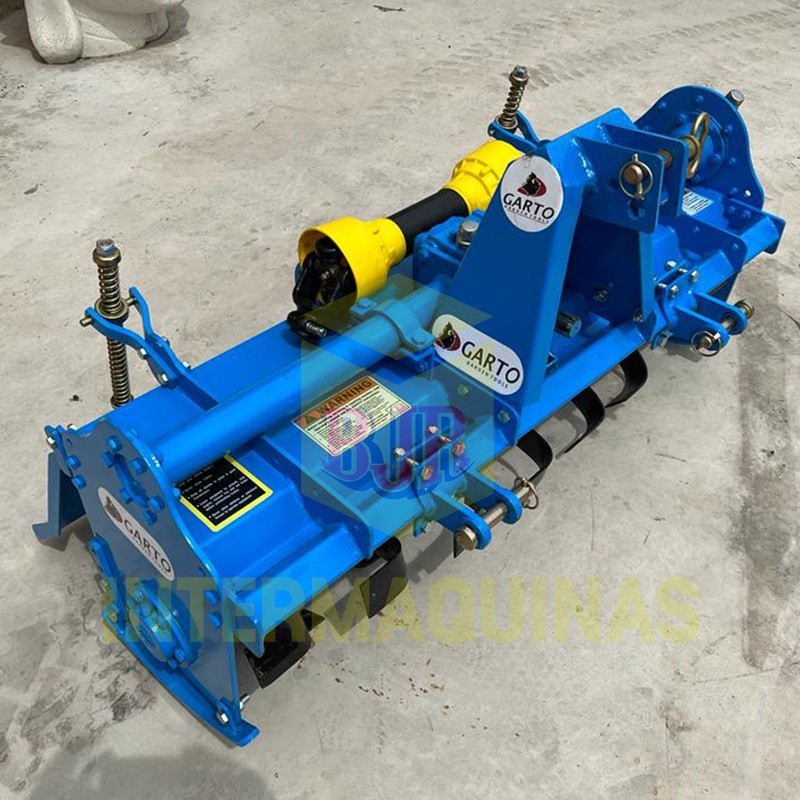

The Rotovator Tractor Router Garto RT 180 - 220 mm is a lightweight and versatile tool designed to work in conjunction with tractors. With its 3-point hitch, it attaches easily to the tractor, providing stability and safety during operation.
It comes with a cardan shaft included, which facilitates the transmission of power from the tractor to the rotovator, ensuring efficient performance. And thanks to its working width, which ranges from 1250 mm to 2000 mm, depending on the model, it allows it to adapt to different field sizes and specific needs.
The adjustable safety tailgate is a prominent feature that allows the exit of debris and materials to be controlled, improving operator safety and the working environment.
The working depth can also be adjusted depending on the model, being 180 mm or 220 mm. This provides flexibility to suit soil conditions and crop type.
Model | RT125 | RT135 | RT150 | RT160 | RT180 | RT200 |
Weight | 280 kg | 295 kg | 330 kg | 369 kg | 415 kg | 461 kg |
Working width | 1250 mm | 1350 mm | 1500 mm | 1600 mm | 1800 mm | 2000 mm |
Working depth | 180 mm | 180 mm | 180 mm | 220 mm | 220 mm | 220 mm |
No. of blades | 24 | 24 | 28 | 48 | 54 | 60 |
Blade thickness | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
PTO rotation speed | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
Power requirement | 20 - 40 hp | 20 - 40 hp | 50 - 90 hp | 60 - 110 hp | 90 - 120 hp | 90 - 120 hp |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
