Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

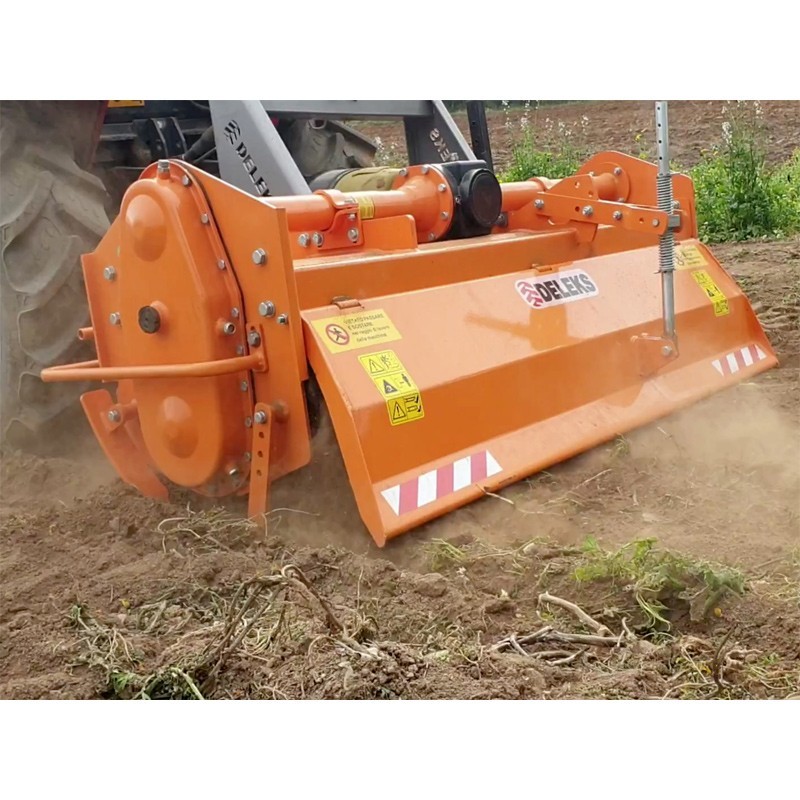

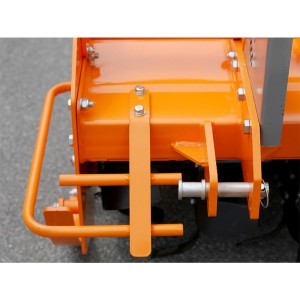

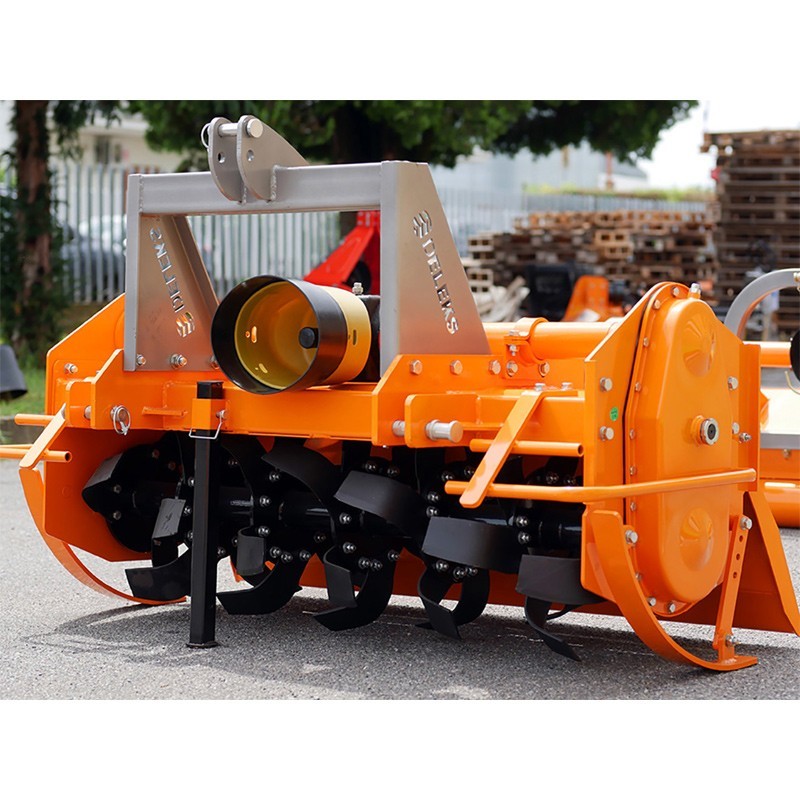

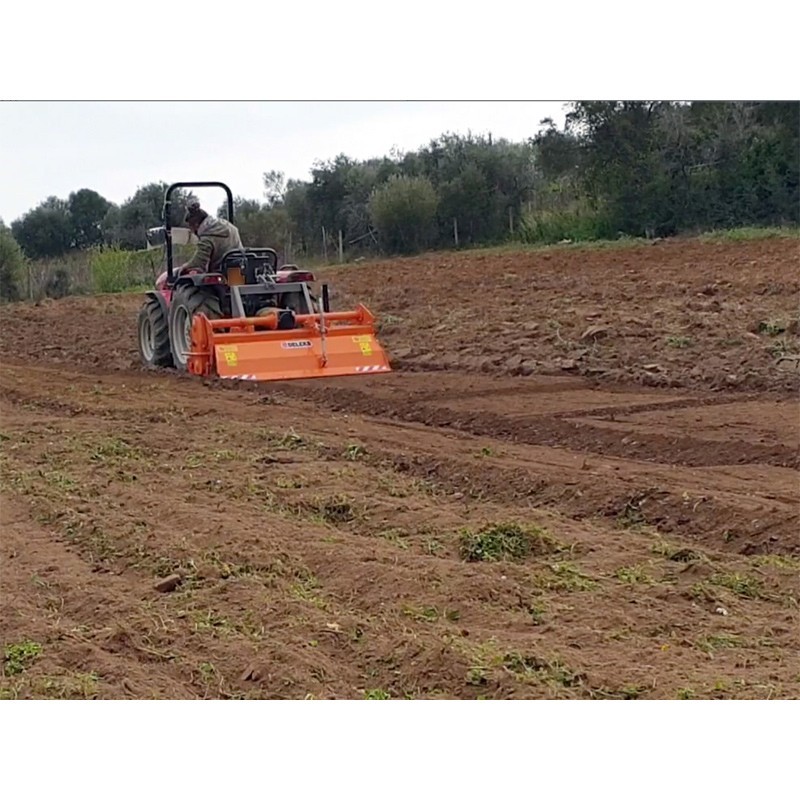

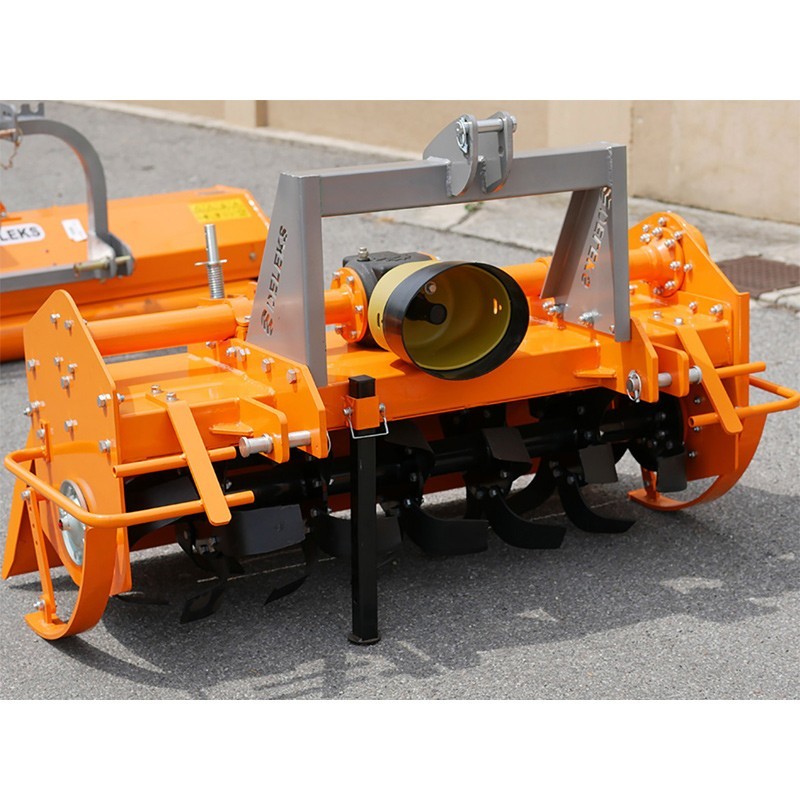

The Rotovator Deleks DFH-150 is specially designed for tractors with low horsepower, and is 35 to 60 HP. This model of rotovator is used for the soil preparation, in the fields, vegetable gardens for gardening.

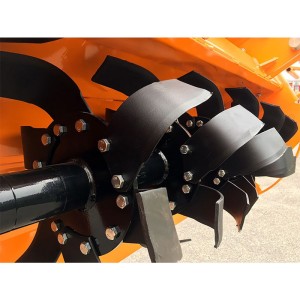

The model Deleks DFH-150 the blades are equipped with blades for preparation of planting beds or weed removal. It can be moved manually or hydraulically.
This Rotovator from Deleks also has a cAT 1-2 universal 3-point linkage. It is suitable for most tractors from 35 to 60 HP. As for its features we can highlight its good transmission box Lombarda Ingranaggi made in Italy that has a free wheel.
The Rotovator Deleks DFH-150Comes with cE gimbal included, it also includes SKF branded rotor bearings. The implement can be used on low horsepower tractors in gardens and orchards thanks to its light weight of 352kg.
This model of Rotovator Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1495mm and the total width 1700mm. We can also highlight the cutting height adjustable from 160 to 200 mm and the total height of 1030mm.
Overall width | 1700 mm |
Weight | 352 kg |
Total height | 1030 mm |
Tractor power | 35 - 60 HP |
3-point hitch | Cat. 2 (ø 25.0-28.0mm |
Position of the gearbox | Central |
Distance between lower points | 745 - 870 mm |
Total length | 720 mm |
Rotor: diameter | 76 mm |
Rotor: blade thickness | 8 mm |
Transmission | Gears |
Working width | 1495 mm |
Working depth (min/max) | 160-200 mm |
Gearbox to ground clearance | 590 mm |
Cardan | CE 6x800 mm + Friction ø180mm |
Rotor: diameter with blades | 480 mm |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6309(L)" |
Rotor: No. of sections | 8 |
No. of blades in each section | 6 |
Number of blades | 42 |
Blades: height/ width | 180 / 83 mm |
Blades: curved extension | 250 mm |
Blades: distance between holes | 55 mm |
Blades: diameter holes | 13 mm |
Blades: thickness | 6 mm |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) |
Direction of rotation PTO | Right side |
Rotor speed | 210 rpm |
Case oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 810 g |
Packaging dimensions | 800*1730*820 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

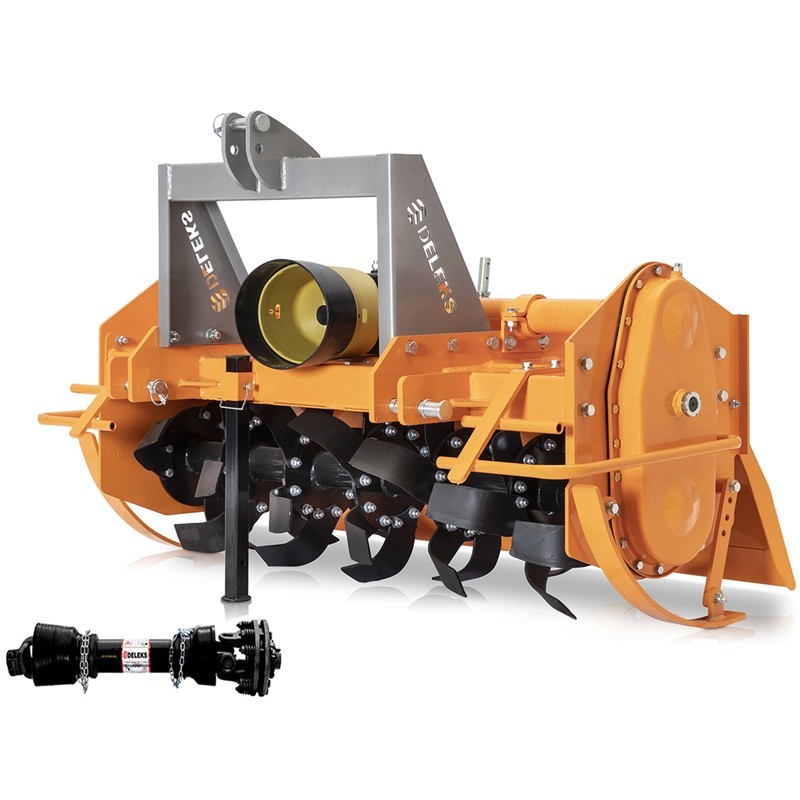

CARDAN SHAFT INCLUDED
