Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

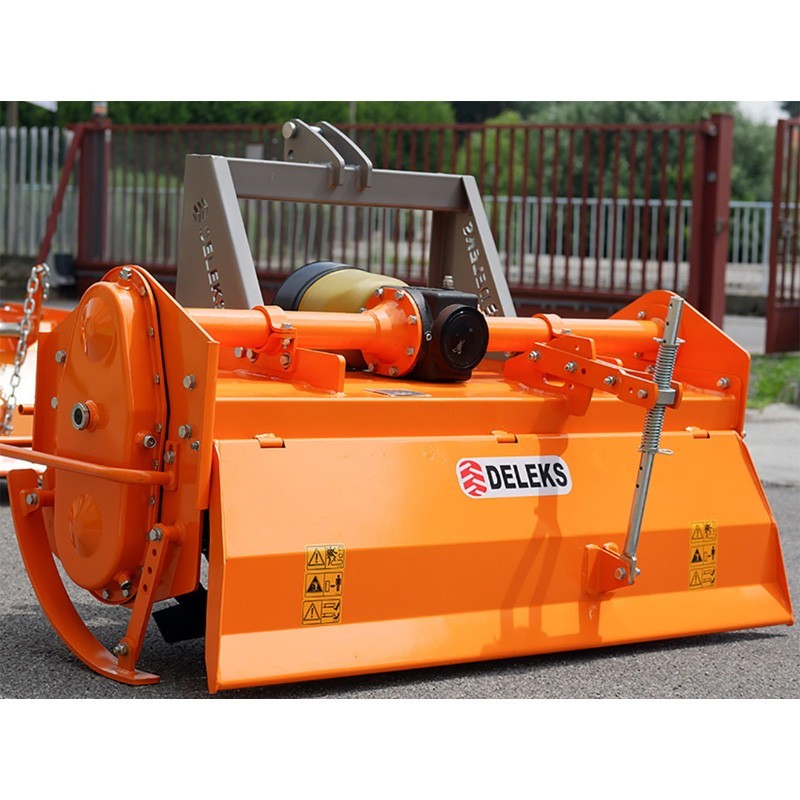

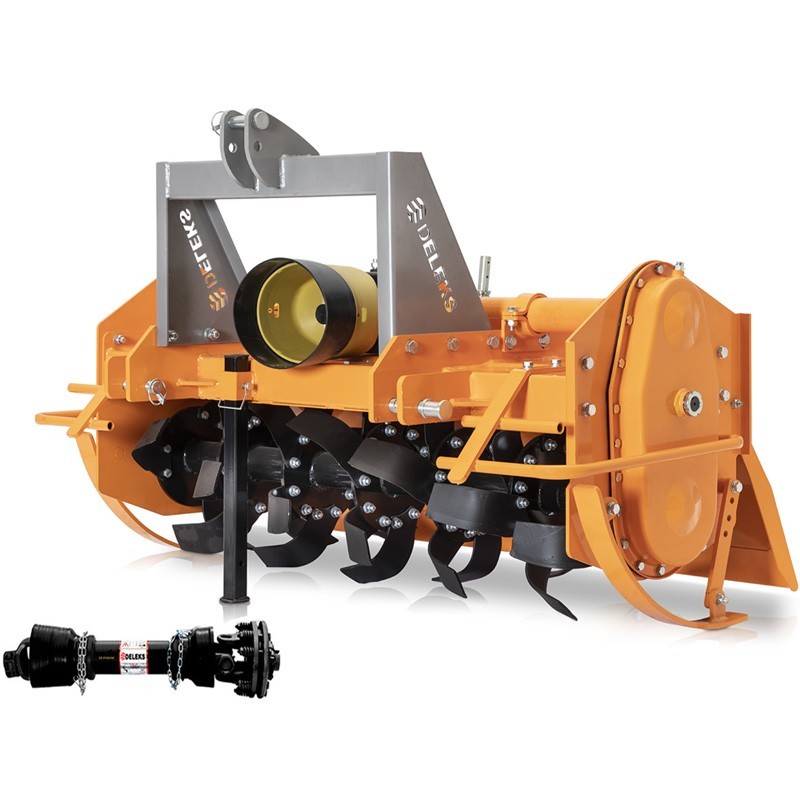

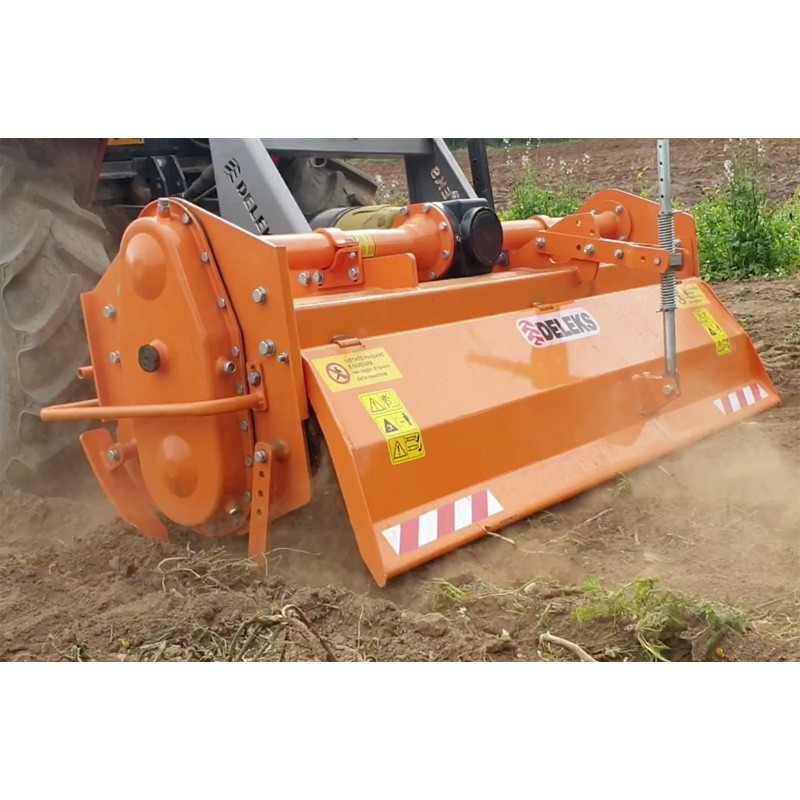

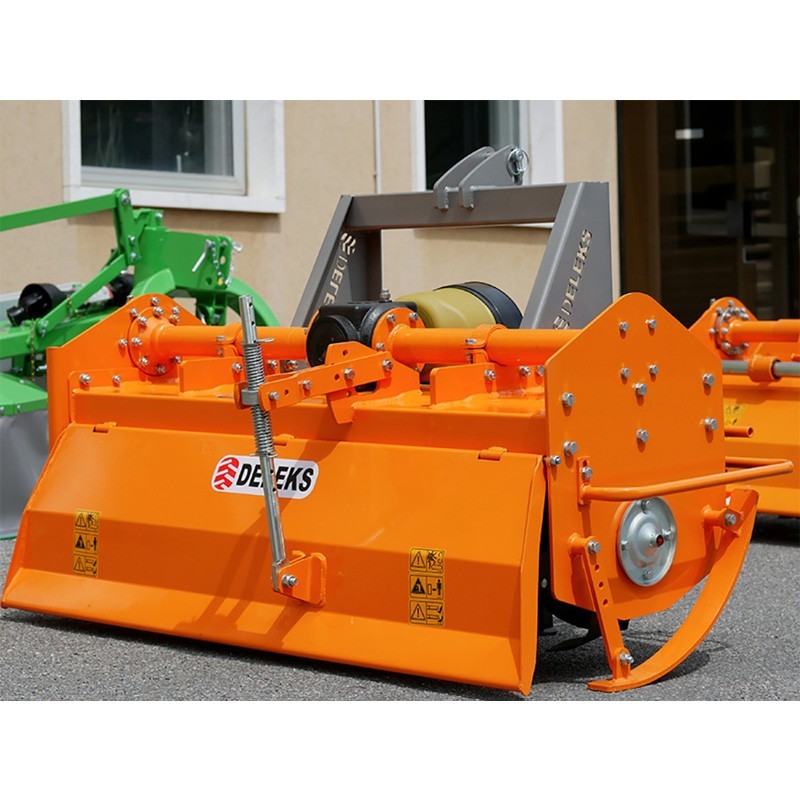

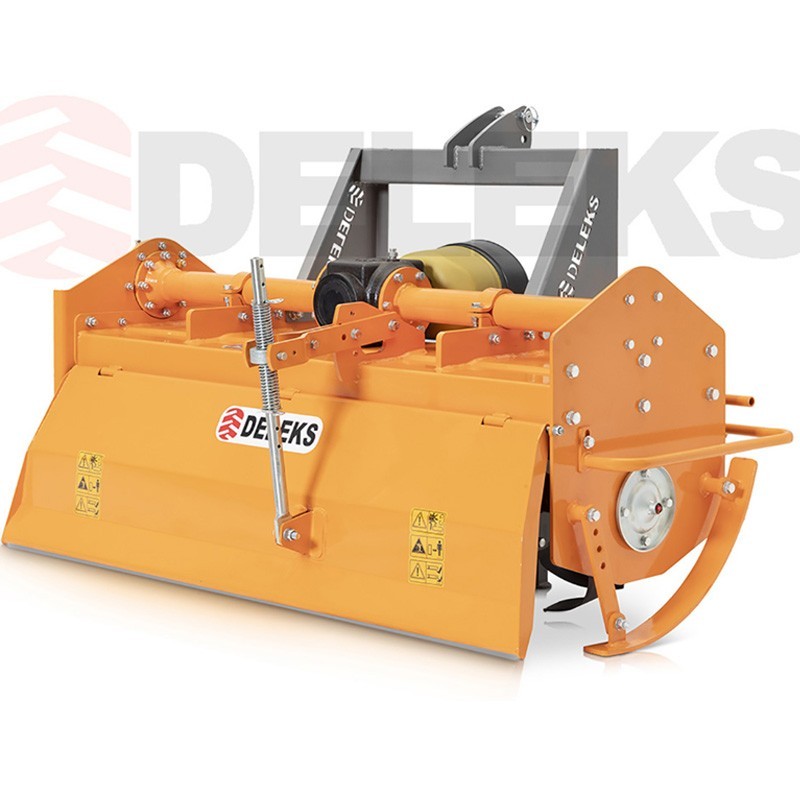

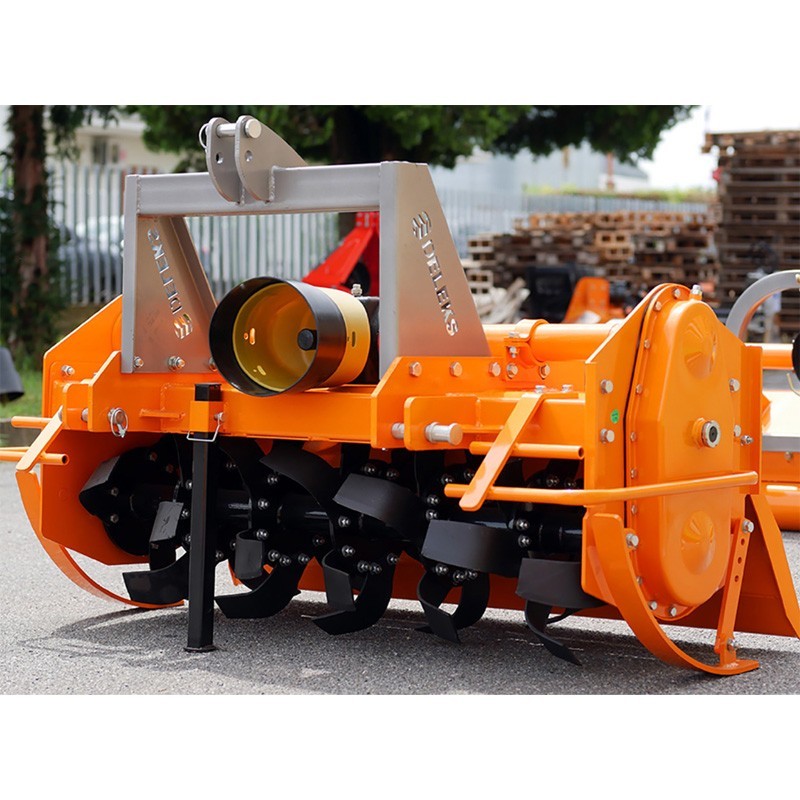

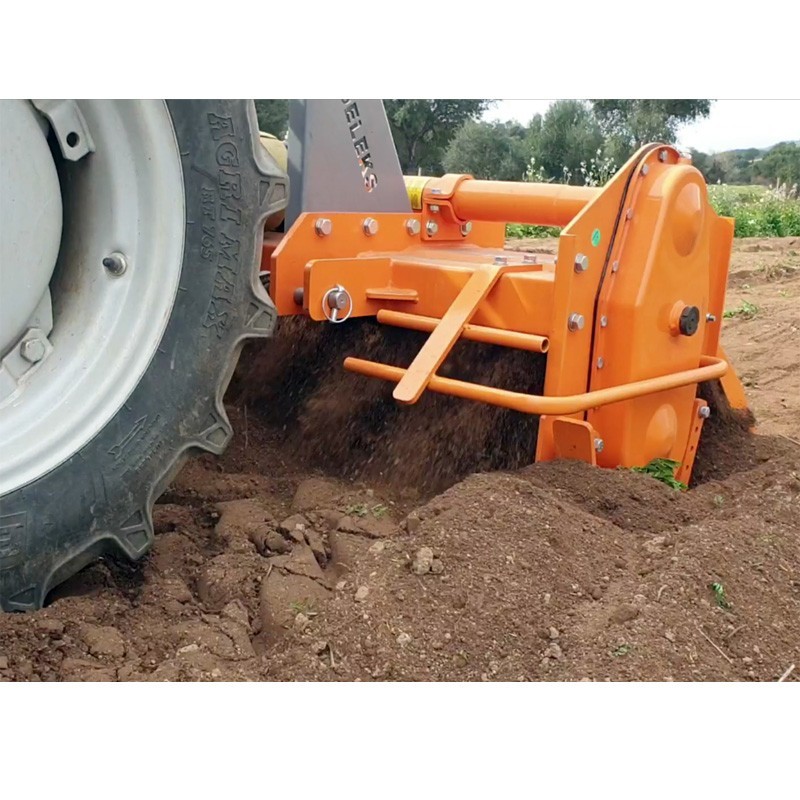

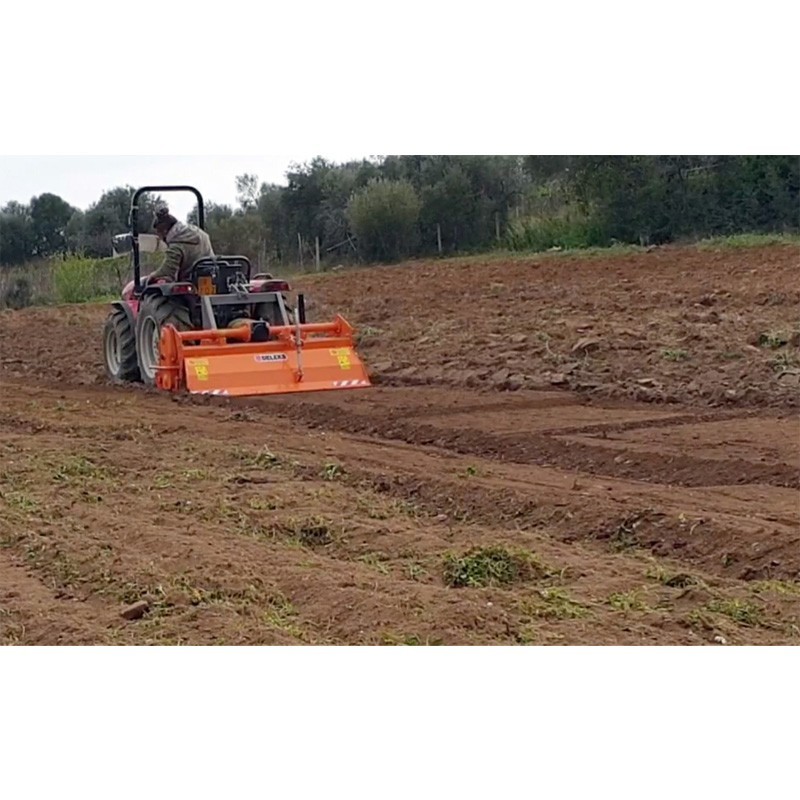

The Rotovator for tractor Deleks DFH-135 1345 mm is designed for soil preparation in the fields, orchards and vegetable gardens. This machine tills the soil for preparation of planting beds or to remove weeds.
This rotovator is adapted for most of the tractors of 30 to 60 HP, has a category 1-2 3-point linkage and a 540 r/min gearbox.

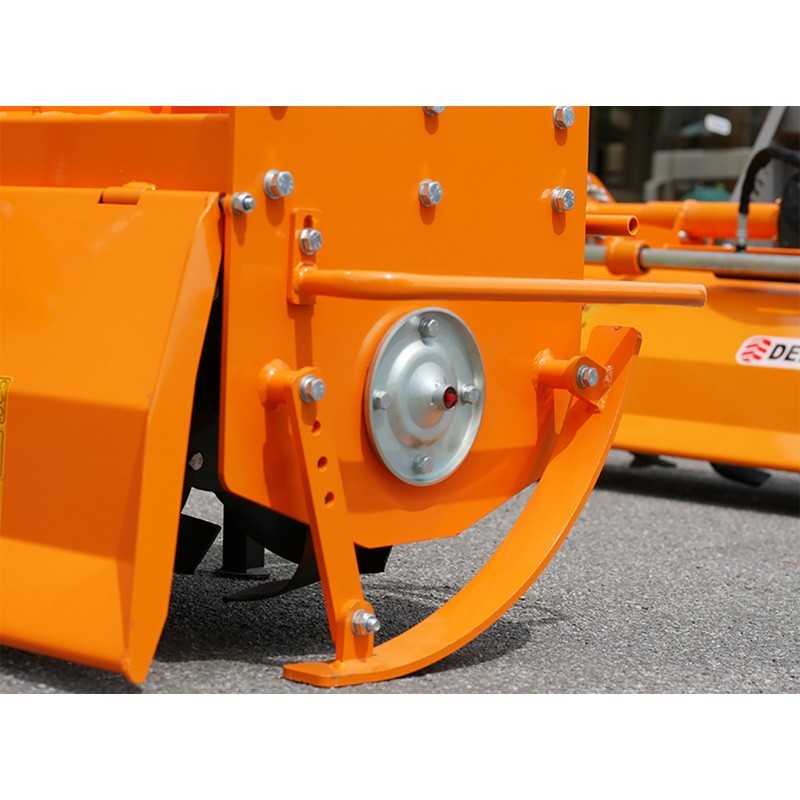

Its transmission box is located on the side and has sprockets has 6 blades per holder, about adjustable skids to adjust it to the required working depth, its rear door can be opened, in addition to being fitted with the cE safety.
Overall width | 1550.0 mm |
Weight | 322.0 kg |
Total height | 1030 mm |
Tractor power | 30 - 60 HP |

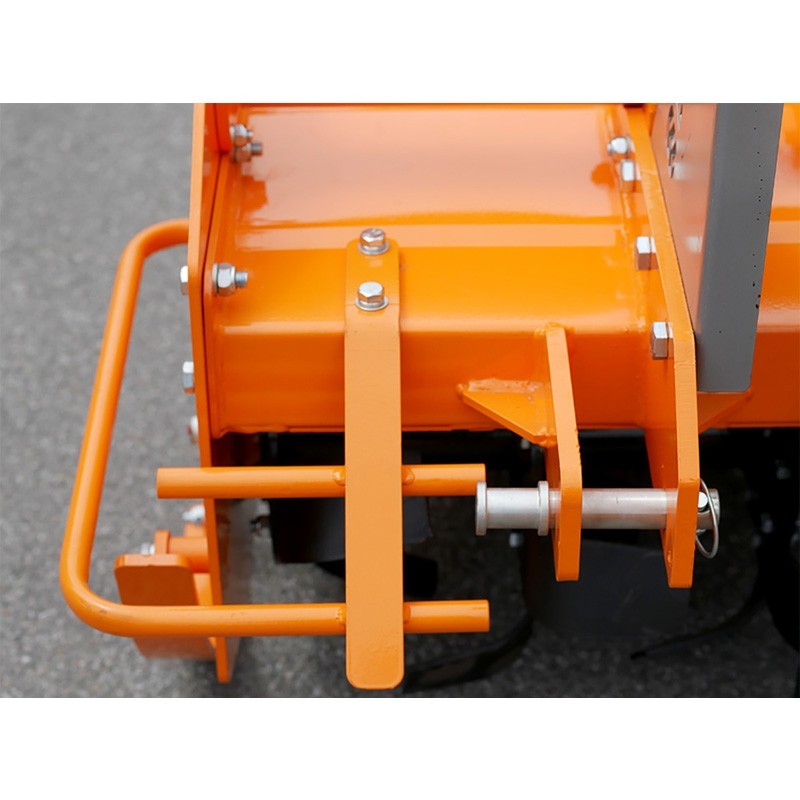

3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm |
Position of the gearbox | Central |
Distance between lower points | 745 - 870 mm |
Total length | 720 mm |
Rotor: diameter | 76 mm |
Rotor: blade thickness | 8 mm |
Transmission | Gears |
Working width | 1345.0 mm |
Working depth (min/max) | 160-200 mm |
Gearbox to ground clearance | 590 mm |
Cardan | CE 6x800 mm + Friction ø180mm |
Rotor: diameter with blades | 480 mm |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6309(L)" |

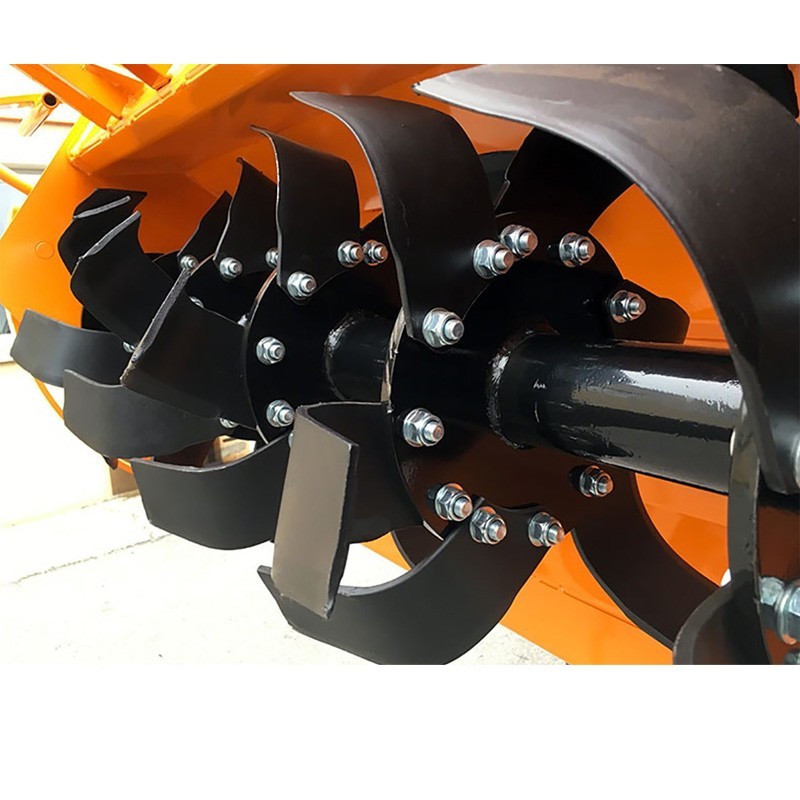

Rotor: No. of sections | 6 |
No. of blades in each section | 6 |
Number of blades | 36 |
Blades: height/ width | 180 / 83 mm |
Blades: curved extension | 250 mm |
Blades: distance between holes | 55 mm |
Blades: diameter holes | 13 mm |
Blades: thickness | 6 mm |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) |
Direction of rotation PTO | Right side |
Rotor speed | 210 rpm |
Case oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 810 g |
Packaging dimensions | 80 x 158 x 82 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
