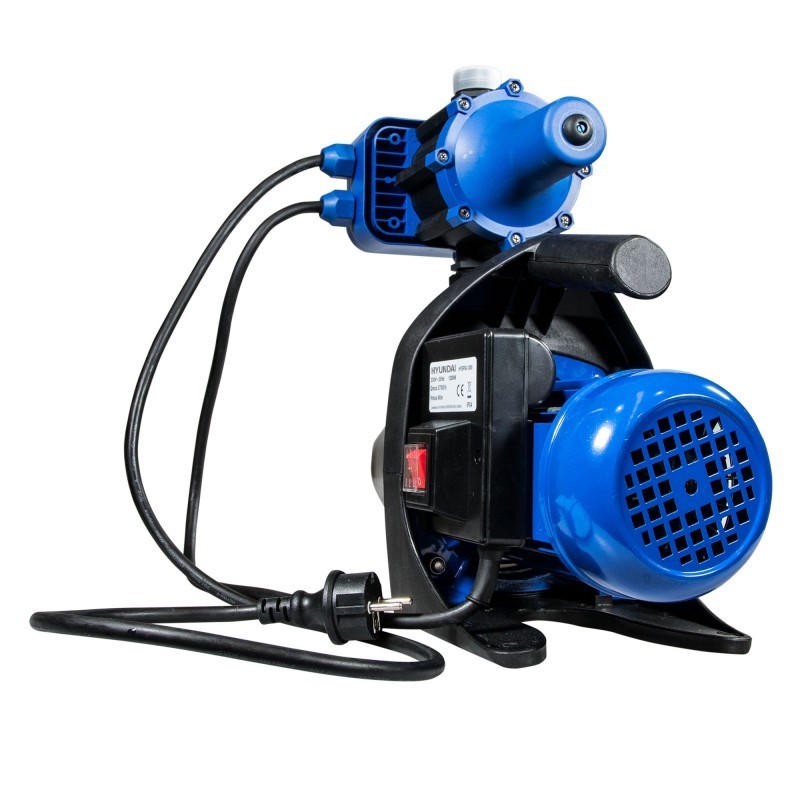

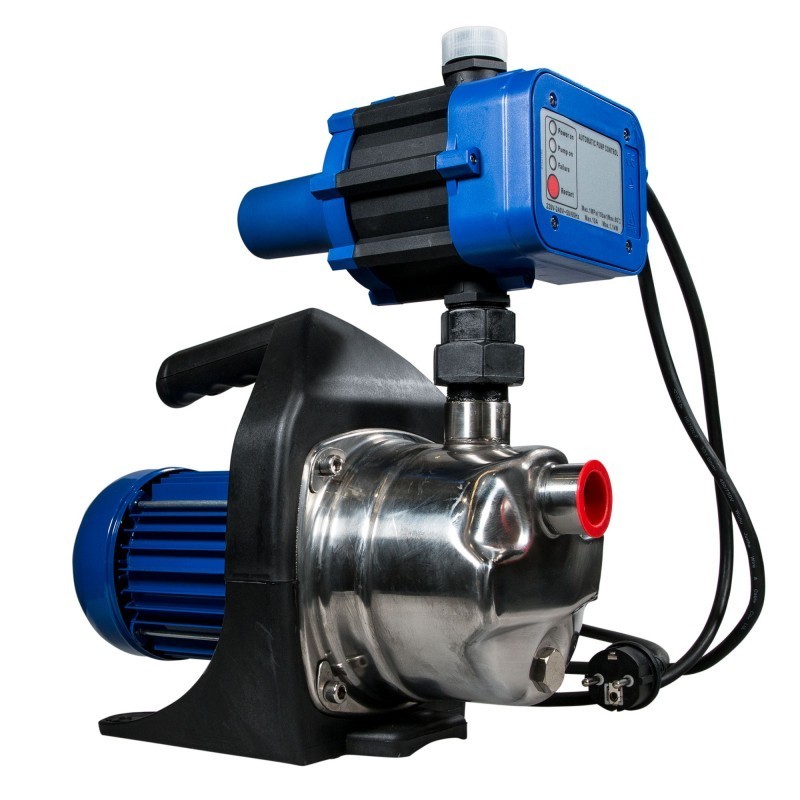

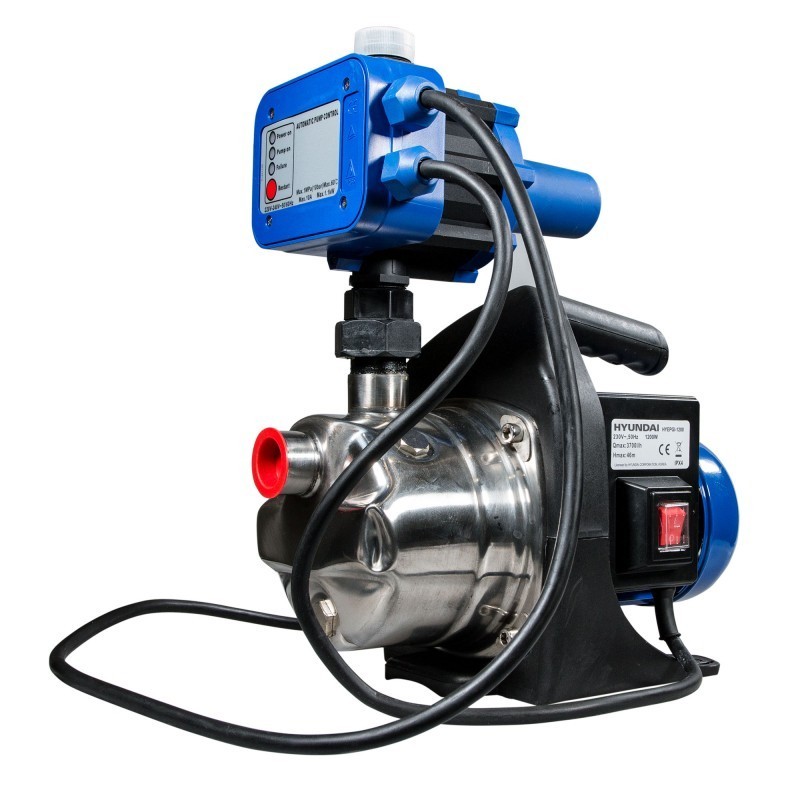

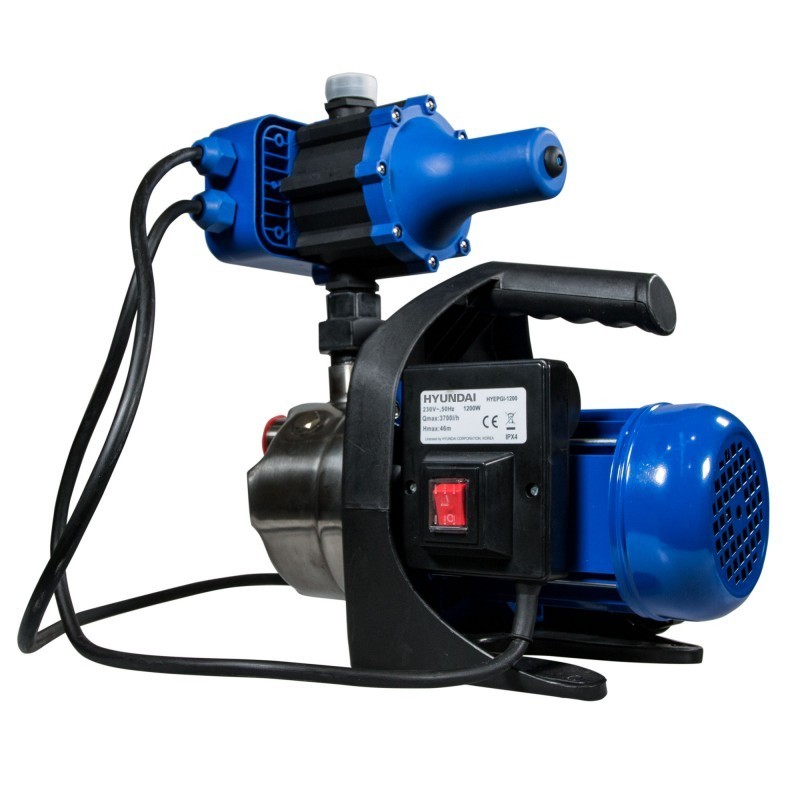

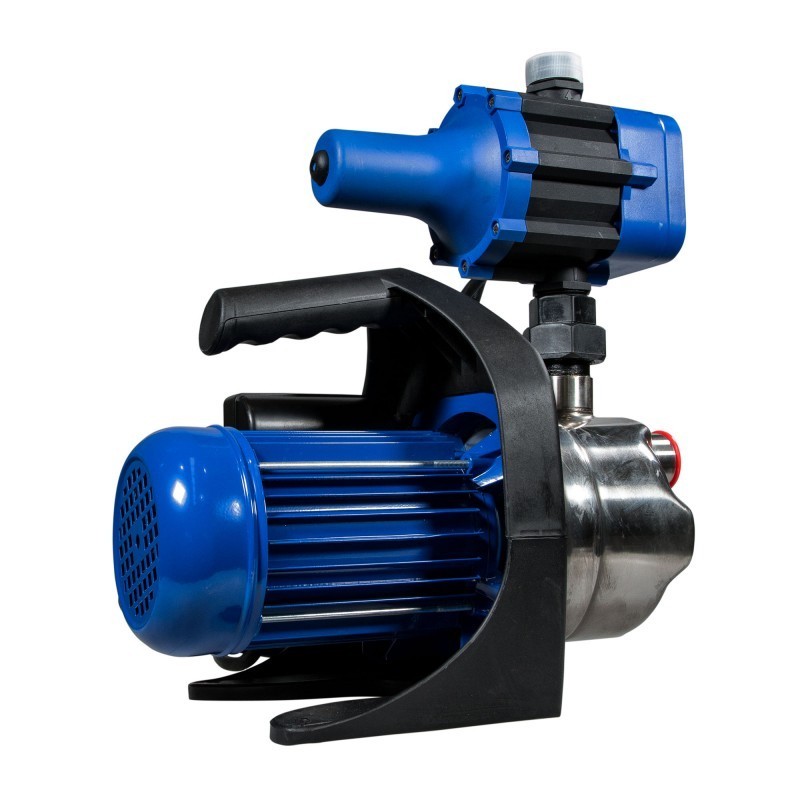

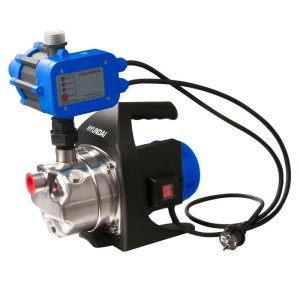

Pressure boosting system Hyundai HYEPGI-1200
Hyundai The HYEPGI-1200 HYEPGI-1200 booster set is a high efficiency equipment that incorporates an automatic KIT for easy operation. With a power of 1,200 W and a stainless steel pump body, this device guarantees durability and resistance in its daily operation.

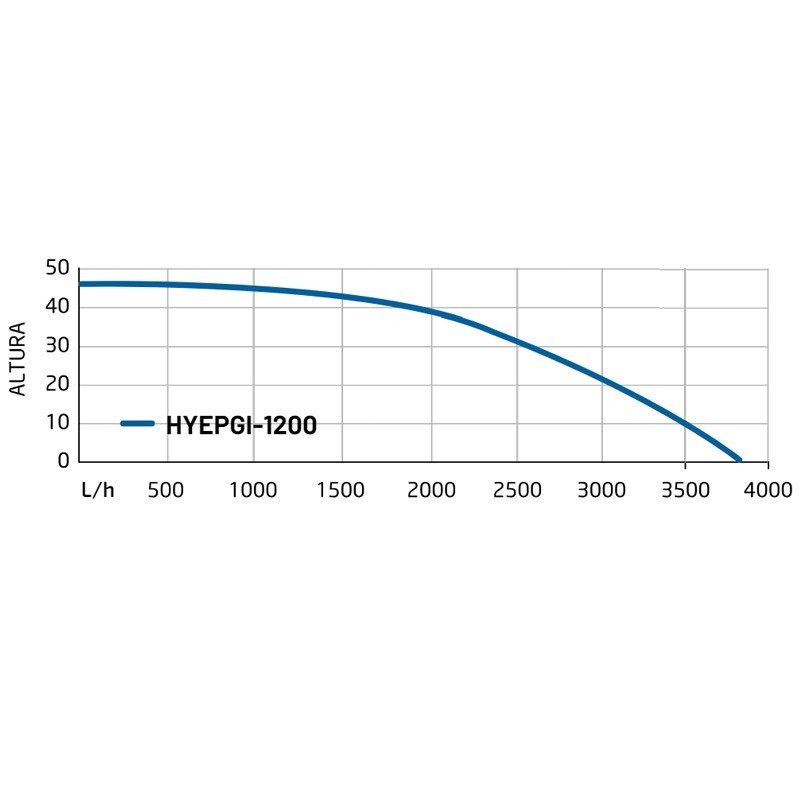

Its self-priming design allows for quick and easy start-up, optimizing its use in various applications. Capable of reaching a maximum flow rate of 3,700 liters per hour and a maximum head of 46 meters, the HYEPGI-1200 is ideal for meeting the water supply needs of homes and small industries.
Its maximum suction capacity of 8 meters and maximum pressure of 4.6 bar ensure efficient and consistent performance. In addition, with a net weight of 9.5 kg and a voltage of 220 V, it is easy to handle and install.
This booster set is especially useful in irrigation systems, domestic water supply and in situations where constant pressure is required. Its 1" suction and delivery diameter facilitates connection to different piping systems, thus ensuring remarkable versatility in daily use.
Technical data
| Power |
1.200 W |
| Voltage |
220 V |
| Maximum flow rate |
3.700 L/h |
| Maximum height |
46 m |
| Max. suction |
8 m |
| Diameter Asp. and imp. |
1" |
| Max. pressure |
4,6 bar |
| Net weight |
9,5 Kg |
| Dimensions |
39,5 x 34 x 18 cm |
| IMPORTANT NOTICE |
|
| It is obligatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement, unless an examination is pending. |
